Citation: LI Song, GAN Xian-Xue, TANG Liang-Fu. Syntheses and Catalytic Properties of Metal Carbonyl Derivatives with Hydroxymethyl Functionalized Pyrazoles[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(8): 1573-1580. doi: 10.11862/CJIC.2018.183 shu

Syntheses and Catalytic Properties of Metal Carbonyl Derivatives with Hydroxymethyl Functionalized Pyrazoles

1.
State Key Laboratory of Elemento-Organic Chemistry, College of Chemistry, Nankai University, Tianjin 300071, China
2.
College of Chemistry and Chemical Engineering, Yibin University, Yibin, Sichuan 644007, China

Corresponding author: TANG Liang-Fu, lftang@nankai.edu.cn
Received Date: 10 April 2018
Revised Date: 22 April 2018

Figures(9)

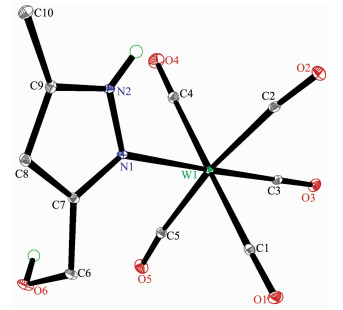

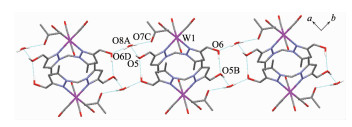

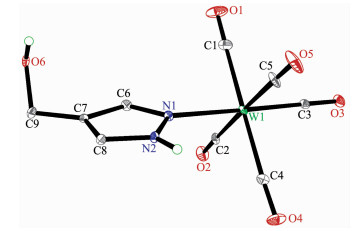

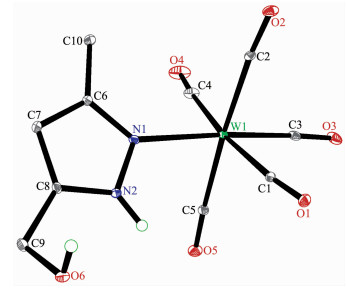

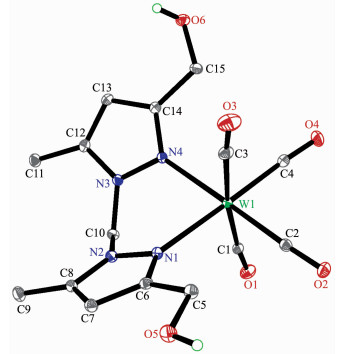

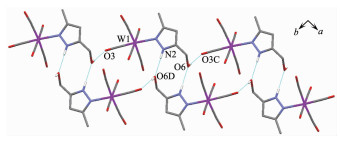

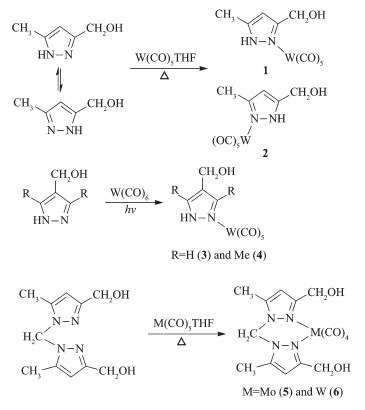

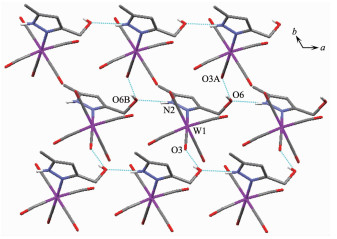

Reaction of tungsten or molybdenum carbonyl with 3(5)-hydroxymethyl-5(3)-methylpyrazole (L¹), 4-hydroxymethylpyrazole (L²) and bis(3-hydroxymethyl-5-methylpyrazol-1-yl)methane (L³) yielded complexes LW(CO)₅ (L=L¹ or L²) and L³M(CO)₄ (M=Mo or W), respectively. These complexes have been fully characterized by NMR, IR and X-ray crystal structural analyses, indicating that they form 1D or 2D organometallic supramolecular architectures through O-H…O, N-H…O and O-H…OC-M hydrogen bonding interactions, and these structures are significantly affected by the relative position of the hydroxymethyl group on the pyrazole ring. In addition, these complexes show moderate catalytic activity for the cyclotrimerization reaction of phenylacetylene.
- N ligand,
- pyrazole,
- hydrogen bond,
- metal carbonyl complex,
- catalysis
1. [1]
  Lewinski J, Zachara J, Justyniak I, et al. Coord. Chem. Rev., 2005, 249:1185-1199 doi: 10.1016/j.ccr.2004.11.013
2. [2]
  Steiner T. Angew. Chem. Int. Ed., 2002, 41:48-76 doi: 10.1002/1521-3773(20020104)41:1<>1.0.CO;2-5
3. [3]
  Mountford A J, Lancaster S J, Coles S J, et al. Organometallics, 2006, 25:3837-3847 doi: 10.1021/om060319d
4. [4]
  Braga D, Grepioni F. Acc. Chem. Res., 2000, 33:601-608 doi: 10.1021/ar990143u
5. [5]
  Xie Y F, Zhao D W, Tang L F. J. Organomet. Chem., 2016, 819:53-60 doi: 10.1016/j.jorganchem.2016.06.021
6. [6]
  Braunstein P, Taquet J, Siri O, et al. Angew. Chem. Int. Ed., 2004, 43:5922-5925 doi: 10.1002/(ISSN)1521-3773
7. [7]
  Camiolo S, Coles S J, Gale P A, et al. Chem. Commun., 2000:275-276
8. [8]
  Yang P Y, Chang F C, Suen M C, et al. J. Organomet. Chem., 2000, 596:226-231 doi: 10.1016/S0022-328X(99)00546-X
9. [9]
  Alkorta I, Claramunt R M, Díez-Barra E, et al. Coord. Chem. Rev., 2017, 339:153-182 doi: 10.1016/j.ccr.2017.03.011
10. [10]
  Pettinari C, Tbcarub A, Galli S. Coord. Chem. Rev., 2016, 307:1-31 doi: 10.1016/j.ccr.2015.08.005
11. [11]
  Otero A, Fernández-Baeza J, Lara-Sánchez A, et al. Coord. Chem. Rev., 2013, 257:1806-1868 doi: 10.1016/j.ccr.2013.01.027
12. [12]
  Stumpf S, Wagner M, Bolte M. Acta Crystallogr. Sect. E:Struct. Rep. Online, 2004, E60:o1754-o1755
13. [13]
  Yan G B. Acta Crystallogr. Sect. E:Struct. Rep. Online, 2007, E63:o2889
14. [14]
  Kaushik M, Singh A, Kumar M. Eur. J. Chem., 2012, 3:367-394 doi: 10.5155/eurjchem.3.3.367-394.604
15. [15]
  Ryan D E, Cardin D J, Hartl F. Coord. Chem. Rev., 2017, 335:103-149 doi: 10.1016/j.ccr.2016.12.018
16. [16]
  Harit T, Bellaouchi R, Mokhtari C, et al. Tetrahedron, 2017, 73:5138-5143 doi: 10.1016/j.tet.2017.07.006
17. [17]
  Breschi C, Piparo L, Pertici P, et al. J. Organomet. Chem., 2000, 607:57-63 doi: 10.1016/S0022-328X(00)00211-4
18. [18]
  CrystalStructure 3. 7. 0, Crystalclear 1. 36, Crystal Structure Analysis Package, Rigaku and Rigaku/MSC, TX, 2000.
19. [19]
  Sheldrick G M. Acta Crystallogr. Sect. A:Found. Crystallogr., 2008, A64:112-114
20. [20]
  Kraihanzel C S, Cotton F A. Inorg. Chem., 1963, 2:533-540 doi: 10.1021/ic50007a028
21. [21]
  Orgel L E. Inorg. Chem., 1962, 1:25-29 doi: 10.1021/ic50001a007
22. [22]
  Yang H, Li S, Tang L F. Transition Met. Chem., 2016, 41:655-661 doi: 10.1007/s11243-016-0065-0
23. [23]
  DING Ke, SUN Zun-Ming, LI Hou-Qian, et al. Chinese J. Inorg. Chem., 2015, 31:345-352
24. [24]
  Saito S, Yamamoto Y. Chem. Rev., 2000, 100:2901-2915 doi: 10.1021/cr990281x
25. [25]
  Ardizzoia G A, Brenna S, Lamonica L, et al. J. Organomet. Chem., 2002, 649:173-180 doi: 10.1016/S0022-328X(02)01114-2
26. [26]
  LIU Yu-Zhou, ZHOU Li-Shan, XI Chan-Juan. Acta Chim. Sinica, 2006, 64:266-268 doi: 10.3321/j.issn:0567-7351.2006.03.015
27. [27]
  GUANG Shan-Yi, XU Hong-Yao, ZHANG Sheng-Yi, et al. Fine Chemicals, 2000, 17:467-469 doi: 10.3321/j.issn:1003-5214.2000.08.011
