Citation: RAO Yan-Ying, LI Zhang-Liang, HUANG Jian-Hui, JIANG Yu-Hang, ZHAO Xiao-Xu. Preparation and SERS Properties of 3D Ordered Gold Nanoshells Arrays[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(7): 1231-1239. doi: 10.11862/CJIC.2018.165 shu

Preparation and SERS Properties of 3D Ordered Gold Nanoshells Arrays

Fujian Provincial Key Laboratory of Ecology-Toxicological Effects & Control for Emerging Contaminants, Key Laboratory of Ecological Environment and Information Atlas, Fujian Provincial University, College of Environmental and Biological Engineering, Putian University, Putian, Fujian 351100, China

Corresponding author: RAO Yan-Ying, yanyingrao@ptu.edu.cn
Received Date: 15 February 2018
Revised Date: 19 April 2018

Figures(9)

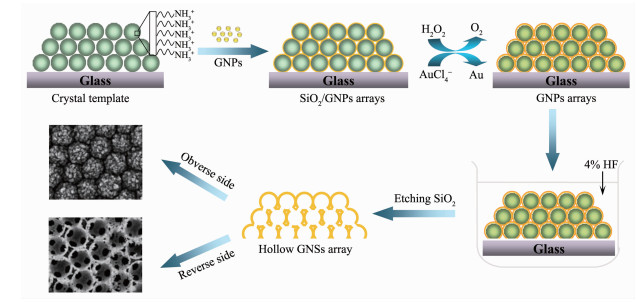

The controllable preparation of three-dimensional ordered gold nano-shells (GNSs) structure was carried out by SiO₂ colloidal crystal as template and H₂O₂ as reducing agent in situ growth of gold seed, and then surface enhanced Raman spectroscopy (SERS) properties were studied in the growth process. The experimental results show that the controllable batch preparation of three-dimensional ordered GNSs array can be achieved by controlling the reaction time, reaction temperature, reducing agent H₂O₂ and the quantity of growth liquid K₂CO₃-HAuCl₄, and the hollow ordered GNSs structure is obtained by removing the SiO₂ core. Through the study of its SERS properties, it is found that the SiO₂ surface is completely covered by Au with rough structure showing the best SERS performance, and the corresponding hollow ordered GNSs structure shows superior SERS activity.
- gold nanoshells,
- gold nanomaterials,
- order arrays,
- porous materials,
- surface enhanced Raman spectroscopy
1. [1]
  Tamura A, Matsumoto A. Food Anal. Methods, 2014, 7(9):1866-1873 doi: 10.1007/s12161-014-9829-3
2. [2]
  Jahn M, Patze S, Bocklitz T, et al. Anal. Chim. Acta, 2015, 860:43-50 doi: 10.1016/j.aca.2015.01.005
3. [3]
  Ai Y J, Liang P, Wu Y X, et al. Food Chem., 2018, 241:427-433 doi: 10.1016/j.foodchem.2017.09.019
4. [4]
  Halvorson R A, Vikesland P J. Environ. Sci. Technol., 2010, 44(20):7749-7755 doi: 10.1021/es101228z
5. [5]
  Péron O, Rinnert E, Toury T, et al. Analyst, 2011, 136(5):1018-1022 doi: 10.1039/C0AN00797H
6. [6]
  Chon H, Wang R, Lee S, et al. Anal. Bioanal. Chem., 2015, 407(27):8353-8362 doi: 10.1007/s00216-015-9020-8
7. [7]
  Kamil Reza K, Wang J, Vaidyanathan R, et al. Small, 2017, 13(9):1-11
8. [8]
  Feng S Y, Chen R, Lin J Q, et al. Biosens. Bioelectron., 2010, 25(11):2414-2419 doi: 10.1016/j.bios.2010.03.033
9. [9]
  Kneipp J, Kneipp H, Kneipp K. Chem. Soc. Rev., 2008, 37(5):1052-1060 doi: 10.1039/b708459p
10. [10]
  Fang C, Brodoceanu D, Kraus T, et al. RSC Adv., 2013, 3(13):4288-4293 doi: 10.1039/c3ra22457k
11. [11]
  And E P, Nordlander P. Nano Lett., 2003, 3(4):119-129
12. [12]
  Chirumamilla M, Toma A, Gopalakrishnan A, et al. Adv. Mater., 2014, 26(15):2353-2358 doi: 10.1002/adma.v26.15
13. [13]
  Chen H F, Wang X P, Liu G T, et al. Sci. China Ser. B Chem., 2015, 58(10):1585-1592 doi: 10.1007/s11426-015-5403-0
14. [14]
  XU Ling, YAO Ai-Hua, XU Yan, et al. Chinese J. Inorg. Chem., 2016, 32(12):2183-2190
15. [15]
  Nooney R I, Thirunavukkarasu D, Ostafin A E, et al. Micro-porous Mesoporous Mater., 2015, 75(3):183-193
16. [16]
  Darbandi M, Arslan H K, Shekhah O et al. Phys. Status Solidi-Rapid Res. Lett., 2010, 4(8/9):197-199
17. [17]
  Haupt M, Miller S, Glass R, et al. Adv. Mater., 2003, 15(10):829-831 doi: 10.1002/adma.200304688
18. [18]
  Rao Y Y, Chen Q F, Dong J, et al. Analyst, 2011, 136(4):769-774 doi: 10.1039/C0AN00725K
19. [19]
  Rao Y Y, Tao Q, An M, et al. Langmuir, 2011, 27(21):13308-13313 doi: 10.1021/la203158q
20. [20]
  ZHANG Yan, HAO Ma, FENG Yi-Jun, et al. Chinese J. Inorg. Chem., 2011, 27(5):935-942
21. [21]
  Dong J, Chen Q F, Rong C H, et al. Anal. Chem., 2011, 83(16):6191-6195 doi: 10.1021/ac2007009
22. [22]
  Do Nascimento G M, Temperini M. J. Raman Spectrosc., 2008, 39(7):772-778 doi: 10.1002/jrs.v39:7
23. [23]
  Feng S, Lu Z C, Chen L, et al. ACS Appl. Mater. Interfaces, 2014, 6(9):6281-6289 doi: 10.1021/am4045212
24. [24]
  LI Jian-Feng, HU Jia-Wen, REN Bin, et al. Acta Phys.-Chim. Sin., 2005, 21(8):825-828
25. [25]
  Chen J, Qin G, Wang J, et al. Biosens. Bioelectron., 2013, 44(1):191-197
26. [26]
  Su Q Q, Ma X Y, Dong J, et al. ACS Appl. Mater. Interfaces, 2011, 3(6):1873-1879 doi: 10.1021/am200057f
