Citation: ZHOU Qi, LI Zhi-Yang, ZHENG Bin. Preparation and Electrochemical Performance of Nanoporous Bimetallic Oxide NiCo₂O₄[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(6): 1103-1109. doi: 10.11862/CJIC.2018.146 shu

Preparation and Electrochemical Performance of Nanoporous Bimetallic Oxide NiCo₂O₄

State Key Laboratory of Advanced Processing and Recycling of Nonferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China

Corresponding author: ZHOU Qi, zhouxq301@sina.com
Received Date: 21 January 2018
Revised Date: 26 March 2018

Figures(7)

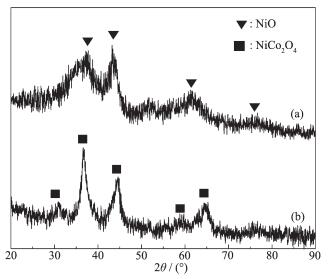

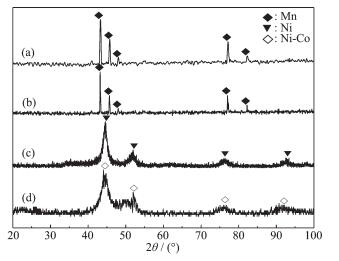

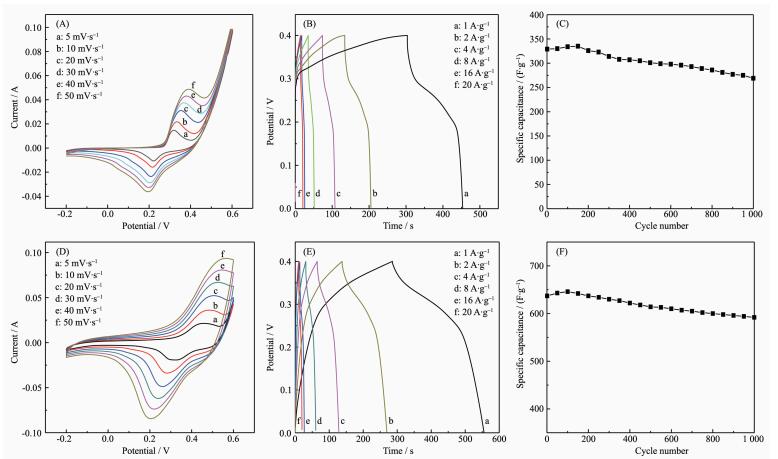

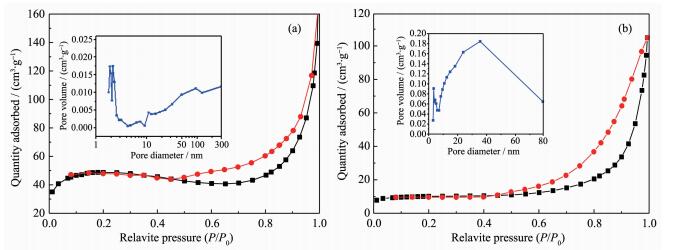

Nanoporous Ni and Ni-Co alloys were prepared by a method of rapid quenching and de-alloying, and the samples were corroded and annealed to synthesize the nanoporous NiO and NiCo₂O₄ material respectively. The composition, morphology and microstructure of NiO and NiCo₂O₄ were analyzed by XRD, SEM, TEM and N₂ adsorption-desorption. The electrochemical performance was investigated by cyclic voltammetry and galvanostatic charge-discharge. The results show that the porous NiO has a uniform "mud crack" structure. The specific capacitance of nanoporous NiO is 375 F·g^-1 at current density of 1 A·g^-1 and its retention ratio remains at 67.5% when the current density increases to 20 A·g^-1. After galvanostatic charge-discharge 1 000 cycles at 4 A·g^-1, the retention ratio of specific capacitance is 81.7%. The porous NiCo₂O₄ has a lamellar structure. The specific capacitance of nanoporous NiCo₂O₄ is 674 F·g^-1 at current density of 1 A·g^-1 and its retention ratio remains at 72.0% when the current density increases to 20 A·g^-1. After galvanostatic charge-discharge 1 000 cycles at 4 A·g^-1, the retention ratio of specific capacitance is 92.9%. NiCo₂O₄ shows superior supercapacitive performance because of the mechanical stability of the bicontinuous nanoporous structure.
- rapid quenching,
- de-alloying,
- metallic oxide,
- electrochemical performance
1. [1]
  Viswanathan B. An Introduction to Energy Sources. Madras: National Center for Catalysis Research Department of Chem-istry Indian Institute of Technology, 2006: 289
2. [2]
  Burke A. J. Power Sources, 2000, 91(1):37-50 doi: 10.1016/S0378-7753(00)00485-7
3. [3]
  Long J W, Swider K E, Merzbacher C I, et al. Langmuir, 1999, 15(3):780-785 doi: 10.1021/la980785a
4. [4]
  Nam K W, Kim K B. J. Electrochem. Soc., 2002, 149(3):A346-A354 doi: 10.1149/1.1449951
5. [5]
  Zhao D D, Xu M W, Zhou W J, et al. Electrochim. Acta, 2008, 53(6):2699-2705 doi: 10.1016/j.electacta.2007.07.053
6. [6]
  Hu C C, Cheng C Y. Electrochem. Solid-State Lett., 2002, 5(3):A43-A46 doi: 10.1149/1.1448184
7. [7]
  Fu H Y, Wang Z Y, Li Y H, et al. Mater. Res. Innovations, 2015, 19(4):S255-S259
8. [8]
  Lu X, Bischoff E, Spolenak R, et al. Scr. Mater., 2007, 56(7):557-560 doi: 10.1016/j.scriptamat.2006.12.022
9. [9]
  Snyder J, Asanithi P, Dalton A B, et al. Adv. Mater., 2008, 20(24):4883-4886 doi: 10.1002/adma.v20:24
10. [10]
  Dan Z, Qin F, Makino A, et al. J. Alloys Compd., 2014, 586(5):S134-S138
11. [11]
  Erlebacher J, Aziz M J, Karma A, et al. Nature, 2001, 410(22):450-453
12. [12]
  Ding Y, Kim Y J, Erlebacher J. Adv. Mater., 2004, 16(21):1897-1990 doi: 10.1002/(ISSN)1521-4095
13. [13]
14. [14]
  Erlebacher J, Sieradzki K. Scr. Mater., 2003, 49(10):991-996 doi: 10.1016/S1359-6462(03)00471-8
15. [15]
  ZHOU Qi, ZHENG Bin, LI Zhi-Yang, et al. Chinese J. Inorg Chem., 2017, 33(8):1416-1422 doi: 10.11862/CJIC.2017.145
16. [16]
  Wu Z B, Pu X L, Zhu Y R, et al. J. Alloys Compd., 2015, 632:208-217 doi: 10.1016/j.jallcom.2015.01.147
17. [17]
  Kuang M, Zhang W, Guo X L, et al. Ceram. Int., 2014, 40(7):10005-10011 doi: 10.1016/j.ceramint.2014.02.099
18. [18]
  Hosogai S, Tsutsumi H. J. Power Sources, 2009, 194(2):1213-1217 doi: 10.1016/j.jpowsour.2009.06.044
19. [19]
  Toupin M, Brousse T, Bélanger D. Chem. Mater., 2004, 16(16):3184-3190 doi: 10.1021/cm049649j
