Citation: BA Dan, WU Wen-Shi, HUANG Miao-Ling, SHI Feng-Xiang. Syntheses, Crystal structures and Properties of Zinc Complexes Constructed with Isoquinoline Hydrazine[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(5): 897-905. doi: 10.11862/CJIC.2018.129 shu

Syntheses, Crystal structures and Properties of Zinc Complexes Constructed with Isoquinoline Hydrazine

College of Materials Science and Engineering, Huaqiao University, Xiamen, Fujian 361000, China

Corresponding author: WU Wen-Shi, wws@hqu.edu.cn
Received Date: 23 November 2017
Revised Date: 24 March 2018

Figures(6)

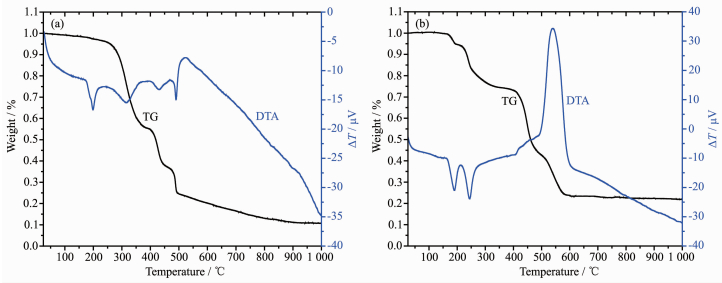

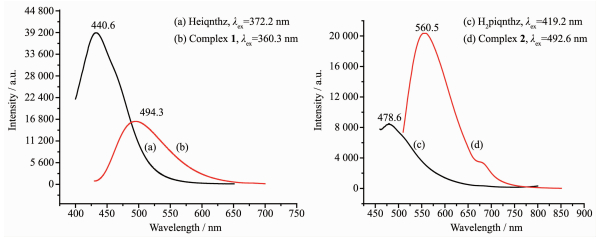

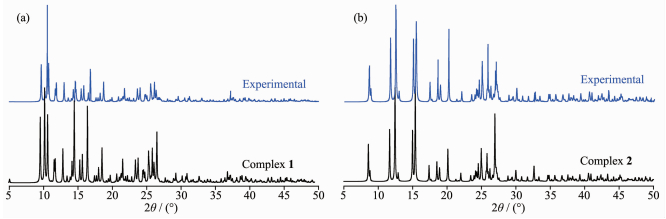

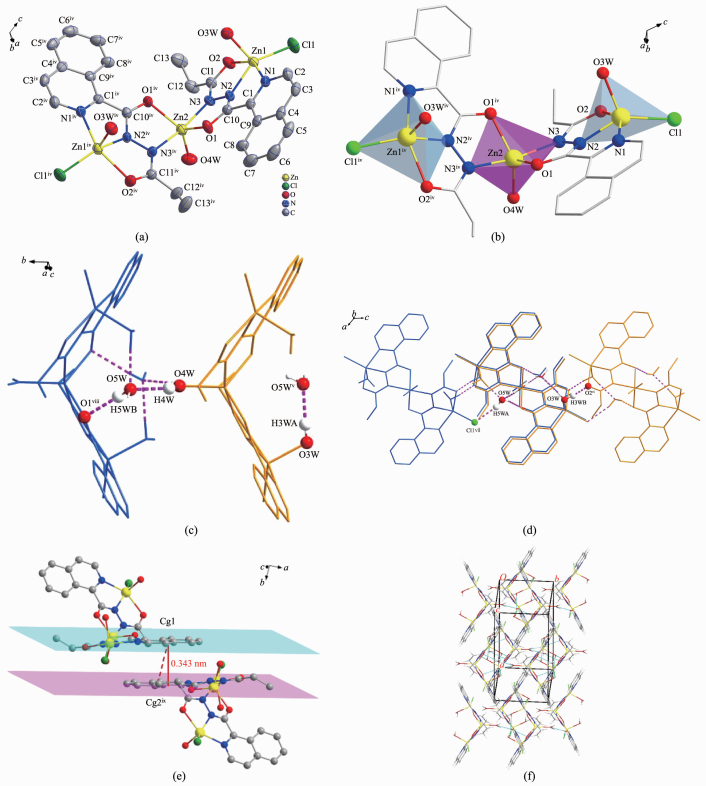

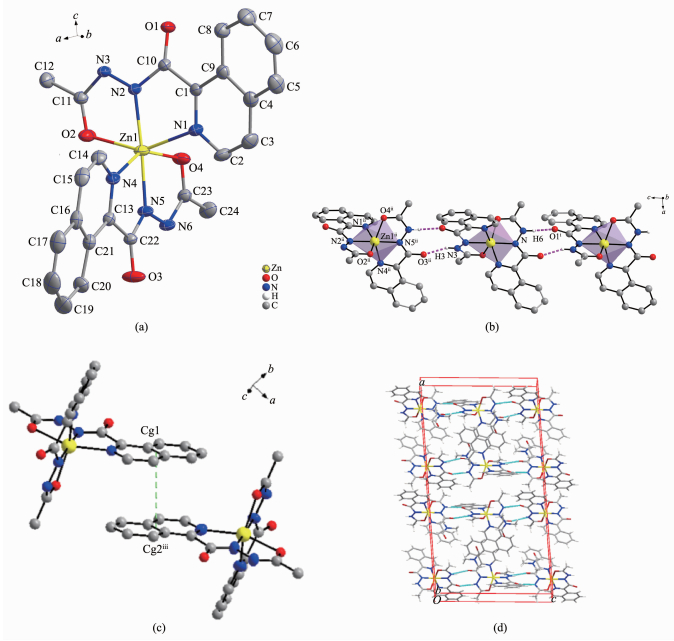

Two new metal-organic complex, [Zn(eiqnthz)₂]·DMF (1) and[Zn₃(piqnthz)₂Cl₂]·2H₂O (2) (Heiqnthz=N, N'-acetyl isoquinoline hydrazine, H₂Piqnthz=N, N'-propionyl isoquinoline hydrazine), has been synthesized by common solution method. The structures and properties of complexes 1 and 2 are determined and characterized by single-crystal X-ray analysis, XRD powder diffraction analysis, infrared spectroscopy, thermal stability analysis and fluorescence analysis method. The crystal structural analysis revealed that the complex 1 crystalizes in monoclinic, space group C2/c, with 4 nitrogen atoms and 2 oxygen atoms from two ligands to forming a N₄O₂ distorted octahedral coordination geometry around the zinc ions. The complex 2 belongs to monoclinic system, space group C2/c as a three nuclear structure. Zn(1), Zn(2), Zn(3) ions are penta-coordinated, and the whole molecule presents V shape. Zn(1) and Zn(3) are located at both ends of the molecule and deformed tetragonal pyramidal coordination structures. Zn(2) is located in the middle to form a triangular bipyramid coordination structure. The fluorescence spectroscopic analysis demonstrated that Heiqnthz and H₂piqnthz have red-shifted phenomenon after coordinated with zinc(Ⅱ) ion.
- isoquinoline derivatives,
- zinc complexes,
- crystal structures,
- fluorescence properties,
- electronic structures
1. [1]
  GUO Jian-Qiang, SUN Yin-Xia, YU Bin, et al. Chinese J. Inorg. Chem., 2017, 33(8):1481-1488 doi: 10.11862/CJIC.2017.181
2. [2]
  Yoon M, Srirambalaji R, Kim K. Chem. Rev., 2012, 112(2):1196-1231 doi: 10.1021/cr2003147
3. [3]
  ZHANG Jie, TENG Ming-Yu, DAI Guo-Liang, et al. Chinese J. Inorg. Chem., 2014, 30(3):499-505
4. [4]
  Ferrari M B, Bisceglie F, Pelosi G, et al. J. Inorg. Biochem., 2002, 90(3/4):113-126
5. [5]
  Allendorf M D, Bauer C A, Bhakta R K, et al. Chem. Soc. Rev., 2009, 38(5):1330-1352 doi: 10.1039/b802352m
6. [6]
  Bringmann G, Zhang G, Büttner T, et al. Chem. Eur. J., 2013, 19(3):916-923 doi: 10.1002/chem.201202755
7. [7]
  Yan L, Li C B, Cui D, et al. Chin. J. Struct. Chem., 2015, 34(2):221-226
8. [8]
  CHANG Hui-Qin, YUAN Zhi-Ze, LAI Xiao -Qing, et al. Chinese J. Inorg. Chem., 2016, 32(11):2058-2062
9. [9]
  Bringmann G, Zhang G, Büttner T, et al. Chem. Eur. J., 2013, 19(3):916-923 doi: 10.1002/chem.201202755
10. [10]
  Bermejo A, Andreu I, Suvire F, et al. J. Med. Chem., 2002, 45(23):5058-5068 doi: 10.1021/jm020831a
11. [11]
  Huang K B, Mo H Y, Chen Z F, et al. Eur. J. Med. Chem., 2015, 100:68-76 doi: 10.1016/j.ejmech.2015.05.038
12. [12]
  Yeoh K K, Chan M C, Thalhammer A, et al. Org. Biomol. Chem., 2013, 11(5):732-745 doi: 10.1039/C2OB26648B
13. [13]
  Sheldrick G M. Acta Crystallogr. Sect. A:Found. Crystallogr., 2008, A64:112-122
