Citation: ZHENG Ming, ZHANG Hong-Xing, YUAN Fu-Long, PAN Qing-Jiang. Relativistic DFT Calculations of Interaction between Rutile TiO₂ Nanoparticle Clusters and Uranyl Species[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(5): 874-882. doi: 10.11862/CJIC.2018.120 shu

Relativistic DFT Calculations of Interaction between Rutile TiO₂ Nanoparticle Clusters and Uranyl Species

1.
Key Laboratory of Functional Inorganic Material Chemistry of Education Ministry, School of Chemistry and Materials Science, Heilongjiang University, Harbin 150080, China
2.
Institute of Theoretical Chemistry, Jilin University, Changchun 130023, China

Corresponding author: YUAN Fu-Long, panqjitc@163.com PAN Qing-Jiang, yuanfulong@hlju.edu.cn
Received Date: 28 October 2017
Revised Date: 7 February 2018

Figures(6)

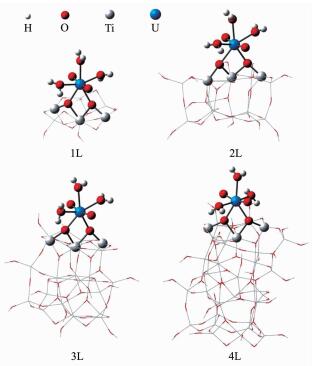

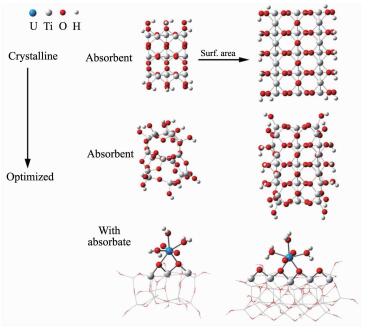

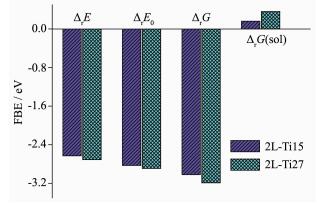

The interaction between rutile TiO₂ nanoparticle clusters (NPCs) and aquouranyl species have been examined using a relativistic functional theory (DFT). Effects of NPCs with various layers (1~4) and different surface areas on structural parameters of uranium adsorption complexes as well as adsorption interaction energies were investigated. It is found that the two-layered (2L) NPC (labeled as 2L-Ti15) with a surface area of 1.1 nm×0.6 nm and containing 63 atoms can reasonably stand for experimentally real TiO₂ nanocrystallite. Moreover, the model is able to save computational resources. Calculations reveal a covalent bonding interaction in the 2L-Ti15-[(UO₂)(H₂O)₃]²⁺ complex. The direct evidences include that the bond lengths of U-O_surf were optimized to be 0.233~0.238 nm, which fall well within the range of U-O distances of reported uranyl complexes. The process that the NPC adsorbs aquouranyl species is exothermic in the gas phase, releasing energy of -3.02 eV; the consideration of environment media of solution results in a slightly uphill process, requiring 0.16 eV energy. The energetic decomposition indicates that U-O_surf bonds are dominated by orbital interactions, accounting for 94%; other factors show a little effect, although electrostatic attraction is a little larger than Pauli repulsion. Electron density-based QTAIM (quantum theory of atoms in molecule) analyses unravel that the U-O_surf interaction is a dative bond per se, whose strength is stronger than that of U-OH₂, but much weaker than that of U=O_yl. Inspection of wavefunction demonstrates that HOMO is contributed by O(2p) of NPC TiO₂ mixed with a small amount of σ(U=O) bonding character, while LUMO is U(5f)-based character modified by Ti(3d). The HOMO-LUMO gap was calculated to be 2.40 eV, which much narrower than the one of NPC semiconductor (3.35 eV). From a point of view of absorption spectra, the complex system would present a visible light-harvesting capability.
- rutile TiO₂ nanoparticle clusters,
- uranium contaminant,
- adsorption interaction nature,
- electronic structures,
- relativistic DFT
1. [1]
  Hashke J M, Stakebake J L. The Chemistry of the Actinide and Transactinide Elements. Dordrecht:Springer, 2006:3199-3272
2. [2]
  Chen Z, Zhuang Z Y, Cao Q, et al. ACS Appl. Mater. Interfaces, 2014, 6(2):1301-1305 doi: 10.1021/am405306j
3. [3]
  GU Jia-Fang, XU Ke, CHEN Wen-Kai. Chinese J. Inorg. Chem., 2017, 33(9):1579-1586 doi: 10.11862/CJIC.2017.179
4. [4]
  Natrajan L S, Swinburne A N, Andrews M B, et al. Coord. Chem. Rev., 2014, 266:171-193
5. [5]
  Sandhu S S, Kohli K B, Brar A S. Inorg. Chem., 1984, 23(22):3609-3612 doi: 10.1021/ic00190a036
6. [6]
  Nieweg J A, Lemma K, Trewyn B G, et al. Inorg. Chem., 2005, 44(16):5641-5648 doi: 10.1021/ic050130e
7. [7]
  Krishna V, Kamble V S, Gupta N M, et al. J. Phys. Chem. C, 2008, 112(40):15832-15843 doi: 10.1021/jp802779e
8. [8]
  Vandenborre J, Drot R, Simoni E. Inorg. Chem., 2007, 46(4):1291-1296 doi: 10.1021/ic061783d
9. [9]
  Zhao S, Zhong Y, Guo Y, et al. Acta Chim. Sinica, 2016, 74(8):683-688 doi: 10.6023/A16060294
10. [10]
  GU Jia-Fang, MAN Mei-Ling, LU Chun-Hai, et al. Chinese. J. Inorg. Chem., 2012, 28(7):1324-1332
11. [11]
  Perron H, Domain C, Roques J, et al. Inorg. Chem., 2006, 45(17):6568-6570 doi: 10.1021/ic0603914
12. [12]
  Pan Q J, Odoh S O, Schreckenbach G, et al. Dalton Trans., 2012, 41(29):8878-8885 doi: 10.1039/c2dt31055d
13. [13]
  Zhao H B, Zheng M, Schreckenbach G, et al. Inorg. Chem., 2017, 56(5):2763-2776 doi: 10.1021/acs.inorgchem.6b02927
14. [14]
  Dossot M, Cremel S, Vandenborre J, et al. Langmuir, 2006, 22(1):140-147 doi: 10.1021/la0519913
15. [15]
  Laikov D N. Chem. Phys. Lett., 1997, 281(1/2/3):151-156
16. [16]
  Fonseca Guerra C, Snijders J G, te Velde G, et al. Theor. Chem. Acc., 1998, 99(6):391-403
17. [17]
  Bader R F W. J. Phys. Chem. A, 1998, 102:7314-7323 doi: 10.1021/jp981794v
18. [18]
  Pye C C, Ziegler T. Theor. Chem. Acc., 1999, 101(6):396-408 doi: 10.1007/s002140050457
19. [19]
  van Lenthe E, Baerends E J, Snijders J G. J. Chem. Phys., 1993, 99(6):4597-4610 doi: 10.1063/1.466059
20. [20]
  Frisch M J, Trucks G W, Schlegel H B, et al. Gaussian09, Gaussian, Inc., Wallingford CT, 2009.
21. [21]
  Lu T, Chen F. J. Comput. Chem., 2012, 33(5):580-592 doi: 10.1002/jcc.v33.5
22. [22]
  Pan Q J, Schreckenbach G. Inorg. Chem., 2010, 49(14):6509-6517 doi: 10.1021/ic100245a
23. [23]
  Arnold P L, Jones G M, Odoh S O, et al. Nat. Chem., 2012, 4(3):221-227 doi: 10.1038/nchem.1270
24. [24]
  Den Auwer C, Drot R, Simoni E, et al. New J. Chem., 2003, 27(3):648-655 doi: 10.1039/b209961f
25. [25]
  Sebbari K, Roques J, Simoni E, et al. Surf. Sci., 2012, 606(15/16):1135-1141
