Citation: WANG Xiao-Xue, GAO Jian-Ping, ZHAO Rui-Ru, WU Yong-Li, HAO Chao-Yue, QIU Hai-Xia. Preparation and Photocatalytic Performance of g-C₃N₄ Nanotubes[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(6): 1059-1064. doi: 10.11862/CJIC.2018.113 shu

Preparation and Photocatalytic Performance of g-C₃N₄ Nanotubes

Department of Chemistry, Tianjin University, Tianjin 300350, China

Corresponding author: QIU Hai-Xia, 2015210062@tju.edu.cn
Received Date: 22 December 2017
Revised Date: 30 January 2018

Figures(8)

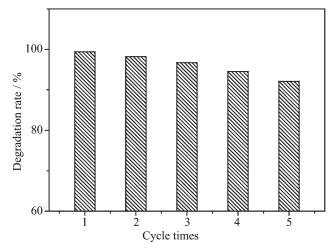

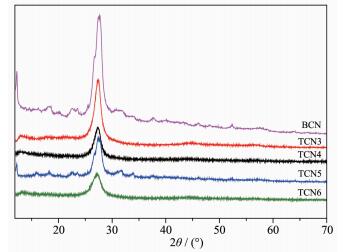

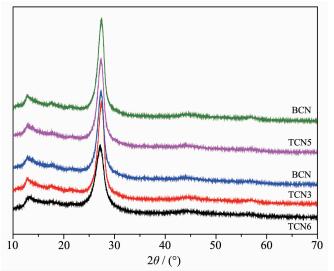

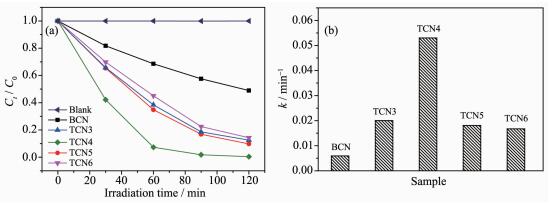

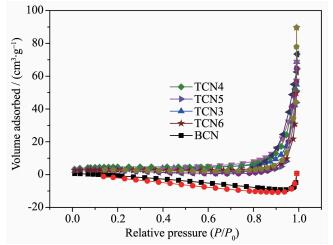

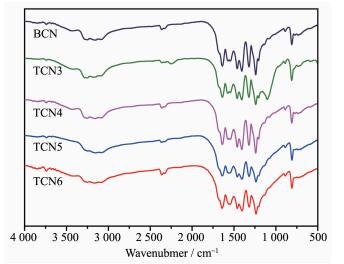

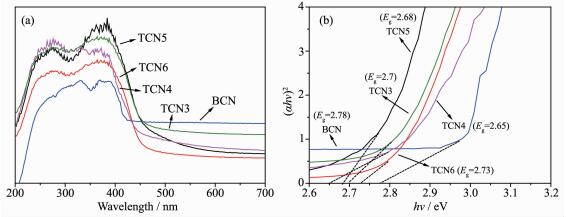

g-C₃N₄ nanotubes were prepared by pyrolysis of a mixture of melamine and ammonium bicarbonate via a simple and convenient method. The morphology and catalytic properties of the photocatalysts were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), infrared spectroscopy (IR), N₂ adsorption-desorption, ultraviolet-visible diffuse reflectance spectroscopy and UV-visible spectroscopy. The photocatalytic activity of g-C₃N₄ nanotubes to rhodamine B degradation was investigated. The photocatalytic activity of the g-C₃N₄ nanotubes under the visible light irradiation was effectively promoted because the tube structure can effectively promote the photo-electron transfer. The degradation percentage of rhodamine B was 95 and 99.4% at 60 and 120 min respective. The g-C₃N₄ nanotubes also displayed high recyclability.
- g-C₃N₄,
- nanotubes,
- degradation,
- rhodamine B
1. [1]
  Cakici M, Reddy K R, Alonso-Marroquin F, et al. Chem. Eng. J., 2017, 309:151-158 doi: 10.1016/j.cej.2016.10.012
2. [2]
  ZHANG Dan, XU Bin, ZHU Pei-Juan, et al. Journal of East China Normal University:Natural Science, 2013, 5(5):35-42
3. [3]
  Xu T, Zhang L, Cheng H, et al. Appl. Catal., B, 2011, 101:382-387 doi: 10.1016/j.apcatb.2010.10.007
4. [4]
  He K, Li M, Guo L. Int. J. Hydrogen Energy, 2012, 37(1):755-759 doi: 10.1016/j.ijhydene.2011.04.065
5. [5]
  Xing W N, Li C M, Chen G, et al. Appl. Catal., B, 2017, 203:65-71 doi: 10.1016/j.apcatb.2016.09.075
6. [6]
  Zhang S W, Gao H H, Liu X, et al. ACS Appl. Mater. Interfaces, 2016, 8:35138-35149 doi: 10.1021/acsami.6b09260
7. [7]
  Ke L, Li P F, Wu X, et al. Appl. Catal., B, 2017, 205:319-326 doi: 10.1016/j.apcatb.2016.12.043
8. [8]
  Shiravanda G, Badiei A, Ziarani G. Sens. Actuators, B, 2017, 242:244-252 doi: 10.1016/j.snb.2016.11.038
9. [9]
  Choi S H, Kim D H, Raghu A V, et al. J. Macromol. Sci. Part B Phys., 2012, 51:197-207 doi: 10.1080/00222348.2011.583193
10. [10]
  Faghani A, Donskyi I S, Gholami M F, et al. Angew. Chem. Int. Ed., 2017, 56:2675-2679 doi: 10.1002/anie.201612422
11. [11]
  Liao Y L, Zhu S M, Ma J, et al. ChemCatChem, 2014, 6:3419-3425 doi: 10.1002/cctc.201402654
12. [12]
  Li K X, Yan L S, Zeng Z X, et al. Appl. Catal., B, 2014, 156-157:141-152 doi: 10.1016/j.apcatb.2014.03.010
13. [13]
  Yuan X Y, Zhou C, Jin Y R, et al. J. Colloid Interface Sci., 2016, 468:211-219 doi: 10.1016/j.jcis.2016.01.048
14. [14]
  Nie H Y, Ou M, Zhong Q, et al. J. Hazard. Mater., 2015, 300:598-606 doi: 10.1016/j.jhazmat.2015.07.066
15. [15]
  Wan Z, Zhang G K, Wu X Y, et al. Appl. Catal., B, 2017, 207:17-26 doi: 10.1016/j.apcatb.2017.02.014
16. [16]
  Wang S P, Li C J, Wang T, et al. J. Mater. Chem. A, 2014, 2:2885-2890 doi: 10.1039/c3ta14576j
17. [17]
  Huang Z J, Li B, Chen B F, et al. RSC Adv., 2015, 5:102700-102706 doi: 10.1039/C5RA23419K
18. [18]
  Yang S B, Gong Y J, Zhang J S, et al. Adv. Mater., 2013, 25:2452-2456 doi: 10.1002/adma.v25.17
19. [19]
  Yuan X Y, Zhou C, Jin Y R, et al. J. Colloid Interface Sci., 2016, 468:211-219 doi: 10.1016/j.jcis.2016.01.048
20. [20]
  Xu M, Han L, Dong S J. ACS Appl. Mater. Interfaces, 2013, 5:12533-12540 doi: 10.1021/am4038307
21. [21]
  Yan S C, Li Z S, Zou Z G. Langmuir, 2009, 25(21):10397-10401
22. [22]
  XU Meng-Qiu, CHAI Bo, YAN Jun-Tao, et al. Chinese J. Inorg. Chem., 2017, 33(3):389-395 doi: 10.11862/CJIC.2017.045
23. [23]
  Gopakumar D A, Pasquini D, Henrique M A, et al. ACS Sustainable Chem. Eng., 2017, 5:2026-2033 doi: 10.1021/acssuschemeng.6b02952
24. [24]
  Raghava R K, Kazuya N, Tsuyoshi O, et al. J. Nanosci. Nanotechnol., 2011, 11:3692-3695 doi: 10.1166/jnn.2011.3805
25. [25]
  Showkat A M, Zhang Y P, Kim M S, et al. Bull. Korean Chem. Soc., 2007, 28:1985-1992 doi: 10.5012/bkcs.2007.28.11.1985
26. [26]
  FAN Shan-Hu, SUN Zhen-Fan, WU Quan-Zhou, et al. Acta Phys.-Chim. Sin., 2003, 19(1):25-29
27. [27]
  Xu J J, Ao Y H, Fu D G, et al. Appl. Surf. Sci., 2008, 255:2365-2369 doi: 10.1016/j.apsusc.2008.07.095
28. [28]
  ZOU Wen, XIN Xin, WANG Tian-Min, et al. Chinese J. Inorg. Chem., 2009, 25(11):1971-1976 doi: 10.3321/j.issn:1001-4861.2009.11.015
