Citation: LI Ai-Chang, LI Gui-Hua, JI Xiao-Yan, ZHAI Tian-Hua. Ag@AgI/Ni Thin Films:Preparation and Photocatalytic Properties under Simulated Solar Irradiation[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(12): 2247-2254. doi: 10.11862/CJIC.2017.277 shu

Ag@AgI/Ni Thin Films:Preparation and Photocatalytic Properties under Simulated Solar Irradiation

Faculty of Chemistry and Material Science, Langfang Teachers College, Hebei, Langfang 065000, China

Corresponding author: LI Ai-Chang, aichangli@hotmail.com
Received Date: 17 June 2017
Revised Date: 28 August 2017

Figures(9)

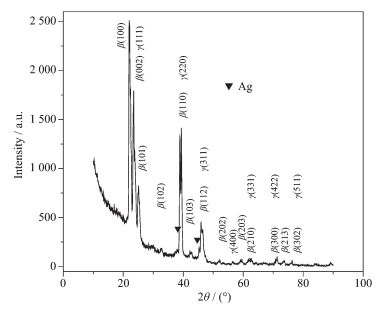

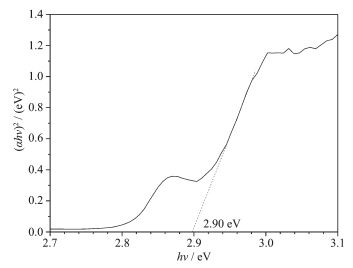

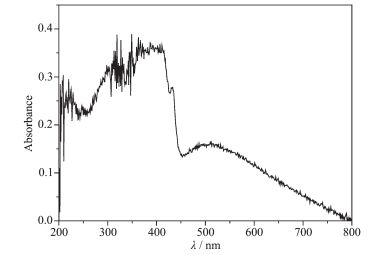

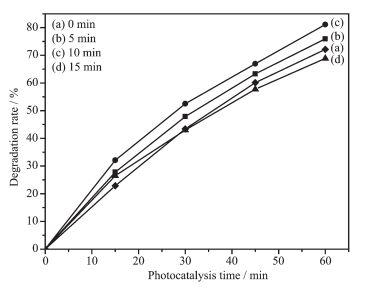

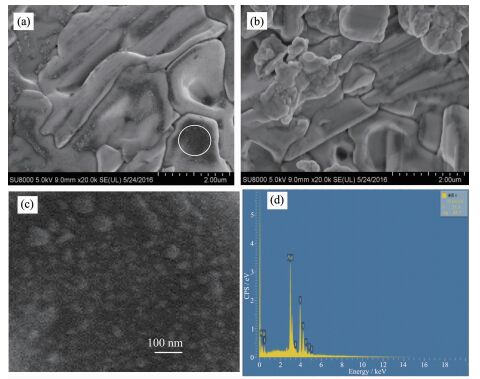

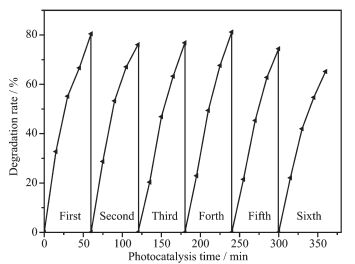

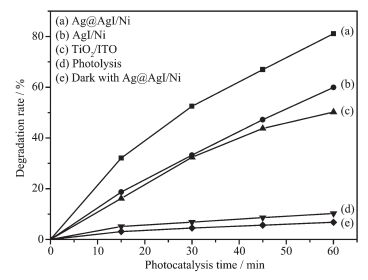

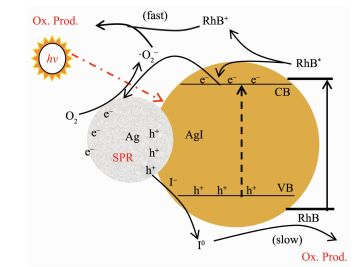

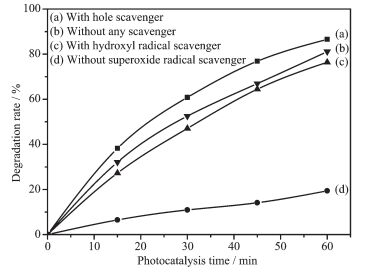

Ag@AgI/Ni thin films plasmonic photocatalyst were prepared by electrochemical method. The surface morphology, phase structure, optical characteristics and band structure of the thin film were characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD) and ultraviolet-visible diffuse reflectance spectroscopy (UV-Vis DRS), respectively. Its photocatalytic properties and stability were evaluated with rhodamine B(RhB) as a model compound under the simulated solar irradiation. Using a method of adding active species scavenger to the solution, mechanism of photocatalytic degradation of the films was explored. The Ag@AgI/Ni thin films prepared under the optimized preparation conditions are composed of AgI micron-sized particles coated with Ag nanocrystals, which have a significant surface plasmon resonance (SPR) effect. The thin film exhibits a maximum photocatalytic activity and a superior photocatalytic stability to decompose RhB. The photodegradation rate of the Ag@AgI/Ni thin films under the simulated solar irradiation 60 min (i.e., 81.1%) is 1.35 times greater than that of AgI/Ni thin film, and 1.61 times greater than that of P25 TiO₂/ITO thin film. The photocatalytic activity almost keeps unchanged after five recycled experiments. The improvement in photocatalytic activity for Ag@AgI/Ni thin film can be mainly attributed to the activation of nano Ag particles on the film for photocathode reaction with a significant SPR effects. In addition, the photodegradation mechanism of the films for RhB under the simulated solar irradiation was also discussed.
- Ag@AgI/Ni thin film,
- surface plasmon resonance,
- photocatalysis,
- rhodamine B,
- reaction mechanism
1. [1]
  Zhou Y, Krumeich F, Heel A, et al. Dalton Trans., 2010, 39:6043-6048 doi: 10.1039/b926790e
2. [2]
  Jack R S, Ayoko G A, Adebajo M O, et al. Environ. Sci. Pollut. Res. Int., 2015, 22:7439-7449 doi: 10.1007/s11356-015-4346-5
3. [3]
  HU Teng, YE Long-Qiang, LI Wen-Ling, et al. Chinese J. Inorg. Chem., 2014, 30(8):1778-1782
4. [4]
  Yin L F, Shen Z Y, Niu J F, et al. Environ. Sci. Technol., 2010, 44:9117-9122 doi: 10.1021/es1025432
5. [5]
  Asahi R, Morikawa T, Ohwaki T, et al. Science, 2001, 293:269-271 doi: 10.1126/science.1061051
6. [6]
  Yu H G, Irie H, Hashimoto K. J. Am. Chem. Soc., 2010, 132:6898-6899 doi: 10.1021/ja101714s
7. [7]
  Liu G, Yu J C, Lu G Q, et al. Chem. Commun., 2011, 47:6763-6783 doi: 10.1039/c1cc10665a
8. [8]
  Wang P, Huang B, Dai Y, et al. Phys. Chem. Chem. Phys., 2012, 14(28):9813-9825 doi: 10.1039/c2cp40823f
9. [9]
  Zheng Y, Lin L H, Wang B, et al. Angew. Chem. Int. Ed., 2015, 54:12868-12884 doi: 10.1002/anie.v54.44
10. [10]
  Wang Z, Liu Y, Huang B, et al. Phys. Chem. Chem. Phys., 2014, 16:2758-2774 doi: 10.1039/c3cp53817f
11. [11]
  Lou Z, Wang Z, Huang B, et al. ChemCatChem, 2014, 6(9):2456-2476 doi: 10.1002/cctc.201402261
12. [12]
  Callegari A, Tonti D, Chergui M. Nano Lett., 2003, 3(11):1565-1568 doi: 10.1021/nl034757a
13. [13]
  ZHU Ming-Shan, CHEN Peng-Lei, LIU Ming-Hua. Prog. Chem., 2013, 25(2/3):210-220
14. [14]
  Wang P, Huang B B, Zhang X, et al. Chem.-Eur. J., 2009, 15(8):1821-1824 doi: 10.1002/chem.v15:8
15. [15]
  Wang P, Huang B B, Lou Z Z, et al. Chem.-Eur. J., 2010, 16(2):538-544 doi: 10.1002/chem.v16:2
16. [16]
  Hu C, Peng T W, Hu X X, et al. J. Am. Chem. Soc., 2010, 132(2):857-862 doi: 10.1021/ja907792d
17. [17]
  Zhu M S, Chen P L, Liu M H. ACS Nano, 2011, 5(6):4529-4536 doi: 10.1021/nn200088x
18. [18]
  AN Wei-Jia, LIU Li, LI Xin-Lei, et al. Chinese J. Inorg. Chem., 2015, 31(2):329-337
19. [19]
  Kumar S. J. Mater. Sci.-Mater. Electron., 2011, 22:244-247 doi: 10.1007/s10854-010-0122-y
20. [20]
  An C H, Wang J Z, Liu J X, et al. RSC Adv., 2014, 4:2409-2413 doi: 10.1039/C3RA46527F
21. [21]
  LI Ai-Chang, ZHU Ning-Ning, LI Jing-Hong, et al. Chinese J. Inorg. Chem., 2015, 31(4):681-688
22. [22]
23. [23]
  Wang D, Duan Y, Luo Q, et al. Desalination, 2011, 270:174-180 doi: 10.1016/j.desal.2010.11.042
24. [24]
  Chen G, Zhang X, Wang B, et al. Appl. Phys. Lett., 1999, 75(1):10-12 doi: 10.1063/1.124260
25. [25]
  Zhou X, Liu G, Yu J, et al. J. Mater. Chem., 2012, 22:21337-21354 doi: 10.1039/c2jm31902k
26. [26]
  Rycenga M, Cobley C M, Zeng J, et al. Chem. Rev., 2011, 111:3669-3712 doi: 10.1021/cr100275d
27. [27]
  Linic S, Christopher P, Ingram D B. Nat. Mater., 2011, 10:911-921 doi: 10.1038/nmat3151
28. [28]
  YANG Juan, DAI Jun, ZHAO Jin-Cai, et al. Chin. Sci. Bull., 2009, 54(15):2196-2204
29. [29]
  LI Ai-Chang, SONG Min, ZHAO Sha-Sha, et al. Chinese J. Inorg. Chem., 2016, 2(9):1543-1551
30. [30]
  LI Ai-Chang, LI Gui-Hua, ZHENG Yan, et al. Acta Phys.-Chim. Sin., 2012, 28(2):457-464
31. [31]
  LI Ai-Chang, LI Jian-Fei, LIU Ya-Lu, et al. Acta Chim. Sinica, 2013, 71(5):815-821
32. [32]
  Liu Q, Zhou Y, Kou J, et al. J. Am. Chem. Soc., 2010, 132(41):14385-14387 doi: 10.1021/ja1068596
33. [33]
  ZHOU Li, DENG Hui-Ping, ZHANG Wei. Prog. Chem., 2015, 27(4):349-360
34. [34]
  An C H, Wang Z J, Liu J X, et al. ChemSusChem, 2013, 6(10):1931-937 doi: 10.1002/cssc.v6.10
35. [35]
  Jiang J, Zhang L. Chem.-Eur. J., 2011, 17:3710-3717 doi: 10.1002/chem.v17.13
36. [36]
  WANG En-Hua, LIU Su-Wen, LI Tang-Gang, et al. Chinese J. Inorg. Chem., 2011, 27(3):537-541
