Citation: GUO Ning-Ning, WANG Yu, WANG Run-Wei, ZHANG Zong-Tao, QIU Shi-Lun. Synthesis of Sulfur Doped Porous Carbon at Room Temperature for CO₂ Adsorption[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(11): 2147-2152. doi: 10.11862/CJIC.2017.272 shu

Synthesis of Sulfur Doped Porous Carbon at Room Temperature for CO₂ Adsorption

State Key Laboratory of Inorganic Synthesis and Preparative Chemistry, College of Chemistry, Jilin University, Changchun 130012, China

Corresponding author: WANG Run-Wei, rwwang@jlu.edu.cn
Received Date: 24 October 2017
Revised Date: 27 October 2017

Figures(5)

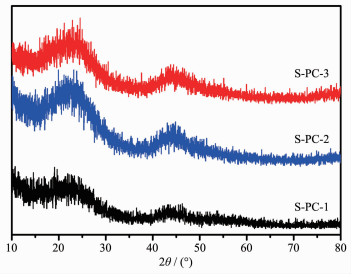

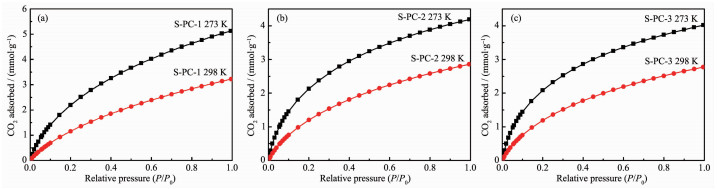

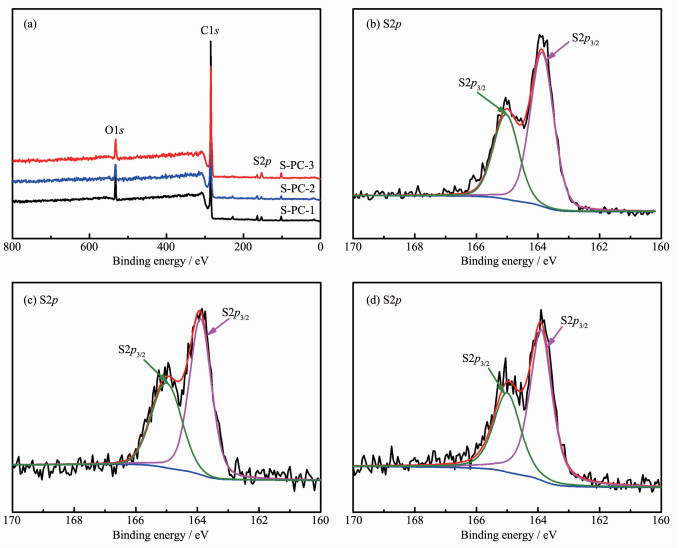

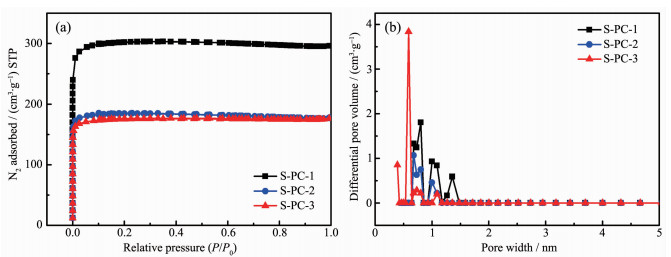

Sulfur doped porous carbon (S-PC) were obtained by direct carbonization of sulfur containing phenolic resins, which were synthesized through one step reaction between phloroglucinol and benzo[b]thiophenc-3-carboxaldehyde under room temperature. The material was characterized by scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS), X-ray diffraction (XRD) and N₂ sorption-desorption experiments. The obtained porous carbons possess high surface area with abundant of micropores. What's more, ultra-high surface area of 997 m²·g^-1 along with ultra-large micropore volume of 0.44 cm³·g^-1 could be obtained after carefully regulation the concentration of reactants. Owing to these fascinating characters like high surface area and rich of micropores, both high CO₂ uptake capacity (5.13 and 3.22 mmol·g^-1 for 273 and 298 K respectively) and high selectivity was obtained, which indicating it's promising sorbents for CO₂.
- sulfur doped porous carbon,
- phenolic resin,
- CO₂ sorption
1. [1]
  Pham T D, Hudson M R, Brown C M, et al. ChemSusChem, 2017, 10(5):946-957 doi: 10.1002/cssc.v10.5
2. [2]
  Pan Y, Zhao Y X, Mu S J, et al. J. Mater. Chem. A, 2017, 5: 9544-9552 doi: 10.1039/C7TA00162B
3. [3]
  Li X N, Bai S Y, Zhu Z J, et al. Langmuir, 2017, 33(5):1248-1255 doi: 10.1021/acs.langmuir.6b04131
4. [4]
  Kiciński W, Szala M, Bystrzejewski M. Carbon, 2014, 68:1-32 doi: 10.1016/j.carbon.2013.11.004
5. [5]
  Pei Z, Li H, Huang Y, et al. Energy Environ. Sci., 2017, 10 (3):742-749 doi: 10.1039/C6EE03265F
6. [6]
  XU Feng-Qin, HU Xiao-Fei, CHENG Fang-Yi, et al. Chinese J. Inorg. Chem., 2015, 31(1):103-108
7. [7]
  Li Y J, Wang G L, Wei T, et al. Nano Energy, 2016, 19:165-175 doi: 10.1016/j.nanoen.2015.10.038
8. [8]
  Xu D, Zhang D L, Zou H B, et al. Chem. Commun., 2016, 52 (69):10513-10516 doi: 10.1039/C6CC05366A
9. [9]
  PAN Xu-Chen, TANG Jing, XUE-Hai-Rong, et al. Chinese J. Inorg. Chem., 2015, 31(2):282-290
10. [10]
  Wang Y, Zou H B, Zeng S J, et al. Chem. Commun., 2015, 51(62):12423-12426 doi: 10.1039/C5CC03945B
11. [11]
  Bandosz T J, Seredych M, Rodríguez-Castellón E, et al. Carbon, 2016, 96:856-863 doi: 10.1016/j.carbon.2015.10.007
12. [12]
  Yu J, Guo M Y, Muhammad F, et al. Carbon, 2014, 69:502-514 doi: 10.1016/j.carbon.2013.12.058
13. [13]
  Sun Y H, Zhao J H, Wang J L, et al. J. Phys. Chem. C, 2017, 121(18):10000-10009 doi: 10.1021/acs.jpcc.7b02195
14. [14]
  de Yuso A M, De Fina M, Nita C, et al. Microporous Mesoporous Mater., 2017, 243:135-146 doi: 10.1016/j.micromeso.2016.12.001
15. [15]
  Kwiatkowski M, Policicchio A, Seredych M, et al. Carbon, 2016, 98:250-258 doi: 10.1016/j.carbon.2015.11.019
16. [16]
  Xia Y D, Zhu Y Q, Tang Y. Carbon, 2012, 50(15):5543-5553 doi: 10.1016/j.carbon.2012.07.044
17. [17]
  Saha D, Orkoulas G, Chen J H, et al. Microporous Mesoporous Mater., 2017, 241:226-237 doi: 10.1016/j.micromeso.2016.12.015
18. [18]
  Wu M, Dou Z Y, Chang J J, et al. RSC Adv., 2016, 6(27): 22781-22790 doi: 10.1039/C5RA22136F
19. [19]
  Kiciński W, Dziura A. Carbon, 2014, 75:56-67 doi: 10.1016/j.carbon.2014.02.085
20. [20]
  Nelson K M, Mahurin S M, Mayes R T, et al. Microporous Mesoporous Mater., 2016, 222:94-103 doi: 10.1016/j.micromeso.2015.09.050
21. [21]
  Xu Y J, Wu S P, Ren S J, et al. RSC Adv., 2017, 7(52): 32496-32501 doi: 10.1039/C7RA05551J
22. [22]
  Liu F Q, Wang L L, Li G H, et al. ACS Appl. Mater. Interfaces, 2017, 9(39):33997-34004 doi: 10.1021/acsami.7b11492
23. [23]
  Wang J, Senkovska I, Oschatz M, et al. J. Mater. Chem. A, 2013, 1(36):10951-10961 doi: 10.1039/c3ta11995e
24. [24]
  Luo H, Zhu C C, Tan Z C, et al. RSC Adv., 2016, 6(45): 38724-38730 doi: 10.1039/C6RA04106J
