Citation: ZHU Zhao-Ju, XIANG Wen-Jun, LUO He-Qing, WEI Shi-Yong. Preparation, Characterization and Fluoride Adsorption Characteristics of Goethite and Al-Doped Goethite[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(12): 2215-2224. doi: 10.11862/CJIC.2017.266 shu

Preparation, Characterization and Fluoride Adsorption Characteristics of Goethite and Al-Doped Goethite

1.
School of Chemistry and Chemical Engineering, Sichuan University of Arts and Science, Dazhou, Sichuan 635000, China
2.
Department of Chemistry and Environmental Engineering, Hubei University for Nationalities, Enshi, Hubei 445000, China

Corresponding author: WEI Shi-Yong, xiangju12345@126.com
Received Date: 10 March 2017
Revised Date: 20 June 2017

Figures(7)

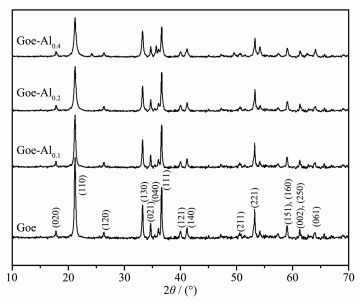

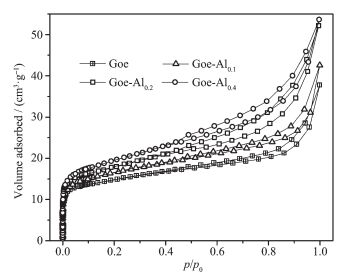

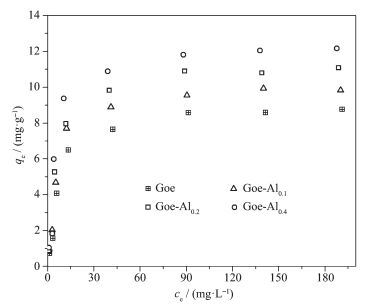

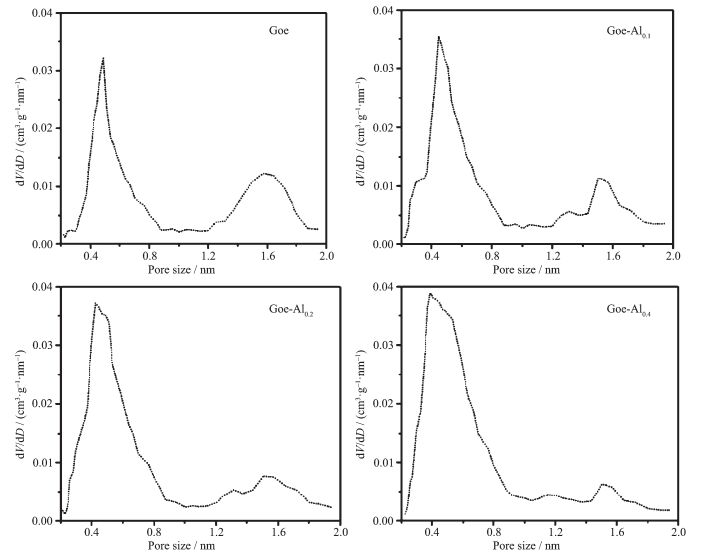

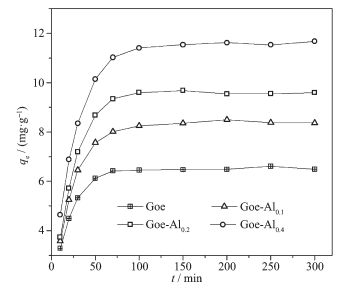

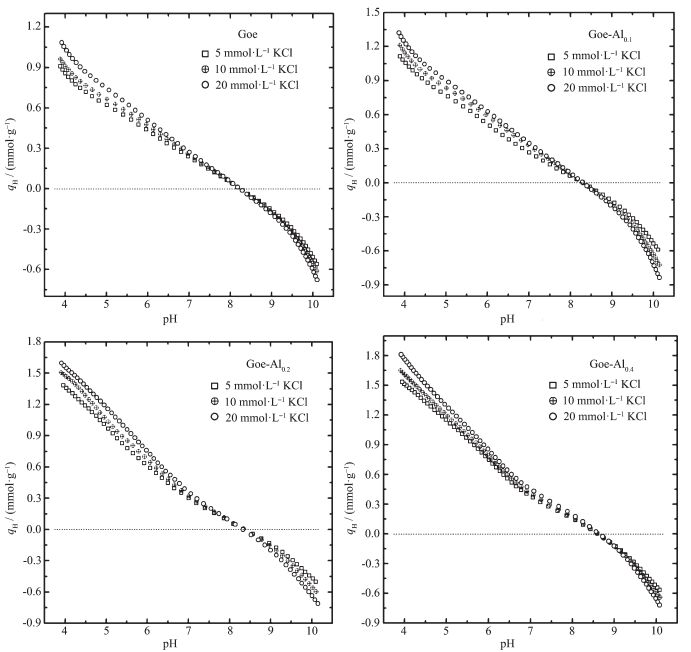

Pure goethite (Goe) and Al-doped goethite (Goe-Al_0.1, Goe-Al_0.2 and Goe-Al_0.4) were prepared under hydrothermal conditions, and the surface properties and fluoride adsorption characteristics of the samples were investigated using X-ray diffraction (XRD), scanning electron microscopy (SEM), nitrogen physical adsorption, potentiometric titrations and batch adsorption experiments. The results show that both the crystallinity of the samples and the length of rod nanoparticles decrease with increasing the Al contents. The micropore surface areas, pore volumes and surface fractal dimension D values of the samples follow the order of Goe ＜ Goe-Al_0.1 ＜ Goe-Al_0.2 ＜ Goe-Al_0.4, and the pore size distributions of the four samples show the opposite order. The points of zero charge (PZC) of Goe, Goe-Al_0.1, Goe-Al_0.2 and Goe-Al_0.4 appear around 8.2, 8.3, 8.5 and 8.7, respectively. At pH=5.0, the surface charges of the four samples are 0.66, 0.83, 1.03 and 1.19 mmol·g^-1, respectively. The adsorption kinetic data for fluoride by the samples were well fitted using the pseudo-second-order kinetic model, suggesting that chemisorption is important in the adsorption process. One-site Langmuir model is suitable to describe the isotherm adsorption data (R²=0.967~0.981). Compared to the correlation coefficients (R²) fitted using one-site Langmuir model, the R² fitted using two-site Langmuir model are higher (R²=0.982~0.995), but the R² fitted using Freundlich model are lower (R²=0.877~0.912). At pH=5.0, Langmuir adsorption capacities (q_max) of Goe, Goe-Al_0.1, Goe-Al_0.2 and Goe-Al_0.4 are 8.83, 10.24, 11.72 and 12.86 mg·g^-1, respectively. This indicates that the adsorption capacity for fluoride onto Al-doped goethite is higher than that onto Goe.
- goethite,
- Al-doped goethite,
- surface properties,
- adsorption,
- fluoride
1. [1]
  Ghosh A, Mukherjee K, Ghosh S K, et al. Res. Chem. Intermed., 2013, 39:2881-2915 doi: 10.1007/s11164-012-0841-1
2. [2]
  Ozsvath D L. Rev. Environ. Sci. Biotechnol., 2009, 8:59-79 doi: 10.1007/s11157-008-9136-9
3. [3]
  Zhang B, Hong M, Zhao Y, et al. Environ. Geochem. Health, 2003, 25:421-431 doi: 10.1023/B:EGAH.0000004560.47697.91
4. [4]
  Jha S K, Nayak A K, Sharma Y K. Chemosphere, 2009, 76:353-356 doi: 10.1016/j.chemosphere.2009.03.044
5. [5]
  Shu W S, Zhang Z Q, Lan C Y, et al. Chemosphere, 2003, 52:1475-1482 doi: 10.1016/S0045-6535(03)00485-5
6. [6]
  Choubisa S L, Choubisa D. Environ. Sci. Pollut. Res., 2016, 23(8):7244-7254 doi: 10.1007/s11356-016-6319-8
7. [7]
  Gizaw B. J. Afr. Earth Sci., 1996, 22:391-402 doi: 10.1016/0899-5362(96)00029-2
8. [8]
  Subba R N, Devadas D J. Environ. Geol., 2003, 45:243-51 doi: 10.1007/s00254-003-0873-3
9. [9]
  Wang G X, Cheng G D. J. Arid Environ., 2001, 49:601-14 doi: 10.1006/jare.2001.0810
10. [10]
  Zhu L, Zhang H H, Xia B, et al. Environ. Int., 2007, 33:302-308 doi: 10.1016/j.envint.2006.10.010
11. [11]
  Hiemstra T, Van-Riemsdijk W H. J. Colloid Interface Sci., 2000, 225:94-104 doi: 10.1006/jcis.1999.6697
12. [12]
  Sujana M G, Pradhan H K, Anand S. J. Hazard. Mater., 2009, 161:120-125 doi: 10.1016/j.jhazmat.2008.03.062
13. [13]
  Patel S C, Khalkho R, Patel S K, et al. Environ. Earth Sci., 2014, 72:2033-2049 doi: 10.1007/s12665-014-3112-1
14. [14]
  Zhao X, Wang J, Wu F, et al. J. Hazard. Mater., 2010, 173(1):102-109
15. [15]
  Nur T, Loganathan P, Nguyen T C, et al. Chem. Eng. J., 2014, 247:93-102 doi: 10.1016/j.cej.2014.03.009
16. [16]
  Cornell R M, Schwertmann U. The Iron Oxides:Structure, Properties, Reactions Occurences, Uses. Weinheim:Wiley-VCH, 2003:42-73, 101-124
17. [17]
  Krishnamurti G S R. Soil Componnents with Variable Charge with Special Reference to Iron Oxides. Naples:University di Napoli Federico Ⅱ, 1997:7-32, 90-93
18. [18]
  Guo H, Barnard A S. J. Mater. Chem., 2013, 1(1):27-42 doi: 10.1039/C2TA00523A
19. [19]
  Tang Y L, Guan X H, Wang J M, et al. J. Hazard. Mater., 2009, 171:774-779 doi: 10.1016/j.jhazmat.2009.06.079
20. [20]
  Harrington L F, Cooper E M, Vasudevan D. J. Colloid Interface Sci., 2003, 267:302-313 doi: 10.1016/S0021-9797(03)00609-X
21. [21]
  Wei S Y, Tan W F, Liu F, et al. Geoderma, 2014, 213:478-484 doi: 10.1016/j.geoderma.2013.09.001
22. [22]
  WEI Shi-Yong, WANG Rui, NIU Peng-Ju, et al. Chinese J. Inorg. Chem., 2016, 32(9):1619-1628
23. [23]
  Schwertmann U, Cornell R M. Iron Oxides in the Laboratory-preparation and Characterization. Weinheim:Wiley-VCH, 1991:61-80
24. [24]
  Liu R, Zhu L, He Z, et al. Colloid Surf. A, 2015, 466:147-153 doi: 10.1016/j.colsurfa.2014.10.007
25. [25]
  Belelli P G, Fuente S A, Castellani N J. Comp. Mater. Sci., 2014, 85:59-66 doi: 10.1016/j.commatsci.2013.12.030
26. [26]
  Davies C W. Ion Interactions. London:Butterworth, 1962:43
27. [27]
  Guo X, Yang C, Dang Z, et al. Chem. Eng. J., 2013, 223:59-67 doi: 10.1016/j.cej.2013.02.115
28. [28]
  Kemer B, Ozdes D, Gundogdu A, et al. J. Hazard. Mater., 2009, 168(2):888-894
29. [29]
  Chen N, Feng C P, Li M. Clean Technol. Environ. Policy, 2014, 16:609-617 doi: 10.1007/s10098-013-0659-6
30. [30]
  Velazquez-Pea G C, Solache-Ríos M, Martínez-Miranda V. Water Air Soil Pollut., 2015, 226(1):2236 doi: 10.1007/s11270-014-2236-y
31. [31]
  Kebede B, Beyene A, Fufa F, et al. Appl. Water Sci., 2016, 6(1):57-65 doi: 10.1007/s13201-014-0210-x
