Citation: QIAN Bin-Bin, ZHAO Meng, CHANG Ze, BU Xian-He. Enhanced CO₂ Sorption Performance of Metal-Organic Frameworks by in-Situ Hydrolysis of Tetrazine Moiety in the Ligand[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(11): 2051-2059. doi: 10.11862/CJIC.2017.251 shu

Enhanced CO₂ Sorption Performance of Metal-Organic Frameworks by in-Situ Hydrolysis of Tetrazine Moiety in the Ligand

QIAN Bin-Bin ¹ ,
ZHAO Meng ¹ ,
CHANG Ze ^1,, ,
BU Xian-He ^1,2,,

1.
School of Materials Science and Engineering, National Institute for Advanced Materials, TKL of Metal and Molecule-Based Material Chemistry, Nankai University, Tianjin 300350, China
2.
College of Chemistry, Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai University, Tianjin 300071, China

Corresponding author: CHANG Ze, changze@nankai.edu.cn BU Xian-He, buxh@nankai.edu.cn
Received Date: 22 August 2017
Revised Date: 29 September 2017

Figures(7)

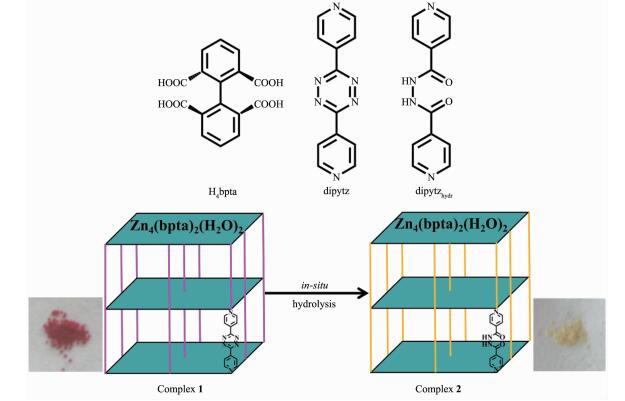

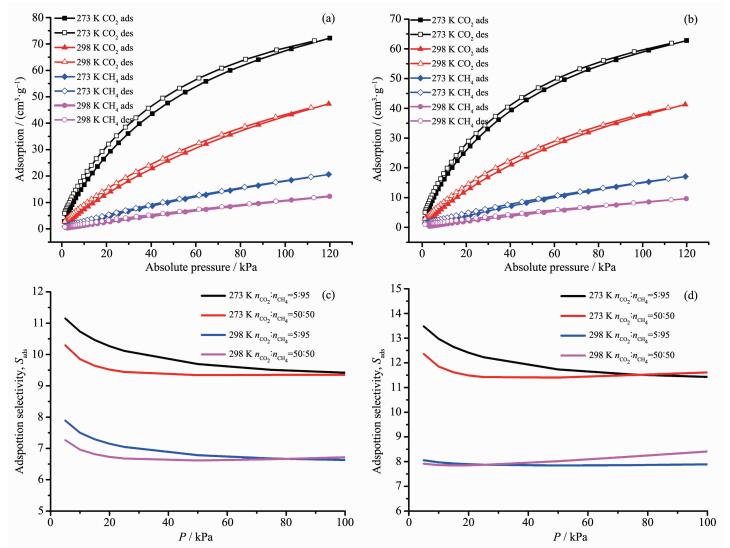

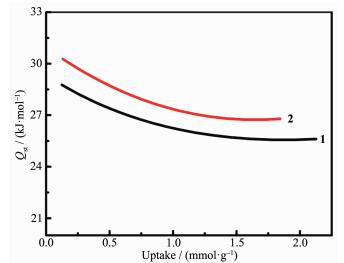

The polar acyl hydrazine groups were introduced into a "pillar-layer" MOF, [Zn₄(bpta)₂(dipytz)₂(H₂O)₂]·4DMF·H₂O (1) (H₄bpta=1, 1'-biphenyl-2, 2', 6, 6'-tetracarboxylic acid and dipytz=di-3, 6-(4-pyridyl)-1, 2, 4, 5-tetrazine), through the in-situ hydrolysis modification of the dipytz pillar ligand, and [Zn₄(bpta)₂(dipytz_hydr)(H₂O)₂]·solvent (2) (dipytz_hydr=1, 2-diisonicotinoylhydrazine) was obtained. The results of gas sorption measurement show that complex 2 has an enhanced CO₂-framework affinity (initial CO₂ adsorption enthalpies increase from 28.8 to 30.3 kJ·mol^-1) and higher CO₂/CH₄ selectivity compared with that of complex 1. The present work indicates that in-situ hydrolysis modification is highly potential for the enhancement of CO₂ adsorption performance of tetrazine functionalized MOFs.
- metal-organic frameworks,
- tetrazine,
- post-synthesis,
- property modulation,
- CO₂ sorption
1. [1]
  D'Alessandro D M, Smit B, Long J R. Angew. Chem. Int. Ed., 2010,49:6058-6082 doi: 10.1002/anie.201000431
2. [2]
  Jacobson M Z. Energy Environ. Sci., 2009,2:148-155 doi: 10.1039/B809990C
3. [3]
  Sumida K, Rogow D L, Mason J A, et al. Chem. Rev., 2012, 112:724-781 doi: 10.1021/cr2003272
4. [4]
  Nugent P, Belmabkhout Y, Burd S D, et al. Nature, 2013, 495:80-84 doi: 10.1038/nature11893
5. [5]
  Haszeldine R S. Science, 2009,325:1647-1652 doi: 10.1126/science.1172246
6. [6]
  Christopher W J, Edward J M. ChemSusChem, 2010,3:863-864 doi: 10.1002/cssc.201000235
7. [7]
  Rubin E S, John H, Marks A, et al. Prog. Energy Combust. Sci., 2012,38:630-671 doi: 10.1016/j.pecs.2012.03.003
8. [8]
  Wang H, Xu J, Bu X H, et al. Angew. Chem. Int. Ed., 2015, 54:5966-5699 doi: 10.1002/anie.201500468
9. [9]
  Tian D, Chen Q, Bu X H, et al. Angew. Chem. Int. Ed., 2014, 53:837-849 doi: 10.1002/anie.201307681
10. [10]
  Chang, Z, Yang D H, Bu X H, et al. Adv. Mater., 2015,27: 5432-5435 doi: 10.1002/adma.201501523
11. [11]
  Chen K J, Chen X M, Zaworotko M J, et al. Angew. Chem. Int. Ed., 2016,55:10268-10272 doi: 10.1002/anie.201603934
12. [12]
  Lin R B, Li T Y, Chen X M, et al. Chem. Sci., 2015,6:2516-2521 doi: 10.1039/C4SC03985H
13. [13]
  Wang L, He C T, Chen X M, et al. J. Am. Chem. Soc., 2017,139:8086-8089 doi: 10.1021/jacs.7b02981
14. [14]
  Chen C, Wei Z, Su C Y, et al. Angew. Chem. Int. Ed., 2016, 55:9932-9937 doi: 10.1002/anie.201604023
15. [15]
  Liu D, Chang Y J, Lang J P. CrystEngCommun, 2011,13: 1851-1857 doi: 10.1039/C0CE00575D
16. [16]
  Liu B, Yao S, Liu Y L, et al. Chem. Commun., 2016,52: 3223-3229 doi: 10.1039/C5CC09922F
17. [17]
  Luo X L, Cao Y, Liu Y L, et al. J. Am. Chem. Soc., 2016, 138:2969-2972 doi: 10.1021/jacs.6b00695
18. [18]
  Yao S, Wang D M, Liu Y L, et al. J. Am. Chem. Soc., 2015, 3:16627-16631
19. [19]
  Philipp M F, Wisser V B, Stefan K, et al. Chem. Mater., 2015,27:2460-2467 doi: 10.1021/cm5045732
20. [20]
  Li C, Ge H, Li J L, et al. RSC Adv., 2015,5:12277-12286 doi: 10.1039/C4RA10808F
21. [21]
  Zhang Z X, Ding N N, Zhang W H, et al. Angew. Chem. Int. Ed., 2014,53:4628-4632 doi: 10.1002/anie.201311131
22. [22]
  John E C, Jason R P, Cameron J K, et al. Angew. Chem. Int. Ed., 2014,53:10164-10168 doi: 10.1002/anie.201402951
23. [23]
  Lu Z Z, Zhang R, Zheng H G, et al. J. Am. Chem. Soc., 2011,133:4172-4174 doi: 10.1021/ja109437d
24. [24]
  Yoshihiro Y, Yuya H, Takahiro I, et al. J. Am. Chem. Soc., 2010,132:9555-9557 doi: 10.1021/ja103180z
25. [25]
  Vagin S I, Ott A K, Rieger B, et al. Chem. Eur. J., 2009,15: 5845-5853 doi: 10.1002/chem.v15:23
26. [26]
  Bu X H, Liu H, Shionoya J, et al. Inorg. Chem., 2002,41: 1855-1861 doi: 10.1021/ic010955y
27. [27]
  Xuan Z H, Chang Z, Bu X H, et al. Inorg. Chem., 2014,53: 8985-8990 doi: 10.1021/ic500905z
28. [28]
  Chang Z, Zhang D S, Bu X H, et al. Inorg. Chem., 2011,50: 7555-7562 doi: 10.1021/ic2004485
29. [29]
  Peter H D, Mary E W, Charlotte L S, et al. J. Am. Chem. Soc., 2010,126:12989-13001
30. [30]
  Suh M P, Moon H R, Lee E Y, et al. J. Am. Chem. Soc., 2006,14:4710-4718
31. [31]
  Sheldrick G M. Acta Crystallogr. Sect. A: Found. Crystallogr., 2008,A64:112-122
32. [32]
  Spek A L. J. Appl. Crystallogr., 2003,36:7-13 doi: 10.1107/S0021889802022112
