Citation: CHEN Yan-Min, JIANG Yan, HONG Si-Yu, YAO Yong-Gang, XIE Qing-Fan. Two Adjustable Tetranuclear Copper(Ⅱ) Schiff Base Complexes: Self-Assembly, Crystal Structures and Antitumor Activities[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(6): 1023-1029. doi: 10.11862/CJIC.2017.122 shu

Two Adjustable Tetranuclear Copper(Ⅱ) Schiff Base Complexes: Self-Assembly, Crystal Structures and Antitumor Activities

College of Chemical Engineering and Material, Quanzhou Normal University, Quanzhou, Fujian 362000, China

Corresponding author: CHEN Yan-Min, zlmy@sina.com XIE Qing-Fan, rong516112@sina.cn
Received Date: 8 September 2016
Revised Date: 28 February 2017

Figures(7)

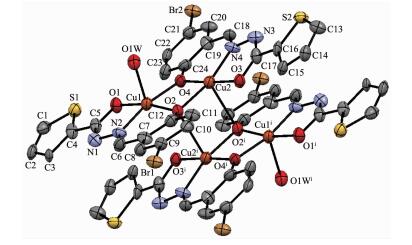

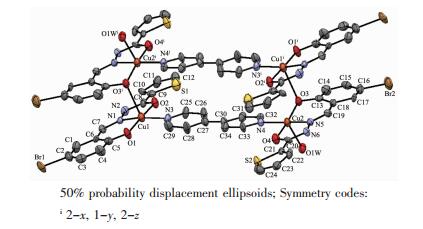

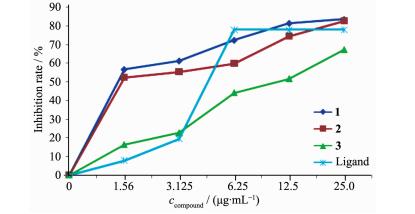

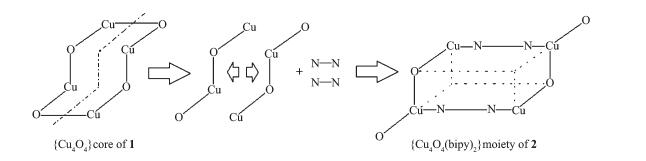

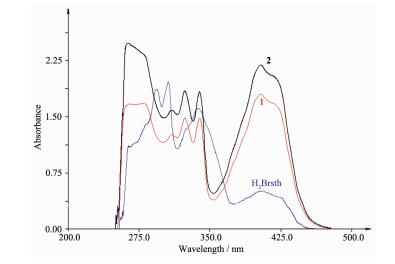

A tridentate Schiff base ligand (H₂Brsth), derived from the condensation of 5-bromosalicylaldehyde and 2-acetylthiophene, hydrothermally reacted with Cu(Ⅱ) acetate in mixed-solvent of ethanol and water to yield tetranuclear complexes [Cu₄(H₂O)₂(μ-Brsth)₂(μ₃-Brsth)₂] (1) and [Cu₄(H₂O)₂(Brsth)₂(μ-Brsth)₂(μ₂-4, 4'-bipy)₂] (2), which were characterized by elemental analyses, IR, electronic spectra, thermogravimetric analysis and single crystal X-ray diffraction. The X-ray diffraction analyses reveal that 1 crystallizes in the monoclinic space group P2₁/c with Z=2 while 2 in monoclinic space group C2/c with Z=4. In 1 and 2 each Cu(Ⅱ) atoms are five-coordinated with both distorted square pyramidal geometries. In 1 four Cu(Ⅱ) atoms are held together by four μ-O and/or μ₃-O type phenoxo oxygen atoms from four individual Schiff base ligands to form a chair-shaped {Cu₄O₄} unit. In 2 two pairs of Cu(Ⅱ) atoms join two μ₂-4, 4'-bipy molecules and two μ-phenoxo oxygen atoms from two Schiff base, respectively, to form a cyclic tetranuclear structure. The in vitro antitumor activities of ligand and complexes were tested by MTT method, which results show that the complexes have strong in vitro antitumor activity against HEPG2 cancer cells lines.CCDC: 1058056, 1; 1048382, 2.
- copper complex,
- Schiff base,
- crystal structure,
- antitumor activity
1. [1]
  Garbutcheon-singh K B, Grant M P, Harper B P, et al. Curr. Top. Med. Chem., 2011, 11:521-542 doi: 10.2174/156802611794785226
2. [2]
  Wilcox D E. Chem. Rev., 1996, 96:2435-2458 doi: 10.1021/cr950043b
3. [3]
  Fernandes T A, Mendes F, Roseiro A P S, et al. Polyhedron, 2015, 87:215-219 doi: 10.1016/j.poly.2014.11.020
4. [4]
  Thakurta S, Roy P, Butcher Ray J, et al. Eur. J. Inorg. Chem., 2009(29/30):4385-4395
5. [5]
  Gupta S, Pal S, Barik A K, et al. Polyhedron, 2008, 27(12):2519-2528 doi: 10.1016/j.poly.2008.05.009
6. [6]
  Tuna F, Pascu G I, Sutter J-P, et al. Inorg. Chim. Acta, 2003, 342:131-138 doi: 10.1016/S0020-1693(02)01155-6
7. [7]
  QIU Xiao-Yang. Chinese J. Inorg. Chem., 2014, 30(7):1667-1672
8. [8]
  Pattanayak P, Pratihar J L, Patra D, et al. Inorg. Chim. Acta, 2014, 418:171-179 doi: 10.1016/j.ica.2014.04.021
9. [9]
  Xiang H, Lan Y H, Jiang L, et al. Inorg. Chem. Commun., 2012, 16:51-54 doi: 10.1016/j.inoche.2011.11.029
10. [10]
  He M H, Zhang W, Yu Z W. Inorg. Chim. Acta, 2010, 363(13):3619-3623 doi: 10.1016/j.ica.2010.05.045
11. [11]
  Tyagi P, Chandra S, Saraswat B S, et al. Spectrochim. Acta Part A, 2015, 145:155-164 doi: 10.1016/j.saa.2015.03.034
12. [12]
  Kumar P, Narasimhan B. Mini Rev. Med. Chem., 2013, 13(7):971-987 doi: 10.2174/1389557511313070003
13. [13]
  Räisänen M T, Korpi H, Sundberg M R, et al. Inorg. Chim. Acta, 2013, 394:203-209 doi: 10.1016/j.ica.2012.08.007
14. [14]
  XIE Qi-Wei, CUI Ai-Li, KOU Hui-Zhong. Chinese J. Inorg. Chem., 2015, 31(9):1798-1804
15. [15]
  Chakraborty J, Thakurta S, Pilet G, et al. Polyhedron, 2009, 28(4):819-825 doi: 10.1016/j.poly.2008.12.018
16. [16]
  CHEN Yan-Min, WANG Jing-Mei, CHEN Fei-Peng, et al. Chinese J. Inorg. Chem., 2016, 32(3):434-440 doi: 10.11862/CJIC.2016.043
17. [17]
  Conerney B, Jensen P, Kruger P E, et al. CrystEngCommun, 2003, 5:454-458 doi: 10.1039/B311278K
18. [18]
  Liu P, Wang Y Y, Li D S, et al. Chin. J. Chem., 2005, 23:204-210 doi: 10.1002/(ISSN)1614-7065
19. [19]
  Sheldrick G M. SHELXTL, Program for X-ray Crystal Structure Solution and Refinement, University of Göttingen, Germany, 1997.
20. [20]
  Shit S, Rosair G, Mitra S. J. Mol. Struct., 2011, 991(1/2/3):79-83
21. [21]
  GAO Ping-Zhang, CHEN Ya-Xin, ZHENG Min-Min, et al. Chinese J. Inorg. Chem., 2016, 32(9):1572-1578
22. [22]
  Ismail K Z. Transition Met. Chem., 2000,25(5):522-528 doi: 10.1023/A:1007072911095
