Citation: LI Yu-Xiang, DENG Sheng-Yu, FAN Ya-Lei, WANG De-Qiang. Spectroscopic Properties of Tm³⁺/Er³⁺/Ho³⁺ Co-doped SiO₂-Bi₂O₃-AlF₃-BaF₂ Glasses[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(5): 801-808. doi: 10.11862/CJIC.2017.106 shu

Spectroscopic Properties of Tm³⁺/Er³⁺/Ho³⁺ Co-doped SiO₂-Bi₂O₃-AlF₃-BaF₂ Glasses

School of Material Science and Technology, East China University of Science and Technology, Shanghai 200237, China

Corresponding author: WANG De-Qiang, derek_wang@ecust.edu.cn
Received Date: 9 October 2016
Revised Date: 1 March 2017

Figures(9)

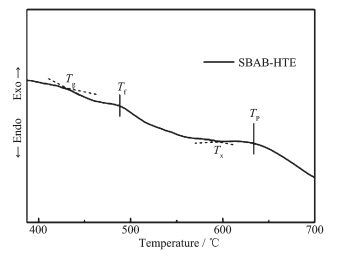

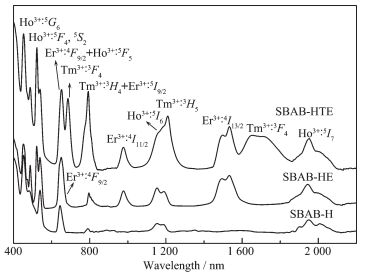

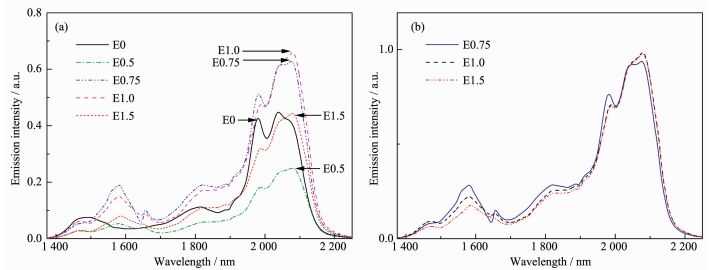

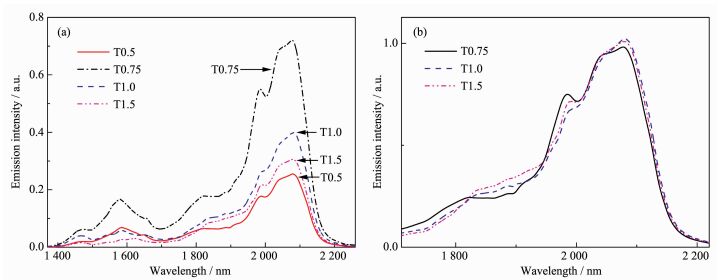

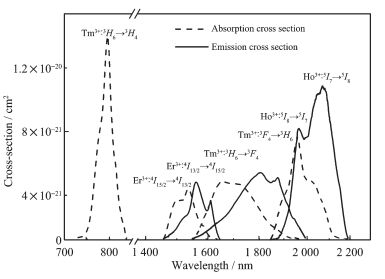

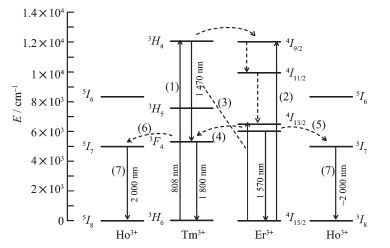

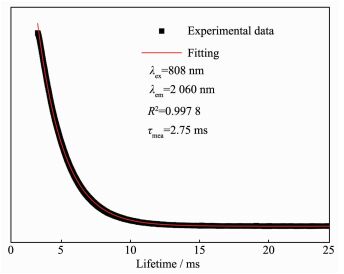

The Tm³⁺, Er³⁺ and Ho³⁺ co-doped bismuth silicate glasses 50SiO₂-40Bi₂O₃-5AlF₃-5BaF₂ were prepared by high-temperature melt-quenching method. The spectroscopic properties of Tm³⁺, Er³⁺ and Ho³⁺ co-doped bismuth silicate at 2 060 nm exited by 808 nm Laser Diode were investigated. Thermal stability of the glasses, absorption spectra and fluorescence spectra of the Tm³⁺, Er³⁺ and Ho³⁺ co-doped glass samples were measured. According to the absorption spectrum and Judd-Oflet theory, the Judd-Oflet intensity parameters of Ho³⁺ Ω_t(t=2, 4, 6), absorption cross sections of Tm³⁺, Er³⁺ and Ho³⁺ were calculated, respectively. The measured fluorescence spectra manifest that the maximal emission intensity of Ho³⁺:⁵I₇→⁵I₈ at 2 060 nm can be achieved at the concentration of 0.75% Tm₂O₃, 1.0% Er₂O₃ and 0.5% Ho₂O₃ in bismuth silicate glasses. Besides the spectroscopic properties of Tm³⁺, Er³⁺ and Ho³⁺ separately and possible energy transfer mechanisms among Tm³⁺, Er³⁺ and Ho³⁺ were analyzed and discussed in detail. The maximal absorption and emission cross sections of Ho³⁺ are 9.08×10^-21 cm² at 1 953 nm and 1.168×10^-20 cm² at 2 060 nm, respectively, with a lifetime of 2.75 ms, while large σ_emτ achieved (3.212×10^-20 cm²·ms) suggesting its efficient application in 2 μm fiber lasers.
- optics,
- 2.0 μm emission,
- Tm³⁺/Er³⁺/Ho³⁺co-doped,
- bismuth silicate glass
1. [1]
  Louchev O A, Urata Y, Yumoto M, et al. J. Appl. Phys., 2008, 104:033114 doi: 10.1063/1.2936967
2. [2]
  Taniguchi A, Kuwayama T, Shirakawa A, et al. Appl. Phys. Lett., 2002, 81(20):3723-3725 doi: 10.1063/1.1521242
3. [3]
  Yu T, Zhang L J, Hu L L, et al. Appl. Phys. B:Lasers Opt., 2010, 102(1):109-116
4. [4]
  FANG Fang. OME Information, 2006, 2:36-39 doi: 10.3969/j.issn.1007-1180.2006.02.002
5. [5]
  Ding J, Zhao G Y, Ying T, et al. Opt. Mater., 2012, 35(1):85-88 doi: 10.1016/j.optmat.2012.07.003
6. [6]
  Gao G J, Hu L L, Fan H Y, et al. Opt. Mater., 2009, 32(2):402-405 doi: 10.1016/j.optmat.2009.07.003
7. [7]
  Seshadri M, Barbosa L C, Radha M, et al. J. Lumin., 2015, 166:8-16 doi: 10.1016/j.jlumin.2015.04.022
8. [8]
  Chen R, Ying T, Li B P, et al. Opt. Mater., 2015, 49:116-122 doi: 10.1016/j.optmat.2015.09.003
9. [9]
  Gao G J, Reibstein S, Spiecker E, et al. J. Mater. Chem., 2012, 22(22):2582-2588
10. [10]
  Li M, Guo Y Y, Bai G X, et al. J. Quant. Spectrosc. Radiat. Transfer, 2013, 127:70-77 doi: 10.1016/j.jqsrt.2013.04.025
11. [11]
  Peng B, Izumitani T. Opt. Mater., 1995, 4(6):797-810 doi: 10.1016/0925-3467(95)00032-1
12. [12]
  Tanabe S, Yoshii S, Hirao K, et al. Phys. Rev. B:Condens. Matter, 1992, 45(45):4620-4625
13. [13]
  Yousef E S, Elokr M M, Aboudeif Y M. J. Mol. Struct., 2015, 1108:257-262
14. [14]
  Liu Y P, Feng D G, Xu S Q, et al. J. Non-Cryst. Solids, 2013, 360(1):26-30
15. [15]
  Zhao G Y, Tian Y, Wang S K, et al. Phys. Rev. B:Condens. Matter., 2012, 407(24):4622-4626 doi: 10.1016/j.physb.2012.09.002
16. [16]
  Yang Z Y, Luo T, Jiang S B, et al. Opt. Lett., 2010, 35:3360-3362 doi: 10.1364/OL.35.003360
17. [17]
  Fan H Y, Wang G N, Hu L L, et al. Solid State Commun., 2010, 150(25/26):1101-1103
18. [18]
  Huang F F, Liu X Q, Li W W, et al. Chin. Opt. Lett., 2014, 12(5):051601(4 pages)
19. [19]
  Lim K S, Vijaya N, Kesavulu C R, et al. Opt. Mater., 2013, 35(8):1557-1563 doi: 10.1016/j.optmat.2013.03.026
20. [20]
  GAO Qian-Xiang, TIAN Qiang. J. Chongqing Univ.:Nat. Sci. Ed., 2002, 25(1):106-108
21. [21]
  Judd B R. Phys. Rev., 1962, 127(3):750-761 doi: 10.1103/PhysRev.127.750
22. [22]
  Ofelt G S. J. Chem. Phys., 1962, 37(3):511-520 doi: 10.1063/1.1701366
23. [23]
  Carnall W T, Fields P R, Rajnak K. J. Chem. Phys., 1968, 49(10):4424-4442 doi: 10.1063/1.1669893
24. [24]
  Rao C S, Kumar K U, Babu P, et al. Opt. Mater., 2012, 35(2):102-107 doi: 10.1016/j.optmat.2012.07.023
25. [25]
  Chen H F, Chen F Z, Tao W, et al. Opt. Commun., 2014, 321(321):183-188
26. [26]
  Jorgensen C K, Reisfeld R J. J. Less-Common Met., 1983, 93(1):107-112 doi: 10.1016/0022-5088(83)90454-X
27. [27]
  Watekar P R, Ju S, Han W T. J. Non-Cryst. Solids, 2008, 354(14):1453-1459 doi: 10.1016/j.jnoncrysol.2007.08.068
28. [28]
  JIANG Zhong-Hong. New Function of Optical Glass. Beijing:Chemical Industry Press, 2008.
29. [29]
  Liu X X, Huang F F, Cheng J, et al. J. Lumin., 2015, 162:197-202 doi: 10.1016/j.jlumin.2015.02.037
30. [30]
  LI Chun, ZHANG Xun-Jian, WANG Cheng-Wei, et al. Chinese J. Inorg. Chem., 2011, 27(1):6-10
31. [31]
  YU Chun-Lei, HE Dong-Bing, WANG Guo-Nian, et al. Acta Optic. Sin., 2009, 29(11):3143-3147
32. [32]
  Wang X, Li Z L, Li K F, et al. Opt. Mater., 2013, 35(12):2290-2295 doi: 10.1016/j.optmat.2013.06.020
33. [33]
  McCumber D E. Phys. Rev., 1964, 134(2A):A299-A306 doi: 10.1103/PhysRev.134.A299
34. [34]
  Zhang W J, Lin J, Jia Y J, et al. Spectrochim. Acta, Part A:Mol. Biomol. Spectrosc., 2015, 134(5):388-398
