Citation: WANG Ting-Ting, SUN Qiu, SONG Ying. Effects of Bi Doping on Thermoelectric Properties of La_0.1Sr_0.9TiO₃ Ceramics[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(4): 659-663. doi: 10.11862/CJIC.2017.083 shu

Effects of Bi Doping on Thermoelectric Properties of La_0.1Sr_0.9TiO₃ Ceramics

School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin 150001, China

Corresponding author: SONG Ying, songy@hit.edu.cn
Received Date: 5 January 2017
Revised Date: 9 March 2017

Figures(5)

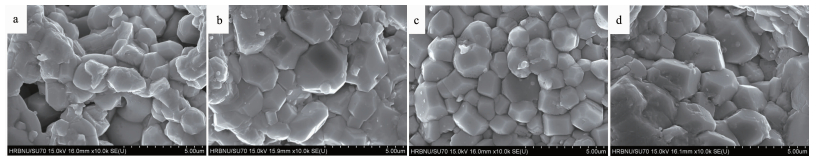

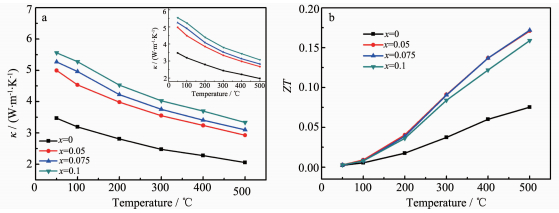

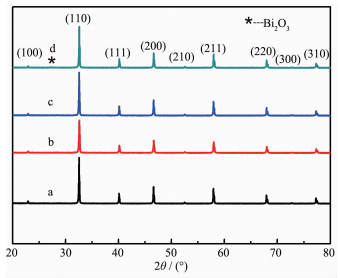

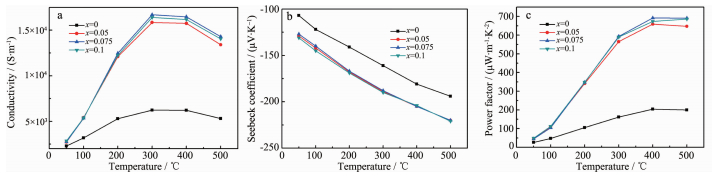

La_0.1Bi_xSr_0.9-xTiO₃(x=0, 0.05, 0.075, 0.1) ceramics were fabricated at 1 500℃ for 4 h in 5%H₂+95%N₂(V/V) reduction atmosphere. The phase composition, microstructure and thermoelectric properties were investigated. The results indicated that the main phase of the samples doped with Bi was SrTiO₃, and trace Bi₂O₃ was observed when the Bi doping content is more than 0.075. The grain of the samples doped with Bi was fully developed, regularly shaped and combined closely, suggesting the good sintering effect of Bi₂O₃. Moreover, the electric conductivity and the absolute Seebeck coefficient of La_0.1Sr_0.9TiO₃ ceramics increased obviously with the doping of Bi, indicating that the carrier concentration and carrier mobility were greatly improved by the Bi doping. The power factor of the sample with x=0.075 was maximum, which attained 692 μW·m^-1·K^-2 at 400℃. Though the thermal conductivity of the samples doped with Bi was higher than that of the sample without Bi, the ZT value of the sample with x=0.075 could still reach 0.172 at 500℃, which was increased by 130% compared with that of the sample without Bi.
- SrTiO₃,
- doping,
- thermoelectric properties,
- microstructure
1. [1]
  ZHAN Bin, LAN Jin-Le, LIU Yao-Chun, et al. J. Inorg. Mater., 2014, 29(3):237-244
2. [2]
  Hébert S, Berthebaud D, Daou R, et al. J. Phys.:Condens. Matter., 2016, 28(1):13001 doi: 10.1088/0953-8984/28/1/013001
3. [3]
  Liu J, Wang C L, Peng H, et al. J. Electron. Mater., 2012, 41(11):3073-3076 doi: 10.1007/s11664-012-2219-y
4. [4]
  Bhattacharya S, Mehdizadeh A, Alshareef H N, et al. J. Phys. D:Appl. Phys., 2014, 47:1-7
5. [5]
  Kovalevsky A V, Yaremchenko A A, Populoh S, et al. Phys. Chem. Chem. Phys., 2014, 16:26946-26954 doi: 10.1039/C4CP04127E
6. [6]
  Li L L. Chin. Phys., 2015, 24(6):607-612
7. [7]
  Chen C, Zhang T S, Donelson R, et al. J. Alloys Compd., 2015, 629:49-54 doi: 10.1016/j.jallcom.2014.12.125
8. [8]
  Dehkordi A M, Bhattacharya M, Darroudi T, et al. Chem. Mater., 2014, 26:2478-2485 doi: 10.1021/cm4040853
9. [9]
  Dawson J A, Tanaka I. J. Phys. Chem. C, 2014, 118:25765-25778 doi: 10.1021/jp508444k
10. [10]
  Mahmud I, Yoon M S, Choi M K, et al. J. Korean Chem. Soc., 2016, 68:35-40
11. [11]
  Zheng G H, Dai Z X, Dong Y Q, et al. Mater. Res. Innovations, 2012, 16:438-441 doi: 10.1179/1433075X12Y.0000000039
12. [12]
  Shang P P, Zhang B P, Liu Y, et al. J. Electron. Mater., 2011, 40:926-931 doi: 10.1007/s11664-010-1452-5
13. [13]
  Liu J, Wang C L, Li Y, et al. J. Appl. Phys., 2013, 114:223714(7 pages) doi: 10.1063/1.4847455
14. [14]
  Rittiruam M, Seetawan T, Yokhasing S, et al. Inorg. Chem., 2016, 55:8822-8826 doi: 10.1021/acs.inorgchem.6b01313
15. [15]
  Muta H, Kurosaki K, Yamanaka S. J. Alloys Compd., 2003, 350:292-295 doi: 10.1016/S0925-8388(02)00972-6
16. [16]
  Zhang B Y, Wang J, Yaer X B, et al. Funct. Mater. Lett., 2015, 8(6):1550070(5 pages) doi: 10.1142/S1793604715500708
17. [17]
  Moos R, Bischoff T, Menesklou W, et al. J. Mater. Sci., 1997, 32:4247-4252 doi: 10.1023/A:1018647117607
18. [18]
  Sukpanish P, Lertpanyapornchai B, Yokoi T, et al. Mater. Chem. Phys., 2016, 181:422-431 doi: 10.1016/j.matchemphys.2016.06.078
19. [19]
20. [20]
  Muta H, Kurosaki K, Yamanaks S. J. Alloys Compd., 2005, 392(1):306-314
21. [21]
  LI Xiao-Guang, HUO De-Xuan, HE Cai-Jun, et al. J. Inorg. Mater., 2015, 25(6):573-576
22. [22]
  Qin M J, Gao F, Wang M, et al. Ceram. Int., 2016, 42:16644-16649 doi: 10.1016/j.ceramint.2016.07.091
23. [23]
  Feng X P, Fan Y C, Nomuraetal N, et al. Carbon, 2016, 112:169-176
