Citation: YAN Xi-Luan, CHEN Xin, GAO Wen-Ju, WEI Ting-Ting, LIN Yue-Min, AI Fan-Rong. Nanoparticles Grafted by ATP Aptamer:Preparation and Application in Chemiluminescence Enzyme Analysis[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(2): 340-346. doi: 10.11862/CJIC.2017.034 shu

Nanoparticles Grafted by ATP Aptamer:Preparation and Application in Chemiluminescence Enzyme Analysis

1.
School of Resources, Environmental & Chemical Engineering, Nanchang University, Nanchang, 330031, China
2.
School of Mechanic & Electronic Engineering, Nanchang University, Nanchang, 330031, China
3.
Institute of Translational Medicine, Nanchang University, Nanchang, Nanchang, 330031, China

Corresponding author: AI Fan-Rong, afr3755875@126.com
Received Date: 31 August 2016
Revised Date: 21 November 2016

Figures(8)

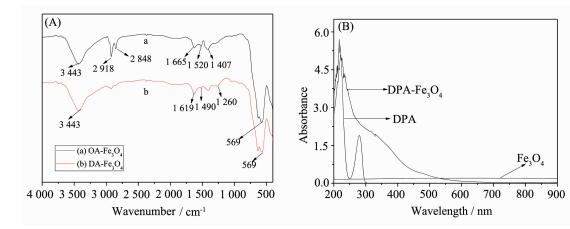

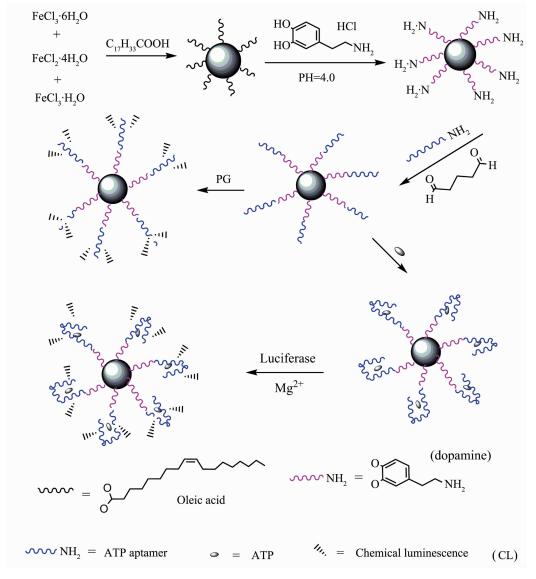

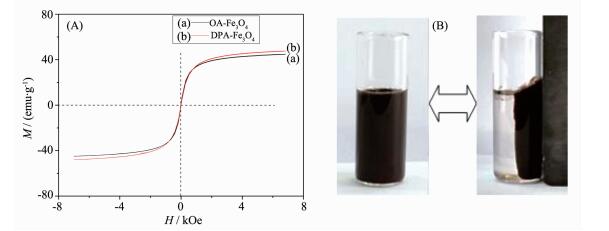

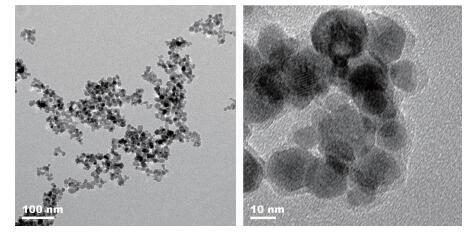

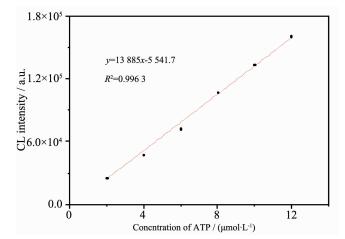

Oleic acid-modified Fe₃O₄ nanoparticles was prepared and dopamine hydrochloride was chosen to amino-modify these nanoparticles. The Fe₃O₄ nanoparticles have good water-dispersible, and were characterized by X-ray diffraction (XRD), transmission electron microscopy (TEM), Fourier transformed infrared (FTIR)spectroscopy, vibrating sample magnetometer and ultravioletvisible spectroscopy (UV-Vis)spectra. Then, amino-modified adenosine triphosphate (ATP)aptamer was grafted onto Fe₃O₄ nanoparticles, and the amount of ATP was detected with luciferase chemiluminescence method. Meanwhile, the amount of ATP of lactic acid bacteria in commercially yogurt was tested, which had high sensitivity and good reproducibility. The results showed that these functionalized-Fe₃O₄ nanoparticles could act as good dispersion, easy separation carrier, which indicated uniform particle size, good stability, strong magnetism and excellent binding ability with ATP aptamer. The development of Fe₃O₄ nanoparticles largely expanded its application in the field of analysis.
- Fe₃O₄,
- nanoparticles,
- aptamer,
- ATP,
- chemiluminescence detection
1. [1]
  Lara F J, García-Campaña A M, Aaron J. Anal. Chim. Acta, 2010, 679(1/2):17-30
2. [2]
  Lara F J, García-Campaña A M, Velasco A I. Electrophoresis., 2010, 31:19982027
3. [3]
  Lara F J, Airado-Rodríguez D, Moreno-González D, et al. Anal. Chim. Acta, 2016, 913:22-40 doi: 10.1016/j.aca.2016.01.046
4. [4]
  Iranifam M. TrAC Trends Anal. Chem., 2014, 59:156-183 doi: 10.1016/j.trac.2014.03.010
5. [5]
  Ocaña-González J A, Ramos-Payán M, Fernández-Torres R, et al. Talanta, 2014, 122:214-222 doi: 10.1016/j.talanta.2014.01.028
6. [6]
  Calokerinos A. Anal. Lett., 2011, 44(1/2/3):176-215
7. [7]
  Famulok M, Mayer G. Chem. Biol., 2014, 21(9):1055-1058 doi: 10.1016/j.chembiol.2014.08.003
8. [8]
  Wu Y X, Kwon Y J. Methods, 2016, 106:21-28 doi: 10.1016/j.ymeth.2016.04.020
9. [9]
  Zhu D, Yang R X, Tang Y, et al. Biosens. Bioelectron., 2016, 85:429-436 doi: 10.1016/j.bios.2016.05.039
10. [10]
  Zhu L, Xu G, Song Q, et al. Sens. Actuators, B, 2016, 231:506-512 doi: 10.1016/j.snb.2016.03.084
11. [11]
  Sharma A, Catanante G, Hayat A, et al. Talanta, 2016, 158:35-41 doi: 10.1016/j.talanta.2016.05.043
12. [12]
  Nguyen V, Seo H B, Kim B C, et al. Biosens. Bioelectron., 2016, 86:293-300 doi: 10.1016/j.bios.2016.06.064
13. [13]
  Kim Y S, Chung J, Song M Y, et al. Biosens. Bioelectron., 2014, 54:195-198 doi: 10.1016/j.bios.2013.11.003
14. [14]
  Qi Y, Xiu F, Zheng M, et al. Biosens. Bioelectron., 2016, 83:243-249 doi: 10.1016/j.bios.2016.04.074
15. [15]
  Iranifam M. TrAC Trends Anal. Chem., 2013, 51:51-70 doi: 10.1016/j.trac.2013.05.014
16. [16]
  Hai H, Yang F, Li J. Microchim. Acta, 2014, 181(9/10):893-901
17. [17]
  Ji X B, Yao C G, Wan Y, et al. Chin. J. Chem., 2016, 34:331-336 doi: 10.1002/cjoc.v34.3
18. [18]
  Zhu L, Xu G, Song Q, et al. Sens. Actuators, B, 2016, 231:506-512 doi: 10.1016/j.snb.2016.03.084
19. [19]
  LI Hong, JI Liang-Nian, LI Wei-Shan, et al. Chinese J. Inorg. Chem., 2003, 19(3):225-232
20. [20]
  Tombácz E, Turcu R, Socoliuc V, et al. Biochem. Biophys. Res. Commun., 2015, 468(3):442-453 doi: 10.1016/j.bbrc.2015.08.030
21. [21]
  Mohammadi A, Barikani M, Lakouraj M M. Mater. Sci. Eng. C, 2016, 66:106-118 doi: 10.1016/j.msec.2016.04.064
22. [22]
  XIAO Wang-Chuan, WANG Ye-Min, WANG Ren-Zhang, et al. Chinese J. Inorg. Chem., 2014, 30(11):2559-2563
23. [23]
  Kai M, Ohkura Y, Yonekura S, et al. Anal. Chim. Acta, 1994, 287(1):75-81
24. [24]
  Hattori N, Sakakibara T, Kajiyama N, et al. Anal. Biochem., 2003, 319(2):287-295 doi: 10.1016/S0003-2697(03)00322-1
25. [25]
  HUANG Jun-Hong, PENG Li-Zhen, WANG Ai-Lan. Chinese J. Microecology, 2001, 13(6):324-325
