Citation: TAN Xiong-Wen, LI Heng-Feng, LI Chang-Hong. Syntheses, Crystal Structures and Fluorescence Properties of Two Complexes Constructed from Rigid 1,4-bis(4-methyl-imidazolyl) Benzene[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(1): 156-162. doi: 10.11862/CJIC.2017.002 shu

Syntheses, Crystal Structures and Fluorescence Properties of Two Complexes Constructed from Rigid 1,4-bis(4-methyl-imidazolyl) Benzene

1.
School of Materials Science and Engineering, Central South University, Changsha 410083, China
2.
College of Chemistry and Materials Science, Hengyang Normal University, Hengyang, Hunan 421008, China

Corresponding author: LI Heng-Feng, lihf@csu.edu.cn
Received Date: 1 September 2016
Revised Date: 28 October 2016

Figures(5)

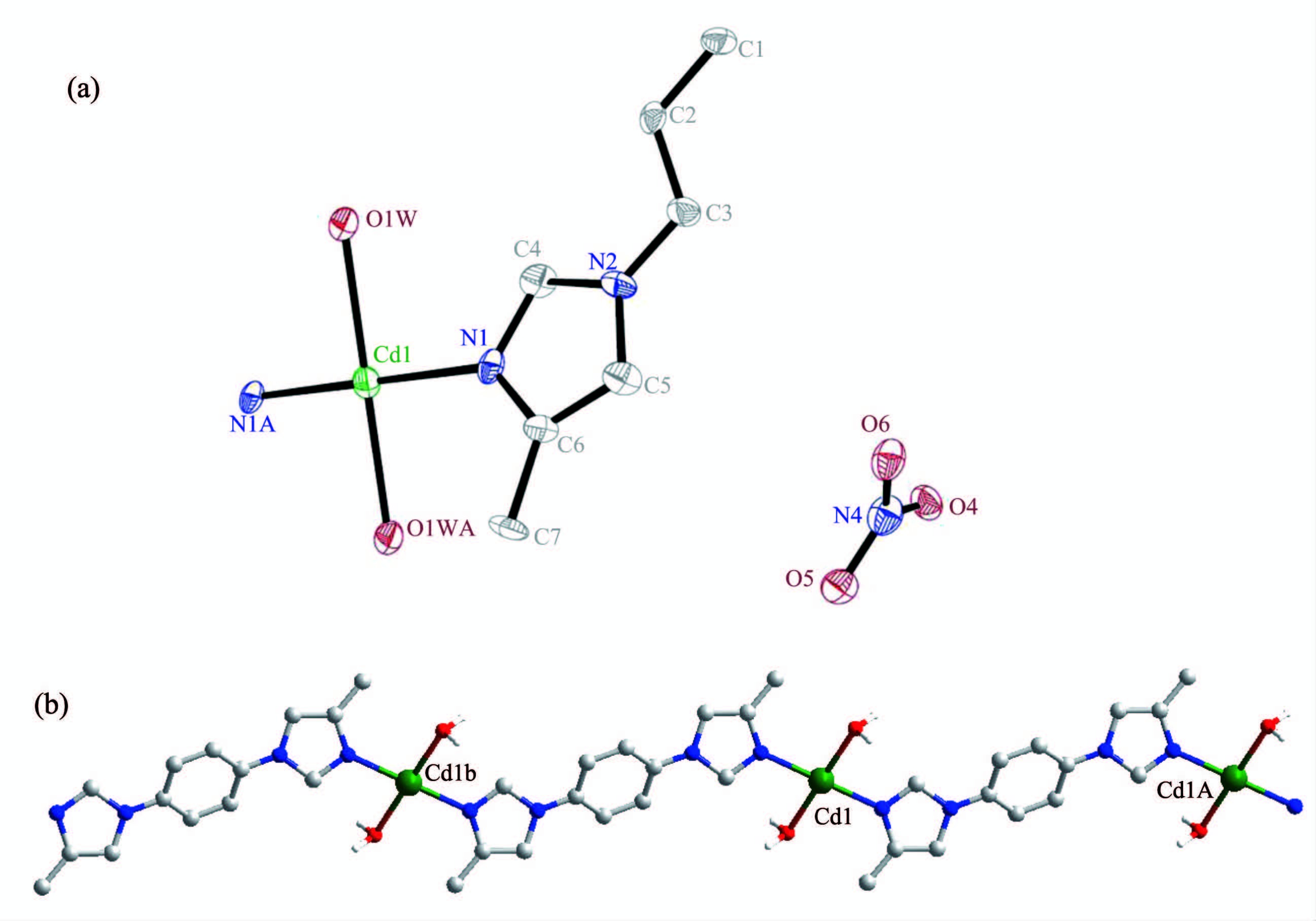

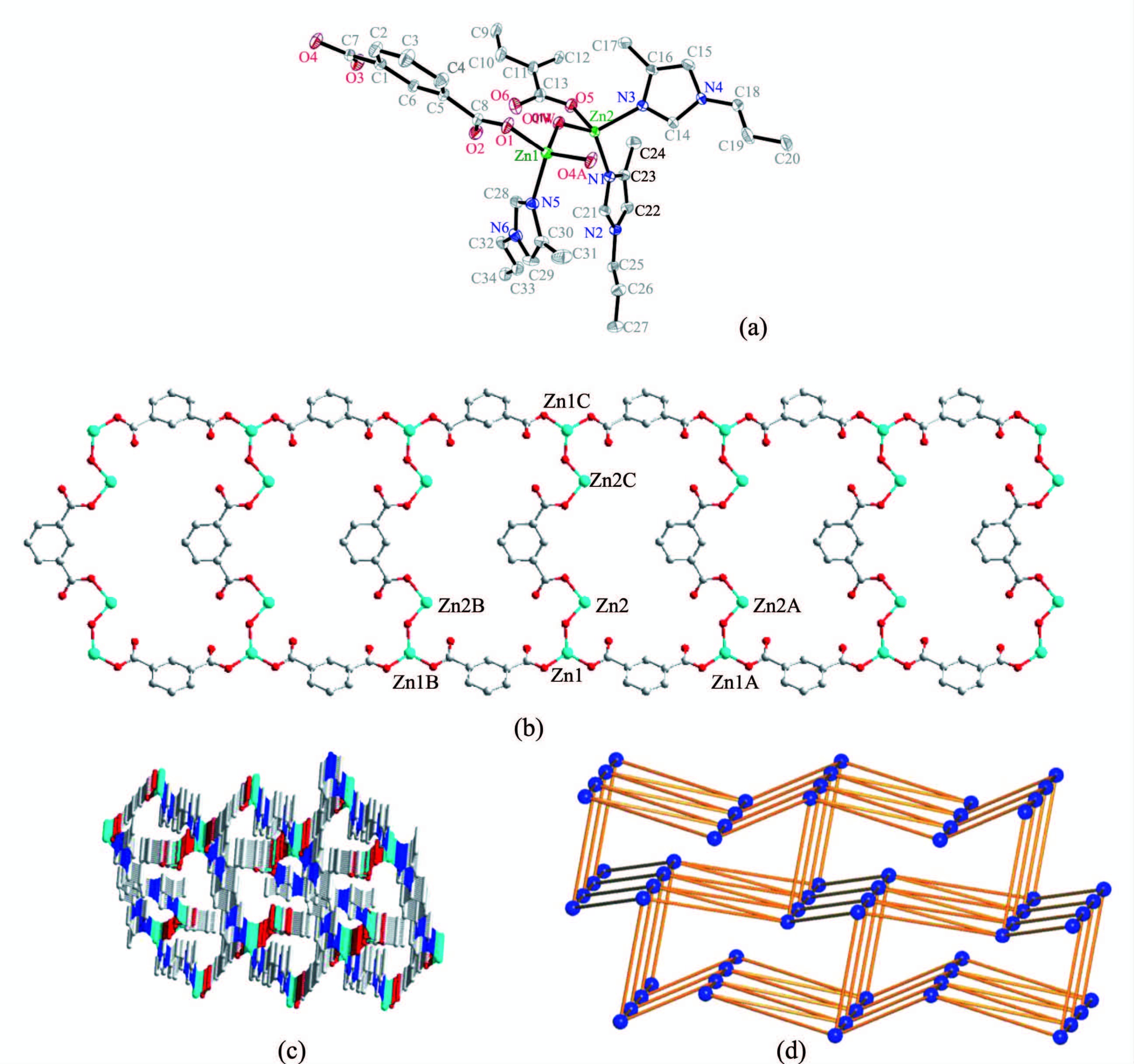

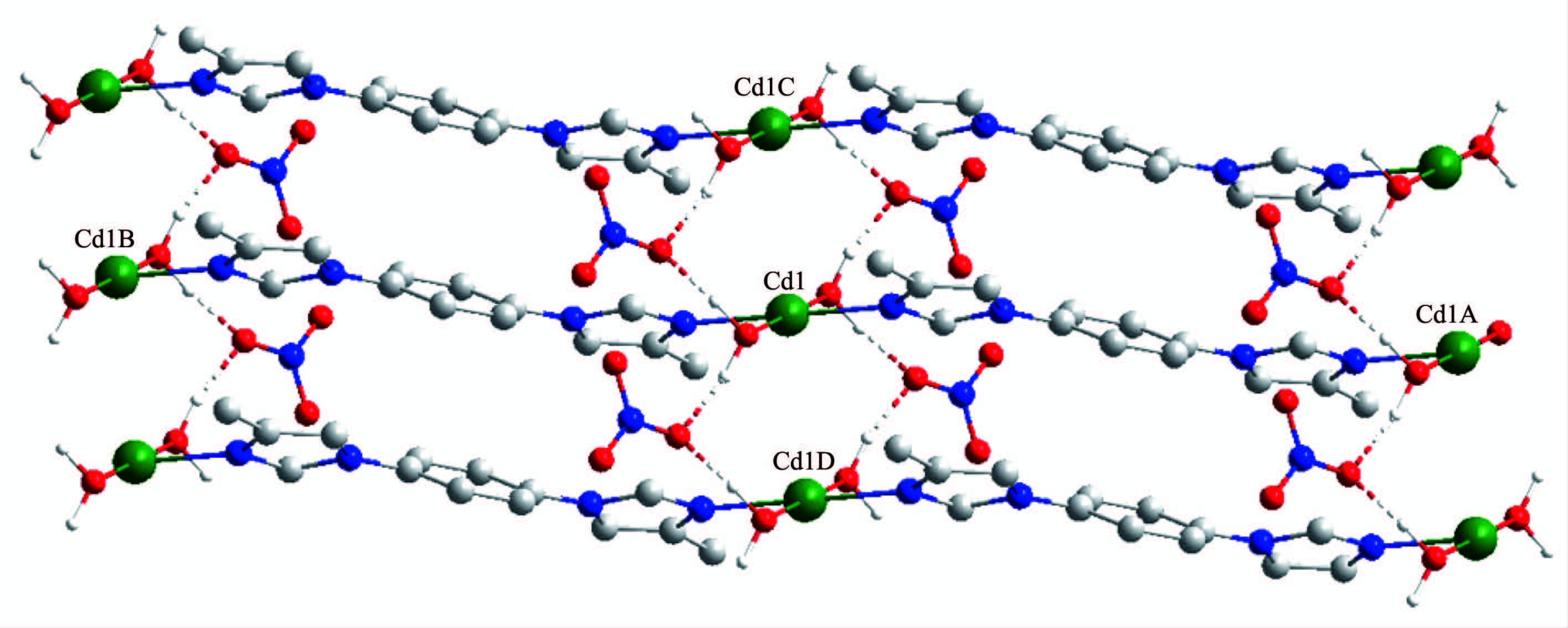

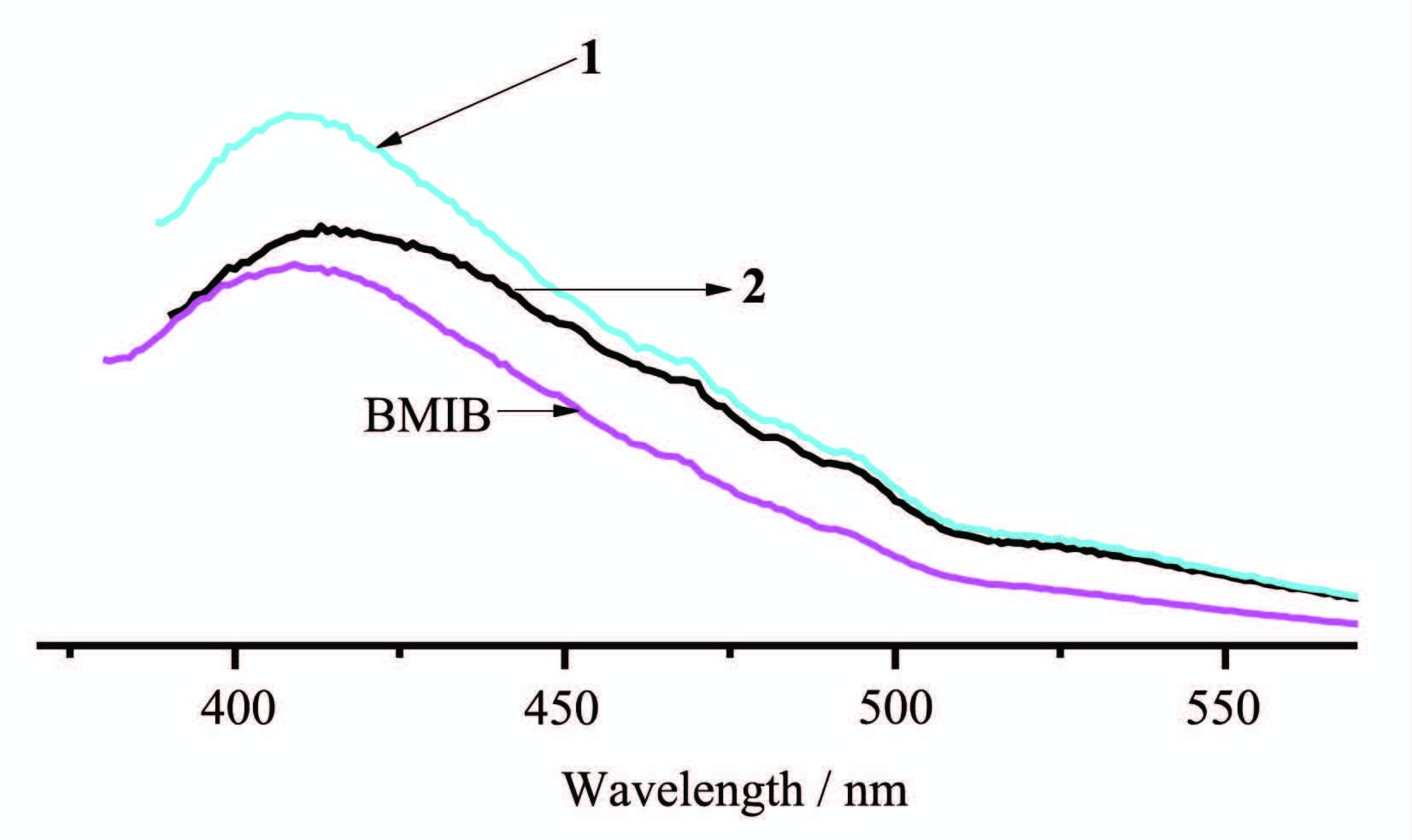

The reaction of M(NO₃)₂·6H₂O (M=Cd, Zn), isophthalic acid(H₂IP) as well as 1,4-bis(4-methyl-imidazolyl)benzene(BMIB) results in formation of a 1D complex {[Cd(BMIB)(H₂O)₂](NO₃)₂}_n (1) and 3D complex {[Zn₂(BMIB)_1.5(OH)(IP)_1.5]·H₂O}_n (2). X-ray diffraction crystal structure analysis shows that 1 crystallizes in triclinic system, space group P1 with a=0.3820 8(3) nm, b=0.904 72(7) nm, c=1.378 29(10) nm, α=98.581(4)°, β=97.020(3)°, γ=94.398(3)°. In 1, BMIB links all the Cd atoms into a 1D chain, which forms 2D bilayer through the H-bond interactions. The complex 2 crystallizes in monoclinic system, space group C2/c with a=3.764 07(9) nm, b=1.017 18(5) nm, c=2.015 31(11) nm, β=120.860(2)°. On the other hand, in 2, the carboxylate group of ligand IP^2- with μ₂-η¹:η¹ coor-dination mode links metal atoms to give a 1D double-chain structure, which forms 3D network through Zn-N and Zn-OH interactions. In addition, the fluorescence property of complexes 1 and 2 have been investigated, which exhibit good fluorescence in the solid state at room temperature. CCDC:1511866, 1; 1511867, 2.
- 1,4-bis(4-methyl-imidazolyl)benzene,
- crystal structure,
- fluorescence
1. [1]
  Celestian A J, Kubicki J D, Hanson J, et al. J. Am. Chem. Soc., 2008,130:11689-11694 doi: 10.1021/ja801134a
2. [2]
  Manos M J, Iyer R G, Quarez E, et al. Angew. Chem. Int. Ed., 2005,44:3552-3555 doi: 10.1002/(ISSN)1521-3773
3. [3]
  Rowsell J L C, Yaghi O M. J. Am. Chem. Soc., 2006,128: 1304-1315 doi: 10.1021/ja056639q
4. [4]
  Ockwig N W, Delgado-Fridrichs O, O'Keeffe M, et al. Acc. Chem. Res., 2005,38:176-182 doi: 10.1021/ar020022l
5. [5]
  Deng M L, Yang P, Liu X F, et al. Cryst. Growth Des., 2015, 15:1526-1534 doi: 10.1021/acs.cgd.5b00018
6. [6]
  Banerjee R, Phan A, Wang B, et al. Science, 2008,319:939-943 doi: 10.1126/science.1152516
7. [7]
  Zhang W, Xiong R G, Huang S D. J. Am. Chem. Soc., 2008, 130:10468-10469 doi: 10.1021/ja803021v
8. [8]
  Wriedt M, Yakovenko A A, Halder G J, et al. J. Am. Chem. Soc., 2013,135:4040-4050 doi: 10.1021/ja312347p
9. [9]
  Zhang J, Chen S M, Wu T, et al. J. Am. Chem. Soc., 2008, 130:12882-12883 doi: 10.1021/ja805272j
10. [10]
  Yang W, Schmider H, Wu Q, et al. Inorg. Chem., 2000,39: 2397-2402 doi: 10.1021/ic991436m
11. [11]
  Gong Y Q, Wang R H, Zhou Y F, et al. J. Mol. Struct., 2004,705:29-36 doi: 10.1016/j.molstruc.2004.04.021
12. [12]
  Lin W, Evans O R, Xiong R G, et al. J. Am. Chem. Soc., 1998, 120:13272-13273 doi: 10.1021/ja983415h
13. [13]
  Lin W, Wang Z, Ma L. J. Am. Chem. Soc., 1999,121:11249-11250 doi: 10.1021/ja9928327
14. [14]
  SAINT, Version 6.02a, Bruker AXS Inc., Madison, WI, 2002.
15. [15]
  Sheldrick G M. SADABS, Program for Bruker Area Detector Absorption Correction, University of Göttingen, Germany, 1997.
16. [16]
  Sheldrick G M. SHELXS-97, Program for Crystal Structure Solution, University of Göttingen, Germany, 199.
17. [17]
  Sheldrick G M. SHELXL-97, Program for Crystal Structure Refinement, University of Göttingen, Germany, 199.
18. [18]
  Blatov V A. IUCr CompComm Newsletter, 2006,7:4-10
19. [19]
  Dong Y B, Wang P, Huang R Q, et al. Inorg. Chem., 2004,43:4727-4739 doi: 10.1021/ic0495517
20. [20]
  Chu Q, Liu G X, Huang Y Q, et al. Dalton Trans., 2007,4302-4311
