Citation: LI Ai-Chang, SONG Min, ZHAO Sha-Sha, GUO Ying-Jie. Photoelectrocatalytic Property and Reaction Mechanism of Ag@AgBr/Ni Thin Films at Negative Bias for Rhodamine B[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(9): 1543-1551. doi: 10.11862/CJIC.2016.205 shu

Photoelectrocatalytic Property and Reaction Mechanism of Ag@AgBr/Ni Thin Films at Negative Bias for Rhodamine B

  • Corresponding author: LI Ai-Chang, aichangli@hotmail.com
  • Received Date: 11 March 2016
    Revised Date: 31 July 2016

Figures(11)

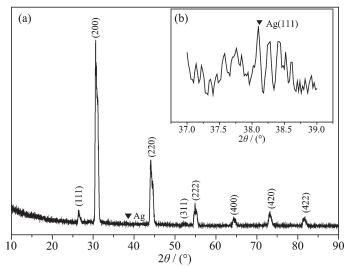

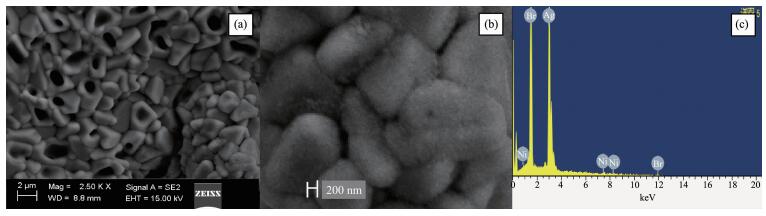

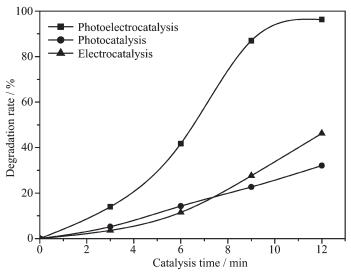

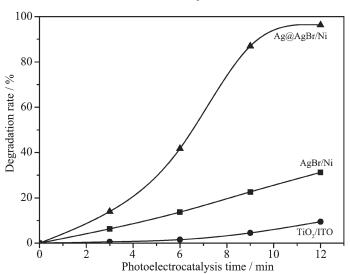

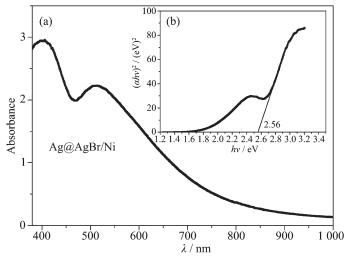

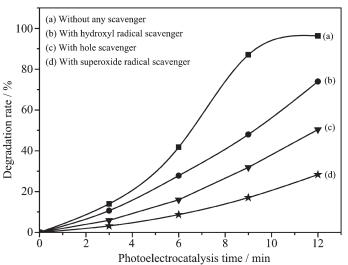

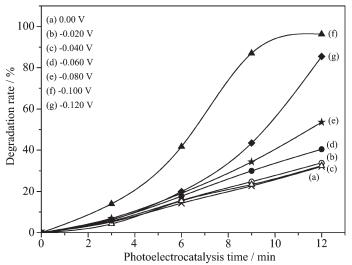

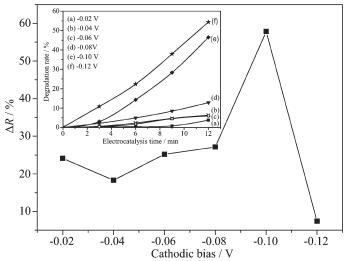

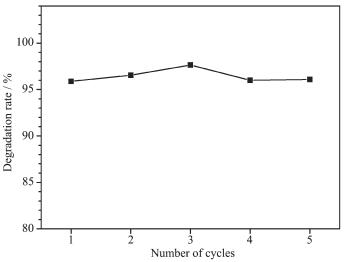

  • Ag@AgBr/Ni thin films plasmonic photocatalyst were prepared by electrochemical method. The surface morphology, phase structure, optical characteristics of the thin films were characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD) and ultraviolet-visible diffuse reflectance spectroscopy (UV-Vis DRS), respectively. Its photoelectrocatalytic properties and stability at negative bias under visible light were evaluated with rhodamine B (RhB) as a model compound. Using eletrochemical technique and a method of adding active species scavenger to the solution, mechanism of photoelectrocatalytic degradation of the films were explored. The results show that the Ag@AgBr/Ni thin film prepared under optimum condition are composed of AgBr microparticles whose surface has silver nanoparticles with a significant surface plasmon resonance (SPR) effects. The Ag@AgBr/Ni film is photoelectrocatalytically more active than TiO2/ITO (indium tin oxide) film. At optimum cathodic bias and under visible light irradiation in 12 min, the photoelectrocatalytic degradation rate of Ag@AgBr/Ni film is 10.2 times as much as that of porous TiO2(Degussa P25)/ITO film. Compared with no cathodic bias, the photoeletrocatalytic degradation rate of the Ag@AgBr/Ni thin film to RhB is increased by 2.0 times and the thin film has obvious photoelectric synergistic effect. The photoelectrocatalytic activity almost kept unchanged after five recycled experiments. The improvement in photoelectrocatalytic activity for Ag@AgBr/Ni thin films could be mainly attributed to the activation of nano Ag particles on the electrode for photocathode reaction (Conduction band reaction) with a significant SPR effects. Furthermore, the photoelctrocatalytic reaction mechanism of Ag@AgBr/Ni thin films for RhB at negative bias was proposed.
  • 加载中
    1. [1]

      Tong H, Ouyang S, Bi Y, et al. Adv. Mater., 2012, 24(2):229-251  doi: 10.1002/adma.201102752

    2. [2]

      HU Teng, YE Long-Qiang, LI Wen-Ling, et al. Chinese J. Inorg. Chem., 2014, 30 (8):1778-1782


    3. [3]

      Zhang J, Wu Y, Xing M, et al. Energy Environ. Sci., 2010, 3: 715-726  doi: 10.1039/b927575d

    4. [4]

      Addamo M, Augugliaro V, García-López E, et al. Catal. Today, 2005, 107/108:612-618  doi: 10.1016/j.cattod.2005.07.030

    5. [5]

      Zou Z, Ye J, Sayama K, et al. Nature, 200l, 414(6864):625-627  doi: 10.1038/414625a

    6. [6]

      LU Fei, MENG, Fan-Ming. Bull. Chin. Ceram. Soc., 2011, 30(1):116-119


    7. [7]

      Wang P, Huang B, Dai Y, et al. Phys. Chem. Chem. Phys., 2012, 14:9813-9825  doi: 10.1039/c2cp40823f

    8. [8]

      Wang Z, Liu Y, Huang B, et al. Phys. Chem. Chem. Phys., 2014, 16:2758-2774  doi: 10.1039/c3cp53817f

    9. [9]

      Lou Z, Wang Z, Huang B, et al. ChemCatChem, 2014, 6:2456-2476  doi: 10.1002/cctc.201402261

    10. [10]

      Tong H, Ouyang S, Bi Y, et al. Adv. Mater., 2012, 24:229-251  doi: 10.1002/adma.201102752

    11. [11]

      Burda C, Chen X, Narayanan R, et al. Chem. Rev., 2005, 105(4):1025-1102  doi: 10.1021/cr030063a

    12. [12]

      Brus L. Acc. Chem. Res., 2008, 41(12):1742-1749  doi: 10.1021/ar800121r

    13. [13]

      ZHU Ming-Shan, CHEN Peng-Lei, LIU Ming-Hua. Prog. Chem., 2013, 25(2/3): 210-220


    14. [14]

      Wang P, Huang B B, Qin X Y, et al. Angew. Chem., Int. Ed., 2008, 47:7931-7933  doi: 10.1002/anie.v47:41

    15. [15]

      Wang P, Huang B B, Zhang X Y, et al. Chem. Eur. J., 2009, 15:1821-1824  doi: 10.1002/chem.v15:8

    16. [16]

      Zhu M S, Chen P L, Liu M H. ACS Nano, 2011, 5(6):4529-4536  doi: 10.1021/nn200088x

    17. [17]

      Kuai L, Geng B Y, Chen X T, et al. Langmuir, 2010, 26(24): 18723-18727  doi: 10.1021/la104022g

    18. [18]

      AN Wei-Jia, LIU Li, LI XIN-Lei, et al. Chinese J. Inorg. Chem., 2015, 31(2): 329-337


    19. [19]

      LENG Wen-Hua, ZHU Hong-Qiao. J. Electrochem., 2013, 19(5):437-443


    20. [20]

      YANG Juan, DAI Jun, ZAO Jin-Cai, et al. Chin. Sci. Bull., 2009, 54:2196-2204


    21. [21]

      Yang J, Chen C, Ji H, et al. J. Phys. Chem. B, 2005, 109: 21900-21907  doi: 10.1021/jp0540914

    22. [22]

      YANG Juan, MIU Juan, DAI Jun, et al. J. Henan Polytechnic Univ., 2010, 29: 259-265  doi: 10.3969/j.issn.1673-9787.2010.02.024

    23. [23]

      JI Hong-Wei, MA Wan-Hong, HUANG Ying-Ying, et al. Chin. Sci. Bull., 2003, 48:2199-2204  doi: 10.3321/j.issn:0023-074X.2003.21.001

    24. [24]

      LI Ai-Chang, LI Jian-Fei, LIU Ya-Lu, et al. Acta Chim. Sinica, 2013, 71(5):815-821


    25. [25]

      YANG Yong-Biao, ZHANG Zheng-Fu, CHEN Qing-Hua, et al. Yunnan Metallurge, 2004, 33(4):20-22


    26. [26]

      LI Ai-Chang, ZHU Ning-Ning, LI Jing-Hong, et al. Chinese J. Inorg. Chem., 2015, 31(4):681-688


    27. [27]

      Wang D, Duan Y, Luo Q, et al. Desalination, 2011, 270:174-180  doi: 10.1016/j.desal.2010.11.042

    28. [28]

      Zhu M, Chen P, Liu M. Langmuir, 2012, 28:3385-3390  doi: 10.1021/la204452p

    29. [29]

      HU Jin-Shan, WANG Huan, LIU Li, et al. J. Mol. Catal., 2013, 27(5):452-458


    30. [30]

      Zhou X, Liu G, Yu J, et al. J. Mater. Chem., 2012, 22:21337-21354  doi: 10.1039/c2jm31902k

    31. [31]

      Rycenga M, Cobley C M, Zeng J, et al. Chem. Rev., 2011, 111:3669-3712  doi: 10.1021/cr100275d

    32. [32]

      LIU Hua-Jun, PENG Tian-You, PENG Zheng-He, et al. J. Wuhan Univ.: Nat. Sci. Ed., 2007, 53(2):127-132


    33. [33]

      NIE Long-Hui, HUANG Zheng-Qing, XU Hong-Tao, et al. Chin. J. Catal., 2012, 33 (7):1209-1216


    34. [34]

      LI Ai-Chang, LI Gui-Hua, ZHENG Yan, et al. Acta Phys.-Chim. Sin., 2012, 28 (2):457-464


    35. [35]

      ZHOU Li, DENG Hui-Ping, ZHANG Wei. Prog. Chem., 2015, 27(4):349-360
