Citation: HUANG Chao, ZHANG Wen-Long, CHEN Dong-Mei, ZHANG Qi-Long, ZHU Bi-Xue. Syntheses and Crystal Structures of Hg(Ⅱ) Complexes with Hydrazone Schiff Base[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(9): 1579-1584. doi: 10.11862/CJIC.2016.202 shu

Syntheses and Crystal Structures of Hg(Ⅱ) Complexes with Hydrazone Schiff Base

1.
Key laboratory of Macrocycle and Supramolecular Chemistry, Guizhou University, Guiyang 550025, China
2.
Department of Chemistry, Guizhou Medical College, Guiyang 550004, China

Corresponding author: ZHU Bi-Xue, bxzhu@gzu.edu.cn
Received Date: 17 May 2016
Revised Date: 26 July 2016

Figures(4)

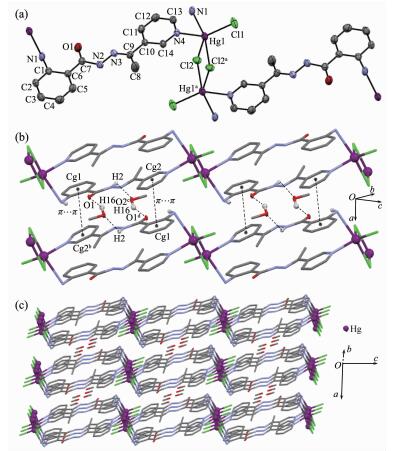

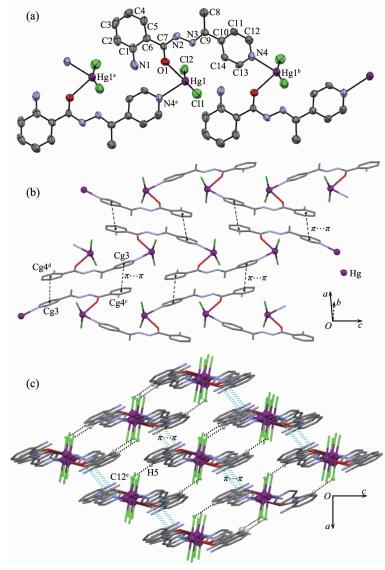

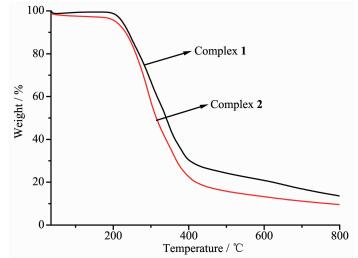

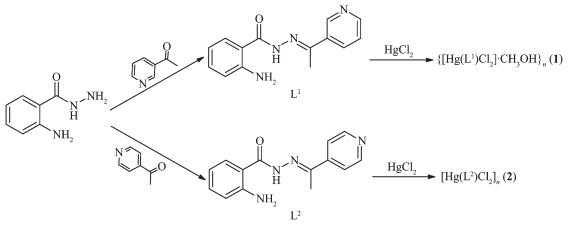

Two complexes {[Hg(L¹)Cl₂]·CH₃OH}_n (1) and [Hg(L²)Cl₂]_n (2) were synthesized from the reaction of Schiff base ligand 3-acetylpyridine-o-aminobenzoylhydrazone (L¹) and ligand 4-acetylpyridine-o-aminobenzoylhy-drazone (L²) with HgCl₂, respectively. The compounds are characterized by ¹H NMR, FTIR, and elemental analysis, and their structures are measured via single crystal X-ray diffraction. The results show that the complex 1 crystallize in triclinic system, space group P1; the complex 2 crystallize in monoclinic system, space group P2₁/_n. Further the thermal stabilities of the two complexes were investigated. CCDC: 1496029, 1; 1496028, 2.
- Schiff base,
- Hg(Ⅱ) complex,
- crystal structure
1. [1]
  Seth P, Ghosh S, Figuerola A, et al. Dalton Trans., 2014, 43: 990-998 doi: 10.1039/C3DT52012A
2. [2]
  Tayyebi Sabet Khomami N, Heshmatpour F, Neumüller B. Inorg. Chem. Commun., 2014, 41:14-18 doi: 10.1016/j.inoche.2013.12.011
3. [3]
  Kalita M, Gogoi P, Barman P. Polyhedron, 2014, 74:93-98 doi: 10.1016/j.poly.2014.02.043
4. [4]
  Pitt M A, Johnson D W. Chem. Soc. Rev., 2007, 36:1441-1453 doi: 10.1039/b610405n
5. [5]
  Guzmán-Percástegui E, Zakharov L N, Alvarado-Rodríguez J G, et al. Cryst. Growth Des., 2014, 14:2087-2091 doi: 10.1021/cg401894h
6. [6]
  Beheshti A, Lalegani A, Behvandi F, et al. J. Mol. Struct., 2015, 1082:143-150 doi: 10.1016/j.molstruc.2014.11.008
7. [7]
  Jones C D, Tan J C, Lloyd G O. Chem. Commun., 2012, 48: 2110-2112 doi: 10.1039/c2cc16691g
8. [8]
  Baul T S B, Kundu S, Mitra S, et al. Dalton Trans., 2013, 42: 1905-1920 doi: 10.1039/C2DT32283H
9. [9]
  Khavasi H R, Tahrani A A. CrystEngComm, 2013, 15:5799-5812 doi: 10.1039/c3ce40433a
10. [10]
  Khavasi H R, Sadegh B M M. Dalton Trans., 2015, 44:5488-5502 doi: 10.1039/C4DT03518F
11. [11]
  Chang H Q, Jia L, Xu J, et al. Inorg. Chem. Commun., 2015, 57:8-10 doi: 10.1016/j.inoche.2015.04.010
12. [12]
  Wang J L, Zhao Y Q, Yang B S. Inorg. Chim. Acta, 2014, 409:484-496 doi: 10.1016/j.ica.2013.09.001
13. [13]
  LI Xiao-Jing, WU Wei-Na, XU Zhou-Qing, et al. Chinese J. Inorg. Chem., 2015, 31(11):2265-2271
14. [14]
  Radunsky C, Kösters J, Müller J. Inorg. Chim. Acta, 2015, 428:14-20 doi: 10.1016/j.ica.2015.01.012
15. [15]
  HAN Xue-Feng, CAI Hong Xin, JIA Lei, et al. Chinese J. Inorg. Chem., 2015, 31(7):1453-1459
16. [16]
  HUANG Chao, WU Juan, CHEN Dong-Mei, et al. Chinese J. Inorg. Chem., 2015, 31(1):109-113
17. [17]
  Sheldrick G M. SHELXL-97, Program for X-ray Crystal Structure Solution and Refinement, University of Göttingen, Germany, 1997.
