Citation: WEI Shi-Yong, WANG Rui, NIU Peng-Ju, FANG Dun, YANG Xiao-Hong, DAN You-Meng. Preparation, Characterization and Fluoride Adsorption Characteristics of Iron-Oxide-Modified Vermiculite[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(9): 1619-1628. doi: 10.11862/CJIC.2016.200 shu

Preparation, Characterization and Fluoride Adsorption Characteristics of Iron-Oxide-Modified Vermiculite

Key Laboratory of Biologic Resources Protection and Utilization of Hubei Province, Department of Chemistry and Environmental Engineering, Hubei University for Nationalities, Enshi, Hubei 445000, China

Corresponding author: WEI Shi-Yong, xiangju12345@126.com
Received Date: 20 April 2016
Revised Date: 8 July 2016

Figures(6)

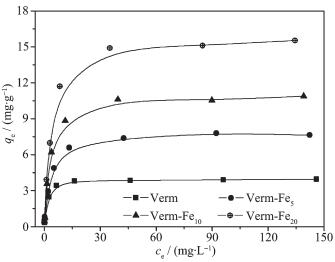

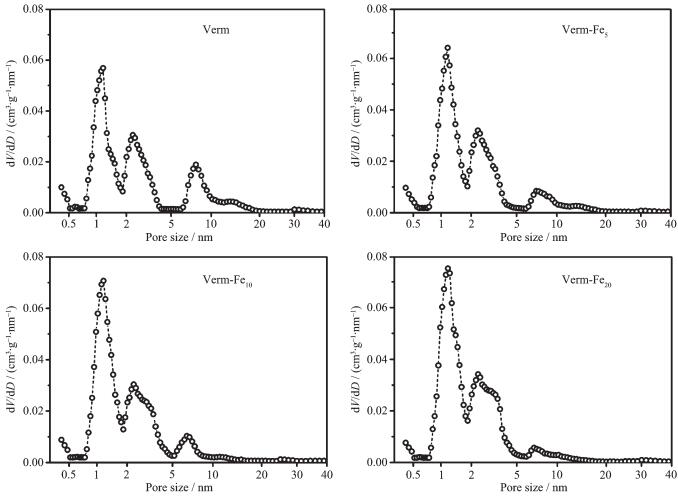

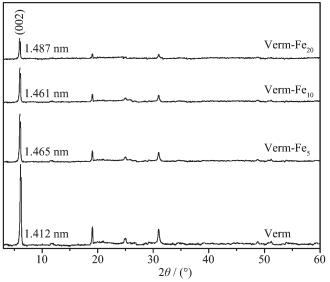

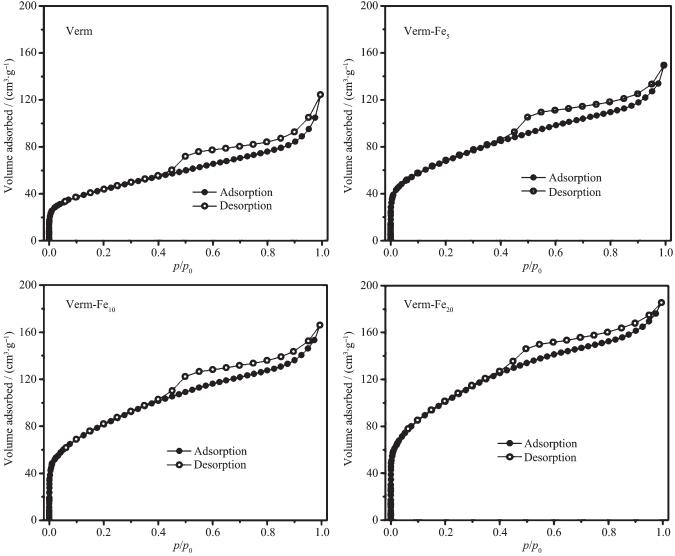

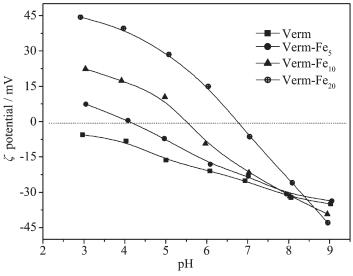

Iron-oxide-modified vermiculite (Verm-Fe_x, x=5, 10, 20) was prepared by a co-precipitation procedure. The surface properties and fluoride adsorption of pure vermiculite (Verm) and Verm-Fe_x were investigated. Compared to Verm, the d₍₀₀₂₎ spacing of Verm in Verm-Fe_x increases slightly, and the pore volumes, different surface areas and surface fractal dimension of Verm-Fe_x increase with increasing the Fe contents. The increased magnitude of the micropore volume and external surface area of Verm-Fe_x is more significant. The isoelectric point (IEP) of the samples increases in the order of Verm < Verm-Fe₅ < Verm-Fe₁₀ < Verm-Fe₂₀, and the ζ potential at pH 5.0 of the four samples is -16.4, -6.1, 10.5, and 28.4 mV, respectively. One-site Langmuir model was used to describe the fluoride adsorption by the samples (R²=0.973~0.995), and the determination coefficient (R²) for Verm is the highest. The R² fitted from two-site model for Verm-Fe_x(x=5, 10, 20) is higher than that from one-site model, indicating that the adsorption data of Verm-Fe_x can be fitted by two-site model well. The R² fitted from Freundlich model of the samples is lying in the range of 0.835~0.937 and follows the sequence of Verm < Verm-Fe₅ < Verm-Fe₁₀ < Verm-Fe₂₀. This indicates that Verm-Fe_x possesses the heterogeneous surfaces with different reactive sites. When pH=5.0, the adsorption capacities (q_max) of Verm, Verm-Fe₅, Verm-Fe₁₀ and Verm-Fe₂₀ are 3.18, 6.76, 9.27 and 12.43 mg·g^-1, respectively. Compared to Verm, Verm-Fe_x with a high Fe content has a higher adsorption capacity for fluoride in solutions.
- vermiculite,
- iron-oxide-modified vermiculite,
- surface properties,
- adsorption,
- fluoride
1. [1]
  Ghosh A, Mukherjee K, Ghosh S K, et al. Res. Chem. Intermed., 2013, 39(7):2881-2915 doi: 10.1007/s11164-012-0841-1
2. [2]
  Ayoob S, Gupta A K. Environ. Sci. Technol., 2006, 36(6):433 -487 doi: 10.1080/10643380600678112
3. [3]
  Zhang B, Hong M, Zhao Y, et al. Environ. Geochem. Health, 2003, 25:421-431 doi: 10.1023/B:EGAH.0000004560.47697.91
4. [4]
  Jha S K, Nayak A K, Sharma Y K. Chemosphere, 2009, 76 (3):353-356 doi: 10.1016/j.chemosphere.2009.03.044
5. [5]
  Ozsvath D L. Rev. Environ. Sci. Biotechnol., 2009, 8(1):59-80 doi: 10.1007/s11157-008-9136-9
6. [6]
  Patel S C, Khalkho R, Patel S K, et al. Environ. Earth Sci., 2014, 72(6):2033-2049 doi: 10.1007/s12665-014-3112-1
7. [7]
  Tor A, Danaoglu N, Arslan G. J. Hazard. Mater., 2009, 164 (1):271-278 doi: 10.1016/j.jhazmat.2008.08.011
8. [8]
  Sujana M G, Pradhan H K, Anand S. J. Hazard. Mater., 2009, 161(1):120-125 doi: 10.1016/j.jhazmat.2008.03.062
9. [9]
  Abollino O, Giacomino A, Malandrino M, et al. Water Air Soil Pollut., 2007, 181:149-160 doi: 10.1007/s11270-006-9286-8
10. [10]
  Wang J, Wang W, Zheng Y, et al. J. Polym. Res., 2011, 18: 401-408 doi: 10.1007/s10965-010-9430-4
11. [11]
  Kau P M H, Smith D W, Binning P. Geoderma, 1998, 84(1/2/3):89-108
12. [12]
  Velazquez-Peña G C, Solache-Ríos M, Martínez-Miranda V. Water Air Soil Pollut., 2015, 226:2236-2241 doi: 10.1007/s11270-014-2236-y
13. [13]
  Cornell R M, Schwertmann U. The Iron Oxides: Structure, Properties, Reactions, Occurences, Uses. Weinheim: Wiley-VCH, 2003: 102-109
14. [14]
  De León M A, Sergio M, Bussi J, et al. Environ. Sci. Pollut. Res., 2015, 22:864-869 doi: 10.1007/s11356-014-2681-6
15. [15]
  Jayarathna L, Bandara A, Ng W J, et al. J. Environ. Health Sci. Eng., 2015, 13:54-54 doi: 10.1186/s40201-015-0210-2
16. [16]
  Hou T, Xu R K, Zhao A Z. Colloids Surf., A, 2007, 297(1): 91-94
17. [17]
  Zhuang J, Yu G R. Chemosphere, 2002, 49(6):619-628 doi: 10.1016/S0045-6535(02)00332-6
18. [18]
  Wei S Y, Tan W F, Zhao W, et al. Soil Sci. Soc. Am. J., 2012, 76(2):389-398 doi: 10.2136/sssaj2011.0065
19. [19]
  YANG Xiao-Hong, WEI Shi-Yong, FANG Dun, et al. Chinese J. Inorg. Chem., 2014, 30(12):2863-2871
20. [20]
  Yan L, Xu Y, Yu H, et al. J. Hazard. Mater., 2010, 179:244-250 doi: 10.1016/j.jhazmat.2010.02.086
21. [21]
  Kebede B, Beyene A, Fufa F, et al. Appl. Water Sci., 2016, 6 (1):57-65 doi: 10.1007/s13201-014-0210-x
22. [22]
  Nur T, Loganathan P, Nguyen T C, et al. Chem. Eng. J., 2014, 247:93-102 doi: 10.1016/j.cej.2014.03.009
23. [23]
  Chen L, He B Y, He S, et al. Powder Technol., 2012, 227:3-8 doi: 10.1016/j.powtec.2011.11.030
24. [24]
  Ararem A, Bouzidi A, Mohamedi B, et al. J. Radioanal. Nucl. Chem., 2014, 301:881-887 doi: 10.1007/s10967-014-3200-4
25. [25]
  Wu X, Zhang Y, Dou X, et al. Chem. Eng. J., 2013, 223:364-370 doi: 10.1016/j.cej.2013.03.027
26. [26]
  Kemer B, Ozdes D, Gundogdu A, et al. J. Hazard. Mater., 2009, 168(2):888-894
27. [27]
  Liu R, Gong W, Lan H, et al. Sep. Purif. Technol., 2012, 92: 100-105 doi: 10.1016/j.seppur.2012.03.020
28. [28]
  Tang Y L, Guan X H, Wang J M, et al. J. Hazard. Mater., 2009, 171(1):774-779
29. [29]
  Sun Y, Fang Q, Dong J, et al. Desalination, 2011, 277:121-127 doi: 10.1016/j.desal.2011.04.013
30. [30]
  Hiemstra T, van Riemsdijk W H. J. Colloid Interface Sci., 2000, 225(1):94-104 doi: 10.1006/jcis.1999.6697
31. [31]
  Qiao J, Cui Z, Sun Y, et al. Front. Environ. Sci. Eng., 2014, 8(2):169-179 doi: 10.1007/s11783-013-0533-0
