Citation: WANG Gui-Xian, CHEN Fei-Yan, WANG Xiao-Juan, FENG Yun-Long. Four-and Three-Fold Interpenetrated (3, 4)-Connected d10 Metal Coordination Polymers Constructed by 3, 5-Bis (pyridin-4-ylmethoxy) benzoic Acid and Aromatic Dicarboxylic Acid Ligands[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(3): 545-554. doi: 10.11862/CJIC.2016.062 shu

Four-and Three-Fold Interpenetrated (3, 4)-Connected d10 Metal Coordination Polymers Constructed by 3, 5-Bis (pyridin-4-ylmethoxy) benzoic Acid and Aromatic Dicarboxylic Acid Ligands

  • 1.

    Department of chemistry and chemical engineering, Lishui University, Lishui, Zhejiang 323000, China

  • 2.

    Zhejiang Key Laboratory for Reactive Chemistry on Solid Surfaces, College of Chemistry and Life Science, Zhejiang Normal University, Jinhua, Zhejiang 321004, China

  • Corresponding author: FENG Yun-Long, sky37@zjnu.cn
  • Received Date: 20 October 2015
    Revised Date: 9 January 2016

Figures(8)

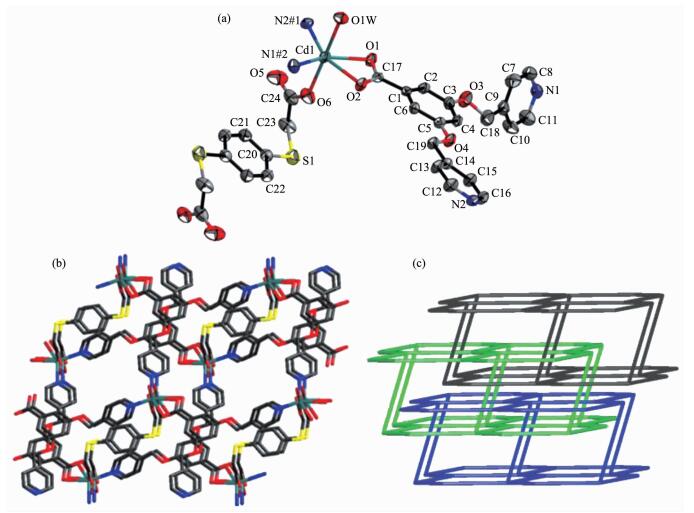

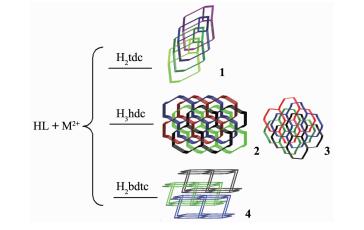

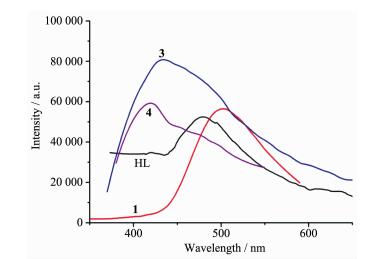

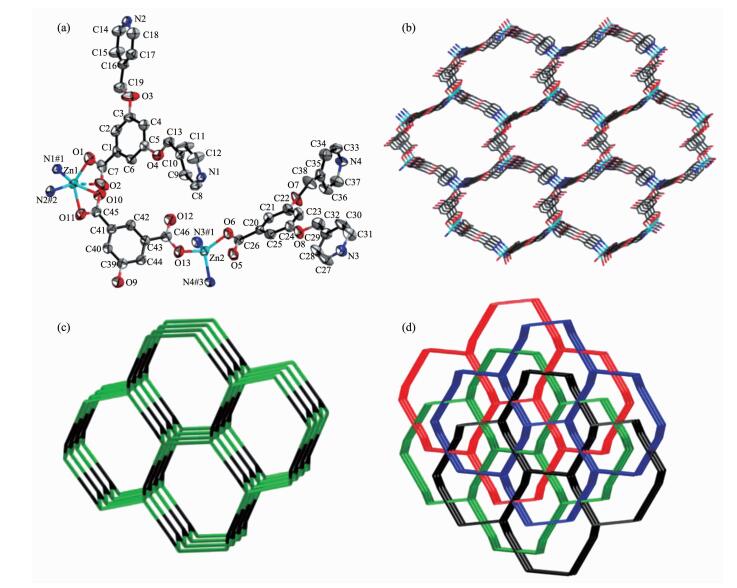

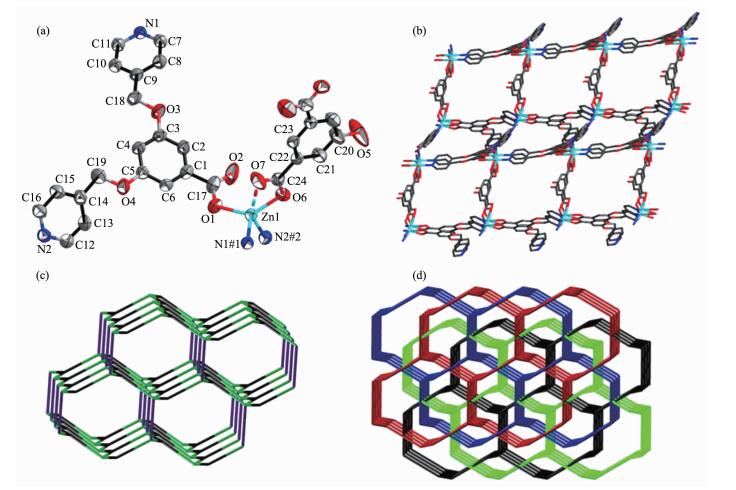

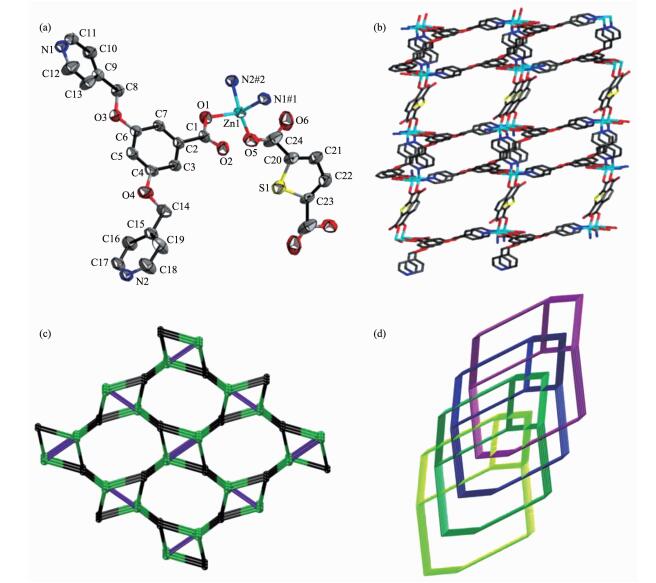

  • The reaction of 3, 5-bis (pyridin-4-ylmethoxy) benzoic acid (HL) and a combination of dicarboxylic acid ligands such as thiophene-2, 5-dicarboxylic acid (H2tdc), 5-hydroxybenzene-1, 3-dicarboxylic acid (H3hdc), 1, 4-benzenedithioacetic acid (H2bdtc) with Zn (Ⅱ) and Cd (Ⅱ) metal ions give rise to four coordination polymers with interpenetrating (3, 4)-connected networks, namely, [Zn2L2(tdc)]n (1), {[Zn4L4(Hhdc)2]·H2O}n (2), {[Zn2L2(Hhdc)]·H2O}n (3), {[Cd2L2(bdtc)(H2O)]· 0.5H2O}n (4). 1~3 exhibit (3, 4)-connected 4-fold-interpenetrating 3D networks with point symbol of (4.82)(4.85) (1), (63)(65.8) (2) and (63)(65.8) (3) topology, respectively. 4 displays a (3, 4)-connected 3-fold-interpenetrating 2D network with (63)(66) topology. Luminescent properties of 1, 3 and 4 were also investigated. CCDC: 852424, 1; 872035, 2; 887738, 3; 872037, 4.
  • 加载中
    1. [1]

      (a) Leong W L, Vitta J J. Chem. Rev. , 2011, 111: 688-764
      (b) Moulton B, Zaworotko M. Chem. Rev. , 2001, 101: 1629-1658
      (c) Zhao D, Timmons D J, Yuan D, et al. Acc. Chem. Res. , 2011, 44: 123-133

    2. [2]

      (a) Hong M C, Chen L. Design and Construction of Coordina-tion Polymers. Hoboken, New Jersey: John Wiley & Sons, Inc. , 2009.
      (b) Batten S R, Neville S M, Turner D R. Coordination Polymers: Design, Analysis and Application. Cambridge UK: Royal Society of Chemistry, 2009.

    3. [3]

      (a) Lin Z J, Lu J, Hong M C, et al. Chem. Soc. Rev. , 2014, 43: 5867-5895
      (b) Stock N, Biswas S. Chem. Rev. , 2012, 112: 933-969
      (c) Li J R, Sculley J, Zhou H C. Chem. Rev. , 2012, 112: 869-932
      (d) Moon H R, Lim D W, Suh M P. Chem. Soc. Rev. , 2013, 42: 1807-1824 (e) Chaemchuen S, Kabir N A, Zhou K, et al. Chem. Soc. Rev. , 2013, 42: 9304-9332

    4. [4]

      (a) O'Keeffe M, Hyde S T. Zeolites, 1997, 19: 370-374
      (b) O'Keeffe M. Nature, 1999, 400: 617
      (c) Ockwig N W, Friedrichs O D, O'Keeffe M, et al. Acc. Chem. Res. , 2005, 38: 176-182

    5. [5]

      (a) Wang R, Wang Z, Xu Y, et al. Inorg. Chem. , 2014, 53: 7086-7088
      (b) Li F, Clegg J K, Lindoy L F, et al. Nat. Commun. , 2001, 205: 1208
      (c) Wang R, Zhang M, Liu X, et al. Inorg. Chem. , 2015, 54: 6084-6086

    6. [6]

      (a) Wu H, Yang J, Su Z M, et al. J. Am. Chem. Soc. , 2011, 133: 11406-11409
      (b) Kitagawa S, Matsuda R. Coord. Chem. Rev. , 2007, 251: 2490-2509

    7. [7]

      Schneemann A, Bon V, Schwedler I, et al. Chem. Soc. Rev., 2014, 43:6062-6096  doi: 10.1039/C4CS00101J

    8. [8]

      (a) Wang X L, Qin C, Wu S X, et al. Angew. Chem. Int. Ed. , 2009, 48: 5291-5295
      (b) Zheng S L, Yang J H, Yu X L, et al. Inorg. Chem. , 2004, 43: 830-836
      (c) Zhang L Y, Zhang J P, Lin Y Y, et al. Cryst. Growth Des. , 2006, 6: 1684-1689
      (d) Rather B, Moulton B, Walsh R D B, et al. Chem. Commun. , 2002: 694-695

    9. [9]

      (a) Xu G J, Zhao Y H, Shao K Z, et al. CrystEngComm, 2009, 11: 1842-1848
      (b) Xu G J, Zhao Y H, Shao K Z, et al. Polyhedron, 2009, 28: 3155-3163
      (c) Xu G J, Zhao Y H, Shao K Z, et al. Inorg. Chem. Commun. , 2008, 11: 1181-1183
      (d) Xu G J, Zhao Y H, Shao K Z, et al. Inorg. Chem. Commun. , 2010, 13: 932-934
      (e) Xu G J, Zhao Y H, Shao K Z, et al. Inorg. Chem. Commun. , 2009, 12: 1024-1026
      (f) Xu G J, Zhao Y H, Shao K Z, et al. Inorg. Chem. Commun. , 2009, 12: 969-971

    10. [10]

      (a) HAN Min-Min(韩敏敏), CHEN Xiao(陈晓), ZHANG Yi-Ping(张依萍), et al. Chinese J. Inorg. Chem.(无机化学学报) , 2014, 30: 1653-1659
      (b) Cao K L, Zhang Y P, Cai Y N, et al. J. Solid State Chem. , 2014, 215: 34-42

    11. [11]

      (a) Sheldrick G M. SHELXS 97, University of Göttingen, Germany, 1997.
      (b) Sheldrick G M. SHELXTL 97, University of Göttingen, Germany, 1997.

    12. [12]

      He Y H, Feng Y L, Lan Y Z, et al. Cryst. Growth Des., 2008, 8:3586-1694  doi: 10.1021/cg8000398
