Citation: YU Yu-Ye, SHEN Wei, WU Xiao-Yong, ZHAO Guo-Liang. Syntheses, Structures and DNA-Binding of Cadmium Coordination Polymers with 3D Frameworks Constructed by Biphenyl-2, 4, 4′, 6-tetracarboxylic Acid[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(2): 259-266. doi: 10.11862/CJIC.2016.049 shu

Syntheses, Structures and DNA-Binding of Cadmium Coordination Polymers with 3D Frameworks Constructed by Biphenyl-2, 4, 4′, 6-tetracarboxylic Acid

YU Yu-Ye ^1,3 ,
SHEN Wei ¹ ,
WU Xiao-Yong ¹ ,
ZHAO Guo-Liang ^1,2,*,,

1.
College of Chemistry and Life Science, Zhejiang Normal University, Jinhua, Zhejiang 321004, China
2.
Xingzhi College, Zhejiang Normal University, Jinhua, Zhejiang 321004, China
3.
Jinhua Polytechnic, Jinhua, Zhejiang 321017, China

Corresponding author: ZHAO Guo-Liang, sky53@zjnu.cn
Received Date: 12 August 2015
Revised Date: 31 December 2015

Figures(7)

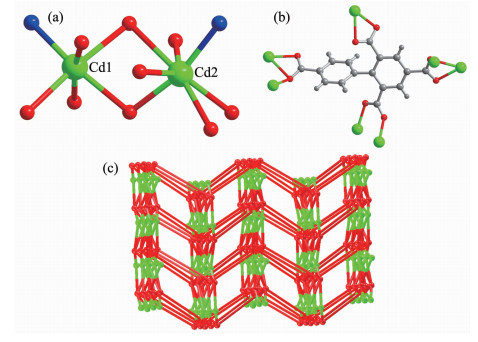

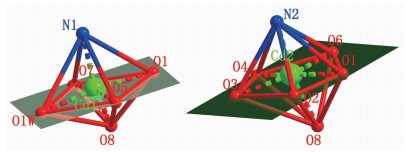

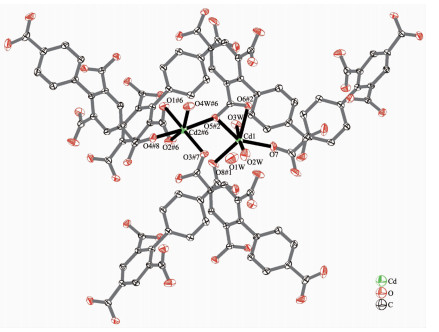

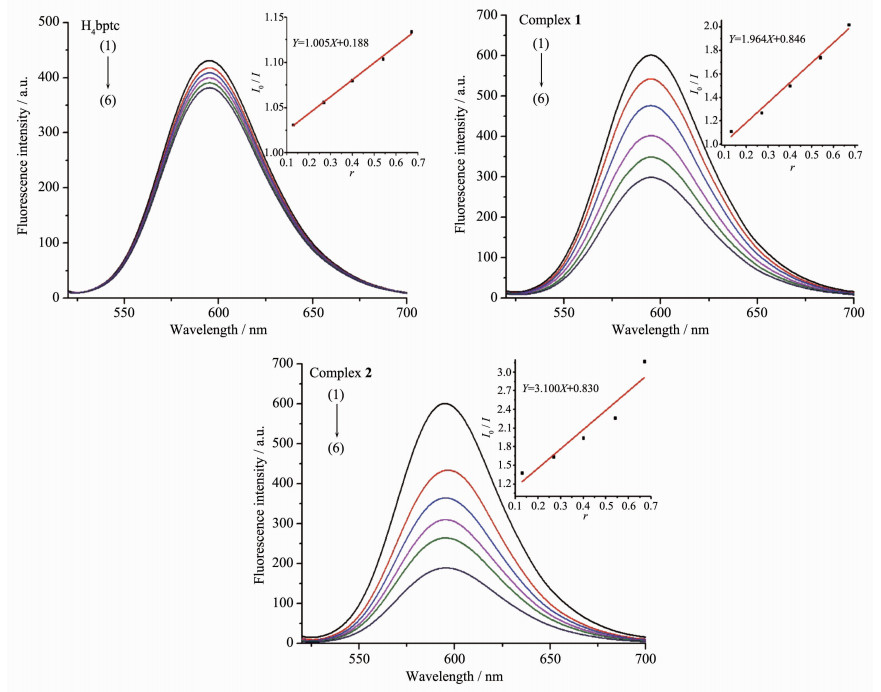

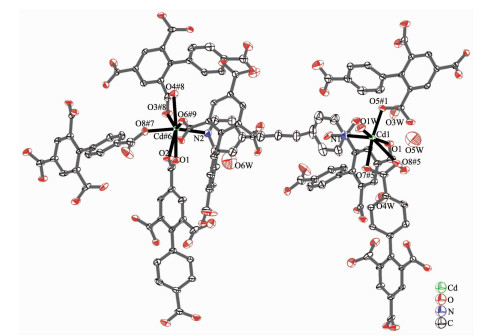

Two new cadmium coordination polymers, {[Cd₂(bptc)(H₂O)₃]·H₂O}_n (1) and {[Cd₂(bptc)(bpp)·H₂O]·2.25H₂O}_n (2), were synthesized under hydrothermal reactions by using biphenyl-2, 4, 4′, 6-tetracarboxylic acid (H₄bptc), CdCl₂·2.5H₂O and 1, 3-di (4-pyridyl) propane (bpp). Both of them were characterized by elemental analysis, IR spectra, single crystal X-ray diffraction. Complex 1 is a binuclear structure with two six-coordinated Cd (Ⅱ), both of which are distorted octahedral structures. The binuclear of Complex 2 is different. One Cd (Ⅱ) is distorted octahedral, and the other is seven-coordinated to form a pentagonal bipyramid. The interaction between two complexes, ligand and DNA was studied by EtBr fluorescence probe. Photoluminescence studies revealed that the interaction of complex 2 to the DNA is stronger than complex 1. CCDC: 952960, 1; 952962, 2.
- biphenyl-2, 4, 4′, 6-tetracarboxylic acid,
- cadmium coordination polymer,
- 1, 3-di (4-pyridyl) propane,
- DNA-binding
1. [1]
  Chen P K, Che Y X, Zheng J M, et al. CrystEngComm, 2010, 12:720-724 doi: 10.1039/B919676P
2. [2]
  Chang X H, Qin J H, Ma L F, et al. Cryst. Growth Des., 2012, 12(6):4649-4657
3. [3]
  Mereacre V, Baniodeh A, Powell A K, et al. J. Am. Chem. Soc., 2011, 133(6):15335-15337
4. [4]
  Guo H D, Guo X M, Zhang H J, et al. Cryst. Growth Des., 2009, 9(3):1394-1401 doi: 10.1021/cg8006469
5. [5]
  Zhao J, Wang X L, Shi X, et al. Inorg. Chem., 2011, 50(11): 3198-3205
6. [6]
  Yu W H, Wang X Z, Ren X M, et al. Inorg. Chem. Commun., 2008, 11:799-801 doi: 10.1016/j.inoche.2008.03.036
7. [7]
  Shan X C, Zhou Y F, Zhang H B, et al. Inorg. Chem. Commun., 2012, 22:149-153 doi: 10.1016/j.inoche.2012.05.048
8. [8]
  Chen B L, Ockwig N W, Yaghi O M, et al. Angew. Chem. Int. Ed., 2005, 44:4745-4749 doi: 10.1002/(ISSN)1521-3773
9. [9]
  Choi H S, Suh M P. Angew. Chem. Int. Ed., 2009, 48:6865-6869 doi: 10.1002/anie.v48:37
10. [10]
  Lan A J, Li K H, Li J, et al. Inorg. Chem., 2009, 48:7165-7173 doi: 10.1021/ic9002115
11. [11]
  Kang J, Kim C, Kim Y, et al. Polyhedron, 2012, 42:282-290 doi: 10.1016/j.poly.2012.05.040
12. [12]
  Li Q Y, Chen D Y, Yang G W, et al. J. Solid State Chem., 2012, 190:196-201 doi: 10.1016/j.jssc.2012.02.007
13. [13]
  Semerci F, Soylu M S, Keskin S, et al. Polyhedron, 2013, 50: 314-320 doi: 10.1016/j.poly.2012.10.009
14. [14]
  Ma Z B, Moulton B. Coord. Chem. Rev., 2011, 255:1623-1641 doi: 10.1016/j.ccr.2011.01.031
15. [15]
  Efthimiadou E K, Karaliota A, Psomas G. J. Inorg. Biochem., 2010, 104:455-466 doi: 10.1016/j.jinorgbio.2009.12.019
16. [16]
  Li B, Zang S Q, Ji C, et al. Cryst. Growth Des., 2012, 12(3): 1443-1451 doi: 10.1021/cg2015447
17. [17]
  Wang X L, Qin C, Wang E B, et al. Eur. J. Inorg. Chem., 2005(17):3418-3421
18. [18]
  Lin X, Jia J H, Zhao X B, et al. Angew. Chem. Int. Ed, 2006, 45(44):7358-7364 doi: 10.1002/(ISSN)1521-3773
19. [19]
  Liu T F, Lu J, Guo Z G, et al. Cryst. Growth Des., 2012, 10 (4):1489-1491
20. [20]
  Scheldrick G M. SADABS, University of Göttingen, Göttingen, Germany, 1996.
21. [21]
  Sheldrick G M. SHELXS 97, Program for the Solution of Crystal Structure, University of Göttingen, Göttingen, Germany, 1997.
22. [22]
  Sheldrick G M. SHELXS 97, Program for the Refinement of Crystal Structure, University of Göttingen, Göttingen, Germany, 1997.
23. [23]
  ZHU Zhi-Li, FENG Yun-Long, LIN Hong. J. Chin. Soc. Rare Earths, 2005, 23 (50):641-644
24. [24]
  Kazuo Nakamoto, Translated by HUANG De-Ru (黄德如), WANG Ren-Qing (汪仁庆). Infrared and Raman Spestra of Inorganic and Coordination Compounds (无机和配位化合物的红外和拉曼光谱). Bejing: Chemistry Industry Press, 1986.
25. [25]
  YU Yu-Ye, SHI Pei, SHENG Xiu-Dong, et al. Chinese J. Inorg. Chem., 2014, 30 (10):2332-2340
26. [26]
  TAO Wu, LIU Jie-Min, SUN Chang-Yan, et al. Chinese J. Inorg. Chem., 2011, 27(12):2419-2424
27. [27]
  Guo H D, Guo X M, Zhang H J, et al. Cryst. Growth Des., 2009, 9(3):1394-1401 doi: 10.1021/cg8006469
28. [28]
  Hao X R, Su Z M, Wang Y. et al. Acta Cryst., 2005, E61: m469-m471
29. [29]
  Liu G X, Zhu K, Ren X M, et al. Z. Anorg. Allg. Chem., 2009, 635:156-164 doi: 10.1002/zaac.v635:1
30. [30]
  Lakowicz J R, Webber G. Biochemistry, 1973, 12(21):4161-4170 doi: 10.1021/bi00745a020
