Citation: CHEN Yan-Min, WANG Jing-Mei, CHEN Fei-Peng, CHEN Ya-Xin, ZENG Qian-Ru, XIE Qing-Fan. Hydrothermal Syntheses, Crystal Structures and Properties of Cadmium (Ⅱ)/Copper (Ⅱ) Complexes with Acylhydrazone and Phenanthroline Ligands[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(3): 434-440. doi: 10.11862/CJIC.2016.043 shu

Hydrothermal Syntheses, Crystal Structures and Properties of Cadmium (Ⅱ)/Copper (Ⅱ) Complexes with Acylhydrazone and Phenanthroline Ligands

College of Chemistry and Life Science, Quanzhou Normal University, Quanzhou, Fujian 362000, China

Corresponding author: XIE Qing-Fan, xqf360@163.com
Received Date: 23 September 2015
Revised Date: 30 November 2015

Figures(10)

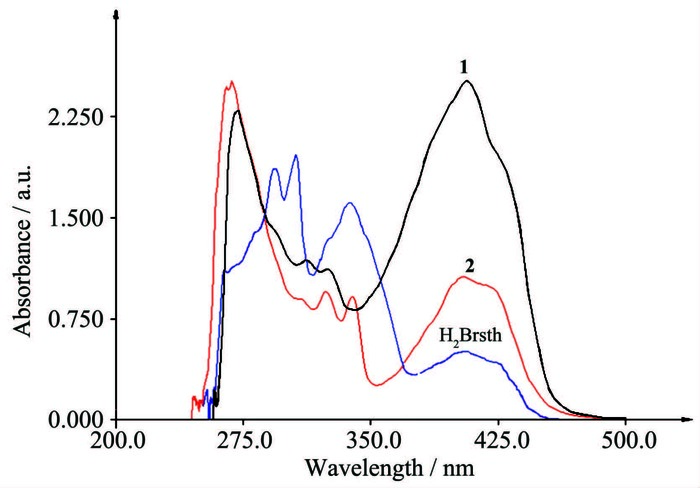

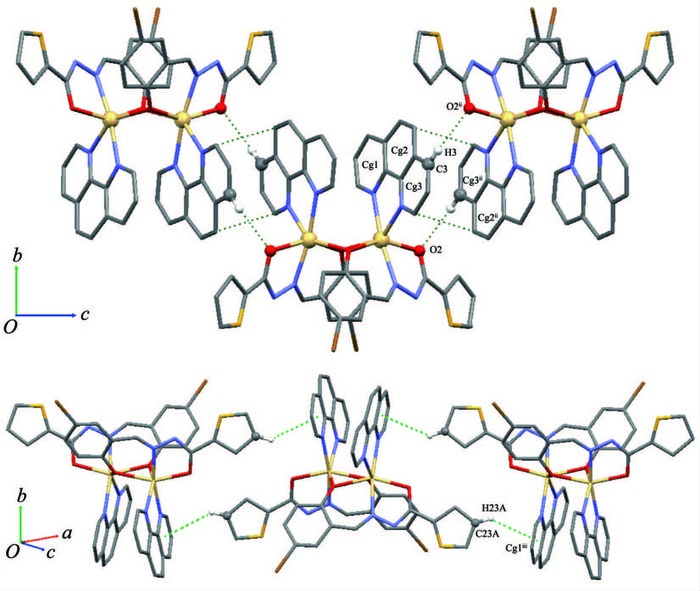

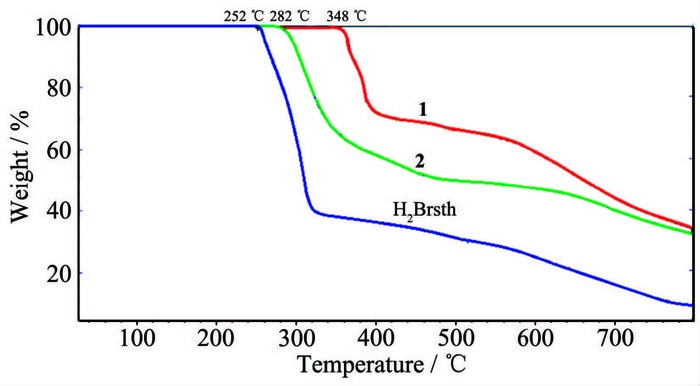

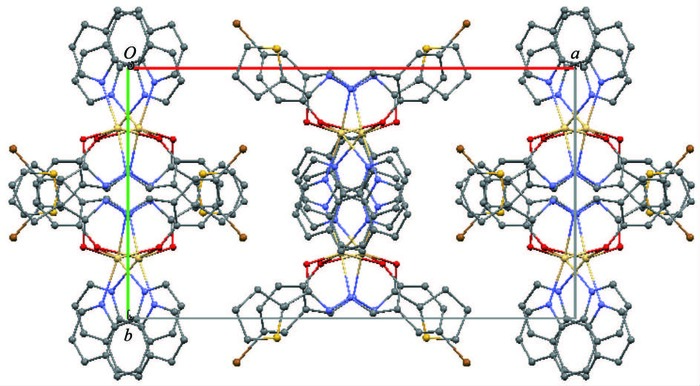

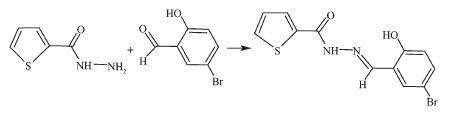

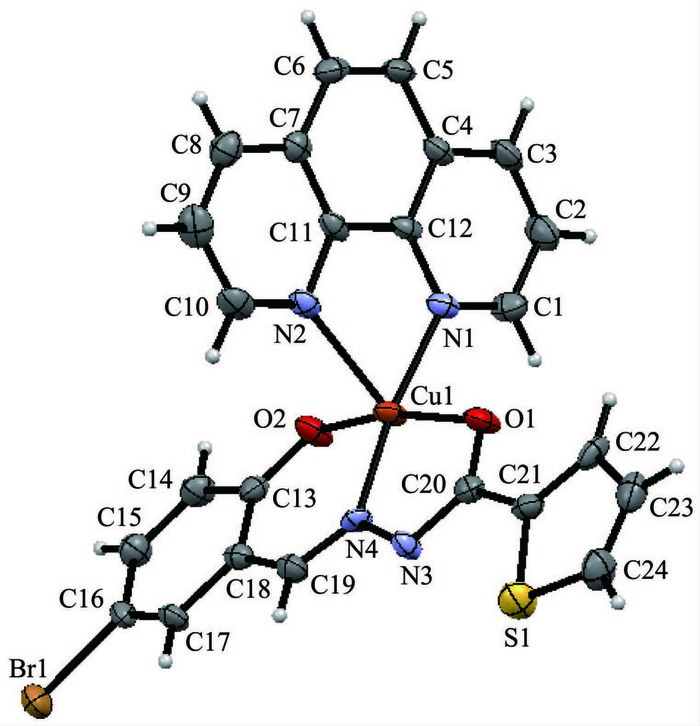

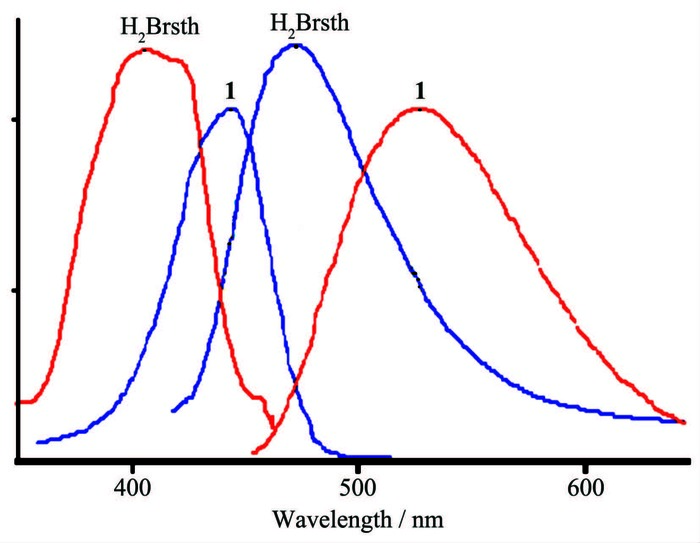

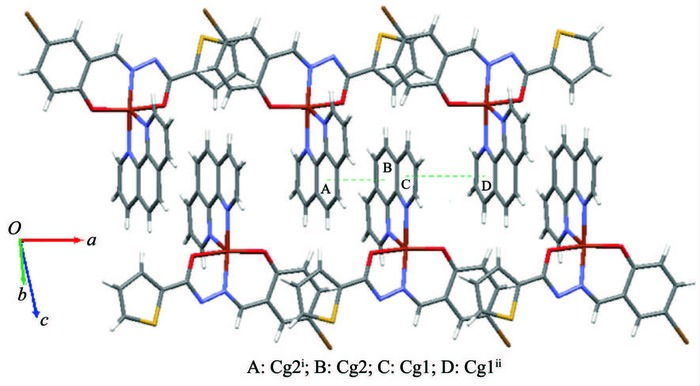

Newly designed [ONO] tridentate hydrazone Schiff base ligand H₂Brsth, derived from the condensation of 5-bromosalicylaldehyde and thiophene-2-formyl hydrazine, hydrothermally reacted with metal acetates and phenanthroline as co-ligand yielding two complexes [Cd₂(μ-Brsth)₂(Phen)₂] (1) and [Cu (Brsth)(Phen)] (2), which were characterized by elemental analyses, FT-IR, electronic spectra, fluorescence spectra, TGA and single crystal X-ray diffraction. The X-ray diffraction analyses reveal that complex 1 crystallizes in monoclinic space group C2/c with a=2.116 36(13) nm, b=1.163 35(7) nm, c=1.872 43(12) nm, β=100.981(2)°, V=4.525 6(5) nm³ and Z=4, while 2 crystallizes in the triclinic space group P1 with a=0.911 7(2) nm, b=1.089 4(3) nm, c=1.272 9(3) nm, α=64.923(4)°, β=82.006(5)°, γ=67.768(5)°, V=1.059 6(5) nm³ and Z=2. The complex 1 is a binuclear ternary complex, in which Cd atoms locate in distorted coordination octahedron. The complex 2 is a mononuclear ternary complex with Cu atom in distorted square pyramidal coordination. The complex 1 exhibits strong green fluorescence with emission maximum of 525 nm at the excitation wavelength of 443 nm, while the ligand shows emission at 475 nm. CCDC: 1062986, 1; 1046224, 2.
- complexes,
- Schiff base,
- crystal structure,
- hydrothermal synthesis
1. [1]
  You Z L, Shi D H, Zhang J C, et al. Inorg. Chim. Acta, 2012, 384(1):54-61
2. [2]
  HUO Yong-Qian, WANG Sheng-Wen, CUI Hua-Li, et al. Chinese J. Inorg. Chem., 2010, 26(7):1274-1478
3. [3]
  Ebrahimipour S Y, Khabazadeh H, Castro J, et al. Inorg. Chim. Acta, 2015, 427(1):52-61
4. [4]
  CHEN Yan-Min, JIANG Xia, CHEN Guang-Hui, et al. Chinese J. Inorg. Chem., 2015, 31(11):2159-2166
5. [5]
  WEI Tai-Bao, LENG Yan-Li, WANG Yong-Cheng, et al. Chinese J. Org. Chem., 2009, 29(2):216-221
6. [6]
  XIE Qing-Fan, GAO Ping-Zhang, CHEN Yan-Min, et al. Chinese J. Inorg. Chem., 2014, 30(10):2382-2388
7. [7]
  Khandar A A, Afkhami F A, Hosseini-Yazdi S A, et al. Inorg. Chim. Acta, 2015, 427:87-96 doi: 10.1016/j.ica.2014.11.028
8. [8]
  Yi L J, Xu G C, Zhang L, et al. Inorg. Chem. Commun., 2014, 45:36-39 doi: 10.1016/j.inoche.2014.03.041
9. [9]
  HUANG Chao, WU Juan, LIN Dong-Mei, et al. Chinese J. Inorg. Chem., 2015, 31 (1):109-113
10. [10]
  Ying S M. Inorg. Chem. Commun., 2012, 22:82-84 doi: 10.1016/j.inoche.2012.05.026
11. [11]
  Zheng C Z, Wang L, Liu J. J. Mol. Struct., 2012, 1018(27): 78-83
12. [12]
  Ying S M. Inorg. Chim. Acta, 2012, 387(30):366-372
13. [13]
  Sluis P V D, Spek A L. Acta Cryst., 1990, A46:194-201
14. [14]
  Müller P, Herbst-Irmer R, Spek A L, et al. Crystal Structure Refinement-A Crystallographer's Guide to SHELXL. New York: Oxford University Press, 2006:63-96
15. [15]
  Sheldrick G M. SHELXTL, Program for X-ray Crystal Structure Solution and Refinement, University of Göttingen, Germany, 1997.
16. [16]
  Bourhis L J, Dolomanov O V, Gildea R J, et al. Acta Cryst., 2015, A71:59-75
