Citation: Gao Zicheng, Liu Jing, Xia Yunsheng, Bao Decai. One-Step Preparation and Characterization of High Specific Surface Area Mesoporous Co₃O₄-CeO₂[J]. Chemistry, ;2020, 83(2): 121-126. shu

One-Step Preparation and Characterization of High Specific Surface Area Mesoporous Co₃O₄-CeO₂

College of Chemistry and Chemical Engineering, Bohai University, Jinzhou, 121013

Corresponding author: Xia Yunsheng, xiayunsheng@126.com
Received Date: 12 September 2019
Accepted Date: 12 November 2019

Figures(7)

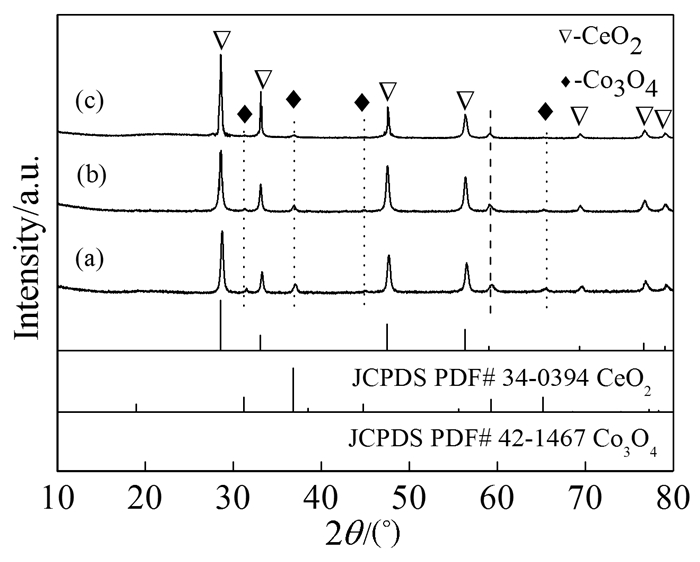

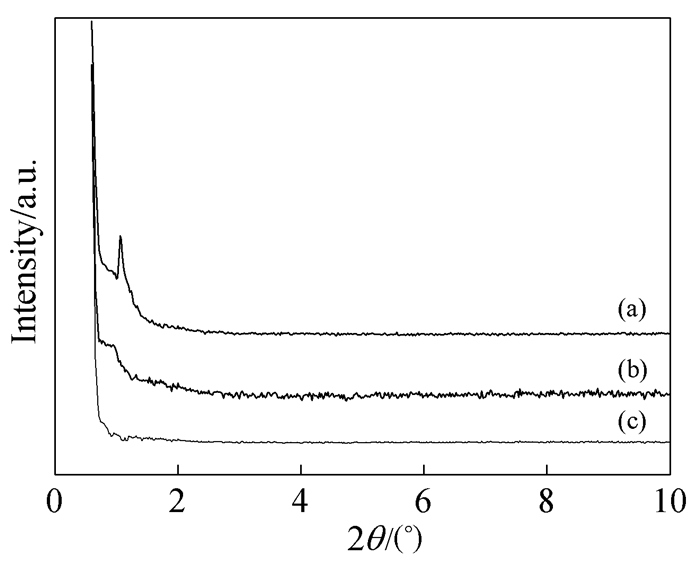

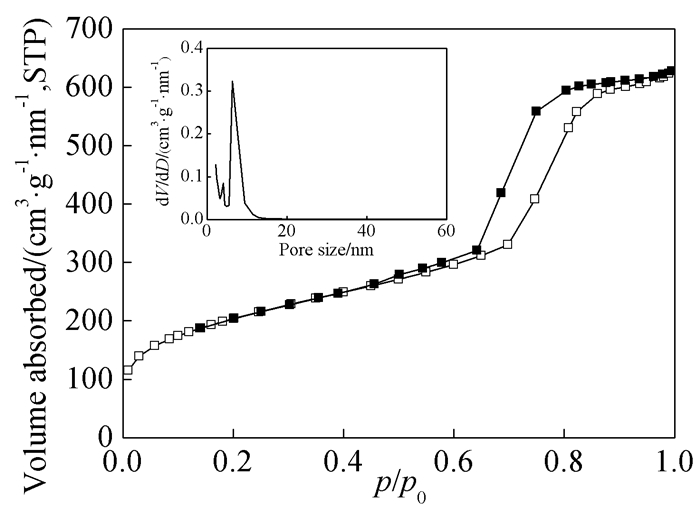

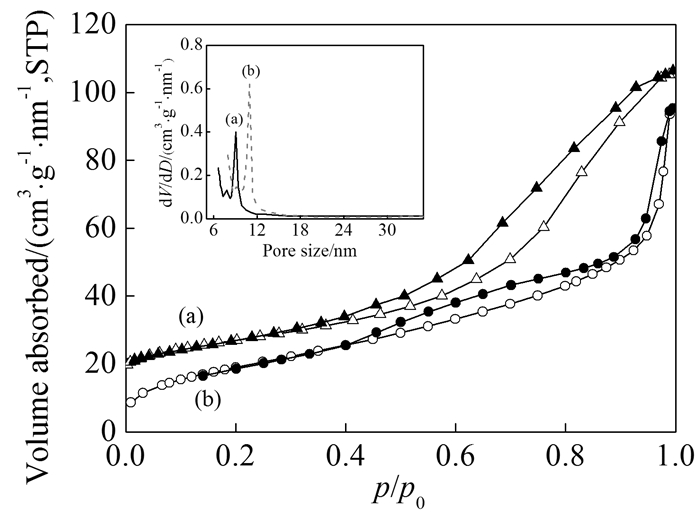

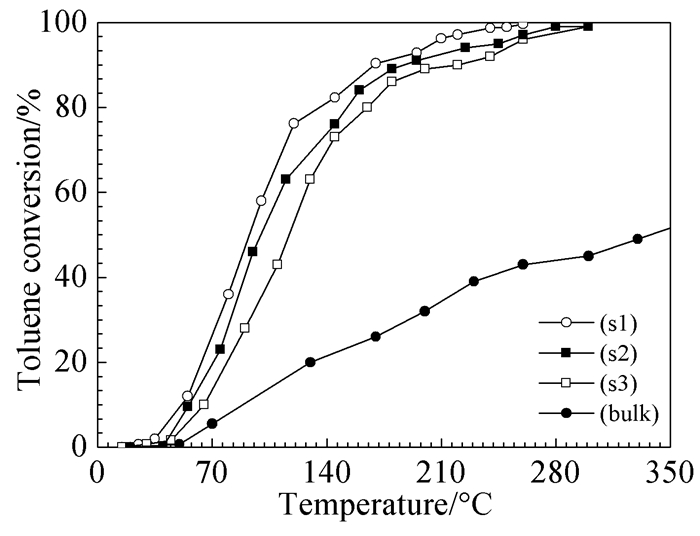

Using ordered mesoporous silica KIT-6 as hard template, cobalt nitrate and cerium nitrate as metal sources, mesoporous CoCeO_x composite oxides were prepared by impregnation, filling, calcination, template removal and drying under vacuum-assisted conditions and ordinary stirring conditions. The physical and chemical properties of the composite oxides were characterized by XRD, SEM, TEM and N₂ adsorption and desorption techniques. The oxidation performance of toluene was evaluated. The results show that the CoCeO_x oxides prepared under vacuum-assisted and stirring conditions are mesoporous Co₃O₄-CeO₂ composite oxides composed of Co₃O₄ and CeO₂. Their specific surface areas are 141 and 89 m²·g^-1, respectively. The average pore sizes are 8.7 and 9.6 nm, respectively. The vacuum-assisted nano-replication process is conducive to the full filling of metal salt precursors into the pores of template KIT-6. The prepared mesoporous cobalt-cerium composite oxide has the characteristics of good pore order and large specific surface area, and has certain application prospects in the oxidation removal of volatile organic compounds.
- Hard template method,
- Vacuum assisted technology,
- Mesoporous material,
- Metal complex,
- Toluene oxidation
1. [1]
  Liotta L F, Ousmane M, Carlo G D, et al. Catal. Lett., 2009, 127: 270~276.
2. [2]
  Tsoncheva T, Issa G, Blasco T, et al. Appl. Catal. A, 2013, 453: 1~12.
3. [3]
  Barakat T, Idakiev V, Cousin R, et al. Appl. Catal. B, 2014, 146: 138~146.
4. [4]
  Garcia T, Agouram S, Sánchez-Royo J F, et al. Appl. Catal. A, 2010, 386: 16~27.
5. [5]
  Li W B, Wang J X, Gong H, et al. Catal. Today, 2009, 148: 81~87.
6. [6]
  Bai G M, Dai H X, Deng J G, et al. Appl. Catal. A, 2013, 450: 42~49.
7. [7]
  Xia P, Zuo S F, Liu F J, et al. Catal. Commun., 2013, 41: 91~95.
8. [8]
  Kang M, Song M W, Lee C H, et al. Appl. Catal. A, 2003, 251: 143~156.
9. [9]
  Lu S H, Wang F, Chen C C, et al. J. Rare Earths, 2017, 35: 867~874.
10. [10]
  Li X, Li X H, Zeng X L, et al. Appl. Catal. A, 2019, 572: 61~70.
11. [11]
  Liotta L F, Carlo G D, Pantaleo G, et al. Appl. Catal. B, 2006, 66: 217~227.
12. [12]
  Tang W X, Wu X F, Liu G, et al. J. Rare Earths, 2015, 33: 62~69.
13. [13]
  Li L M, Jing F L, Yan J L, et al. Catal. Today, 2017, 297: 167~172.
14. [14]
  Inaba H, Tagawa H. Solid State Ionics, 1996, 83: 1~16.
15. [15]
  Steele B C H. Solid State Ionics, 2000, 129: 95~110.
16. [16]
  Kleitz F, Choi S H, Ryoo R. Chem. Commun., 2003, 17: 2136~2137.
17. [17]
  Xu H, Cai H H, Luo Z K, et al. Chin. J. Inorg. Chem., 2003, 19: 627~630.
18. [18]
  Li L, Zhu Z H, Wang S B, et al. J. Mol. Catal. A, 2009, 304: 71~76.
19. [19]
  Wan L J, Shi K Y, Tian X Q, et al. J. Solid State Chem., 2008, 181: 735~740.
20. [20]
  Martínez-Arias A, Fernández-García M, Gálvez O, et al. J. Catal., 2000, 195: 207~216.
21. [21]
  Xue L, Zhang C, He H, et al. Appl. Catal. B, 2007, 75: 167~174.
22. [22]
  Jiao K, Zhang B, Yue B, et al. Chem. Commun., 2005, 45: 5618~5620.
23. [23]
  Dickinson C, Zhou W Z, Hodgkins R P, et al. Chem. Mater., 2006, 18: 3088~3095.
