Citation: Feng Xiaojuan, Wei Xinxin, Shi Yanglong, Ma Jinyu, Liang Zhiqi, Zhang Yinglong. Preparation of Three-Dimensional NiO/CoMoO₄ Nanowires/Nanosheets Composite Materials and Their Supercapacitor Properties[J]. Chemistry, ;2019, 82(1): 51-55, 50. shu

Preparation of Three-Dimensional NiO/CoMoO₄ Nanowires/Nanosheets Composite Materials and Their Supercapacitor Properties

College of Chemistry and Chemical Engineering, Key Laboratory of Hexi Corridor Resources Utilization of Gansu Universities, HeXi University, Zhangye 734000

Received Date: 7 June 2018
Accepted Date: 22 August 2018

Figures(6)

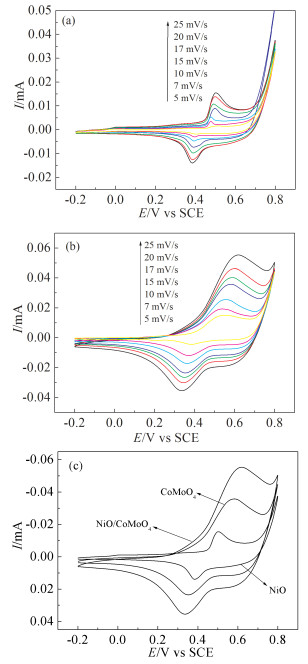

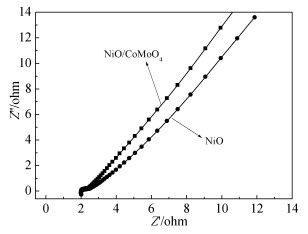

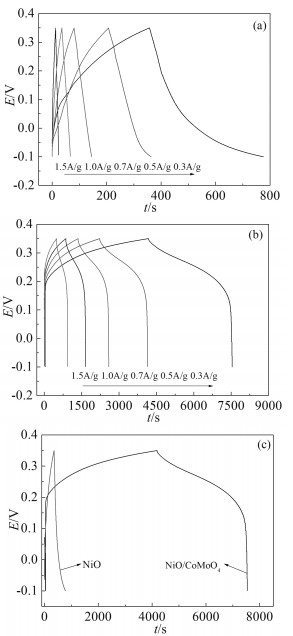

Three-dimensional NiO/CoMoO₄ composite electrode materials were successfully prepared by two-step hydrothermal and high temperature annealing. The structure, surface morphology and electrochemical performance were characterized using X-ray diffraction, scanning electron microscopy, transmission electron microscopy and electrochemical method. The results showed that NiO/CoMoO₄ composite materials owned typical nanowires/nanosheet structure, which were different from needle-like morphology of NiO. The structure provided more active sites for the active substance, compared with pure NiO. The specific capacitance of the composites could reach 2253 F/g at the current density of 0.3 A/g, which was higher than that of pure NiO. It displayed good cycling stability with 92% capacitance retention after 2000 cycles due to the synergistic effect between NiO and CoMoO₄.
- NiO/CoMoO₄,
- Hierarchical structure,
- Hydrothermal method,
- Supercapacitance performance
1. [1]
  Q Wang, J Yan, Z Fan. Energ Environ Sci., 2016, 9(3):729~762.
2. [2]
  Y Yang, Y Liang, Y Zhang et al. New J. Chem., 2015, 39(5):4035~4040.
3. [3]
  D P Cai, H Huang, D D Wang et al. ACS Appl. Mater. Interf., 2014, 6:15905~15912.
4. [4]
  Y T Chu, S L Xiong, B S Li et al. Chem. Electro. Chem., 2016, 3:1~8.
5. [5]
  W Wei, X Cui, W Chen et al. Chem. Soc. Rev., 2011, 40:1697~1721.
6. [6]
  L Dong, Y Chu, W Sun. Chem. Eur. J., 2008, 14(16):5064~5072.
7. [7]
  J L Lv, W L Guo, T X Liang. J. Electroanal. Chem., 2016, 783:250~257.
8. [8]
  D P Cai, D D Wang, B Liu et al. ACS Appl. Mater. Interf., 2014, 6:5050~5055.
9. [9]
  X H Wang, H Y Xia, J Gao et al. J. Mater. Chem., 2016, 4:18181~18187.
10. [10]
  S Baskarab, D Meyricka, K Selvan et al. Chem Eng J., 2014, 253, 502~507.
11. [11]
  H Chen, J Jiang, Y Zhao, L Zhang. J. Mater. Chem. A, 2015, 3:428~437.
12. [12]
  X D Zhang, J L Xiao, X Y Zhang et al. Electrochim. Acta, 2016, 91:758~766.
13. [13]
14. [14]
  Y Zhang, Z Hu, Y Yang et al. J. Mater. Chem. A, 2015, 3(29):15057~15067.
15. [15]
  D Ghosh, C K Das. ACS Appl. Mater. Interf., 2015, 7:1122~1131.
16. [16]
  C Guan, J Liu, C Cheng et al. Energy Environ. Sci., 2011, 4:4496~4499.
17. [17]
  D Cai, B Liu, D Wang et al. Electrochim. Acta, 2014, 115:358~363.
