Citation: Luo Shuchang, Liu Qiuqiu, Zheng Pengfei, Yin Jun, Liu Xiangyu. Effects of Solvents on the Magnetic Properties of Azido-Cu(Ⅱ) Complexes with 4-Azabenzoic Acid Coligands:A Theoretical Exploration[J]. Chemistry, ;2020, 83(6): 569-575. shu

Effects of Solvents on the Magnetic Properties of Azido-Cu(Ⅱ) Complexes with 4-Azabenzoic Acid Coligands:A Theoretical Exploration

1.
College of Chemical Engineering, Guizhou University of Engineering Science, Bijie, 551700
2.
College of Chemistry and Chemical Engineering, Ningxia University, Yinchuan, 750021

Received Date: 31 October 2019
Accepted Date: 22 February 2020

Figures(6)

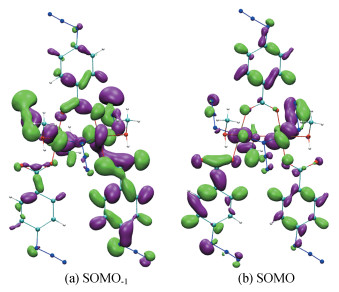

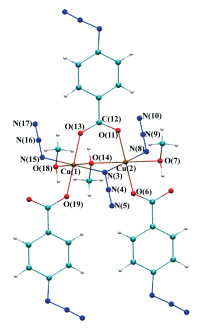

The magnetic properties of a azido-Cu(Ⅱ) complex[Cu₂(4-aba)₃(N₃)₃(CH₃OH)₃]^2- were studied by using the DFT-BS method under different density functional methods and basis sets. The results showed that the magnetic coupling constant between paramagnetic centers calculated at the B2PLYP/TZVP level is 33.48cm^-1, which agrees well with the experimental value (33.80 cm^-1). Accordingly, it could describe the magnetic properties of the azido-Cu(Ⅱ) complexes. The molecular magnetic orbital of the titled complex are mainly contributed by 3d_x²-y² orbitals of the paramagnetic center Cu(1)/Cu(2), π molecular orbitals of N₃^- ion and 4-azabenzoic acid and p orbital of oxygen atom in the methanol. As results, with the increasing of electrophobic effect of R-groups solvent, the contribution of antiferromagnetic interaction decreases, whereas the values of the magnetic coupling constant increases.
- Azido-Cu(Ⅱ) complexes,
- Solvent,
- Substituted benzoic acid,
- Magnetic coupling constant,
- DFT-BS
1. [1]
  Miller J S, Drillon M. Magnetism: Molecules to Materials, Wiley-VCH, Weinheim, 2002.
2. [2]
  Gatteschi D, Sessoli R, Villain J. Molecular Nanomagnets, Oxford University Press, Oxford, 2006.
3. [3]
  Yue Q, Gao E Q. Coord. Chem. Rev., 2019, 382: 1~31.
4. [4]
  Ma Y, Wen Y Q, Zhang J Y, et al. Dalton Transac., 2010, 39(7): 1846~1854.
5. [5]
  Mukherjee S, Mukherjee P S. Acc. Chem. Res., 2013, 46(11): 2556~2566.
6. [6]
  Ferrando-Soria J, Vallejo J, Castellano M, et al. Coord. Chem. Rev., 2017, 339: 17~103.
7. [7]
  Neese F. Coord. Chem. Rev., 2009, 253(5-6): 526~563.
8. [8]
  Liu C M, Gao S, Zhang D Q, et al. Angew. Chem. Int. Ed., 2004, 43(8): 990~994.
9. [9]
  Wernsdorfer W, Aliaga-Alcalde N, Hendrickson D N, et al. Nature, 2002, 416: 406~409.
10. [10]
  Zhao J P, Xie Y B, Li J R, et al. Dalton Transac., 2016, 45(4): 1514~1524.
11. [11]
  Zhao J P, Han S D, Liu F C. Inorg. Chem., 2019, 58(2): 1184~1190.
12. [12]
  Isabel C, María L C, Consuelo Y, et al. Polyhedron, 2019, 169: 66~77.
13. [13]
  Liu X Y, Ma X F, Yang J H, et al. Dalton Transac., 2019, 48(30): 11268~11277.
14. [14]
  Cen P P, Yuan W Z, Luo S C, et al. New J. Chem., 2019, 43(2): 601~608.
15. [15]
  Liu X Y, Cen P P, Li F F, et al. RSC Adv., 2016, 6(98): 96103~96108.
16. [16]
  Liu X Y, Li F F, Ma X F, et al. Dalton Transac., 2017, 46(4): 1207~1217.
17. [17]
  Ma X H, Wu Y W, Cen P P, et al. New J. Chem., 2017, 41(18): 9631~9638.
18. [18]
  Liu X Y, Chen S P, Grancha T, et al. Dalton Transac., 2014, 43(41): 15359~15366.
19. [19]
  Yang L, Zhang S, Liu X Y, et al. CrystEngComm, 2014, 16(20): 4194~4201.
20. [20]
  Liu X Y, Ma X H, Cen P P, et al. Dalton Transac., 2017, 46(23): 7556~7566.
21. [21]
  Luo S C, Mei H, Sun X Y, et al. J. Mol. Graph. Model., 2020, 97: 107562.
22. [22]
  Woodruff D N, Winpenny R E P, Layfield R A. Chem. Rev., 2013, 113(7): 5110~5148.
23. [23]
  Ferreira D E C, Almeida W B D, Neves A, et al. Comput. Theor. Chem., 2012, 979: 89~95.
24. [24]
  Escuer A, Esteban J, Perlepes S P, et al. Coord. Chem. Rev. 2014, 275: 87~129.
25. [25]
  Yin B, Li J L, Bai H C, et al. Phys. Chem. Chem. Phys., 2012, 14(3): 1121~1130.
26. [26]
  Rigamonti L, Forni A, Sironi M, et al. polyhedron, 2018, 145: 22~34.
27. [27]
28. [28]
  Bencini A, Gatteschi D. J. Am. Chem. Soc., 1980, 108(19): 5763~5771.
29. [29]
  Neese F, ORCA-an ab initio, Density Functional and Semiempirical Program Package, 4.2.0, University of Bonn, Bonn, Germany, 2019, http://www.thch.unibonn.de/tc/orca/.
30. [30]
  Neese F. Wiley Interdiscip. Rev.: Comput. Mol. Sci., 2012, 2(1): 73~78.
31. [31]
  Neese F. Wiley Interdiscip. Rev.: Comput. Mol. Sci., 2018, 8(1): e1327.
32. [32]
  Humphrey W, Dalke A, Schulten K. J. Mol. Graph. Model, 1996, 14(1): 33~38.
33. [33]
  Grimme S. J. Chem. Phys., 2006, 124(3): 034108.
34. [34]
  Su Q J, Li S H, Wang L, et al. Inorg. Chem. Commun., 2010, 13(10): 1210~1212.
35. [35]
36. [36]
37. [37]
  Bian J Y, Chang Y F, Zhang J P. J. Phys. Chem. A, 2008, 112(14): 3186~3191.
38. [38]
  Kahn O, Briat B J. Chem. Soc. Faraday Transac., 1976, 72(2): 268~281.
39. [39]
  Girerd J J, Journaux Y, Kahn O. Chem. Phys. Lett., 1981, 82(3): 534~538.
