Citation: Liu Rui, Zhong Xianghong, Liu Zhenyu, Liang Shengbiao, Zhu Hongping. Selective Ethylene Oligomerization Catalyzed by the Chromium Complex Bearing N-Tetrahydrofurfuryl PNP Ligand[J]. Chinese Journal of Organic Chemistry, ;2017, 37(9): 2315-2321. doi: 10.6023/cjoc201703010 shu

Selective Ethylene Oligomerization Catalyzed by the Chromium Complex Bearing N-Tetrahydrofurfuryl PNP Ligand

a.
State Key Laboratory of Physical Chemistry of Solid Surfaces, Xiamen University, Xiamen 361005
b.
Maoming Branch R & D Institute, SINOPEC, Maoming 525011

Corresponding author: Zhong Xianghong, zhongxh.mmsh@sinopec.com Zhu Hongping, hpzhu@xmu.edu.cn
Received Date: 3 March 2017
Revised Date: 5 May 2017
Available Online: 17 September 2017
Fund Project: Project supported by the National Natural Science Foundation of China (Nos. 21473142, 21673191) and the Innovative Research Team Program (No.IRT_14R31)National Natural Science Foundation of China 21673191Innovative Research Team Program IRT_14R31National Natural Science Foundation of China 21473142

Figures(5)

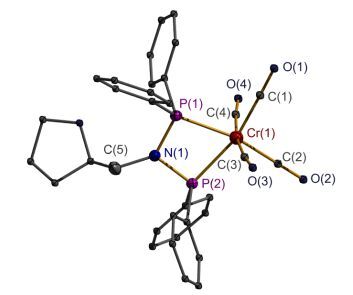

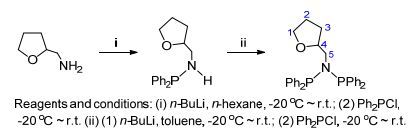

The N-tetrahydrofurfuryl diphoshinoamine (PNP) ligand (E) was synthesized by means of two-step salt elimination reactions where separation of the two kinds of the aminyl lithium salts for the respective reactions is necessary for obtaining a high yield of E. The ligand reacted with CrCl₃(THF)₃ and Cr(CO)₆ to give P, P-chelation complexes[{Ph₂PN(CH₂OC₄H₇)-PPh₂}CrCl₂(μ-Cl)]₂ (1) and[Ph₂PN(CH₂OC₄H₇)PPh₂]Cr(CO)₄ (2), respectively. Complexes E, 1 and 2 were characterized by spectroscopy and elemental analysis, of which complex 2 was further confirmed by X-ray crystallography. Upon activation with methylaluminoxane (MAO) or AlEt₃, the catalyst systems including 1, 2, E/CrCl₃(THF)₃, E/Cr(acac)₃ and E/CrCl₂(THF)₂ were investigated. The best catalytic activity was achieved by 15.9 kg (product)/g (Cr)·h in which a selectivity of 63.6% for 1-C₈ was obtained.
- chromium complexes,
- catalytic property,
- ethylene tri-/tetramerization,
- catalytic reaction conditions
1. [1]
2. [2]
  (a) Lappin, G. Butene-1 and Other LLDPE Comonmers, Chem SysSystems, Inc, New York, 1986.
  (b) Sauser, J. Alpha-olefins Applications Handbook, Marcel Dekker, New York, 1989.
  (c) Britovsek, G. J. P.; Bruse, M.; Gibson, V. C.; Kimberley, B. S.; Maddox, P. J.; Mastroianni, S.; McTavish, S. J.; Redshaw, C.; Solan, G. A.; Williams, D. J. J. Am. Chem. Soc. 1999, 121, 8728.
  (d) Small, B. L.; Brookhart, M.; Bennett, A. M. A. J. Am. Chem. Soc. 1998, 120, 4049.
  (e) Brookhart, B. L.; Small, M. J. Am. Chem. Soc. 1998, 120, 7143.
3. [3]
  Robert, M. M.; Albans, S. US 3300458, 1967[Chem. Abstr. 1967, 66, 66008].
4. [4]
  Manyik, R. M.; Walker, W. E.; Wilson, T. P. J. Catal. 1977, 47, 197. doi: 10.1016/0021-9517(77)90167-1
5. [5]
  Freeman, J. W.; Buster, J. L.; Knudsen, R. D. Phillips Petroleum Company, US 5856257, 1999[Chem. Abstr. 1999, 130, 95984].
6. [6]
  Carter, A.; Cohen, S. A.; Cooley, N. A.; Murphy, A.; Scutt, J.; Wass, D. F. Chem. Commun. 2002, 858.
7. [7]
  Bollmann, A.; Blann, K.; Dixon, J. T.; Hess, F. M.; Killian, E.; Maumela, H.; McGuinness, D. S.; Morgan, D. H.; Neveling, A.; Otto, S.; Overett, M.; Slawin, A. M. Z.; Wasserscheid, P.; Kuhlmann, S. J. Am. Chem. Soc. 2004, 126, 14712. doi: 10.1021/ja045602n
8. [8]
  (a) Shaikh, Y.; Albahily, K.; Sutcliffe, M.; Fomitcheva, V.; Gambarotta, S, Korobkov, I.; Duchateau, R. Angew. Chem. Int. Ed. 2012, 51, 1366.
9. [9]
  (a) Jiang, T.; Ning, Y. N.; Zhang, B. J.; Li, J. Z.; Wang, G.; Yi, J. J.; Huang, Q. J. Mol. Catal. A:Chem. 2006, 259, 161.
  (b) Jiang, T.; Zhang, S.; Jiang, X. L.; Yang, C. F.; Niu, B.; Ning, Y. N. J. Mol. Catal. A:Chem. 2008, 279, 90.
  (c) Jiang, T.; Tao, Y. Q.; Gao, X. L.; Mao, G. L.; Chen, H. X.; Chen, C. G..; Ning, Y. N. Chin. Sci. Bull. 2012, 57, 1510.
  (d) Zhang, J.; Wang, X.; Zhang, X.; Wu, W.; Zhang, G.; Xu, S.; Shi, M. ACS Catal. 2013, 3, 2311.
10. [10]
  Liu, R.; Xiao, S.; Zhong, X.; Cao, Y.; Liang, S.; Liu, Z.; Ye, X.; Shen, A.; Zhu, H. Chin. J. Org. Chem. 2015, 35, 1861(in Chinese). doi: 10.6023/cjoc201504009
11. [11]
  Elowe, P. R.; McCann, C.; Pringle, P. G.; Spitzmesser, S. K.; Bercaw, J. E. Organometallics 2006, 25, 5255. doi: 10.1021/om0601596
12. [12]
  Maumela, M.; Blann, K.; de Bod, H. T.; Dixon, J.; Gabrielli, W.; Williams, D. B. Synthesis 2007, 3863.
13. [13]
  Dulai, A.; de Bod, H. T.; Hanton, M. J.; Smith, D. M.; Downing, S.; Mansell, S. M.; Wass, D. F. Organometallics 2009, 28, 4613. doi: 10.1021/om900285e
14. [14]
  Rucklidge, A. J.; McGuinness, D. S.; Tooze, R. P.; Slawin, A. M. Z.; Pelletier, J. D. A.; Hanton, M. J.; Webb, P. B. Organometallics 2007, 26, 2782. doi: 10.1021/om0701975
15. [15]
  Liu, R.; Zhu, K. T.; Zhong, X. H.; Li, J. C.; Liu, Z. Y.; Chen, S. B.; Zhu, H. P. Dalton Trans. 2016, 45, 17020. doi: 10.1039/C6DT03216H
16. [16]
  (a) Blann, K.; Bollmann, A.; Dixon, J. T.; Hess, F. M.; Killian, E.; Maumela, H.; Morgan, D. H.; Neveling, A.; Otto, S.; Overett, M. J. Chem. Commun. 2005, 620.
  (b) Blann, K.; Bollmann, A.; Debod, H.; Dixon, J.; Killian, E.; Nongodlwana, P.; Maumela, M.; Maumela, H.; McConnell, A.; Morgan, D. J. Catal. 2007, 249, 244.
  (c) Overett, M. J.; Blann, K..; Bollmann, A.; Dixon, J. T.; Hess, F.; Killian, E.; Maumela, H.; Morgan, D. H.; Neveling, A.; Otto, S. Chem. Commun. 2005, 622.
17. [17]
  Dulai, A.; McMullin, C. L.; Tenza, K.; Wass, D. F. Organometallics 2011, 30, 935. doi: 10.1021/om100912y
18. [18]
  Herwig, W.; Zeiss, H. J. Org. Chem. 1958, 23, 1404.
19. [19]
  Carter, E.; Cavell, K. J.; Gabrielli, W. F.; Hanton, M. J.; Hallett, A. J.; McDyre, L.; Platts, J. A.; Smith, D. M.; Murphy, D. M. Organometallics 2013, 32, 1924. doi: 10.1021/om400029y
20. [20]
  Sheldrick, G. M. SHELXL-97, Program for Crystal Structure Refinement, University of Göttingen:Göttingen, Germany, 1997.
