Citation: Chen Lei, Tang Xiang, Jia Kun, Tang Xianzhong. Synthesis and Properties of Organic Nonlinear Optical Chromophores Containing Azo-and Furan-Based Conjugated Bridge[J]. Chinese Journal of Organic Chemistry, ;2016, 36(9): 2197-2203. doi: 10.6023/cjoc201601005 shu

Synthesis and Properties of Organic Nonlinear Optical Chromophores Containing Azo-and Furan-Based Conjugated Bridge

1.
State Key Laboratory of Electronic Thin Films and Integrated Devices, School of Microelectronics and Solid-State Electronics, University of Electronic Science and Technology of China, Chengdu 610054

Corresponding author: Tang Xianzhong, txzhong@uestc.edu.cn
Received Date: 5 January 2016
Revised Date: 23 March 2016

Figures(4)

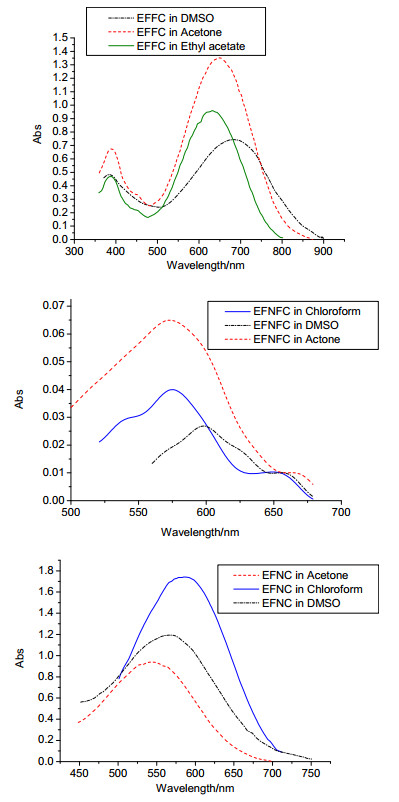

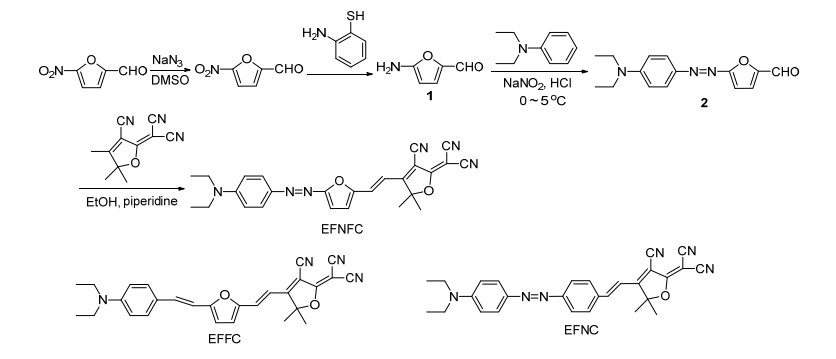

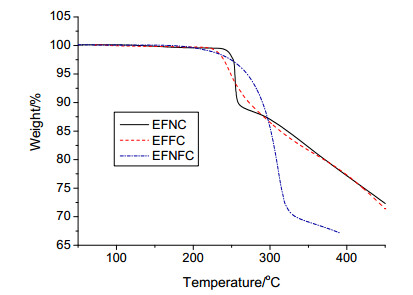

In this work, novel organic non-linear optical chromophore containing azo-furan based conjugation bridge (EFNFC) was designed and synthesized. Moreover, the optical and thermal properties of EFNFC were systematically compared with those of two different conjugation bridges of vinyl-furan (EFFC) and azo-benzene (EFNC) containing same electron donor and acceptor moieties, respectively. It was found that similar maximum absorption wavelength in DMSO solution was detected for EFNFC (573 nm) and EFNC (568 nm), which indicated an improved visible light transmittance compared to EFFC. Meanwhile, the second-order polarizability of EFNFC (4.479×10^-49 esu) was lower than that of EFNC (5.971×10^-49 esu), but larger than that of EFFC (3.194×10^-49 esu) according to the solvatochromism test. All three chromophores exhibited good thermal stability as their 5% decomposition temperatures (T_d) were over 250℃, especially the highest T_d of 275℃ was detected from the synthesized novel EFNFC chromophore.
- nonlinear optics,
- azo compounds,
- density functional theory,
- solvatochromism method,
- thermal stability
1. [1]
  Liu, F.-G.; Wang, H.-R.; Yang, Y.-H.; Xu, H.-J.; Yang, D.; Bo, S.-H.; Liu, J.-H.; Zhen, Z.; Liu, X.-H.; Qiu, L. Dyes Pigm. 2015, 114, 196. doi: 10.1016/j.dyepig.2014.11.015
2. [2]
  Morales, A.-R.; Frazer, A.; Woodward, A.-W.; Ahn-White, H.-Y.; Fonari, A.; Tongwa, P.; Timofeeva, T.; Belfield, K.-D. J. Org. Chem. 2013, 78, 1014. doi: 10.1021/jo302423p
3. [3]
  Xu, H.-J.; M.-L.; Zhang, A.-R.; Deng, G.-W.; Si, P.; Huang, H.-Y.; Peng, C.-C.; Fu, M.-K.; Liu, J.-L. Qiu, L.; Zhen, Z.; Bo, S.-H.; Liu, X.-H. Dyes Pigm. 2014, 102, 142. doi: 10.1016/j.dyepig.2013.10.042
4. [4]
  Wu, J.-Y.; Liu, J.-L.; Zhou, T.-T.; Bo, S.-H.; Qiu, L.; Zhen, Z.; Liu, X.-H. RSC Adv. 2012, 2, 1416. doi: 10.1039/C1RA00838B
5. [5]
  Robinson, B.-H.; Dalton, L.-R.; Harper, A.-W. J. Mater. Sci.:Mater. Electron. 2014, 25, 3633. doi: 10.1007/s10854-014-2067-z
6. [6]
  Robinson, B.-H.; Dalton, L.-R.; Harper, A.-W. Chem. Phys. 1999, 245, 35. doi: 10.1016/S0301-0104(99)00079-8
7. [7]
  Wang, H.-R.; Liu, F.-G.; Yang, Y.-H. Dyes Pigm. 2015, 112, 42. doi: 10.1016/j.dyepig.2014.06.024
8. [8]
  Cho, B.-R.; Son, K.-N.; Lee, S.-J.; Kang, T.-I.; Han, M.-S.; Jeon, S.-J.; Song, N.-W.; Kim, D. Tetrahedron Lett. 1998, 39, 3167. doi: 10.1016/S0040-4039(98)00450-X
9. [9]
  Gong, W.; Li, Q.-Q.; Li, S.-Y.; Lu, C.-G.; Li, Z. Zhu, J.; Zhu, Z.-C.; Li, Z.-A.; Wang, Q.-R.; Cui, Y.-P.; Qin, J.-G. Mater. Lett. 2007, 61, 1151. doi: 10.1016/j.matlet.2006.06.070
10. [10]
  Tang, X.; Tang, X.-Z.; You, Y.-C.; Ren, L.-K.; Wang, Y.; Yan, L.-J. Acta Chim. Sinica 2012, 70, 1565(in Chinese). doi: 10.6023/A12030006
11. [11]
  Qiu, L.; Shen, Y.-Q.; Hao, J.-M.; Zhai, J.-F.; Zu, F.-H.; Zhang, T.; Zhao, Y.-X.; Clays, K.; Persoons, A. J. Mater. Sci. 2004, 39, 2335. doi: 10.1023/B:JMSC.0000019994.38191.fe
12. [12]
  Ashraf, M.; Teshome, A.; Kay, A.-J.; Gainsford, G.-J.; Bhuiyan, M.-D.; Asselberghs, I.; Clays, K. Dyes Pigm. 2012, 95, 455. doi: 10.1016/j.dyepig.2012.04.022
13. [13]
  Ashraf, M.; Teshome, A.; Kay, A.-J.; Gainsford, G.-J.; Bhuiyan, M.-D.; Asselberghs, I.; Clays, K. Dyes Pigm. 2013, 98, 82. doi: 10.1016/j.dyepig.2013.01.010
14. [14]
  Traskovskis, K.; Zarins, E.; Laipniece, L.; Tokmakovs, A.; Kokars, V.; Rutkis, M. Mater. Chem. Phys. 2015, 155, 232. doi: 10.1016/j.matchemphys.2015.02.035
15. [15]
  Hao, J.-M.; Han, M.-J.; Guo, K.-P.; Zhao, Y.-X.; Qiu, L.; Shen, Y.-Q.; Meng, X.-G. Mater. Lett. 2008, 62, 973. doi: 10.1016/j.matlet.2007.07.023
16. [16]
  Guo, K.-P.; Hao, J.-M.; Zhang, T.; Zu, F.-H.; Zhai, J.-F.; Qiu, L.; Zhen, Z.; Liu, X.-H.; Shen, Y.-Q. Dyes Pigm. 2008, 77, 657. doi: 10.1016/j.dyepig.2007.09.006
17. [17]
  Wang, Y.; Tang, X.-Z.; Tang, X. Chem. J. Chin. Univ. 2011, 32, 2327(in Chinese).
18. [18]
  Hua, J.-L.; Li, J.; Luo, J.-D. Chin. J. Org. Chem. 2003, 23(1), 44(in Chinese).
19. [19]
  Luo, J.-D.; Hua, J.-L.; Qin, J.-G.; Cheng, J.-Q.; Shen, Y.-C.; Lu, Z.-H.; Wang, P.; Ye, C. Chem. Commun. 2001, 171-172.
20. [20]
  Bosshard, C.; Knpfle, G.; Prêtre, P. J. Appl. Phys. 1992, 71, 1594. doi: 10.1063/1.351237
21. [21]
  Paley, M.; Harris, J. J. Polym. Sci. Part A:Polym. Chem. 1987, 25(9), 2447. doi: 10.1002/pola.1987.080250910
22. [22]
  Qian, Y.; Lin, B.-Q.; Xiao, G.-M. Opt. Mater. 2004, 27, 125-130. doi: 10.1016/j.optmat.2004.02.017
23. [23]
  Immirizi, A.; Perini, B. Acta Crystallogr. Sect. A 1977, 33, 216. doi: 10.1107/S0567739477000448
