Citation: Zhu Qingying, Shen Haimin, Ji Hongbing. Asymmetric Epoxidation of trans-Chalcone by H₂O₂ Induced by β-Cyclodextrin Derivatives in Water[J]. Chinese Journal of Organic Chemistry, ;2016, 36(8): 1907-1914. doi: 10.6023/cjoc201512022 shu

Asymmetric Epoxidation of trans-Chalcone by H₂O₂ Induced by β-Cyclodextrin Derivatives in Water

Zhu Qingying ^a,b ,
Shen Haimin ^c ,
Ji Hongbing ^a,*,,

a.
School of Chemistry and Chemical Engineering, Sun Yat-Sen University, Guangzhou 510275
b.
Department of Chemical Engineering, Huizhou College, Huizhou 516007
c.
College of Chemical Engineering, Zhejiang University of Technology, Hangzhou 310014

Corresponding author: Ji Hongbing, jihb@mail.sysu.edu.cn
Received Date: 17 December 2015
Revised Date: 19 February 2016

Fund Project: Project supported by the National Science Fund for Distinguished Young Scholars No. 21425627

Figures(6)

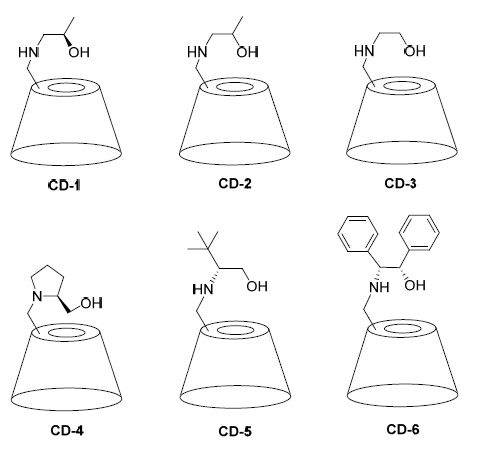

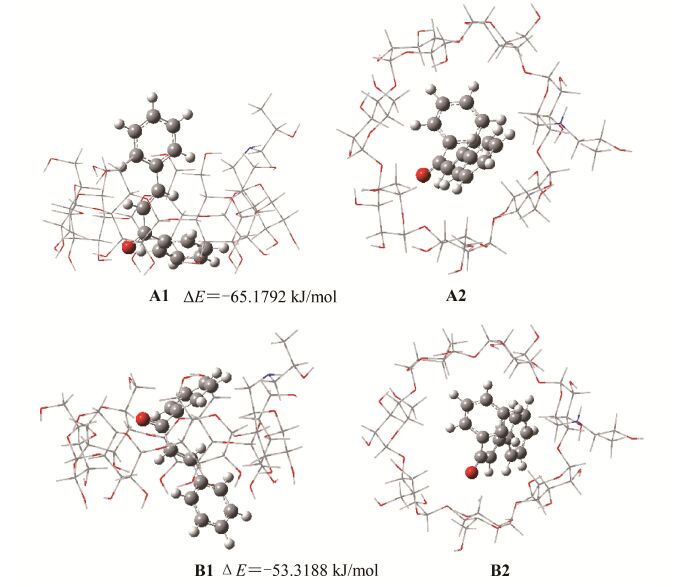

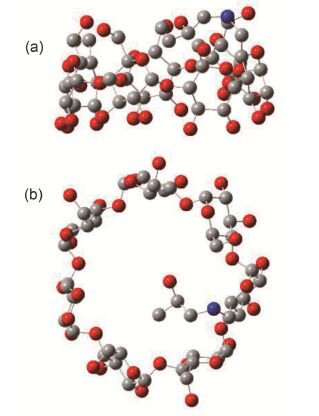

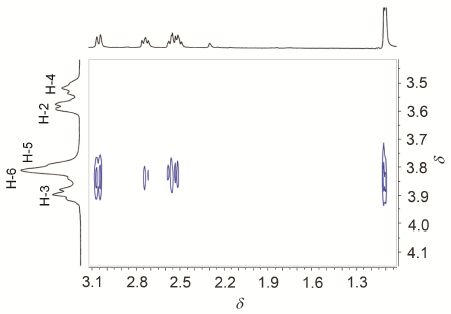

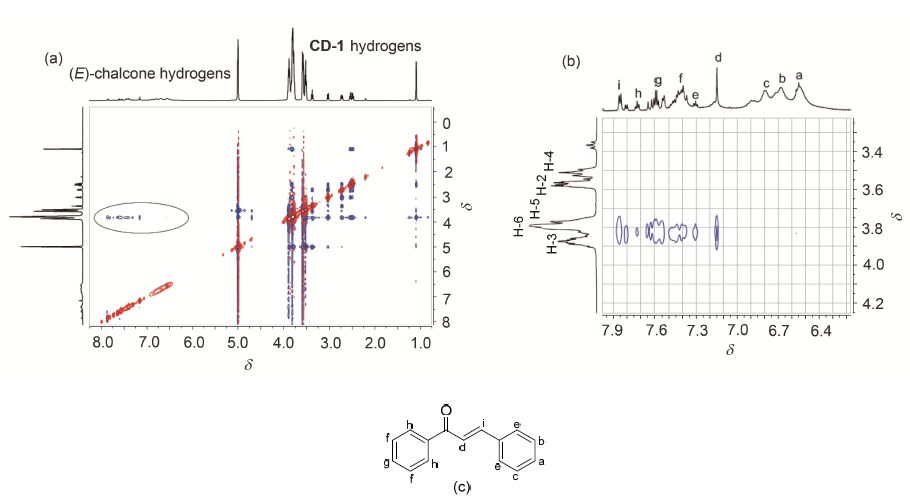

Six amino-alcohol modified β-cyclodextrins CD-1～CD-6 were synthesized by nucleophilic substitution from mono(6-O-p-tolylsulfonyl)-β-cyclodextrin with the yields of 34%～58%, and were verified by ¹H NMR, ¹³C NMR and ESI-MS techniques. These β-cyclodextrin derivatives were applied to the asymmetric epoxidation of trans-chalcone by H₂O₂. And the results implied that the dosage of the β-cyclodextrin derivatives and the structure of the modified group had an important effect on the enantioselectivity in the reaction. Among them, CD-1 exhibited the best performance in the asymmetric epoxidation of trans-chalcone employed H₂O₂and NaHCO₃ as oxidant, and 25.7% ee value was obtained_. It were showed from the spectra of 2D-¹H ROESY NMR that, CD-1 could form inclusion complex with trans-chalcone and self-inclusion existed in all the β-cyclodextrin derivatives CD-1～CD-6, which affected the enhancement of the ee value. And the two kinds of inclusion complexes were confirmed by quantum chemistry calculation too.
- β-cyclodextrin,
- asymmetry,
- epoxidation,
- trans-chalcone
1. [1]
  Cramer, F. Einschlussverbindungen, Springer-Varlag, 1954.
2. [2]
  Tabushi, I. J. Am. Chem. Soc. 1979, 101, 1019.(b) Bender, M. L.; Komiyama, M. Cyclodextrin Chemistry, Springer Verlag, Berlin, 1978.
3. [3]
  Colonna, S.; Manfredi, A. J. Org. Chem. 1990, 55, 5862.
4. [4]
  Kano, K. J. Phys. Org. Chem. 1998, 10, 286.
5. [5]
6. [6]
  Mojr, V.; Budesinsky, M.; Cibulka, R.; Kraus, T. Org. Biomol. Chem. 2011, 9, 7318.(b) Mojr, V.; Herzig, V.; Budesinsky, M.; Cibulka, R.; Kraus, T. Chem. Commun. 2010, 46, 7599.
7. [7]
  Bonchio, M.; Carofiglio, T.; Difuria, F.; Fornasier, R. J. Org. Chem. 1995, 60, 5986.
8. [8]
  Sakuraba, H.; Maekawa, H. J. Inclusion Phenom. Macrocyclic Chem. 2006, 54, 41.
9. [9]
  Fenger, T. H.; Marinescu, L. G.; Bols, M. Eur. J. Org. Chem. 2011, 2339.
10. [10]
  Rousseau, C.; Christensen, B.; Bols, M. Eur. J Org. Chem. 2005, 2734.
11. [11]
12. [12]
13. [13]
  Arai S.; Shirai Y.; Ishida T.; Shioiri, T. Tetrahedron 1999, 55, 6375.
14. [14]
  Frisch, M. J.; Trucks, G. W.; Schlegel, H. B.; Scuseria, G. E.; Robb, M. A.; Cheeseman, J. R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G. A.; Nakatsuji, H.; Caricato, M.; Li, X.; Hratchian, H. P.; Izmaylov, A. F.; Bloino, J.; Zheng, G.; Sonnenberg, J. L.; Hada, M.; Ehara, M.; Toyota, K.; Fukuda, R.; Hasegawa, J.; Ishida, M.; Nakajima, T.; Honda, Y.; Kitao, O.; Nakai, H.; Vreven, T.; Montgomery, J. A., Jr.; Peralta, J. E.; Ogliaro, F.; Bearpark, M.; Heyd, J. J.; Brothers, E.; Kudin, K. N.; Staroverov, V. N.; Kobayashi, R.; Normand, J.; Raghavachari, K.; Rendell, A.; Burant, J. C.; Iyengar, S. S.; Tomasi, J.; Cossi, M.; Rega, N.; Millam, J. M.; Klene, M.; Knox, J. E.; Cross, J. B.; Bakken, V.; Adamo, C.; Jaramillo, J.; Gomperts, R.; Stratmann, R. E.; Yazyev, O.; Austin, A. J.; Cammi, R.; Pomelli, C.; Ochterski, J. W.; Martin, R. L.; Morokuma, K.; Zakrzewski, V. G.; Voth, G. A.; Salvador, P.; Dannenberg, J. J.; Dapprich, S.; Daniels, A. D.; Farkas, Ö.; Foresman, J. B.; Ortiz, J. V.; Cioslowski, J.; Fox, D. J. Gaussian 09, Revision D.01, Gaussian, Inc., Wallingford CT, 2009.
15. [15]
  Rao, K. R.; Sattur, P. B. J. Chem. Soc., Chem. Commun. 1989, 30, 342.
