Citation: Jie Yu, Jiuying Liao, Yan Zhao, Yu Liu. Hierarchical confinement achieving cascade phosphorescence resonance energy transfer and application[J]. Chinese Chemical Letters, ;2026, 37(7): 111964. doi: 10.1016/j.cclet.2025.111964 shu

Hierarchical confinement achieving cascade phosphorescence resonance energy transfer and application

Jie Yu ^a ,
Jiuying Liao ^a ,
Yan Zhao ^{a, *,} ,
Yu Liu ^{b, *,}

a.
College of Chemistry and Chemical Engineering, Yunnan Key Laboratory of Modern Separation Analysis and Substance Transformation, Yunnan Normal University, Kunming 650500, China
b.
College of Chemistry, State Key Laboratory of Elemento-Organic Chemistry, Nankai University, Tianjin 300071, China

zhaooyann@163.com

yuliu@nankai.edu.cn

Received Date: 23 June 2025
Revised Date: 1 October 2025
Accepted Date: 13 October 2025
Available Online: 15 October 2025

Figures(5)

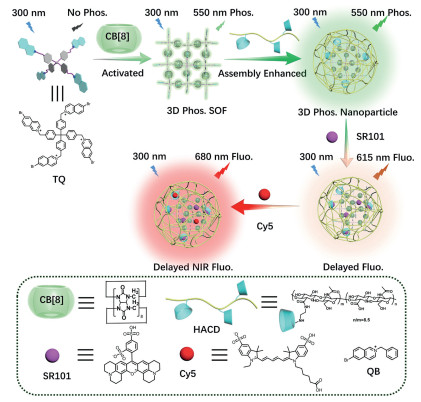

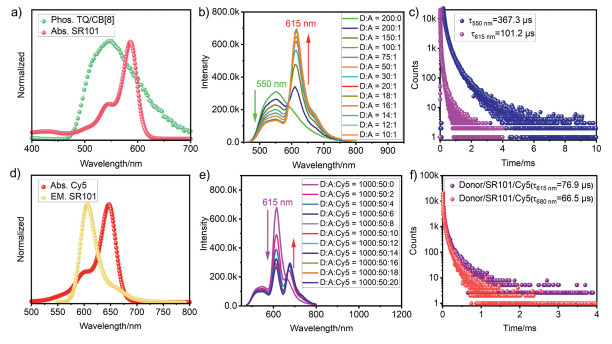

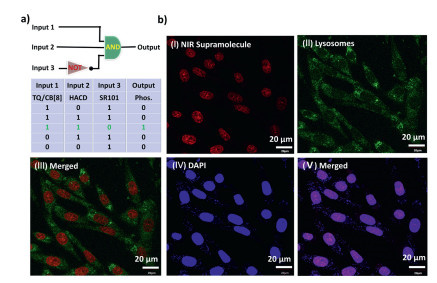

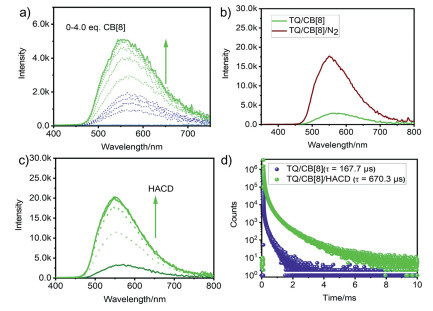

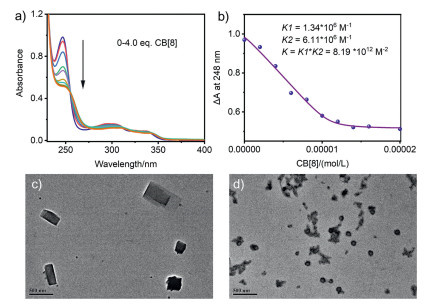

Herein, we report morphology and luminescence tunable supramolecule containing tetracation 6-bromoisoquinoline modified tetraphenylbenzene (TQ), cucurbit[8]uril (CB[8]), β-cyclodextrin grafted hyaluronic acid (HACD), and two dyes (SR101, Cy5), which can lead to cascade efficient phosphorescence resonance energy transfer (PRET) through multi-scale supramolecular space confinement to achieve longlived multi-wavelength emission, especially near-infrared (NIR) luminescence. The initial unit TQ was assembled to form a green phosphorescent 3D supramolecular organic framework (SOF) under the activation of CB[8] confinement and then co-assembled with polysaccharide HACD to form phosphorescence extended long-lifetime (670.3 μs) 3D nanoparticles. This hierarchical confinement boosted phosphorescence supramolecule can act as the donor to achieve efficient energy transfer from phosphor to the dye SR101, giving long-lived luminescence at 615 nm, which can be employed as a transit depot and further encapsulate secondary acceptor Cy5, achieving efficient delayed NIR fluorescence at 680 nm, and was used as phosphorescence logic gate and NIR imaging reagent.
- Cucurbituril,
- Supramolecular organic framework,
- Phosphorescence,
- Supramolecular assembly,
- Energy transfer
1. [1]
  X. Wang, C. Chen, Y. Tian, Q.W. Zhang, J. Am. Chem. Soc. 147 (2025) 17994–18002. doi: 10.1021/jacs.5c03235
2. [2]
  W. Feng, F. Li, Z. Jiang, et al., Angew. Chem. Int. Ed. 64 (2025) e2025092.
3. [3]
  Q. Niu, Y. Zhang, Z. Ge, et al., Chin. Chem. Lett. 36 (2025) 110935. doi: 10.1016/j.cclet.2025.110935
4. [4]
  Z.Y. Zhang, C.Y. Deng, C.C. Shen, et al., Chem. Commun. 59 (2023) 11248–11251. doi: 10.1039/d3cc03225f
5. [5]
  J. Yu, H. Wang, Y. Liu, Adv. Opt. Mater. 10 (2022) 2201761. doi: 10.1002/adom.202201761
6. [6]
  H. Masai, M. Liu, Y. Tachibana, S. Tsuda, J. Terao, J. Org. Chem. 85 (2020) 3082–3091. doi: 10.1021/acs.joc.9b02967
7. [7]
  D. Hoenders, S. Ludwanowski, C. Barner-Kowollik, A. Walther, Angew. Chem. Int. Ed. 63 (2024) e202405582. doi: 10.1002/anie.202405582
8. [8]
  K.I. Assaf, W.M. Nau, Acc. Chem. Res. 56 (2023) 3451–3461. doi: 10.1021/acs.accounts.3c00523
9. [9]
  A. McLean, R.L. Sala, B.W. Longbottom, et al., J. Am. Chem. Soc. 146 (2024) 12877–12882. doi: 10.1021/jacs.4c00611
10. [10]
  S. Garain, B.C. Garain, M. Eswaramoorthy, S.K. Pati, S.J. George, Angew. Chem. Int. Ed. 60 (2021) 19720–19724. doi: 10.1002/anie.202107295
11. [11]
  D. Li, Z. Liu, M. Fang, et al., ACS Nano 17 (2023) 12895–12902. doi: 10.1021/acsnano.3c04971
12. [12]
  H.J. Yu, Q. Zhou, X. Dai, et al., J. Am. Chem. Soc. 143 (2021) 13887–13894. doi: 10.1021/jacs.1c06741
13. [13]
  F. Lin, S.B. Yu, Y.Y. Liu, et al., Adv. Mater. 34 (2022) 2200549. doi: 10.1002/adma.202200549
14. [14]
  S. -B. Yu, F. Lin, J. Tian, et al., Chem. Soc. Rev. 51 (2022) 434–449. doi: 10.1039/d1cs00862e
15. [15]
  X. Yao, N. Han, H. Liu, L. Xing, Chin. Chem. Lett. (2026) 111426. doi: 10.1016/j.cclet.2025.111426
16. [16]
  C. Yan, Q. Li, X. Miao, et al., Angew. Chem. Int. Ed. 62 (2023) e202308029. doi: 10.1002/anie.202308029
17. [17]
  C. Yin, Z.A. Yan, R. Yan, et al., Adv. Funct. Mater. 34 (2024) 202316008.
18. [18]
  J. Yu, J. Niu, X. Xu, Y. Liu, Adv. Sci. 11 (2024) 2408107. doi: 10.1002/advs.202408107
19. [19]
  X. Chen, H.K. Bisoyi, X.F. Chen, et al., Matter 5 (2022) 3883–3900. doi: 10.18494/sam4024
20. [20]
  Y. Li, Q. Li, X. Miao, et al., Angew. Chem. Int. Ed. 60 (2021) 6744–6751. doi: 10.1002/anie.202012681
21. [21]
  J. Rühe, K. Vinod, H. Hoh, et al., J. Am. Chem. Soc. 146 (2024) 28222–28232.
22. [22]
  S. Garain, P.L. Li, K. Shoyama, F. Würthner, Angew. Chem. Int. Ed. 63 (2024) e202411102.
23. [23]
  P. Jiang, B. Ding, T. Li, et al., Sci. China Chem. 68 (2025) 2533–2540. doi: 10.1007/s11426-024-2499-2
24. [24]
  M. Wang, X. Liu, W. Yuan, et al., Adv. Mater. 37 (2025) 2415446. doi: 10.1002/adma.202415446
25. [25]
  T. Kim, H.S. Han, K. Yang, et al., ACS Nano 18 (2024) 7972–7988. doi: 10.1021/acsnano.3c10732
26. [26]
  C. Sun, Z. Wang, L. Yue, et al., J. Am. Chem. Soc. 142 (2020) 16523–16527. doi: 10.1021/jacs.0c06783
27. [27]
  Y. Zhang, L. Wang, J. Wang, S. Xin, X. Sheng, Chin. Chem. Lett. 32 (2021) 1902–1906.
