Citation: Jie Niu, Xuan Wu, Jie Yu, Zhuo Lei, Ying-Ming Zhang, Li-Hua Wang, Yu Liu. Cucurbit[7]uril-confined cascade assembly of cyclodextrin phosphor derivative achieving multicolor delayed luminescence for information encryption[J]. Chinese Chemical Letters, ;2026, 37(5): 111419. doi: 10.1016/j.cclet.2025.111419 shu

Cucurbit[7]uril-confined cascade assembly of cyclodextrin phosphor derivative achieving multicolor delayed luminescence for information encryption

Jie Niu ^{a, 1} ,
Xuan Wu ^{b, 1} ,
Jie Yu ^a ,
Zhuo Lei ^a ,
Ying-Ming Zhang ^{a, *,} ,
Li-Hua Wang ^a ,
Yu Liu ^{a, *,}

a.
College of Chemistry, State Key Laboratory of Elemento-Organic Chemistry, Nankai University, Tianjin 300071, China
b.
School of Chemistry and Chemical Engineering, Yangzhou University, Yangzhou 225002, China

ymzhang@nankai.edu.cn

yuliu@nankai.edu.cn

Received Date: 15 March 2025
Revised Date: 15 May 2025
Accepted Date: 6 June 2025
Available Online: 10 June 2025

Figures(6)

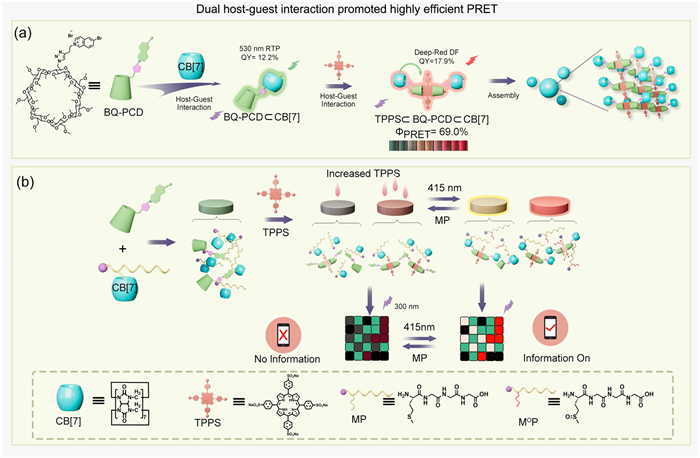

Macrocyclic cascade supramolecular assembly could significantly enhance the fluorescence/phosphorescence resonance energy transfer (F/PRET) efficiency through macrocyclic and spatial dual confinement effect. Herein, we reported a cascade supramolecular assembly containing 6-bromoisoquinolinium-modified permethylated cyclodextrin (BQ-PCD), cucurbit[7]uril (CB[7]), and tetra(4-sulfonatophenyl)porphyrin (TPPS), in which the enhanced PRET from 6-bromoisoquinolinium (BQ) to TPPS could be achieved through the dual macrocyclic confinement for multicolor delayed luminescence and information encryption. In TPPS$\subset$BQ-PCD$\subset$CB[7], pure organic room temperature phosphorescence of BQ-PCD at 530 nm is induced by CB[7] macrocyclic confinement, which further transferred to TPPS via spatial confinement, achieving delayed fluorescence at 645 and 715 nm with high PRET efficiency and quantum yield (17.9%). Meanwhile, reversible TPPS concentration-dependent multicolor luminescence was achieved in presence of competitive guest (methionine peptide), followed by porphyrin-photosensitization process, being applied in information encryption. This research presents a facile strategy for efficient PRET through macrocyclic cascade confinement assembly.
1. [1]
  Y.Y. Liu, X.Y. Yu, Y.C. Pan, et al., Sci. China Chem. 67 (2024) 1397–1441. doi: 10.1007/s11426-024-1971-4
2. [2]
  X.Y. Dai, M. Huo, Y. Liu, Nat. Rev. Chem. 7 (2023) 854–874. doi: 10.1038/s41570-023-00555-1
3. [3]
  Y. Zhang, X. Chen, J. Xu, et al., J. Am. Chem. Soc. 144 (2022) 6107–6117. doi: 10.1021/jacs.2c02076
4. [4]
  T. He, W.J. Guo, Y.Z. Chen, et al., Aggregate 4 (2023) e250. doi: 10.1002/agt2.250
5. [5]
  Z. Wu, H. Qian, X. Li, et al., Chin. Chem. Lett. 35 (2024) 108829. doi: 10.1016/j.cclet.2023.108829
6. [6]
  D. Xia, P. Wang, X. Ji, et al., Chem. Rev. 120 (2020) 6070–6123. doi: 10.1021/acs.chemrev.9b00839
7. [7]
  Z. Liu, W. Lin, Y. Liu, Acc. Chem. Res. 55 (2022) 3417–3429. doi: 10.1021/acs.accounts.2c00462
8. [8]
  J. Jiao, J. Yu, X. Tian, et al., Chin. Chem. Lett. 36 (2025) 111026. doi: 10.1016/j.cclet.2025.111026
9. [9]
  M. Zuo, T. Li, H. Feng, et al., Small 20 (2024) 2306746. doi: 10.1002/smll.202306746
10. [10]
  Q. Wang, J. Fan, X. Bian, et al., Chin. Chem. Lett. 33 (2022) 1979–1982. doi: 10.1016/j.cclet.2021.10.040
11. [11]
  J. Yu, J. Niu, J. Yue, L.H. Wang, Y. Liu, ACS Nano 17 (2023) 19349–19358. doi: 10.1021/acsnano.3c06697
12. [12]
  Q. Zhang, Z. Chang, W. Han, et al., Adv. Optical Mater. 12 (2024) 2400231. doi: 10.1002/adom.202400231
13. [13]
  D. Chen, C. Bao, L. Zhang, et al., Adv. Funct. Mater. 34 (2024) 2314093.
14. [14]
  K.R. Zhang, M. Hu, J. Luo, et al., Chin. Chem. Lett. 33 (2022) 1505–1510. doi: 10.1016/j.cclet.2021.08.072
15. [15]
  Z. Liu, Y. Liu, Chem. Soc. Rev. 51 (2022) 4786–4827. doi: 10.1039/d1cs00821h
16. [16]
  S.J. Barrow, S. Kasera, M.J. Rowland, et al., Chem. Rev. 115 (2015) 12320–12406. doi: 10.1021/acs.chemrev.5b00341
17. [17]
  F. Lin, H. Wang, Y. Cao, et al., Adv. Mater. 34 (2022) 2108333. doi: 10.1002/adma.202108333
18. [18]
  S. Kuila, K.V. Rao, S. Garain, et al., Angew. Chem. Int. Ed. 57 (2018) 17115–17119. doi: 10.1002/anie.201810823
19. [19]
  A. Douhal, Chem. Rev. 104 (2004) 1955–1976.
20. [20]
  X.L. Ni, X. Xiao, H. Cong, et al., Chem. Soc. Rev. 42 (2013) 9480–9508. doi: 10.1039/c3cs60261c
21. [21]
  Y. Lu, Z. Yu, X. Yang, et al., Chin. Chem. Lett. 34 (2023) 108040.
22. [22]
  K. Kano, R. Nishiyabu, T. Asada, Y. Kuroda, J. Am. Chem. Soc. 124 (2002) 9937–9944.
23. [23]
  K. Liu, Y. Liu, Y. Yao, et al., Angew. Chem. Int. Ed. 52 (2013) 8285–8289. doi: 10.1002/anie.201303387
24. [24]
  D. Li, F. Lu, J. Wang, et al., J. Am. Chem. Soc. 140 (2018) 1916–1923. doi: 10.1021/jacs.7b12800
25. [25]
  J. Yu, J. Niu, X. Xu, Y. Liu, Adv. Sci. 11 (2024) 2408107.
26. [26]
  D. Li, Z. Liu, M. Fang, et al., ACS Nano 17 (2023) 12895–12902. doi: 10.1021/acsnano.3c04971
27. [27]
  X. Zhou, X. Zhao, X. Bai, Q. Cheng, Y. Liu, Adv. Funct. Mater. 34 (2024) 2400898.
28. [28]
  J. Wang, Z. Huang, X. Ma, H. Tian, Angew. Chem. Int. Ed. 59 (2020) 9928–9933. doi: 10.1002/anie.201914513
29. [29]
  H. Nie, Z. Wei, X.L. Ni, Y. Liu, Chem. Rev. 122 (2022) 9032–9077. doi: 10.1021/acs.chemrev.1c01050
30. [30]
  F.F. Shen, Y. Chen, X. Dai, et al., Chem. Sci. 12 (2021) 1851–1857. doi: 10.1039/d0sc05343k
31. [31]
  A. Nakagami, Q. Mao, G. Gouhier, et al., ChemBioChem 22 (2021) 3190–3198. doi: 10.1002/cbic.202100380
32. [32]
  J. Niu, Y.H. Liu, W. Xu, et al., Chem. Commun. 59 (2023) 4680–4683. doi: 10.1039/d3cc00735a
33. [33]
  S. Banu, K. Singh, S. Tyagi, et al., Org. Biomol. Chem. 19 (2021) 9433–9438. doi: 10.1039/d1ob01865e
34. [34]
  A.R. Urbach, V. Ramalingam, Isr. J. Chem. 51 (2011) 664–678. doi: 10.1002/ijch.201100035
35. [35]
  J. Niu, J. Yu, X. Wu, et al., Chem. Sci. 15 (2024) 13779–13787. doi: 10.1039/d4sc04261a
36. [36]
  N. Song, Z. Zhou, Y. Song, et al., Nano Today 38 (2021) 101198.
