Citation: Rugeng Liu, Yangyang Meng, Wenjing Ji, Wei Han, Mei Li, Yang Sun. Fluorination reaction of UO₃ and electrochemical preparation of UO₂[J]. Chinese Chemical Letters, ;2022, 33(7): 3435-3438. doi: 10.1016/j.cclet.2022.02.069 shu

Fluorination reaction of UO₃ and electrochemical preparation of UO₂

Key Laboratory of Superlight Materials and Surface Technology, Ministry of Education, College of Material Science and Chemical Engineering, Harbin Engineering University, Harbin 150001, China

weihan@hrbeu.edu.cn

meili@hrbeu.edu.cn

Received Date: 27 December 2021
Revised Date: 25 February 2022
Accepted Date: 25 February 2022
Available Online: 1 March 2022

Figures(3)

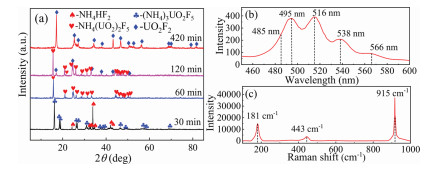

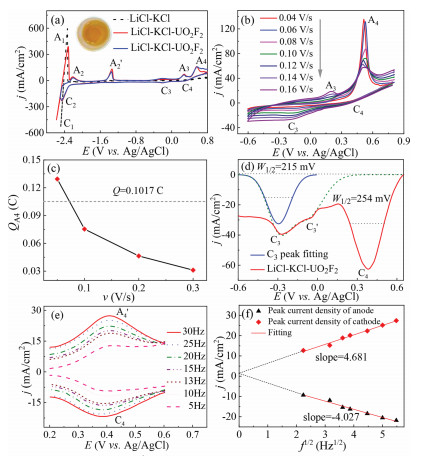

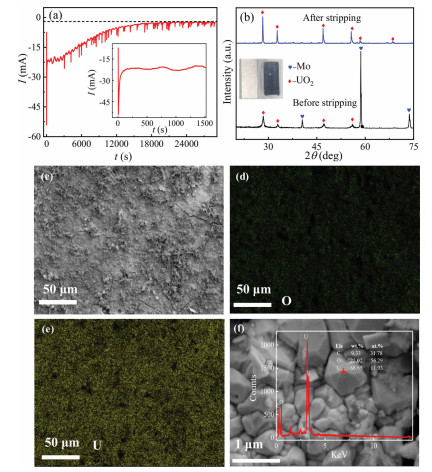

In this work, a technique was proposed to prepare UO₂ from UO₃ by the two processes of fluorination reaction of UO₃ with NH₄HF₂ and electrochemical reduction of UO₂²⁺ for the recycle uranium. The feasibility of fluorination reaction was firstly confirmed using thermodynamic calculation; then, the products were analyzed using XRD, Raman and fluorescence to be UO₂F₂. The fluorination mechanism was inferred to be UO₃(s) + NH₄HF₂ → (NH₄)₃UO₂F₅→ NH₄(UO₂)₂F₅ → UO₂F₂. The redox behavior of UO₂²⁺ on W electrode was investigated by cyclic voltammetry and square wave voltammetry, which indicated that UO₂²⁺ was reduced to UO₂ via a two-step single electron transfer with diffusion-controlled. The diffusion coefficient of UO₂²⁺ was calculated to be 6.22 × 10⁻⁵ cm²/s. The disproportionation reaction of UO₂²⁺ was observed, and the relationship between the disproportionation reaction and scan rate was discussed. Moreover, the electrochemical fabrication of UO₂ was conducted by electrolysis at −0.8 V, and the product was analyzed by XRD, SEM and EDS to be UO₂. ICP-AES results showed that the extraction efficiency of UO₂ could reach 98.53%.
- UO₃,
- Fluorination reaction,
- NH₄HF₂,
- Electrochemical formation,
- UO₂
1. [1]
  D.W. Yang, Y.L. Liu, T.Q. Yin, et al., Electrochim. Acta 353 (2020) 136449. doi: 10.1016/j.electacta.2020.136449
2. [2]
  Y.K. Zhong, Y.L. Liu, K. Liu, et al., Nat. Commun. 12 (2021) 5777. doi: 10.1038/s41467-021-26119-9
3. [3]
  D.W. Yang, S.L. Jiang, Y.L. Liu, et al., Sep. Purif. Technol. 281 (2022) 119853. doi: 10.1016/j.seppur.2021.119853
4. [4]
  S. Vavilov, T. Kobayashi, M. Myochin, J. Nucl. Sci. Technol. 41 (2004) 1018-1025. doi: 10.1080/18811248.2004.9726326
5. [5]
  J.L. Willit, W.E. Miller, J.E. Battles, J. Nucl. Mater. 195 (1992) 229-249. doi: 10.1016/0022-3115(92)90515-M
6. [6]
  B.R. Westphal, J.J. Park, J.M. Shin, et al., Sep. Sci. Technol. 43 (2008) 2695-2708. doi: 10.1080/01496390802122139
7. [7]
  Y.S. Yang, Y.H. Kang, H.K. Lee, Mater. Chem. Phys. 50 (1997) 243-247. doi: 10.1016/S0254-0584(97)01943-3
8. [8]
  Y. Sakamura, T. Inoue. T. Iwai, H. Moriyama, J. Nucl. Mater. 340 (2005) 39-51. doi: 10.1016/j.jnucmat.2004.11.002
9. [9]
  S. Kitawaki, T. Nagai, N. Sato, J. Nucl. Mater. 439 (2013) 212-216. doi: 10.1016/j.jnucmat.2013.03.017
10. [10]
  K. Jiang, V. Smolenski, A. Novoselova, et al., Electrochim. Acta 318 (2019) 194-201. doi: 10.1016/j.electacta.2019.06.075
11. [11]
  Y.C. Liu, Y.L. Liu, L. Wang, et al., J. Nucl. Mater. 542 (2020) 152475. doi: 10.1016/j.jnucmat.2020.152475
12. [12]
  B.N. Wani, S.J. Patwe, U.R. Rao, K.S. Venkateswarlu, J. Fluorine Chem. 44 (1989) 177-185. doi: 10.1016/S0022-1139(00)83937-8
13. [13]
  J.R. Chalkley, J. Less Common Met. 3 (1961) 98-109. doi: 10.1016/0022-5088(61)90002-9
14. [14]
  T. Nagai, T. Fujii, O. Shirai, H. Yamana, J. Nucl. Sci. Tech. 41 (2004) 690-695. doi: 10.1080/18811248.2004.9715534
15. [15]
  T. Nagai, A. Uehara, T. Fujii, O. Shiral, H. Yamana, J. Nucl. Sci. Tech. 43 (2006) 1511-1516. doi: 10.1080/18811248.2006.9711247
16. [16]
  I. Uchida, J. Niikura, S. Toshima, J. Electroanal. Chem. 124 (1981) 165-177. doi: 10.1016/S0022-0728(81)80294-X
17. [17]
  M. Schlechter, J. Kooi, R. Billiau, R.A. Charlier, G.L. Dumont, J. Nucl. Mater. 15 (1965) 189-200. doi: 10.1016/0022-3115(65)90180-7
18. [18]
  F. Caligara, L. Martinot, G. Duyckaerts, J. Electroanal. Chem. 16 (1968) 335-340. doi: 10.1016/S0022-0728(68)80081-6
19. [19]
  J.Y. Lee, J.Y. Oh, K. Putri, M. Baik, J.I. Yun, J. Radioanal. Nucl. Chem. 312 (2017) 221-231. doi: 10.1007/s10967-017-5233-y
20. [20]
  Y. Sihn, J.I. Yun, W. Lee, J. Radioanal, Nucl. Chem. 308 (2016) 413-423. doi: 10.1007/s10967-015-4428-3
21. [21]
  D.P. Armstrong, R.J. Jarabek, W.H. Fletcher, Appl. Spectrosc. 43 (1989) 461-467. doi: 10.1366/0003702894203002
22. [22]
  Y.K. Zhong, K. Liu, Y.L. Liu, et al., J. Electrochem. Soc. 166 (2019) D276-D282. doi: 10.1149/2.0201908jes
23. [23]
  H.M. Li, R.G. Liu, W. Han, et al., Electrochimi. Acta 400 (2021) 139474. doi: 10.1016/j.electacta.2021.139474
24. [24]
  D. Han, C. She, J. Peng, et al., J. Electrochem. Soc. 165 (2018) 301-306. doi: 10.1149/2.0971807jes
25. [25]
  E.P. Parry, R.A. Osteryoung, Anal. Chem. 37 (1965) 1634-1637. doi: 10.1021/ac60232a001
