Citation: Zou Qi, Song Huan, Tang Mingjin, Lu Keding. Measurements of HO₂ uptake coefficient on aqueous (NH₄)₂SO₄ aerosol using aerosol flow tube with LIF system[J]. Chinese Chemical Letters, ;2019, 30(12): 2236-2240. doi: 10.1016/j.cclet.2019.07.041 shu

Measurements of HO₂ uptake coefficient on aqueous (NH₄)₂SO₄ aerosol using aerosol flow tube with LIF system

Zou Qi ^a ,
Song Huan ^a ,
Tang Mingjin ^b ,
Lu Keding ^a,*,

a.
College of Environmental Sciences and Engineering, Peking University, Beijing 100871, China
b.
State Key Laboratory of Geochemistry and Guangdong Key Laboratory of Environmental Protection and Resources Utilization, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences, Guangzhou 510640, China

k.lu@pku.edu.cn

Received Date: 22 April 2019
Revised Date: 16 July 2019
Accepted Date: 17 July 2019
Available Online: 18 December 2019

Figures(3)

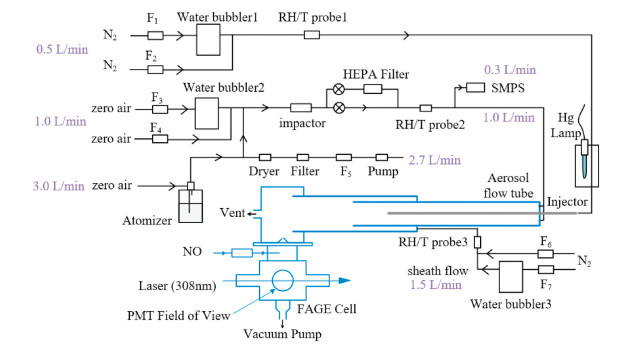

Laboratory studies of HO₂ uptake coefficients, γ(HO₂), were conducted at room temperature using an aerosol flow tube coupled with a laser induced fluorescence (LIF) system. The measurement was conducted with atmospherically relevant HO₂ concentrations (~1×10⁹ molecule/cm³) at 51% RH. The measured γ(HO₂) onto aqueous (NH₄)₂SO₄ aerosol was 0.001 ±0.0007, which was consistent with the relatively low first-order loss rate of HO₂ onto aqueous (NH₄)₂SO₄ aerosol. The γ(HO₂) was elevated with increase of Cu(Ⅱ) concentrations in aqueous (NH₄)₂SO₄ aerosol. The threshold of Cu(Ⅱ) concentration was 10^-3 mol/L for the dramatic increase of γ(HO₂). It was found that γ(HO₂) reached 0.1 when Cu(Ⅱ) concentration in aerosol was larger than 10^-3 mol/L, suggesting that γ(HO₂) is very sensitive to concentration of transition metal ions in aerosol.
- Heterogeneous reaction,
- HO₂ uptake coefficient,
- Aerosol flow tube,
- Laser induced fluorescence,
- Transition metal ion
1. [1]
  H. Levy, J. Geophys. Res. 78 (1973) 5325-5332. doi: 10.1029/JC078i024p05325
2. [2]
  B. Weinstock, H. Niki, Science 176 (1972) 290-292. doi: 10.1126/science.176.4032.290
3. [3]
  C.C. Wang, L.I. Davis, Phys. Rev. Lett. 32 (1974) 349-352. doi: 10.1103/PhysRevLett.32.349
4. [4]
  L.K. Whalley, K.L. Furneaux, A. Goddard, et al., Atmos. Chem. Phys. 10 (2010) 1555-1576. doi: 10.5194/acp-10-1555-2010
5. [5]
  C.A. Cantrell, R.E. Shetter, T.M. Gilpin, et al., J. Geophys. Res.-Atmos. 101 (1996) 14653-14664. doi: 10.1029/95JD03613
6. [6]
  R. Sommariva, W.J. Bloss, N. Brough, et al., Atmos. Chem. Phys. 6 (2006) 1135-1153. doi: 10.5194/acp-6-1135-2006
7. [7]
  Y.G. Kanaya, R.Q. Cao, S.G. Kato, et al., J. Geophys. Res.-Atmos. 112 (2007) D11308. doi: 10.1029/2006JD007987
8. [8]
  J.R. Olson, J.H. Crawford, W. Brune, et al., Atmos. Chem. Phys. 12 (2012) 6799-6825. doi: 10.5194/acp-12-6799-2012
9. [9]
  D.A. Plummer, J.C. McConnell, P.B. Shepson, et al., Atmos. Environ. 30 (1996) 2195-2217. doi: 10.1016/1352-2310(95)00086-0
10. [10]
  M. de Reus, H. Fischer, R. Sander, et al., Atmos. Chem. Phys. 5 (2005) 1787-1803. doi: 10.5194/acp-5-1787-2005
11. [11]
  R. Commane, C.F.A. Floquet, T. Ingham, et al., Atmos. Chem. Phys. 10 (2010) 8783-8801. doi: 10.5194/acp-10-8783-2010
12. [12]
  Z. Liu, Y. Wang, D. Gu, et al., Atmos. Chem. Phys. 12 (2012) 7737-7752. doi: 10.5194/acp-12-7737-2012
13. [13]
  L.K. Xue, T. Wang, J. Gao, et al., Atmos. Chem. Phys. 14 (2014) 13175-13188. doi: 10.5194/acp-14-13175-2014
14. [14]
  H.L. Macintyre, M.J. Evans, Atmos. Chem. Phys. 11 (2011) 10965-10974. doi: 10.5194/acp-11-10965-2011
15. [15]
  K. Li, D.J. Jacob, H. Liao, et al., Proc. Natl. Acad. Sci. U. S. A. 116 (2019) 422-427. doi: 10.1073/pnas.1812168116
16. [16]
  M. Mozurkewich, P.H. Mcmurry, A. Gupta, et al., J. Geophys. Res.-Atmos. 92 (1987) 4163-4170. doi: 10.1029/JD092iD04p04163
17. [17]
  D.R. Hanson, J.B. Burkholder, C.J. Howard, et al., J. Phys. Chem. 96 (1992) 4979-4985. doi: 10.1021/j100191a046
18. [18]
  R.G. Remorov, Y.M. Gershenzon, L.T. Molina, et al., J. Phys. Chem. A 106 (2002) 4558-4565. doi: 10.1021/jp013179o
19. [19]
  J. Thornton, J.P.D. Abbatt, J. Geophys. Res.-Atmos. 110 (2005) D08309.
20. [20]
  F. Taketani, Y. Kanaya, H. Akimoto, J. Phys. Chem. A 112 (2008) 2370-2377. doi: 10.1021/jp0769936
21. [21]
  F. Taketani, Y. Kanaya, H. Akimoto, Atmos. Environ. 43 (2009) 1660-1665. doi: 10.1016/j.atmosenv.2008.12.010
22. [22]
  Y. Bedjanian, M.N. Romanias, A. El Zein, Atmos. Chem. Phys. 13 (2013) 6461-6471. doi: 10.5194/acp-13-6461-2013
23. [23]
  I.J. George, P.S.J. Matthews, L.K. Whalley, et al., Phys. Chem. Chem. Phys. 15 (2013) 12829-12845. doi: 10.1039/c3cp51831k
24. [24]
  P.S.J. Matthews, M.T. Baeza-Romero, L.K. Whalley, Atmos. Chem. Phys. 14 (2014) 7397-7408. doi: 10.5194/acp-14-7397-2014
25. [25]
  P.S.J. Lakey, I.J. George, L.K. Whalley, Environ. Sci. Technol. 49 (2015) 4878-4885. doi: 10.1021/acs.est.5b00948
26. [26]
  P.S.J. Lakey, I.J. George, M.T. Baeza-Romero, J. Phys. Chem. A 120 (2016) 1421-1430. doi: 10.1021/acs.jpca.5b06316
27. [27]
  D.R. Moon, G.S. Taverna, C. Anduix-Canto, Atmos. Chem. Phys. 18 (2018) 327-338. doi: 10.5194/acp-18-327-2018
28. [28]
  D.R. Moon, Doctoral Dissertation, University of Leeds, Leeds, 2018.
29. [29]
  P.S.J. Matthews, Doctoral Dissertation, University of Leeds, Leeds, 2014.
30. [30]
  G.H. Wang, R.Y. Zhang, M.E. Gomez, et al., Proc. Natl. Acad. Sci. U. S. A. 113 (2016) 13630-13635. doi: 10.1073/pnas.1616540113
31. [31]
  Y.C. Liu, Z.J. Wu, Y. Wang, et al., Environ. Sci. Technol. Lett. 4 (2017) 427-432. doi: 10.1021/acs.estlett.7b00352
32. [32]
  J. Mao, S. Fan, D.J. Jacob, et al., Atmos. Chem. Phys. 13 (2013) 509-519. doi: 10.5194/acp-13-509-2013
33. [33]
  M.J. Tang, J. Keeble, P.J. Telford, Atmos. Chem. Phys. 16 (2016) 15397-15412. doi: 10.5194/acp-16-15397-2016
34. [34]
  F. Holland, M. Hessling, A. Hofzumahaus, J. Atmos. Sci. 52 (1995) 3393-3401. doi: 10.1175/1520-0469 (1995)052<3393:ISMOTO>2.0.CO;2
35. [35]
  F. Holland, J. Geophys. Res. 108 (2003) 8246. doi: 10.1029/2001JD001393
36. [36]
  A. Hofzumahaus, U. Aschmutat, M. Hessling, et al., Geophys. Res. Lett. 23 (1996) 2541-2544. doi: 10.1029/96GL02205
37. [37]
  H. Fuchs, B. Bohn, A. Hofzumahaus, et al., Atmos. Meas. Tech. 4 (2011) 1209-1225. doi: 10.5194/amt-4-1209-2011
38. [38]
  K.D. Lu, F. Rohrer, F. Holland, Atmos. Chem. Phys. 12 (2012) 1541-1569. doi: 10.5194/acp-12-1541-2012
39. [39]
  Z.F. Tan, H. Fuchs, K.D. Lu, Atmos. Chem. Phys. 17 (2017) 663-690. doi: 10.5194/acp-17-663-2017
40. [40]
  C.J. Howard, J. Phys. Chem. 83 (1979) 3-9. doi: 10.1021/j100464a001
41. [41]
  C. Wagner, F. Hanisch, N. Holmes, et al., Atmos. Chem. Phys. 8 (2008) 91-109. doi: 10.5194/acp-8-91-2008
42. [42]
  P. Davidovits, C.E. Kolb, L.R. Williams, et al., Chem. Rev. 111 (2011) 76-109.
43. [43]
  M.J. Tang, R.A. Cox, M. Kalberer, Atmos. Chem. Phys. 14 (2014) 9233-9247. doi: 10.5194/acp-14-9233-2014
44. [44]
  R.L. Brown, J. Res. Natl. Bur. Stand. 83 (1978) 1-8. doi: 10.6028/jres.083.001
45. [45]
  J.N. Crowley, M. Ammann, R.A. Cox, et al., Atmos. Chem. Phys.10 (2010) 9059-9223. doi: 10.5194/acp-10-9059-2010
46. [46]
  N.A. Fuchs, A.G. Sutugin, Highly Dispersed Aerosols, Ann Arbor Science, Ann Arbor, 1970.
47. [47]
  J.A. Thornton, L. Jaegle, V.F. McNeill, J. Geophys. Res.-Atmos.113 (2008) D05303.
48. [48]
  M. Ammann, U. Pöschl, Atmos. Chem. Phys. 7 (2007) 6025-6045. doi: 10.5194/acp-7-6025-2007
49. [49]
  J. Rabani, D. Klugroth, J. Lilie, J. Phys. Chem. 77 (1973) 1169-1175. doi: 10.1021/j100628a018
50. [50]
  V. Berdnikov, Russ. J. Phys. Chem. 47 (1973) 1060-1162.
51. [51]
  M. Vonpiechowski, T. Nauser, J. Hoigne, et al., Ber. Bunsenges. Phys. Chem. 97 (1993) 762-771. doi: 10.1002/bbpc.19930970604
52. [52]
  S.L. Clegg, P. Brimblecombe, A.S.Wexler, J. Phys.Chem. A 102 (1998) 2155-2171. doi: 10.1021/jp973043j
