Citation: Liao Xue-Mei, Pitchon Veronique, Cuong Pham-Huu, Chu Wei, Caps Valerie. Hydrogenation of cinnamaldehyde over bimetallic Au-Cu/CeO₂ catalyst under a mild condition[J]. Chinese Chemical Letters, ;2017, 28(2): 293-296. doi: 10.1016/j.cclet.2016.06.043 shu

Hydrogenation of cinnamaldehyde over bimetallic Au-Cu/CeO₂ catalyst under a mild condition

a.
College of Food and Biological Engineering, Xihua University, Chengdu 610039, China
b.
ICPEES, L'Institut de Chimie et Procedes pour l'energie, l'environnement et la santé, Université de Strasbourg, Strasbourg 67087, France
c.
Department of Chemical Engineering, Sichuan University, Chengdu 610065, China

Corresponding author: Liao Xue-Mei, xmliao@mail.xhu.edu.cn Caps Valerie, caps@unistra.fr
Received Date: 28 April 2016
Revised Date: 14 June 2016
Accepted Date: 24 June 2016
Available Online: 1 February 2016

Figures(2)

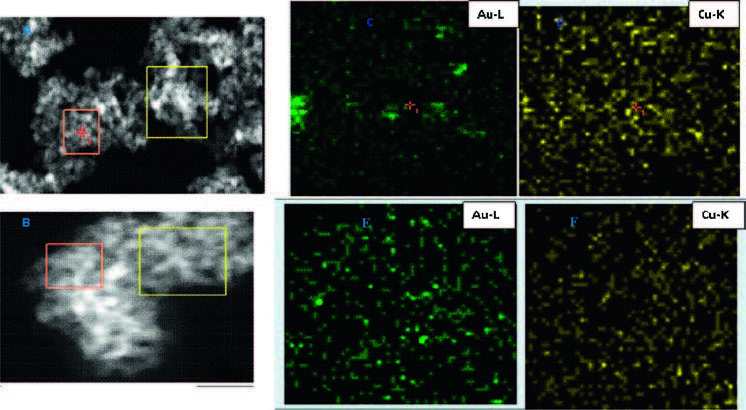

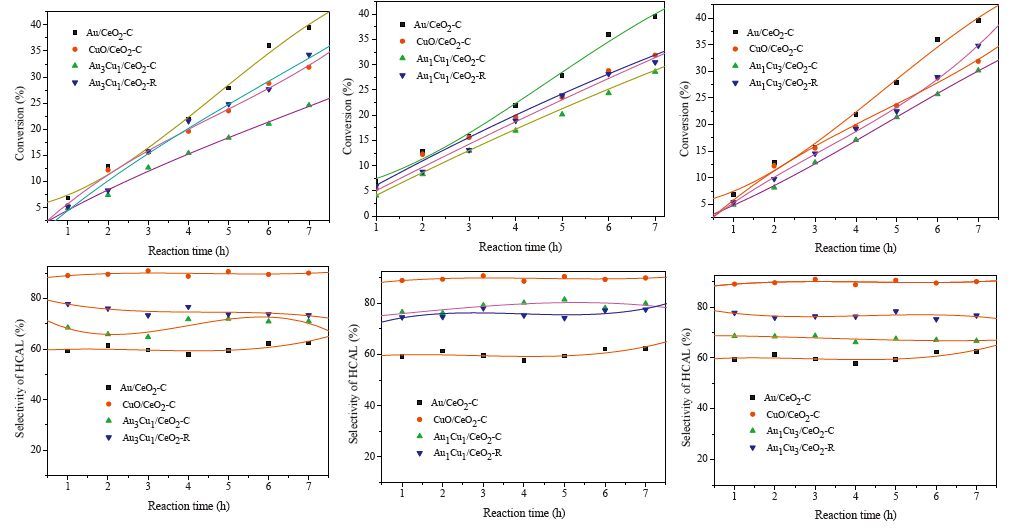

Bimetallic Au_xCu_y/CeO₂ (x/y=3/1, 1/1, and 1/3) catalysts were prepared by direct anion exchange (DAE), following impregnation (IMP) methods, and used for selective hydrogenation of cinnamaldehyde. The effects of pretreatments, such as calcination or reduction on the catalytic activities of these catalysts were investigated. XRD and HRTEM showed that for the reduced catalysts, there is the formation of an Au-Cu alloy. HAADF-STEM displayed that reduction pretreatment leads to a very homogenous distribution of Au and Cu on the external catalyst surface. Reaction parameters, such as CAL concentration, the stirring speed, nature of the solvent influence the catalytic activities. Pretreatments lead to a major effect on CAL conversion and HCAL selectivity. Catalysts Au_xCu_y/CeO₂pretreated under reduction display higher CAL conversion and HCAL selectivity than that of under calcination mainly due to the synergistic effect resulting in a formation of Au-Cu alloy.
- Hydrogenation of cinnamaldehyde,
- Bimetallic Au-Cu catalysts,
- Reduction or calcination,
- Distribution,
- Alloy
1. [1]
  Z.M. Tian, X. Xiang, L.S. Xie, F. Li. Liquid-phase hydrogenation of cinnamaldehyde:enhancing selectivity of supported gold catalysts by incorporation of cerium into the support[J]. Ind. Eng. Chem. Res., 2013,52:288-296.
2. [2]
  H.N. Chen, D.A. Cullen, J.Z. Larese. Highly efficient selective hydrogenation of cinnamaldehyde to cinnamyl alcohol over gold supported on zinc oxide materials[J]. J. Phys. Chem. C, 2015,119:28885-28894. doi: 10.1021/acs.jpcc.5b07823
3. [3]
  V. Gutierrez, M. Alvarez, M.A. Volpe, Liquid phase selective hydrogenation of cinnamaldehyde over copper supported catalysts, Appl. Catal. A:Gen. 413-414(2012) 358-365.
4. [4]
  P. Reyes, H. Rojas, J.L.G. Fierro. Effect of Fe/Ir ratio on the surface and catalytic properties in citral hydrogenation on Fe-Ir/TiO₂ catalysts[J]. J. Mol. Catal. A:Chem., 2003,203:203-211. doi: 10.1016/S1381-1169(03)00263-2
5. [5]
  W. Koo-amornpattana, J.M. Winterbottom. Pt and Pt-alloy catalysts and their properties for the liquid-phase hydrogenation of cinnamaldehyde[J]. Catal. Today, 2001,66:277-287. doi: 10.1016/S0920-5861(00)00654-4
6. [6]
  R.G. Zhang, H.Y. Liu, B.J. Wang, L.X. Ling. Insights into the effect of surface hydroxyls on CO₂ hydrogenation over Pd/γ-Al₂O₃ catalyst:a computational study[J]. Appl. Catal. B:Environ., 2012,126:108-120. doi: 10.1016/j.apcatb.2012.07.009
7. [7]
  X. Yang, D. Chen, S.J. Liao. High-performance Pd-Au bimetallic catalyst with mesoporous silica nanoparticles as support and its catalysis of cinnamaldehyde hydrogenation[J]. J. Catal., 2012,291:36-43. doi: 10.1016/j.jcat.2012.04.003
8. [8]
  X.M. Liao, W. Chu, X.Y. Dai, V. Pitchon, Bimetallic Au-Cu supported on ceria for PROX reaction:effects of Cu/Au atomic ratios and thermal pretreatments, Appl. Catal. B:Environ. 142-143(2013) 25-37.
9. [9]
  L. Truong-Phuoc, T. Truong-Huu, L. Nguyen-Dinh. Silicon carbide foam decorated with carbon nanofibers as catalytic stirrer in liquid-phase hydrogenation reactions[J]. Appl. Catal. A:Gen., 2014,469:81-88. doi: 10.1016/j.apcata.2013.09.032
10. [10]
  I. Florea, M. Houllé, O. Ersen. Selective deposition of palladium nanoparticles inside the bimodal porosity of β-SiC investigated by electron tomography[J]. J. Phys. Chem. C, 2009,113:17711-17719. doi: 10.1021/jp905968n
11. [11]
  J.P. Tessonnier, L. Pesant, G. Ehret, M.J. Ledoux, C. Pham-Huu. Pd nanoparticles introduced inside multi-walled carbon nanotubes for selective hydrogenation of cinnamaldehyde into hydrocinnamaldehyde[J]. Appl. Catal. A:Gen., 2005,288:203-210. doi: 10.1016/j.apcata.2005.04.034
12. [12]
  X.M. Liao, V. Caps, W. Chu, V. Pitchon. Highly stable bimetallic Au-Cu supported on Al₂O₃ for selective CO oxidation in H₂-rich gas:effects of Cu/Au atomic ratio and sensitive influence of particle size[J]. RSC Adv., 2016,6:4899-4907. doi: 10.1039/C5RA22550G
13. [13]
  C. Pham-Huu, N. Keller, G. Ehret. Carbon nanofiber supported palladium catalyst for liquid-phase reactions:an active and selective catalyst for hydrogenation of cinnamaldehyde into hydrocinnamaldehyde[J]. J. Mol. Catal. A:Chem., 2001,170:155-163. doi: 10.1016/S1381-1169(01)00055-3
