Citation: . Preparation and photochromic properties of pyrazolones/polyvinyl alcohol composite films[J]. Chinese Chemical Letters, ;2017, 28(2): 280-284. doi: 10.1016/j.cclet.2016.06.037 shu

Preparation and photochromic properties of pyrazolones/polyvinyl alcohol composite films

Received Date: 4 May 2016
Revised Date: 7 June 2016
Accepted Date: 21 June 2016
Available Online: 2 February 2016

Figures(7)

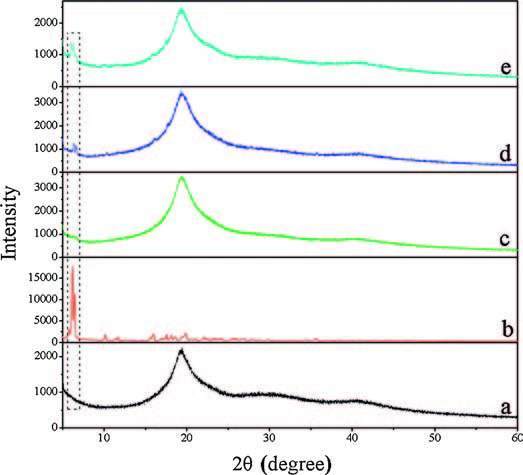

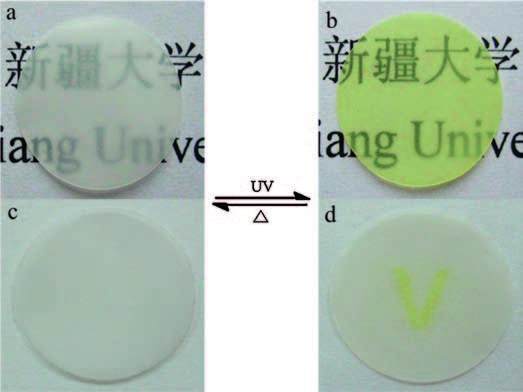

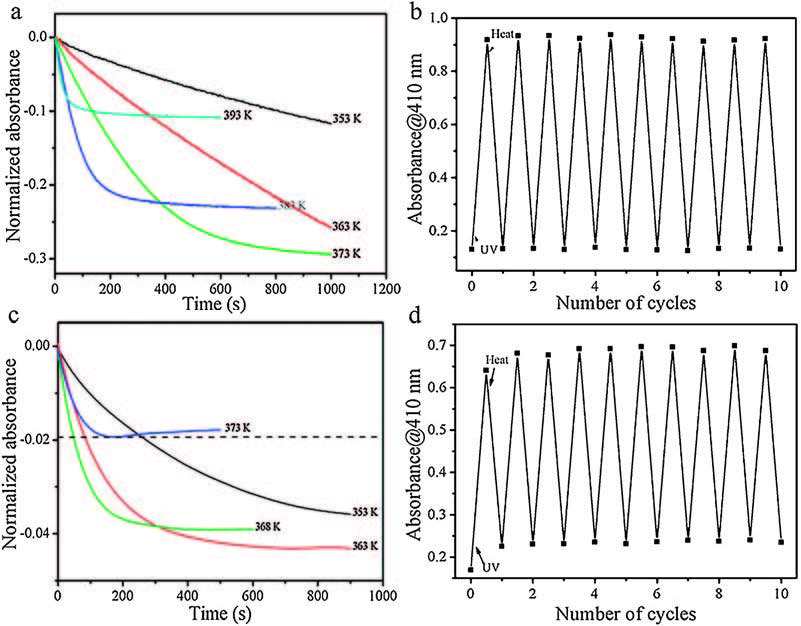

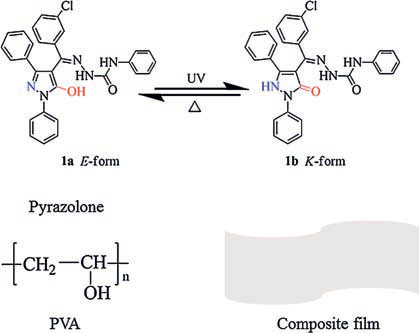

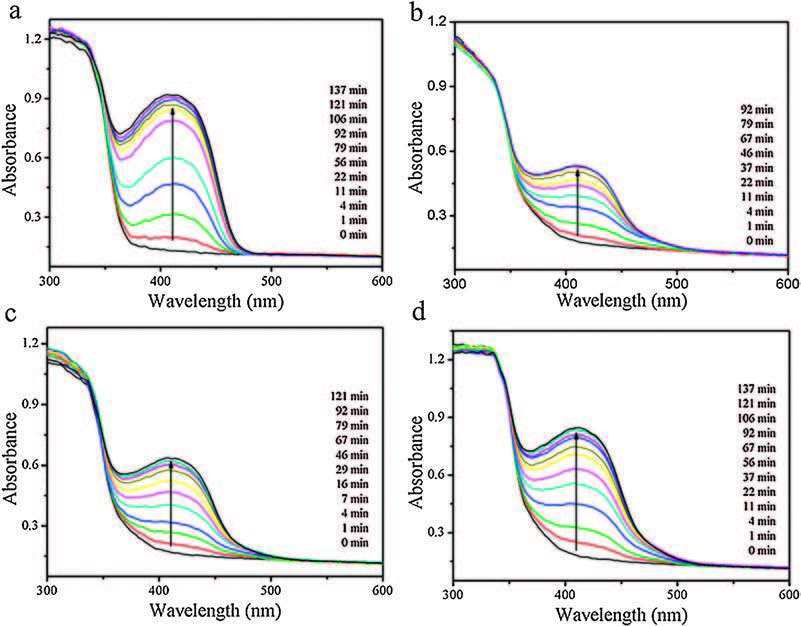

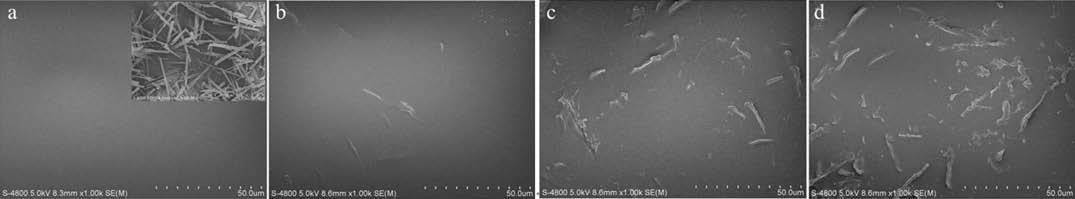

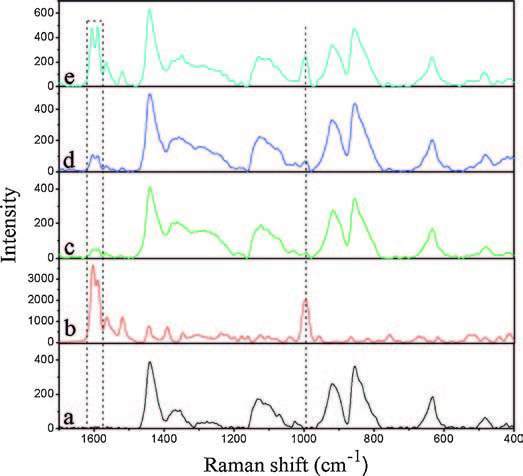

Novel photochromic composite films have been successfully fabricated by dispersing pyrazolone derivative:1, 3-Diphenyl-4-(3-chlorobenzal)-5-hydroxypyrazole 4-phenylsemicarbazone (1a) into hydrosol of polyvinyl alcohol (PVA). The microstructure, photochromic behaviors and thermal bleaching properties were investigated by Raman spectroscopy, X-ray powder diffraction (XRD), field emission scanning electron microscopy (FE-SEM) and ultraviolet-visible absorption spectroscopy (UV-vis). The results showed that 1a was not only blended but also well dispersed in the PVA polymer films with a suitable content of chromophore. Upon UV light irradiation, the composite films gradually changed from colorless to yellow and recovered fully to the initial state upon thermal bleaching. The time constants of photochromic reactions were almost the same as those of 1a observed in their crystalline state, indicating that the photochromic phenomenon is barely disturbed by the polymer matrix.
