Synthesis of Different Aspect-Ratios of Fixed Width Gold Nanorods

• Hongpeng He ^1, ,
• Mengmeng Zhang ^1, ,
• Mengjiao Hao ^1, ,
• Wei Du ^{2, ,} ,
• Haibing Xia ^{1, ,}

• 1.

  State Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China

• 2.

  School of Environment and Material Engineering, Yantai University, Yantai 264005, Shandong Province, China

Corresponding author: Email: duwei@ytu.edu.cn (W.D.); Email: hbxia@sdu.edu.cn (H.X.); Tel.: +86-15106996156 (H.X.)

• Received Date: 24 April 2023
  Accepted Date: 18 May 2023
  Revised Date: 17 May 2023
  Available Online: 15 May 2024
• Fund Project:

  the National Natural Science Foundation of China

  the National Natural Science Foundation of China

  the Taishan Scholarship in Shandong Province

  the Fundamental Research Fund of Shandong University

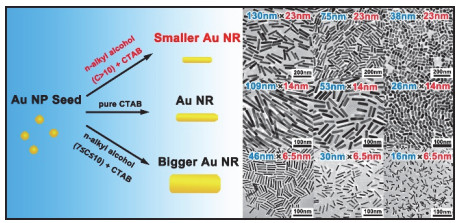

Abstract: Gold nanorods (Au NRs) have been widely used in the optics, electricity, informatics, and biomedical fields in recent years. However, Au NRs with specialized requirements cannot be prepared by conventional methods. For instance, in photothermal therapy, Au NRs with high aspect ratios (ARs) are desirable for increasing tissue penetration and reducing the burning of human skin during treatment. However, when their ARs were adjusted to match the laser used in second near-infrared windows (NIR-II), the length and width of the Au NRs simultaneously increased. This increase in width reduces its photothermal conversion efficiency. Unfortunately, tuning the ARs of Au NRs at a fixed width requires complex procedures. In this study, we developed a new seeded-growth method to synthesize different ARs of fixed width Au NRs (FW-Au NRs). To the best of our knowledge, this is the first study to adjust the length of FW-Au NRs by introducing lauryl alcohol (LA) molecules into the traditional seeded growth method. Moreover, the length span of FW²³-Au, FW¹⁴-Au, and FW^6.5-Au NRs (the superscript numbers denote the width of Au NRs in nm) was adjusted between 130 and 38.4 nm, 109 and 26.4 nm, and 16 and 46 nm, respectively, by judiciously selecting the corresponding reaction conditions. Notably, the lengths of the Au NRs can be readily achieved at a fixed width over a wide range. In addition, their ARs were tuned at a fixed width by adjusting only their length, instead of simultaneously varying their length and width. In addition, their widths were maintained between 6.5 and 23 nm by adjusting [AgNO₃] between 0.24 and 0.30 mmol∙L⁻¹ in the presence of LA. Furthermore, the synergetic effect of Ag⁺ and LA on the density of the cetyltrimethylammonium (CTA)-Br-Ag⁺ complexes distributed on the facets of added Au-NP seeds, which can impact their symmetry-breaking efficiency (SBE) and the particle number of Au-NP seeds that grow into final Au NRs, is key to the synthesis of FW-Au NRs. The results of this study offer a flexible and reliable method to tune the length of Au NRs with a fixed width and pave the way for achieving an on-demand synthesis of Au NRs, especially for cancer photothermal therapy.

Key words:
• Gold nanorods
•  /  Lauryl alcohol
•  /  Fixed width
•  /  Symmetry-breaking efficiency
•  /  Effective particle number

• 1. [1]

     Ye, J. M.; Wen, Q.; Wu, Y.; Fu, Q. R.; Zhang, X.; Wang, J. M.; Gao, S.; Song, J. B. Nano Res. 2022, 15 (7), 6372. doi: 10.1007/s12274-022-4191-z

  2. [2]

     Zheng, J. P.; Cheng, X. Z.; Zhang, H.; Bai, X. P.; Ai, R.; Shao, L.; Wang, J. F. Chem. Rev. 2021, 121 (21), 13342. doi: 10.1021/acs.chemrev.1c00422

  3. [3]

     Ali, M. R. K.; Rahman, M. A.; Wu, Y.; Han, T. G.; Peng, X. H.; Mackey, M. A.; Wang, D. S.; Shin, H. J.; Chen, Z. G.; Xiao, H. P.; et al. Proc. Natl. Acad. Sci. U. S. A. 2017, 114 (15), E3110. doi: 10.1073/pnas.1619302114

  4. [4]

     Tsai, M. -F.; Chang, S. -H. G.; Cheng, F. -Y.; Shanmugam, V.; Cheng, Y. -S.; Su, C. -H.; Yeh, C. -S. ACS Nano 2013, 7 (6), 5330. doi: 10.1021/nn401187c

  5. [5]

     Wang, Z.; Shao, D.; Chang, Z. M.; Lu, M. M.; Wang, Y. S.; Yue, J.; Yang, D.; Li, M. Q.; Xu, Q. B.; Dong, W. F. ACS Nano 2017, 11 (12), 12732. doi: 10.1021/acsnano.7b07486

  6. [6]

     Zhang, H. Y.; Hao, C. L.; Qu, A. H.; Sun, M. Z.; Xu, L. G.; Xu, C. L.; Kuang, H. Adv. Funct. Mater. 2018, 28 (48), 1805320. doi: 10.1002/adfm.201805320

  7. [7]

     Fu, Q. R.; Ye, J. M.; Wang, J. J.; Liao, N. S.; Feng, H. J.; Su, L. C.; Ge, X. G.; Yang, H. H.; Song, J. B. Small 2021, 17 (26), 2008061. doi: 10.1002/smll.202008061

  8. [8]

     Dong, Q.; Wang, X.; Hu, X. X.; Xiao, L. Q.; Zhang, L.; Song, L. J.; Xu, M. L.; Zou, Y. X.; Chen, L.; Chen, Z.; et al. Angew. Chem. Int. Ed. 2018, 57 (1), 177. doi: 10.1002/anie.201709648

  9. [9]

     González-Rubio, G.; Mosquera, J.; Kumar, V.; Pedrazo-Tardajos, A.; Llombart, P.; Solís, D. M.; Lobato, I.; Noya, E. G.; Guerrero-Martínez, A.; Taboada, J. M.; et al. Science 2020, 368 (6498), 1472. doi: 10.1126/science.aba0980

  10. [10]

      Ni, W. H.; Kou, X. S.; Yang, Z.; Wang, J. F. ACS Nano 2008, 2 (4), 677. doi: 10.1021/nn7003603

  11. [11]

      肖军燕, 齐利民. 物理化学学报, 2020, 36 (10), 1910001. doi: 10.3866/PKU.WHXB201910001Xiao, J. Y.; Qi, L. M. Acta Phys. -Chim. Sin. 2020, 36 (10), 1910001. doi: 10.3866/PKU.WHXB201910001

  12. [12]

      Lu, J.; Xue, Y.; Bernardino, K.; Zhang, N. -N.; Gomes, W. R.; Ramesar, N. S.; Liu, S.; Hu, Z.; Sun, T.; de Moura, A. F.; et al. Science 2021, 371 (6536), 1368. doi: 10.1126/science.abd8576

  13. [13]

      Huang, X. H.; Neretina, S.; El-Sayed, M. A. Adv. Mater. 2009, 21 (48), 4880. doi: 10.1002/adma.200802789

  14. [14]

      Song, J. B.; Yang, X. Y.; Jacobson, O.; Huang, P.; Sun, X. L.; Lin, L. S.; Yan, X. F.; Niu, G.; Ma, Q. J.; Chen, X. T. Adv. Mater. 2015, 27 (33), 4910. doi: 10.1002/adma.201502486

  15. [15]

      Park, K.; Biswas, S.; Kanel, S.; Nepal, D.; Vaia, R. A. J. Phys. Chem. C 2014, 118 (11), 5918. doi: 10.1021/jp5013279

  16. [16]

      Jia, H. L.; Fang, C. H.; Zhu, X. -M.; Ruan, Q. F.; Wang, Y. -X. J.; Wang, J. F. Langmuir 2015, 31 (26), 7418. doi: 10.1021/acs.langmuir.5b01444

  17. [17]

      Park, J. -E.; Kim, M.; Hwang, J. -H.; Nam, J. -M. Small Methods 2017, 1 (3), 1600032. doi: 10.1002/smtd.201600032

  18. [18]

      Tang, H. L; Xu, X. J.; Chen, Y. X.; Xin, H. H.; Wan, T.; Li, B. W.; Pan, H. M.; Li, D.; Ping, Y. Adv. Mater. 2021, 33 (12), 2006003. doi: 10.1002/adma.202006003

  19. [19]

      Yang, H.; He, H. P.; Tong, Z. R.; Xia, H. B.; Mao, Z. W.; Gao, C. Y. J. Colloid Interface Sci. 2020, 565, 186. doi: 10.1016/j.jcis.2020.01.026

  20. [20]

      Ye, X. C.; Jin, L. H.; Caglayan, H.; Chen, J.; Xing, G. Z.; Zheng, C.; Doan-Nguyen, V.; Kang, Y.; Engheta, N.; Kagan, C. R.; et al. ACS Nano 2012, 6 (3), 2804. doi: 10.1021/nn300315j

  21. [21]

      Vigderman, L.; Zubarev, E. R. Chem. Mater. 2013, 25 (8), 1450. doi: 10.1021/cm303661d

  22. [22]

      Chang, H. -H.; Murphy, C. J. Chem. Mater. 2018, 30 (4), 1427. doi: 10.1021/acs.chemmater.7b05310

  23. [23]

      Walsh, M. J.; Tong, W. M.; Katz-Boon, H.; Mulvaney, P.; Etheridge, J.; Funston, A. M. Acc. Chem. Res. 2017, 50 (12), 2925. doi: 10.1021/acs.accounts.7b00313

  24. [24]

      Tong, W.; Walsh, M. J.; Mulvaney, P.; Etheridge, J.; Funston, A. M. J. Phys. Chem. C 2017, 121 (6), 3549. doi: 10.1021/acs.jpcc.6b10343

  25. [25]

      Walsh, M. J.; Barrow, S. J.; Tong, W.; Funston, A. M.; Etheridge, J. ACS Nano 2015, 9 (1), 715. doi: 10.1021/nn506155r

  26. [26]

      Song, Y. H.; Zhang, M. M.; Fang, H. T.; Xia, H. B. ChemPhysMater 2023, 2 (2), 97. doi: 10.1016/j.chphma.2022.04.006

  27. [27]

      Zhu, J.; Lennox, R. B. ACS Appl. Nano Mater. 2021, 4 (4), 3790. doi: 10.1021/acsanm.1c00230

  28. [28]

      Sau, T. K.; Murphy, C. J. Langmuir 2004, 20 (15), 6414. doi: 10.1021/la049463z

  29. [29]

      Nikoobakht, B.; El-Sayed, M. A. Chem. Mater. 2003, 15 (10), 1957. doi: 10.1021/cm020732l

  30. [30]

      Lohse, S. E.; Murphy, C. J. Chem. Mater. 2013, 25 (8), 1250. doi: 10.1021/cm303708p

  31. [31]

      Burrows, N. D.; Harvey, S.; Idesis, F. A.; Murphy, C. J. Langmuir 2017, 33 (8), 1891. doi: 10.1021/acs.langmuir.6b03606

  32. [32]

      Zhang, X.; Tran, N.; Egan, T.; Sharma, B.; Chen, G. J. Phys. Chem. C 2021, 125 (24), 13350. doi: 10.1021/acs.jpcc.1c01375

  33. [33]

      González-Rubio, G.; Scarabelli, L.; Guerrero-Martínez, A.; Liz-Marzán, L. M. ChemNanoMat 2020, 6 (5), 698. doi: 10.1002/cnma.201900754

  34. [34]

      Meena, S. K.; Sulpizi, M. Angew. Chem. Int. Ed. 2016, 55 (39), 11960. doi: 10.1002/anie.201604594

  35. [35]

      Seibt, S.; Zhang, H.; Mudie, S.; Förster, S.; Mulvaney, P. J. Phys. Chem. C 2021, 125 (36), 19947. doi: 10.1021/acs.jpcc.1c06778

  36. [36]

      González-Rubio, G.; Kumar, V.; Llombart, P.; Díaz-Núñez, P.; Bladt, E.; Altantzis, T.; Bals, S.; Peña-Rodríguez, O.; Noya, E. G.; MacDowell, L. G.; et al. ACS Nano 2019, 13 (4), 4424. doi: 10.1021/acsnano.8b09658

  37. [37]

      He, H. P.; Wu, C. S.; Bi, C. X.; Song, Y. H.; Wang, D. Y.; Xia, H. B. Chem. Eur. J. 2021, 27 (27), 7549. doi: 10.1002/chem.202005422

  38. [38]

      Llombart, P.; Palafox, M. A.; MacDowell, L. G.; Noya, E. G. Colloids Surf. A-Physicochem. Eng. Aspects 2019, 580, 123730. doi: 10.1016/j.colsurfa.2019.123730

  39. [39]

      Kim, W. -J.; Yang, S. -M.; Kim, M. J. Colloid Interface Sci. 1997, 194 (1), 108. doi: 10.1006/jcis.1997.5093

  40. [40]

      Dubey, N. J. Mol. Liq. 2013, 184, 60. doi: 10.1016/j.molliq.2013.04.022

  41. [41]

      Karayil, J.; Kumar, S.; Hassan, P. A.; Talmon, Y.; Sreejith, L. RSC Adv. 2015, 5 (16), 12434. doi: 10.1039/C4RA10052B

  42. [42]

      Rodríguez-Fernández, J.; Pérez-Juste, J.; Mulvaney, P.; Liz-Marzán, L. M. J. Phys. Chem. B 2005, 109 (30), 14257. doi: 10.1021/jp052516g

  43. [43]

      Gallagher, R.; Zhang, X.; Altomare, A.; Lawrence, D.; Shawver, N.; Tran, N.; Beazley, M.; Chen, G. Nano Res. 2021, 14 (4), 1167. doi: 10.1007/s12274-020-3167-0

•
