Selective electrosorption of Cs(Ⅰ) from high-salinity radioactive wastewater using CNT-interspersed potassium zinc ferrocyanide electrodes

• Shuhong Xiang ^{1, 2, †,} ,
• Lv Yang ^{3, †,} ,
• Yingsheng Xu ^{1, 4, ,} ,
• Guoxin Cao ^{3, ,} ,
• Hongjian Zhou ^{1, ,}

• 1.

  Key Laboratory of Materials Physics, Anhui Key Laboratory of Nanomaterials and Nanotechnology, Institute of Solid State Physics, Hefei Institutes of Physical Science, Chinese Academy of Sciences, Hefei 230031, Anhui Province, China

• 2.

  College of Polymer Science and Engineering, Sichuan University, Chengdu 610065, Sichuan Province, China

• 3.

  Midea Corporate Research Center, Midea Group, Foshan 528311, Guangdong Province, China

• 4.

  Hubei Key Laboratory of Pollutant Analysis & Reuse Technology, College of Chemistry and Chemical Engineering, Hubei Normal University, Huangshi 435002, Hubei Province, China

Corresponding author: Email: yinsxu@hbnu.edu.cn (Y.X.); Email: guoxin.cao@midea.com (G.C.); Email: hjzhou@issp.ac.cn (H.Z.)

• Received Date: 28 February 2025
  Accepted Date: 21 April 2025
  Revised Date: 19 April 2025
  Available Online: 15 September 2025
• Fund Project:

  the National Key R&D Program of China

  the National Natural Science Foundation of China

  the National Natural Science Foundation of China

  the Key Research and Development Projects of Anhui Province, China

  Natural Science Foundation of Hubei Province, China

  the HFIPS Director's Fund, China

• ^†These authors contributed equally to this work.

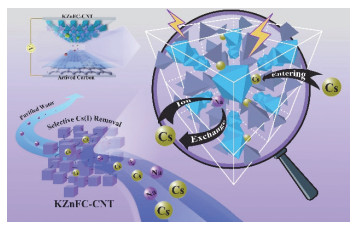

Abstract: The management of ¹³⁷Cs-containing radioactive wastewater from the Fukushima nuclear accident (FNA) has garnered significant attention due to the challenge of its safe disposal. The presence of co-existing Na⁺ ions severely impedes Cs⁺ removal, exacerbating the costs associated with radioactive wastewater treatment. Recently, capacitive deionization (CDI) technology has demonstrated significant potential in this field. However, its application is limited by the lack of suitable electrode materials that exhibit high Cs⁺ selectivity. In this study, we developed a composite of carbon nanotubes (CNT) interspersed potassium zinc ferrocyanide (KZnFC-CNT), which was pre-activated via an electrochemical method, to serve as a CDI cathode for the selective electrosorption of Cs⁺ ions from saline radioactive wastewater. The KZnFC-CNT electrodes exhibited a maximum electrosorption capacity of 392.75 mg∙g⁻¹, with the highest electrosorption rate of 11.21 mg∙g⁻¹∙min⁻¹. Furthermore, these electrodes exhibited remarkable selectivity, achieving a selectivity factor of 138.2 for Cs⁺ over Na⁺ in a Na⁺ : Cs⁺ molar ratio of 100 : 1. X-ray diffraction, electrochemical analysis, and theoretical simulations revealed that the selective electrosorption of Cs⁺ is primarily governed by the ion exchange process between Cs⁺ and Na⁺ ions, as well as lattice phase transformations in KZnFC. This study presents an effective approach for the treatment of cesium-containing radioactive wastewater with high salinity.

Key words:
• Capacitive deionization
•  /  Selective cesium electrosorption
•  /  Zinc ferrocyanide
•  /  Radioactive wastewater
•  /  Phase transformation

• 1. [1]

     S. Maki, R. Chandran, M. Fujii, T. Fujita, Y. Shiraishi, S. Ashina, N. Yabe, J. Cleaner Prod. 233 (2019) 1425, https://doi.org/10.1016/j.jclepro.2019.05.331. doi: 10.1016/j.jclepro.2019.05.331

  2. [2]

     T. Chalaux-Clergue, A. Foucher, P.-A. Chaboche, S. Hayashi, H. Tsuji, Y. Wakiyama, S. Huon, R. Vandromme, O. Cerdan, A. Nakao, Sci. Total Environ. 947 (2024) 174546, https://doi.org/10.1016/j.scitotenv.2024.174546. doi: 10.1016/j.scitotenv.2024.174546

  3. [3]

     M. Hachinohe, S. Hamamatsu, S. Kawamoto, Food Sci. and Technol. Res. 27 (2021) 1, https://doi.org/10.3136/fstr.27.1. doi: 10.3136/fstr.27.1

  4. [4]

     A. Konoplev, Toxics 10 (2022) 578, https://doi.org/10.3390/toxics10100578. doi: 10.3390/toxics10100578

  5. [5]

     N. Matsuda, N. Morita, M. Miura, Yakugaku Zasshi. 134 (2014) 135, https://doi.org/10.1248/yakushi.13-00227-1. doi: 10.1248/yakushi.13-00227-1

  6. [6]

     Y. Fakhri, M. Sarafraz, Z. Pilevar, H. Daraei, A. Rahimizadeh, S. Kazemi, K.M. Khedher, A.M. Khaneghah, Chemosphere 289 (2022) 133149, https://doi.org/10.1016/j.chemosphere.2021.133149. doi: 10.1016/j.chemosphere.2021.133149

  7. [7]

     J. Riond, Schweiz. Arch. Tierheilkd. 146 (2004) 547, https://doi.org/10.1024/0036-7281.146.12.547. doi: 10.1024/0036-7281.146.12.547

  8. [8]

     Y. Fakhri, T. Mahmudiono, V. Ranaei, M. Sarafraz, A. Nematollahi, A. Biol. Trace Elem. Res. 201 (2023) 2011, https://doi.org/10.1007/s12011-022-03289-1. doi: 10.1007/s12011-022-03289-1

  9. [9]

     X. Zhang, P. Gu, Y. Liu, Chemosphere 215 (2019) 543, https://doi.org/10.1016/j.chemosphere.2018.10.029. doi: 10.1016/j.chemosphere.2018.10.029

  10. [10]

      S. Zhuang, J. Wang, Front. Environ. Sci. Eng. 18 (3) (2024) 38, https://doi.org/10.1007/s11783-024-1798-1. doi: 10.1007/s11783-024-1798-1

  11. [11]

      D. Kadadou, E.A. Said, R. Ajaj, S.W. Hasan, J. Water Process Eng. 52 (2023) 103604, https://doi.org/10.1016/j.jwpe.2023.103604. doi: 10.1016/j.jwpe.2023.103604

  12. [12]

      R.A. Rahman, H. Ibrahium, Y.-T. Hung, Water 3 (2011) 551, https://doi.org/10.3390/w3020551. doi: 10.3390/w3020551

  13. [13]

      J. Wang, S. Zhuang, S. Rev. Environ. Sci. Bio-Technol. 18 (2019) 231, https://doi.org/10.1007/s11157-019-09499-9. doi: 10.1007/s11157-019-09499-9

  14. [14]

      M.E. Suss, S. Porada, X. Sun, P.M. Biesheuvel, J. Yoon, V. Presser, Energy Environ. Sci. 8 (2015) 2296, https://doi.org/10.1039/c5ee00519a. doi: 10.1039/c5ee00519a

  15. [15]

      Z. Tang, B. Hu, P. Nie, X. Shang, J. Yang, J. Liu, Chem. Eng. J. 466 (2023) 143216, https://doi.org/10.1016/j.cej.2023.143216. doi: 10.1016/j.cej.2023.143216

  16. [16]

      K. Wang, Y. Liu, X. Xu, Y. Jiao, L. Pan, Chem. Eng. J. 463 (2023) 142394, https://doi.org/10.1016/j.cej.2023.142394. doi: 10.1016/j.cej.2023.142394

  17. [17]

      J. Ma, S. Xing, Y. Wang, J. Yang, F. Yu, Nano-Micro Lett. 16 (1) (2024) 143, https://doi.org/10.1007/s40820-024-01371-y. doi: 10.1007/s40820-024-01371-y

  18. [18]

      M. Mao, T. Yan, G. Chen, J. Zhang, L. Shi, D. Zhang, Environ. Sci. Technol. 55 (1) (2020) 730, https://doi.org/10.1021/acs.est.0c06562. doi: 10.1021/acs.est.0c06562

  19. [19]

      K. Zuo, J. Kim, A. Jain, T. Wang, R. Verduzco, M. Long, Q. Li, Environ. Sci. Technol. 52 (16) (2018) 9486, https://doi.org/10.1021/acs.est.8b01868. doi: 10.1021/acs.est.8b01868

  20. [20]

      P. Liu, T. Yan, J. Zhang, L. Shi, D. Zhang, J. Mater. Chem. A 5 (28) (2017) 14748, https://doi.org/10.1039/c7ta03515b. doi: 10.1039/c7ta03515b

  21. [21]

      J.G. Gamaethiralalage, K. Singh, S. Sahin, J. Yoon, M. Elimelech, M.E. Suss, P. Liang, P.M. Biesheuvel, R.L. Zornitta, L.C.P.M. de Smet, Energy Environ. Sci. 14 (2021) 1095, https://doi.org/10.1039/d0ee03145c. doi: 10.1039/d0ee03145c

  22. [22]

      X. Liu, J. Wang, Environ. Sci. Pollut. Res. 28 (2021) 3182, https://doi.org/10.1007/s11356-020-10691-6. doi: 10.1007/s11356-020-10691-6

  23. [23]

      X. Liu, J. Wang, Sci. Total Environ. 749 (2020) 141524, https://doi.org/10.1016/j.scitotenv.2020.141524. doi: 10.1016/j.scitotenv.2020.141524

  24. [24]

      S.-H. Lee, M. Choi, J.-K. Moon, S. Lee, J. Choi, S. Kim, Appl. Sci. 11 (2021) 10042, https://doi.org/10.3390/app112110042. doi: 10.3390/app112110042

  25. [25]

      Z. Qin, Y. Li, N. Gu, Adv. Healthcare Mater. 7 (2018) 1800347, https://doi.org/10.1002/adhm.201800347. doi: 10.1002/adhm.201800347

  26. [26]

      T. Vincent, C. Vincent, Y. Barré, Y. Guari, G. Le Saout, E. Guibal, J. Mater. Chem. A 2 (2014) 10007, https://doi.org/10.1039/c4ta01128g. doi: 10.1039/c4ta01128g

  27. [27]

      Y. Jung, U.S. Choi, Y.G. Ko, J. Hazard. Mater. 420 (2021) 126654, https://doi.org/10.1016/j.jhazmat.2021.126654. doi: 10.1016/j.jhazmat.2021.126654

  28. [28]

      J. Huo, G. Yu, J. Wang, Sci. Total Environ. 761 (2021) 143286, https://doi.org/10.1016/j.scitotenv.2020.143286. doi: 10.1016/j.scitotenv.2020.143286

  29. [29]

      Z. Li, Z. Zhang, J. Cheng, Q. Li, B. Xie, Y. Li, S. Yang, J. Mol. Liq. 345 (2022) 117823, https://doi.org/10.1016/j.molliq.2021.117823. doi: 10.1016/j.molliq.2021.117823

  30. [30]

      J. Qian, L. Zhou, X. Yang, D. Hua, N. Wu, J. Hazard. Mater. 386 (2020) 121965, https://doi.org/10.1016/j.jhazmat.2019.121965. doi: 10.1016/j.jhazmat.2019.121965

  31. [31]

      K. Singh, G. Li, J. Lee, H. Zuilhof, B.L. Mehdi, R.L. Zornitta, L.C.P.M. de Smet, Adv. Funct. Mater. 31 (2021) 2105203, https://doi.org/10.1002/adfm.202105203. doi: 10.1002/adfm.202105203

  32. [32]

      T.H. Chen, D.V. Cuong, Y. Jang, N.Z. Khu, E. Chung, C.H. Hou, Chemosphere 307 (2022) 135613, https://doi.org/10.1016/j.chemosphere.2022.135613. doi: 10.1016/j.chemosphere.2022.135613

  33. [33]

      R. A. Renaud, P. Cartraud, P. Gravereau, E. Garner, Thermochim. Acta 31 (1979) 243, https://doi.org/10.1016/0040-6031(79)85013-3. doi: 10.1016/0040-6031(79)85013-3

  34. [34]

      M. Mao, T. Yan, J. Shen, J. Zhang, D. Zhang, Environ. Sci. Technol. 55 (2021) 7665, https://doi.org/10.1021/acs.est.1c01483. doi: 10.1021/acs.est.1c01483

  35. [35]

      V. Koleva, M. Kalapsazova, D. Marinova, S. Harizanova, R. Stoyanova, Chemsuschem 16 (2023) e202201442, https://doi.org/10.1002/cssc.202201442. doi: 10.1002/cssc.202201442

  36. [36]

      K. Kiyohara, Y. Kawai, J. Chem. Phys. 151 (2019) 104704, https://doi.org/10.1063/1.5113738. doi: 10.1063/1.5113738

  37. [37]

      B. Zhang, Q. Yi, W. Qu, K. Zhang, Q. Lu, T. Yan, D. Zhang, Adv. Funct. Mater. 34 (2024) 2401332, https://doi.org/10.1002/adfm.202401332. doi: 10.1002/adfm.202401332

•
