The epoxidation of organic compounds is widely used in the chemical industry, and it is important to find suitable heterogeneous catalysts that work under mild conditions with alkyl hydroperoxides or H₂O₂ ^{[1, 2]}. Much attention has been paid to Ti-containing β zeolites, which were first reported by Corma and co-workers ^[3]. Because of their large 12-ring pore channels, Ti-β zeolites are more efficient than TS-1 in the oxidation of bulky molecules ^[4]; for example, Rhee et al. ^[5] reported that Ti-β zeolites were twice as efficient as TS-1 in cyclohexene epoxidation.

Although Ti-β zeolites are more accessible to reactants than TS-1, diffusion in microporous structures is still a problem ^[6]. To solve this problem, attention has recently focused on hierarchical Ti-containing silicate zeolites. Template-directed synthesis using hard or soft templates is often used for the preparation of hierarchical Ti-containing silicate zeolites. Li et al. ^[7] used a hard-templating process to synthesize a series of hierarchical TS-1 materials with carbon nanoparticles formed in situ by sucrose carbonization. Su and co-workers ^[8] used a quasi-solid-state crystallization process to prepare new hierarchical micro-meso-macroporous TS-1 zeolites, which showed much higher activities in the epoxidation of 2,4,6- trimethylstyrene and had superior thermal stabilities and reusabilities compared with TS-1 nanoparticles. Recently, we used the steam-assisted crystallization method to synthesize hierarchical TS-1 zeolites, with in situ-polymerized triethanolamine as mesoporous templates. The resultant materials had high activities and excellent stabilities in the selective catalytic oxidation of 2,3,6-trimethylphenol to 2,3,5-trimethyl-p- benzoquinone ^[9]. However, although hierarchical β zeolites with various Al contents were reported by Bein et al. ^[10], the synthesis of hierarchical Ti-β zeolites is still a challenge.

Secondary synthesis, including isomorphous substitution and atom planting, is a general procedure for the preparation or modification of microporous zeolites that are hard to obtain via direct processing. Chemical vapor deposition (CVD) is often used for the secondary synthesis of Ti-β zeolites ^[11], and liquid- or solid-phase isomorphous substitutions have also been reported ^{[12, 13]}. When CVD is used, the formation of a non-framework anatase phase is almost inevitable; this results in the decomposition of hyperoxide agents and a consequent reduction in the catalytic efficiency. Because of the toxicities of metal fluoride sources and by-products, e.g., (NH₄)₂TiF₆, the liquid substitution approach is not an environmentally benign process. Recently, a more simple and tunable solid-state reaction was developed by Tang et al. ^[14], in which dealuminated microporous β zeolite precursors were mixed with Cp₂TiCl₂ and then calcined in air to produce microporous Ti-β zeolites with various Ti contents. Their use in cyclohexene oxidation showed that the resultant materials were highly active. Here, we further develop this secondary solid-state reaction method for the synthesis of hierarchically structured Ti-β zeolites, using presynthesized hierarchically structured β zeolites as precursors. To the best of our knowledge, the post-synthesis of hierarchical Ti-β by a solid-phase reaction has not been reported previously, and this route is suitable for the scaled-up production of hierarchical Ti-β zeolites.

Cyclohexene (AR) was purchased from Aladdin. 1-Dodecene (AR) was obtained from Acros. Tetraethyl orthosilicate (TEOS, AR), NaCl (AR), KCl (AR), NaAlO₂ (AR), cetyltrimethylammonium bromide (CTAB, AR), tetraethylammonium hydroxide (TEAOH, AR), H₂O₂ (30 wt%, AR), and all other organic compounds used in the catalytic tests were purchased from Shanghai J&K, China.

Hierarchical β zeolites were prepared according to a previously reported procedure ^[15]. In a typical run, KCl (0.15 g) and NaCl (0.05 g) were dissolved in deionized water (20.0 g), and then TEOS (10.4g, 50mmol) and TEAOH (14.4 g, 25 wt%) were added to the solution, The mixture was stirred at 313 K for 30 min, NaAlO₂ (0.162 g, 2 mmol) was then added, and the resultant solution was stirred for 4 h at 313 K. CTAB (1.0 g) dissolved in water (2.0 g) was added to the emulsion and the reaction solution was continuously stirred at 353 K for 8 h. The obtained mixture was crystallized in a Teflon-lined autoclave at 423 K for 48 h. The products were recovered by filtration, washed with deionized water, and dried in air at 373 K. The resultant materials were calcined in air at 823 K for 7 h to remove the porous template; a white product, denoted by H-mβ, was obtained, in which m represents mesoporous structures. Microporous β zeolites were prepared in the same way but without CTAB addition.

Ti(IV)-containing hierarchical β zeolites (Ti-mβ) were prepared using a two-step post-synthesis procedure: dealumination of H-mβ zeolites to obtain hierarchical Si-β zeolites (Si-mβ) and titanation of the dealuminated Si-mβ zeolites. In the first step, the synthesized H-mβ precursors were treated with 13 mol/L HNO₃ solution for 20 h to remove the Al atoms in the zeolites ^[13] and then washed with deionized water until the filtrate pH was near 7. In the second step, after drying at 373 K for 12 h, the resultant Si-mβ zeolites were mixed homogeneously with Cp₂TiCl₂. Finally, the mixtures were calcined in air at 823 K for 12 h to give the final product, i.e., Ti-mβ. The amounts of Ti incorporated into Ti-mβ were 1, 3, and 5 wt%, and the samples were denoted by Ti-mβ-S1, Ti-mβ-S2, and Ti-mβ-S3, respectively. For comparison, microporous Ti-β, denoted by Ti-Mβ, with a Ti content similar to that of Ti-mβ-S2, was prepared using the same post-synthesis method.

The epoxidation of cyclohexene and 1-dodecene was used as model reactions for investigating the performance of the synthesized hierarchical and microporous Ti-β zeolites. All the reactions were carried out at 333 K in 25 mL three-necked flasks. The reaction products were analyzed using gas chromatography-mass spectrometry (Agilent 6890/5973N with an autosampler and an HP-5ms capillary column). The substrate conversion, product yield, and selectivity were determined from the standard curves of the corresponding material.

In a typical epoxidation of cyclohexene, acetonitrile (10 mL), cyclohexene (5 mmol), and catalyst (50 mg) were mixed in the reaction vessel. When the solution temperature was stable at 333 K, H₂O₂ (7.5 mmol, 30 wt%) was injected. Samples were removed at intervals using a microsyringe and diluted with ethanol.

In the epoxidation of 1-dodecene, butan-2-one (10 mL), 1-dodecene (5 mmol), and catalyst (50 mg) were mixed. When the solution temperature reached 333 K, H₂O₂ (7.5 mmol, 30 wt%) was injected. Samples were removed at intervals using a microsyringe and diluted with ethanol.

The zeolites were examined by X-ray diffraction (XRD) with a Rigaku D/Max 2200PC diffractometer, using Cu K_α radiation (40 kV and 20 mA), at a scanning rate of 4°/min between 5° and 50°, in steps of 0.009°. N₂ adsorption-desorption measurements were performed at 77 K using a Micromeritics Tristar 3000 instrument, and the specific surface area and pore size distribution of each sample were calculated by the BET and BJH methods, respectively. Field-emission scanning electron microscopy (FE-SEM) was performed using a Hitachi SU8220 electron microscope. Field-emission transmission electron microscopy (FE-TEM) and energy disperse spectroscopy (EDS) were performed using a JEOL 200CX electron microscope operated at 200 kV. Ultraviolet-visible (UV-vis) absorption spectra were obtained using a UV-3101 PC spectrometer (Shimadzu). The compositions of the synthesized materials were determined by inductively coupled plasma atomic emission spectroscopy (ICP-AES) using a Varian Vista AX analyzer. UV-Raman spectra were recorded using a laboratory-made UV-Raman spectrometer with a spectral resolution of 2 cm⁻¹. The line at 266 nm from the double frequency of a DPSS 532 Model 200 532 nm laser was used as the excitation source, with power on samples of about 8.0 mW.

The crystalline structures and purities of the synthesized samples were determined using XRD, ICP-AES, and SEM. Fig. 1 shows the XRD patterns of H-mβ, dealuminated Si-mβ, and titanated Ti-mβ. It is clear that all the samples, including Si-mβ, which experienced harsh acid-etching, have the characteristic diffraction patterns of BEA-type zeolites and similar diffraction peak intensities, confirming successful synthesis of highly crystalline β zeolites with high stabilities. Because the Ti ion is larger than the Al ion, one of the main diffraction peaks of H-mβ at 22.63° shifts to a lower 2θ value of about 22.5°, indicating expansion of the crystal lattice and successful incorporation of Ti into the zeolite framework. The same phenomenon has been observed in previous studies of Fe, Sn, or Ni-containing β zeolites ^{[16, 17, 18]}. However, as shown in Table 1, only trace amounts of Al were detected in the dealuminated and titanated β zeolites by ICP-AES.

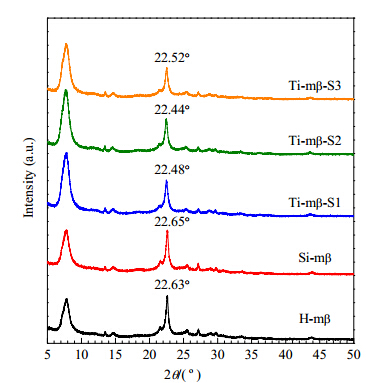

Fig. 1. XRD patterns of H-mβ, Si-mβ, Ti-mβ-S1, Ti-mβ-S2, and Ti-mβ-S3 samples.

Table 1 Textural properties of catalysts studied in this work. Sample Si/Al Ti loading (wt%) ABET (m2/g) Amic a (m2/g) Vtot b (cm3/g) Vmic a (cm3/g) H-mβ 23 0 556 379 0.374 0.175 Si-mβ >1250 0 478 340 0.347 0.157 Ti-mβ-S1 >1250 1.01 524 382 0.371 0.177 Ti-mβ-S2 >1250 2.91 498 364 0.350 0.169 Ti-mβ-S3 >1250 4.29 472 347 0.320 0.161 Ti-Mβ >1250 2.61 549 406 0.280 0.188 a Determined by t-plot method. b Volume adsorbed at p/p0 = 0.99.

Table 1 Textural properties of catalysts studied in this work.

SEM images of the synthesized samples are shown in Fig. 2. H-mβ, which consists of tightly stacked nanocrystals, has an ellipsoidal morphology with longitudinal dimensions of 300-600 nm. After dealumination, the morphology of the Si-mβ zeolites (Fig. 2(b)) remains unchanged and no additional amorphous debris is found. Moreover, all the Ti-mβ samples (Fig. 2(c)-(e)) show similar morphologies and structures to those of H-mβ and Si-mβ, regardless of the Ti contents of the samples. This shows that the synthesized hierarchical β zeolites have high structural stabilities and the post-synthesis treatment in the preparation of Ti-mβ has little impact on the structure; this is consistent with the XRD results.

Fig. 2. SEM images of H-mβ (a), Si-mβ (b), Ti-mβ-S1 (c), Ti-mβ-S2 (d), and Ti-mβ-S3 (e).

Fig. 3(a) shows a representative FE-TEM image of Ti-mβ-S2. The clear lattice fringes show the high crystallinity of the synthesized materials and the clear dark-to-bright contrast confirms the penetration of mesoporous structures within the microporous crystals. Furthermore, energy-dispersive X-ray spectroscopy (Fig. 3(b)) and the corresponding element mappings of Ti-mβ-S2 indicate that the post-incorporated Ti atoms are homogeneously distributed in the synthesized materials.

Fig. 3. TEM image of Ti-mβ-S2 (a) and its element mappings (b).

The textural properties of the synthesized materials were determined using N₂ adsorption-desorption isotherm analysis. As shown in Fig. 4(a), all the samples showed type IV isotherms with an increase in the adsorbed amount at a relative pressure of 0.4-0.9; this implies the presence of mesopores in the synthesized materials. In the pore size distribution profiles shown in Fig. 4(b), a peak centered at 3.9 nm can be observed for all the synthesized hierarchical β zeolites. Table 1 summarizes the BET surface areas, pore volumes, and pore sizes (3.9 nm) of the synthesized materials. All the samples had similar textural properties; this is consistent with the XRD and SEM results, and further proves the effectiveness of this solid-state reaction. The small differences between the volumes and surface areas of H-mβ and Si-mβ can be explained by partial deformation of the zeolite frameworks as a result of dealumination under harsh conditions ^[19]. After the introduction of Ti atoms, these values increased slightly; similar observations have been reported for the post-synthesis of hierarchical Sn-β materials ^[20].

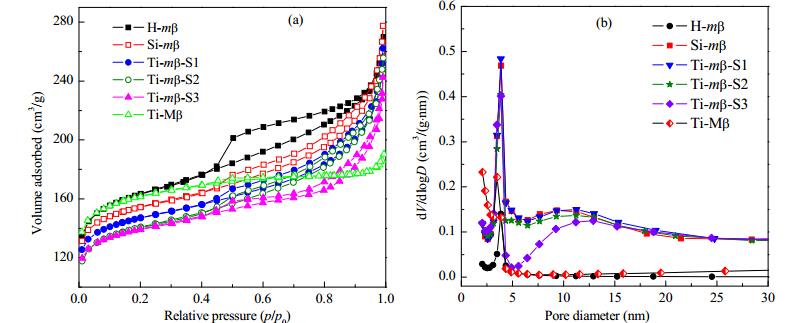

Fig. 4. N2 adsorption-desorption isotherms (a) and pore diameter distributions (b) of synthesized samples.

The UV-vis spectra of the synthesized Ti-mβ are presented in Fig. 5. All the samples show a distinct absorption peak near 220 nm, which is attributed to the ligand-to-metal charge-transfer of isolated [TiO⁴] or [HOTiO]; the band intensity increases with increasing Ti content. This is direct evidence of the successful incorporation of Ti atoms into the zeolite frameworks ^[21]. No significant absorption was observed above 330 nm in the spectra, which indicates that no bulky TiO₂ or Ti-enriched species were formed in the samples ^[11]. This conclusion is confirmed by UV-Raman spectroscopy. As shown in Fig. 6, there are no distinguishable peaks near 140, 510, and 630 cm⁻¹, which would provide direct evidence of anatase TiO₂ ^[22]. Unlike that of H-mβ, the UV-Raman spectra of the synthesized Ti-mβ zeolites clearly show a new band at 1090 cm⁻¹, which is attributed to framework tetrahedrally coordinated Ti species (Ti-O-Si), based on a previous literature report ^[23].

Fig. 5. UV-vis spectra of Ti-mβ zeolites with various Ti contents.

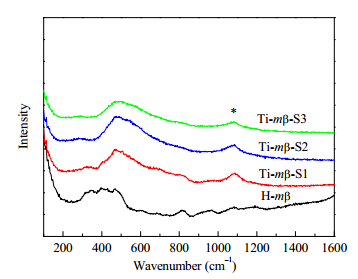

Fig. 6. UV-Raman spectra of H-mβ and Ti-mβ zeolites with various Ti contents.

Table 2 Catalytic properties of Ti-Mβ and Ti-mβ-Sx zeolites in epoxidations of cyclohexene and 1-dodecene. Catalyst Conv. of cyh a (%) Sel. for cyh oxide b (%) Conv. of dod c (%) Sel. for 1,2-epo d (%) H-mβ — — — — Si-mβ — — — — Ti-mβ-S1 47.5 23.2 — — Ti-mβ-S2 59.4 24.2 11.1 60.3 Ti-mβ-S3 57.3 31.8 — — Ti-Mβ 57.9 25.4 6.8 37.8 a cyh = cyclohexene. b cyh oxide = cyclohexene oxide. c dod = 1-dodecene. d 1,2-epo = 1,2-Epoxydodecane.

Table 2 Catalytic properties of Ti-Mβ and Ti-mβ-Sx zeolites in epoxidations of cyclohexene and 1-dodecene.

The catalytic properties of microporous Ti-Mβ and hierarchical Ti-mβ were investigated in the epoxidation of cyclohexene and 1-dodecene, which have different molecular sizes. As shown in Fig. 7 and Table 2, when cyclohexene was used as the reaction substrate, because of its small molecular size, which allows smooth diffusion in the microporous channels of both the microporous and hierarchical zeolites, microporous Ti-Mβ (Ti 2.61 wt%) and hierarchical Ti-mβ-S2 (Ti 2.91 wt%) give similar cyclohexene conversions (57.9% vs 59.4%) and cyclohexene oxide selectivities (25.4% vs 24.2%). This indicates that the synthesized hierarchical Ti-mβ zeolites have intrinsic activities similar to those of their microporous counterparts; this can be understood based on the structural characterization results. The Ti content in the synthesized Ti-mβ-Sx varies depending on the designed chemical composition. The substrate conversion increased from 47.5% of Ti-mβ-S1 (Ti 1.01 wt%) to 59.4% of Ti-mβ-S2 (Ti 2.91 wt%), with negligible differences in epoxide product selectivities among the Ti-mβ-Sx catalysts. However, although Ti-mβ-S3 has the highest Ti content, namely 4.29 wt%, 57.3% cyclohexene conversion was obtained, close to that of 59.4% for Ti-mβ-S2 (Ti 2.91 wt%). This may result from the limited amount of Ti doped in the zeolite frameworks ^[13]. In contrast, as shown in Table 2, if 1-dodecene is used in the epoxidation reaction, differences between the substrate conversions and epoxide selectivities of microporous Ti-Mβ and hierarchical Ti-mβ-S2 become apparent. Because of the large size of the 1-dodecene molecule, which significantly limits diffusion in the microporous channels, the conversion and epoxide selectivity of microporous Ti-Mβ are as low as 6.8% and 37.8%, respectively, whereas those of hierarchical Ti-mβ-S2 reach 11.1% and 60.3%, respectively. These results prove that the introduction of mesop orous structures into zeolites greatly improves the zeolite catalytic performance, especially for reactions involving bulky molecules.

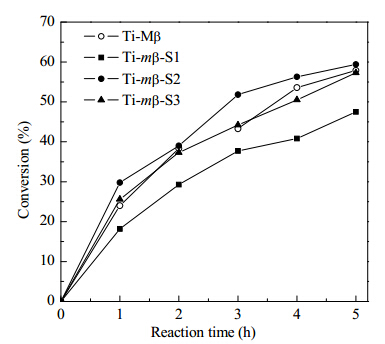

Fig. 7. Cyclohexene conversions in epoxidation on Ti-Mβ and Ti-mβ zeolites with various Ti contents.

A simple and Ti-content-tunable two-step post-synthesis procedure was developed for the preparation of Ti-containing hierarchical β zeolites (Ti-mβ). UV-vis and UV-Raman spectroscopies showed the presence of a tetrahedrally coordinated Ti(IV) framework. The effects of mesoporous structures and the level of Ti doping on the catalytic activities of Ti-mβ zeolites were investigated. In the model reaction, namely alkene epoxidation, the synthesized Ti-mβ zeolites showed high catalytic activities. In particular, when a bulky molecule, i.e., 1-dodecene was used, the benefit of the extra mesoporous structures in Ti-mβ was significant and the substrate conversion (11.3%) was nearly twice that with microporous Ti-Mβ (6.8%).
