The ever-increasing demands for energy and resources by human society,combined with the rapid consumption of fossil fuel resources,and political and environmental concerns about climate issues caused by emissions of greenhouse gases,make it imperative to develop alternative sources of energy and resources for the sustainable production of fuels and chemicals. The use of solar,nuclear,geothermal,wind,and other renewable energy sources can ease the energy shortage,but biomass will be the most important,and perhaps the only sustainable,clean carbon source [1]. The efficient and green conversion of biomass is therefore a hotspot in energy and chemical research [2,3,4,5,6,7,8].
5-Hydroxymethylfurfural (5-HMF),which contains a hydroxymethyl group and an aldehyde group,has potential applications in the syntheses of many useful compounds and novel polymer materials,including medicines,plastic resins,and diesel fuel additives [9],through hydrogenation,oxydehydrogenation,esterification,halogenation,polymerization,hydrolysis,and other chemical reactions. Biomass hydrolysis is the main method for synthesizing 5-HMF,because it is a widely available raw material and cheap. 5-HMF is therefore a potential new platform compound based on biomass resources. In addition,levulinic acid (LA),another important platform compound,can be obtained by dehydration of 5-HMF,and can be used to synthesize more useful compounds and fuel additives via esterification,halogenation,oxidation,hydrogenation,and condensation.
However,there are numerous differences between the raw materials used,and the reaction paths and reaction intermediates involved,in the cases of traditional petrochemicals and biomass sources such as cellulose and polysaccharides. There are both challenges and opportunities in the development of new catalysts and technological processes,and there are numerous basic issues related to catalyst design [10]. Because various functional groups coexist in biomass-based multiplatform chemicals,they are convenient for follow-up development and use,but have complex reaction paths and side reactions. It is therefore important to improve reaction conversion and selectivity through suitable catalyst design [11].
Takagaki et al. [12] used a combination of Amberlyst-15 (a solid acid) and Mg-Al hydrotalcite (a solid base) in N,N'-dimethylformamide (DMF) for synthesizing 5-HMF from glucose; they achieved 5-HMF selectivity of 58% and glucose conversion of 73% at 453 K. Zhao et al. [13] demonstrated that the use of CrCl2 in 1-ethyl-3-methylimidazolium chloride [EMIM]Cl gave 5-HMF selectivity of 72% and glucose conversion of 94% at 353 K. Huang et al. [14] showed that combining enzymatic and acid catalysts to synthesize 5-HMF from glucose gave 5-HMF selectivity of 70% and glucose conversion of 85%. Otomo et al. [15] used dealuminated Beta-zeolite as an effective bifunctional catalyst for the direct transformation of glucose to 5-HMF; they achieved 55% selectivity for 5-HMF and 78% glucose conversion.
Glucose,an abundant monosaccharide obtained by depolymerization of cellulose,can be converted to 5-HMF. The reaction involves two steps: (1) isomerization of glucose to fructose,and (2) dehydration of fructose to 5-HMF. Previous studies of 5-HMF synthesis from glucose,some of which were outlined above,had several disadvantages,because they used systems that involved enzymes,numerous reactors,or environmentally unfriendly catalysts and solvents. For example,one-pot,ionic-liquid systems suffer from high separation costs,sensitivity to reaction conditions,and undesirable environmental effects. The one-pot synthesis of 5-HMF from glucose in aqueous media,with high efficiency,is still a challenge. Here,we report an efficient one-pot synthesis of 5-HMF from sugars using Sn,Al-containing silica molecular sieves with the Beta-zeolite topology in concert with acid catalysts.
Beta-zeolites,with large pore diameters and crossing 12-MR channels,have been successfully used in applications such as catalytic cracking,isomerization,alkylation,alkyl transfer reactions,petrochemical processes,and adsorption. The implantation of heteroatoms into Beta-zeolites has become an important part of zeolite research in recent years. Sn-Beta can catalyze the chemoselective Baeyer-Villiger oxidation of ketones or aldehydes with H2O2 by directly activating the carbonyl groups [16,17,18]. Both Sn-Beta and Zr-Beta are efficient catalysts for the Meerwein-Ponndorf-Verley reduction of ketones with alcohols [19,20]. Davis et al. [21] achieved one-pot synthesis of 5-HMF from glucose with 79% conversion and 72% selectivity by combining a heterogeneous Sn-Beta catalyst and a homogeneous HCl catalyst and using a biphasic water/tetrahydrofuran reaction system. Cleaner routes are expected to be developed by designing novel heterogeneous catalysts with multifunctionalities.
[Sn,Al]-Beta has been synthesized using various methods. Hammond et al. [22] prepared the catalyst by simply grinding the appropriate amount of tin(II) acetate with the required amount of dealuminated zeolite,and achieved high activity in the conversion of dihydroxyacetone to ethyl lactate. Dijkmans et al. [23] prepared [Sn,Al]-Beta using a grafting method; deAl-Beta and SnCl4·5H2O were suspended in isopropanol and refluxed under N2,giving a fructose yield of 41%. Liu et al. [8] treated a highly dealuminated Beta-zeolite with SnCl4 vapor,and obtained a fructose yield of 46%. All these studies focused on highly dealuminated Beta-zeolites,and analysis of glucose to fructose conversion.
In this study,[Sn,Al]-Beta was prepared from partially dealuminated H-Al-Beta and SnCl4 vapor through solid-gas isomorphous substitution,giving rise to a bifunctional catalyst with both Brönsted and Lewis acid sites. The Al and Sn contents of [Sn,Al]-Beta were both adjusted by changing the dealumination and SnCl4 treatment conditions. The catalytic properties of [Sn,Al]-Beta were investigated in the one-pot synthesis of 5-HMF by direct conversion of glucose.
Glucose (99.5%),fructose (99.5%),5-HMF (99%),FA (99.5%) and LA (99.5%) were purchased from Sinopharm Chemical Reagent Co.,Ltd. Beta zeolite was purchased from Sinopec. It was used as starting maerial for preparing dealuminated Beta zeolite.
As shown in Scheme 1,a Sn- and Al-containing Beta-zeolite,[Sn,Al]-Beta,was prepared by secondary isomorphous substitution of Sn into the framework of a partially dealuminated Beta-zeolite through a gas-solid reaction using SnCl4 vapor [18]. A commercial H-Al-Beta-aluminosilicate with nanosized crystals (Sinopec,Si/Al atomic ratio 10) was treated in HNO3 solutions of various concentrations,at a solid-to-liquid ratio of 1 g:50 mL,under either room temperature or reflux conditions,for a certain period of time (Table 1).
The treated samples were collected by centrifugation,washed repeatedly with deionized water until the pH was ca. 7,and dried at 353 K overnight,resulting in a series of partially dealuminated zeolites,denoted by De-Al-Beta(x),where x is the Si/Al molar ratio. In a typical treatment with SnCl4,De-Al-Beta(x) (2 g) was pretreated in a quartz tubular reactor at 773 K for 2 h under a stream of dry N2. The reactor temperature was raised to 673 K,and the N2 flow was diverted through anhydrous liquid SnCl4 in a glass bubbler. The SnCl4 vapor was carried by the N2 flow and contacted the zeolite bed for a predetermined time period (2 min to 2 h). After the treatment,the sample was purged with pure N2 at the same temperature for 1 h to remove any residual SnCl4 from the zeolite powder. After cooling to room temperature in N2,the treated zeolite was washed with deionized water under stirring until chloride ions were not detected in the filtrate by AgNO3 solution,and then dried in air at 363 K overnight. The product is denoted by [Sn,Al]-Beta(x),where x represents the Si/Al molar ratio of the parent zeolite before treatment with SnCl4. [Ti,Al]-Beta catalysts were prepared by a similar method,using TiCl4.
For control experiments,[Sn,Al]-Beta-L catalysts were synthesized by liquid-phase incorporation,using literature procedures [20]. In a typical synthesis,HNO3 (0.18 g,65 wt%) and NH4F (0.44 g,96 wt%) were dissolved in deionized water (60 g) at room temperature. After stirring for 10 min,SnCl4·5H2O (0.59 g) was slowly added to the solution,and the mixture was stirred for 10 min. The solution was then seeded with De-Al-Beta(x) (0.6 g) and stirred at 308 K for 5 h. After cooling to room temperature,the treated zeolite was washed with deionized water under stirring until chloride ions were not detected in the filtrate by AgNO3 solution,and then dried in air at 363 K overnight. The product is denoted by [Sn,Al]-Beta(x)-L,where x represents the Si/Al molar ratio of the parent zeolite before liquid-phase post-insertion of Sn.
For control experiments,Sn-Beta-HTS zeolites were synthesized directly,using the procedure reported in the literature [16,18]. The synthesis was performed in a fluoride system,using SnCl4·5H2O as the Sn source and with the addition of dealuminated Beta-zeolite as seeds. The synthetic gel had a composition of 1.0 SiO2:0.005 SnCl4:0.56 tetraethylammonium hydroxide:0.54 HF:7.5 H2O. Crystallization was performed in a Teflon-lined stainless-steel autoclave under static conditions at 413 K for 7 d. The solids were recovered by filtration,extensively washed with water,dried at 373 K overnight,and calcined at 853 K for 6 h to obtain Sn-Beta-HTS.
Powder X-ray diffraction (XRD) patterns were obtained using a Rigaku Ultima IV X-ray diffractometer,with Cu-Kα radiation (λ = 0.15405 nm). The Sn and Al contents were determined by inductively coupled plasma atomic emission spectroscopy (ICP-AES),using a Thermo IRIS Intrepid II XSP atomic emission spectrometer. The specific surface areas were determined by N2 adsorption-desorption at 77 K,using a BELSORPMAX instrument,after activating the sample at 573 K under vacuum for at least 10 h. Ultraviolet-visible (UV-vis) diffuse reflectance spectra were recorded with a Shimadzu UV-2550 spectrophotometer,using BaSO4 as a reference. Fourier transform infrared (FT-IR) spectra were recorded using a Nicolet Nexus 670 FT-IR spectrometer in absorbance mode at a spectral resolution of 2 cm−1. The sample was pressed into a self-supported wafer of thickness 4.8 mg cm−2. The wafer was set in a quartz IR cell,which was sealed with CaF2 windows and connected to a vacuum system. The sample was evacuated at 723 K for 2 h. Pyridine adsorption was performed by exposing the pretreated wafer to pyridine vapor at 298 K for 0.5 h. The adsorbed pyridine was successively desorbed at different temperatures (423-723 K) for 1 h. All the spectra were collected at room temperature. 27Al and 119Sn magic-angle-spinning nuclear magnetic resonance (MAS/NMR) spectra were obtained using a Varian VNMRS 400WB NMR spectrometer.
The catalytic tests were performed in an autoclave containing a 25-mL PTFE lining and immersed in a thermostated oil-bath. The reaction mixture typically contained glucose aqueous solution (2.5 g,10 wt%),catalyst (50 mg),and dimethyl sulfoxide (DMSO; 6 mL). The mixture was stirred vigorously at 433 K for 30 min to 5 h. The reaction mixture was analyzed using gas chromatography (GC; Shimadzu GC-14B) and high-performance liquid chromatography (HPLC) to determine the conversion and product selectivity. 5-HMF,LA,and formic acid (FA) were determined using GC (GC-14B,FAAP capillary column) and quantified using phenol as an internal standard. HPLC was performed using a Waters 2695 system equipped with a photodiode array detector (960 UV,280 nm) and R2414 refractive index detectors. The disappearances of glucose and fructose were monitored with an Aminex HPX-87H column,using 75:25 v/v acetonitrile:water at a flow rate of 1 mL min−1 and a column temperature of 298 K.
Figure 1 shows the XRD patterns of H-Al-Beta,De-Al-Beta(100),and [Sn,Al]-Beta(100). The samples exhibited well-defined reflections,because of the *BEA topology. The patterns had comparable diffraction intensities,indicating that no collapse of the crystalline structure occurred during dealumination or SnCl4 vapor treatment.

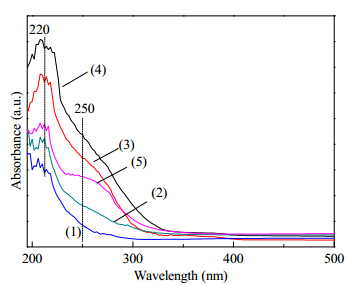

UV-vis spectroscopy is a sensitive and convenient tool,and is widely used to detect the coordination states of transition-metal ions in zeolites,particularly Ti-,Sn-,or Zr-containing metallosilicates. Figure 2 shows the UV-vis spectra of the [Sn,Al]-Beta samples with different Sn loadings prepared by SnCl4 vapor treatment at 773 K for different periods of time ([Sn,Al]-Beta(100)-L sample was prepared by liquid-phase insertion of Sn). The main absorption band,at 220 nm,is characteristic of tetrahedrally coordinated Sn species in framework positions. A weak shoulder band at 255 nm was also observed for the [Sn,Al]-Beta samples containing relatively high Sn contents. This implies the presence of some extra-framework Sn species; this is consistent with the results reported for microporous Sn-MFI [25]. The 220 nm band increased in intensity monotonically with increasing amount of Sn,suggesting that most of the Sn ions were incorporated into the framework,although diffuse reflectance spectra are not completely reliable for quantification. However,a clear shoulder band at 255 nm was observed for the [Sn,Al]-Beta-L sample,prepared by liquid-phase Sn incorporation,indicating that it contained a substantial number of extra-framework Sn species. In subsequent experiments,these extra-framework Sn species were easily detached after calcination; this is unfavorable for catalytic reactions.

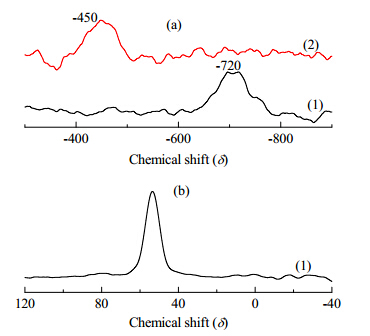

119Sn MAS NMR spectra provided strong proof for the incorporation of tetrahedral Sn species by SnCl4 treatment. In contrast to the sharp resonance at −604 ppm observed for pure SnO2,hydrated [Sn,Al]-Beta(100) showed a very broad signal centered at δ = −720 (Fig. 3(a)). The resonances in the range δ = −690 to δ = −740 are generally attributed to the Sn(IV) species and water adsorption [26]. Dehydration shifts the resonance to δ =−450 (Fig. 3(a)),which is characteristic of tetrahedrally coordinated framework Sn species. These results,which agree with those reported for directly synthesized Sn-Beta [26],rule out the presence of octahedral SnO2 in [Sn,Al]-Beta(100) and verify that the incorporated Sn species are mainly located in the framework.
The resonances at δ = 50-60 in the 27Al MAS NMR spectra correspond to tetrahedrally coordinated Al species incorporated in the zeolite framework. Extra-framework Al species present as pentahedrally and octahedrally coordinated species give resonances at 30 and 0 ppm,respectively. The resonance at δ = 50-60 observed for [Sn,Al]-Beta(100) (Fig. 3(b)) shows that the residual Al species in [Sn,Al]-Beta(100) after the solid-gas reaction were mainly located in the framework.
The results described above suggest that the formation of tetrahedral Sn species took place via routes other than isomorphous substitution of thermodynamically stable framework Si ions. The Sn ions were probably incorporated through the reaction of SnCl4 molecules with internal silanols. IR and NMR spectroscopies were used to study this issue. The IR spectra in the hydroxyl stretching vibration regions of H-Al-Beta,De-Al-Beta,[Sn,Al]-Beta,and Sn-Beta are shown in Fig. 4. The spectra were recorded in absorbance mode using self-supported wafers after complete dehydration under vacuum; this eliminated contamination by physically or chemically adsorbed H2O [27]. The parent H-Al-Beta sample had two bands,at 3745 and 3610 cm−1,which are assigned to terminal silanol groups and structural Si(OH)Al groups,respectively [28]. However,without dealumination,a much broader band at 3500 cm−1 was observed,attributed to delocalized hydrogen-bonded internal silanols. These silanols are mainly generated from stacking faults in the Beta polymorphs. Extensive dealumination caused complete disappearance of the 3610 cm−1 band,and this band was weakened by mild dealumination. This is in accordance with the ICP-AES results,shown in Table 1,which verify that De-Al-Beta was highly siliceous. Dealumination significantly enhanced the bands at 3745 and 3500 cm−1. This is clear evidence for the formation of defect sites on the external surface and inside the framework. The hydroxyl groups in the framework are believed to be clustered as hydroxyl nests,as reported in previous dealumination/realumination studies [25]. After the SnCl4 vapor treatment at 773 K for 1 h,the 3745 cm−1 band decreased slightly in intensity,indicating that the SnCl4 molecules interacted with the terminal silanols to a certain extent. This reaction probably generated some of the extra-framework Sn species in post-synthesize process,shown in the UV-vis spectra (Fig. 3). More importantly,the 3500 cm−1 band decreased greatly in intensity after the SnCl4 vapor treatment. This indicates a reaction between SnCl4 molecules and internal silanols,implying that the incorporation of Sn atoms into the framework sites took place in the same manner as alumination or titanation of highly siliceous MOR zeolites [28,29].
The catalytic properties of Sn-zeolites are closely related to their Lewis acidities. Pyridine was used as a probe molecule to provide detailed information on the amounts and strengths of Lewis acid sites in [Sn,Al]-Beta. The IR spectra of adsorbed pyridine in the range of pyridine-ring-stretching modes were recorded after desorption at various temperatures (Fig. 5). As can be seen from Fig. 5(b),De-Al-Beta(1700) showed the stretching mode vibrations of hydrogen-bonded (hb) and physically (ph) adsorbed pyridine at 1599 (hb,mode 8a),1581 (hb,ph,mode 8b),1483 (ph,mode 19a),1446 (hb,mode 19b),and 1440 (ph,mode 19b) cm−1 [30,31,32]. The bands at 1483 and 1440 cm−1,which are associated with physically adsorbed pyridine,disappeared after desorption at 523 K. The bands at 1599 and 1446 cm−1,which are associated with hydrogen-bonded pyridine,were more resistant against evacuation,but decreased in intensity with increasing desorption temperature. In contrast,the bands at 1490 cm−1,which are characteristic of both Brönsted and Lewis acid sites,and at 1450 cm−1,corresponding to Lewis acid sites,were absent in the spectra of De-Al-Beta(1700),regardless of the desorption temperature,suggesting that De-Al-Beta(1700) was almost free of Lewis acid sites. In the spectra of [Sn,Al]-Beta(1700),which has a relatively high Sn content,we observed two distinct bands,at 1611 and 1490 cm−1,and a shoulder at 1450 cm−1,in addition to bands similar to those shown by De-Al-Beta(1700) (Fig. 5(d)). These new bands,which are absent for De-Al-Beta(1700),were evacuation temperature resistant and remained even after desorption at 723 K (Fig. 5(d)). The bands at 1611,1490,and 1450 cm−1 correlated with different vibration modes of the pyridine rings adsorbed on Sn species incorporated into the Beta -zeolite matrix [32,33,34]. A C5H5N···Sn(IV) adduct with a pyridine molecule (ligand) coordinated to the Sn(IV) ion (center) may contribute to these bands. These three bands can be taken as evidence for the presence of Lewis acid sites in [Sn,Al]-Beta(1700). However,the spectra did not have a clear band at 1540 cm−1 from the vibrations of pyridinium ions,which is commonly used as evidence for the presence of Brönsted acid sites. [Sn,Al]-Beta(1700) therefore had Lewis acidity rather than Brönsted acidity.

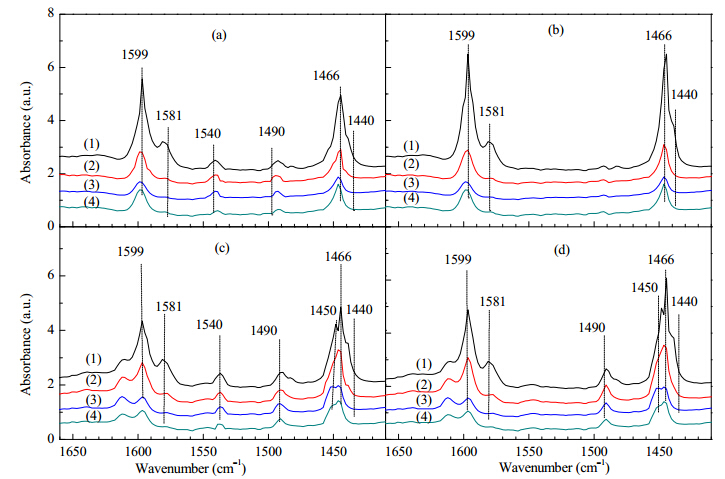

Bands at 1490 cm−1 characteristic of both Brönsted and Lewis acid sites,and at 1540 cm−1,corresponding to Brönsted acid sites,were observed in the spectra of De-Al-Beta(100),regardless of the desorption temperature (Fig. 5(a)). This suggests that De-Al-Beta(100) still contained Brönsted acid sites. In the spectra of [Sn,Al]-Beta(100),these bands characteristic of Brönsted acid sites remained,and new bands characteristic of Lewis acid sites appeared (Fig. 5(c)). These results indicate that [Sn,Al]-Beta contained both Brönsted and Lewis acid sites.

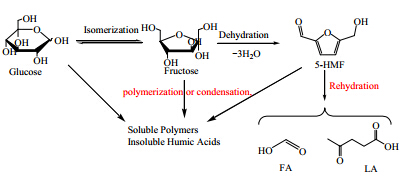

A combined catalyst (Sn-Beta and HCl) has already been shown to convert glucose to 5-HMF at pH near 1 and in saturated aqueous salt solutions [21]. Scheme 1 shows a typical reaction pathway for glucose transformation to 5-HMF. The [Sn,Al]-Beta catalyst gave high 5-HMF yields under the same reaction conditions (Table 2,entries 3 and 4). In contrast,Al-free Sn-Beta-HTS and [Sn,Al]-Beta(1700) were less effective for 5-HMF production (Table 2,entries 6 and 9). This is because both Sn and Al atoms are required to convert glucose to 5-HMF; Sn atoms are necessary for the isomerization of glucose to fructose,and Al is needed for the dehydration of fructose to 5-HMF (Scheme 1). Compared with [Sn,Al]-Beta-L,which was synthesized by liquid-phase Sn incorporation,[Sn,Al]-Beta prepared by a solid-gas reaction gave more stable 5-HMF yields after calcination (Table 2,entries 4,5,7,and 8). These results verify that the Sn species incorporated by a solid-gas reaction were mainly located in the framework.
As shown in Fig. 6(a),the 5-HMF yield increased with increasing reaction temperature in the range 353-433 K. Figure 6(b) shows the dependences of glucose conversion and 5-HMF/fructose/LA and FA selectivities on the reaction time for glucose dehydration with [Sn,Al]-Beta(50). The 5-HMF selectivity reached a maximum value of ca. 60% at 3 h,and then decreased with time,because 5-HMF was converted to LA and FA via further dehydration. The LA and FA selectivities increased relatively rapidly after 3 h. The fructose selectivity decreased from 0.5 h to 5 h,implying a typical consecutive reaction mechanism. In view of these results,we selected 433 K and 4 h as the optimum conditions.

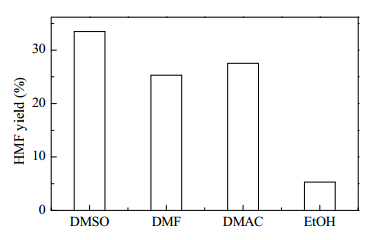

The effect of an organic solvent on the 5-HMF yield was examined using [Sn,Al]-Beta(50) as the catalyst. A number of solvents such as polar aprotic solvents,e.g.,DMF,N,N'-dimethylacetamide,DMSO,and a polar protic solvent (ethanol) were tested. Figure 7 shows that the highest 5-HMF yield (32%) was achieved using DMSO at 433 K for 4 h. Previous studies showed that DMSO plays a positive role in the uncatalyzed dehydration of carbohydrates; it protects (1) fructose from reactions other than dehydration to 5-HMF and (2) 5-HMF from rehydration and humin-forming reactions [15,35,36]. Our results were consistent with those previously reported.

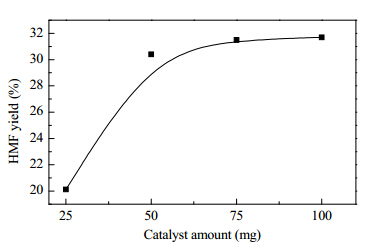

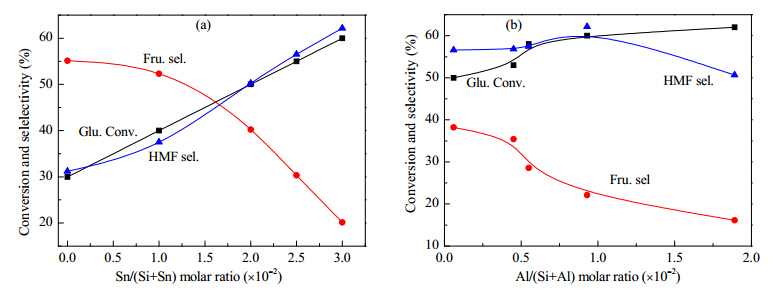

Figure 8 shows the influence of the amount of [Sn,Al]-Beta(50) on the yield of 5-HMF. When the amount of catalyst was greater than 50 mg,the yield of 5-HMF was constant. We also investigated the effect of the amounts of Sn and Al on the glucose conversion and 5-HMF/fructose selectivities. The results shown in Fig. 9(a) were obtained using the same amounts of Al. The reaction results are arranged in order of increasing Sn content,taking into account the fact that the two series of [Sn,Al]-Beta catalysts have different Sn contents. After reaction for 4 h,even the H-Al-Beta catalyst,which contained no Sn,gave a glucose conversion of 30%. As the Sn content of [Sn,Al]-Beta increased,the glucose conversion increased,and reached nearly 60% when the Si/Sn molar ratio was 35. The 5-HMF selectivity also increased,and reached nearly 62% at Si/Sn molar ratio = 35,whereas the fructose selectivity gradually decreased. However,all the increases or decreases were similar. The effects of the Al content,in the same range as that for the tests with Sn,are shown in Fig. 9(b). The glucose conversion increased gradually with increasing Al content,and the fructose selectivity decreased gradually. The 5-HMF selectivity first increased and then decreased with increasing Al content. When the Si/Al molar ratio of the parent Beta was 100,we achieved the highest 5-HMF selectivity,62%. In the light of all the above data,it can be concluded that Sn ions are important for all the reactions,especially for the first aldose-ketose isomerization process,and relatively low amounts of Al catalyze the second dehydration process.

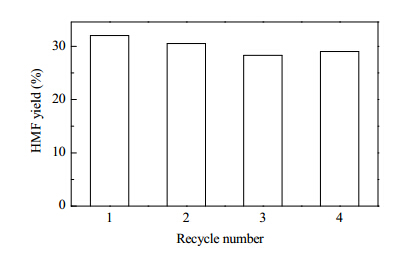

Recyclability is important in catalytic applications. Figure 10 shows the recyclability of [Sn,Al]-Beta. The catalyst was evaluated in three repeated reactions; the activity dropped from 32% to 28%. After calcination,the activity increased to 29%,which was similar to that of the fresh catalyst. These results suggest that [Sn,Al]-Beta has excellent stability in glucose conversion to 5-HMF.
Nanocrystalline [Sn,Al]-Beta zeolites with high Sn contents can be prepared from partially dealuminated Beta-zeolites and SnCl4 vapor using an atom-planting method. Unlike [Sn,Al]-Beta-L,which was synthesized by liquid-phase post-insertion of Sn,the Sn ions are mainly incorporated into defect sites through the solid-gas reaction between SnCl4 and SiOH groups in hydroxyl nests. The nanosized [Sn,Al]-Beta catalysts have combined Lewis acidity (Sn ions) and Brönsted acidity (Al ions),high Sn contents,and less diffusion limitations for bulky molecules,and are therefore active in the one-pot conversion of glucose to 5-HMF. This research suggests that more promising catalytic systems could be obtained by developing direct hydrothermal synthesis methods for nanosized [Sn,Al]-Beta with high Sn loadings.
