Microporous crystalline aluminophosphate-based zeolites, a zeolite family first discovered in the early 1980s ^{[1, 2]}, have been widely applied in catalysis, adsorption, and separation ^{[3, 4, 5]}. Notably, their syntheses are generally performed under hydrothermal conditions, where a large amount of water or alcohol is necessary ^{[6, 7, 8, 9]}. The use of such solvents not only produces waste, but also reduces synthetic efficiency and generates high pressure in the autoclaves used. Many sustainable routes have been designed to solve these solvent problems ^{[10, 11, 12, 13]}. For example, the ionothermal synthesis of APO-11 and APO-5 has been performed by two independent research groups, those of Cooper et al. ^[11] and Wang et al. ^[12]. This method completely avoids the need for high pressure autoclaves. In our group, the solvent-free synthesis of SAPO-34 and SAPO-11 zeolites has been designed, a method which both reduces the amount of solvent waste and significantly increases the zeolite product yield ^[13].

It has been reported that the morphology of a zeolite strongly influences its catalytic properties ^{[14, 15, 16, 17]}. For example, Choi et al. ^[14] reported that zeolite nanosheets were active and long-lived catalysts; Seo et al. ^[15] showed that ZSM-5 crystals with long b-axis length exhibited improved p-xylene selectivity in m-xylene isomerization; Kodaira et al. ^[16] reported a new aluminophosphate phase with a bellows-like morphology; Yang et al. ^[9] fabricated SAPO-5 crystals with a novel hexagonal pencil-like morphology. Wu et al. ^[17] reported that SAPO-34 molecular sieve samples with sheet-like and cubic morphology were synthesized under microwave and hydrothermal conditions, and exhibited longer stability and higher olefin selectivity over methanol. Notably, these zeolites with unique morphology were synthesized under hydrothermal conditions. Here, we demonstrate a plate-like morphological control of SAPO-5 zeolite in the presence of surfactants under solvent-free conditions. The ability to control the morphology of zeolite crystals through our solvent-free route is expected to be helpful to improve their catalytic properties.

The solvent-free synthesis of SAPO-5 with plate-like morphology was performed by grinding solid compounds at room temperature and heating to 200 °C in the presence of cetyltrimethyl ammonium bromide (CTAB). In a typical run, 0.785 g of di-n-propylamine phosphate (DPA·H₃PO₄), 0.364 g of boehmite, 0.8 g tetraethylammonium bromine (TEABr), 0.036 g fumed silica, and a required amount of CTAB were mixed. After grinding for 15-30 min, the mixture was transferred into an autoclave and heated at 200 °C for 36-48 h. The product, designated S-SAPO-5-CTAB, was finally obtained by filtration, washing with deionized water, drying at 100 °C, and calcination at 550 °C for 5 h. The solvent-free synthesis of the zeolite product in the absence of CTAB (designated S-SAPO-5) was also performed.

X-ray powder diffraction (XRD) patterns were measured with a Rigaku Ultimate VI X-ray diffractometer (40 kV, 40 mA) using CuK_α (λ = 1.5406 Å) radiation. Scanning electron microscopy (SEM) analyses were performed on a Hitachi S-1510 electron microscope.

Figure 1 shows the XRD patterns of S-SAPO-5 in the absence or presence of CTAB. All samples exhibited a series of well-resolved characteristic and strong peaks associated with the AFI structure ^[12], suggesting their high crystallinity. Notably, the spectra also had quite distinguishable peak intensities at 19.74° and 20.97°, assigned to (210) and (002) reflections, respectively. When the solvent-free synthesis was performed without CTAB, the peak at 19.74° was much weaker than that at 20.97°. When CTAB was added (CTAB/Al₂O₃ ratio of 0.015), the intensity of the peak at 20.97° was significantly reduced; an increase in the CTAB/Al₂O₃ ratio to 0.24 led to the peak at 19.74° becoming much stronger in intensity than the peak at 20.97°. These results indicate that the addition of the CTAB strongly influenced the growth of the SAPO-5 crystals in the (002) direction.

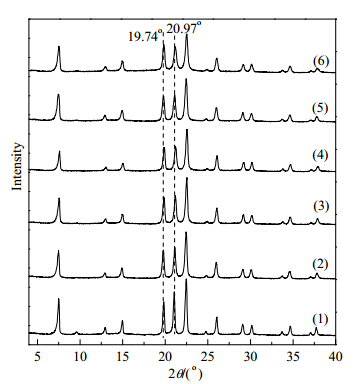

Fig. 1. XRD patterns of S-SAPO-5 synthesized with different CTAB/Al2O3 ratios of (1) 0, (2) 0.015, (3) 0.03, (4) 0.06, (5) 0.12, and (6) 0.24.

Figure 2 shows SEM images of S-SAPO-5 synthesized with various amounts of CTAB. When the synthesis was absent of CTAB, the product morphology was spherical. When a small amount of CTAB was added (CTAB/Al₂O₃ ratio at 0.015) the zeolite became discus-like. At a CTAB/Al₂O₃ ratio of 0.03, the morphology of the zeolite became plate-like with thickness of about 200 nm. A similar morphology was obtained at a higher CTAB/Al₂O₃ ratio of 0.24, but the plate thickness was greatly reduced to 50-70 nm.

Fig. 2. SEM images of S-SAPO-5 synthesized with different CTAB/Al2O3 ratios of (a) 0, (b) 0.015, (c) 0.03, (d) 0.06, (e) 0.12, and (f) 0.24.

Obviously, the presence of CTAB in the solvent-free synthesis strongly influenced the zeolite morphology.

Generally, surfactants such as CTAB are typical templates for the synthesis of ordered mesoporous materials such as MCM-41, where the surfactant micelles present in the water direct the formation of meso-structure. However, in the solvent-free synthesis, the formation of micelles is difficult owing to the absence of water. Therefore, we cannot explain this phenomenon in terms of the formation of surfactant micelles in the solvent-free synthesis. One possibility is that the surfactant molecules might selectively adsorb onto certain surfaces of the zeolite crystals, hindering growth at those surfaces. As observed in Fig. 1, the (002) direction of the SAPO-5 crystals was strongly suppressed after the addition of CTAB to the solvent-free synthesis, confirming this suggestion. As a result, plate-like crystals of SAPO-5 were finally obtained.

Figure 3 shows SEM images of S-SAPO-5 synthesized in the presence of F127 and glucose. Clearly, both products also had plate-like morphology. These results indicate that the plate-like morphology of SAPO-5 was not only limited to the use of CTAB, and many additives might be suitable.

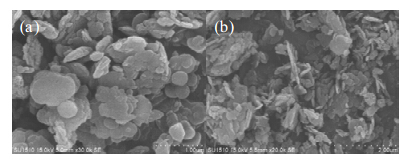

Fig. 3. SEM images of S-SAPO-5 synthesized in the presence of F127 (a) and glucose (b). The ratio of F127 or glucose to Al2O3 was 0.015.

CTAB was also used to adjust the morphology of APO-11 crystals. Figure 4 shows XRD patterns and SEM images of solvent-free synthesized APO-11 zeolites in the absence and presence of CTAB. Interestingly, when the synthesis was absent of CTAB, the product S-APO-11 was spherical, while a plate-like product S-APO-11-CTAB morphology was obtained when the CTAB was added. Thus, CTAB also played an important role in controlling the morphology of APO-11 synthesized under solvent-free conditions.

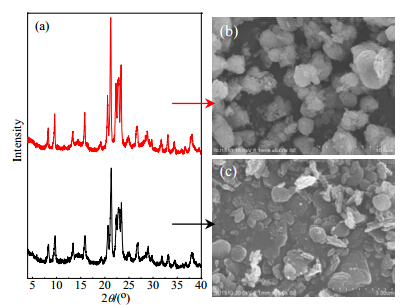

Fig. 4. XRD patterns (a) and SEM images (b, c) of S-APO-11 synthesized in the absence (b) and presence (c) of CTAB. The CTAB/Al2O3 ratio was 0.015.

In summary, SAPO-5 crystals with plate-like morphology were successfully synthesized in the presence of CTAB under solvent-free conditions. Most importantly, the use of surfactants to control product morphology in our solvent-free synthesis method may be extended to the synthesis of other zeolites such as APO-11. The present approach is expected to be favorable for designing and preparing highly active zeolite catalysts.
