Zeolites are one of the most important class of porous materials and are widely used as catalysts, adsorbents, and ion exchangers. The wide application of zeolites in the chemical and petrochemical industries is due to their unique pore topologies and tunable acid-base properties ^[1]. The catalytic performance of a zeolite in a heterogeneously catalyzed process is strongly dependent on the acidic property and pore structure. All the fundamental issues can be addressed on the basis of the characterization of the zeolite, investigation of the acidic property of the zeolite and elucidation of the catalytic reaction by various spectroscopic techniques.

Solid state NMR spectroscopy is a well-established spectroscopic tool for the structural characterization and kinetics study of solid materials at the atomic scale ^[2]. The chemical composition of a solid material can be elucidated from the chemical shifts. The nuclear environment in a solid can be investigated using 2D homo- and hetero-nuclear correlation experiments, which are based on coherence transfer by either J coupling or dipolar coupling. The J- and dipolar interactions give information about through-bond connectivity and through-space proximity. Meanwhile, homo- and hetero-nuclear dipolar interactions can provide an accurate measurement of the inter-nuclear distances.

With the development of solid state NMR methodologies and high field spectrometers, solid state NMR is an important tool to use to address various fundamental scientific issues in zeolitic systems. Various state-of-the-art solid state NMR techniques facilitate the applications of solid state NMR techniques for the determination of the topological structure of zeolites, characterization of the active sites in zeolites, observation of the detailed host-guest interactions inside zeolites and elucidation of the crystallization process and catalytic reaction mechanism of zeolites. Here, recent progress in solid state NMR characterization of the topological structures, active sites (acid sites) and host-guest interactions are briefly reviewed, but progress on in situ solid state NMR characterization of catalytic reactions in zeolites is not included.

Determination of a zeolite structure usually relies on the X-ray diffraction (XRD) approach. However, it is difficult to use powder XRD to solve the structure of a zeolite that cannot form single crystals. The intra-molecular distances are of great significance in solving the three-dimensional structure of a zeolite. To establish the ²⁹Si-²⁹Si correlation and determine the long range Si-Si distances in a zeolite framework, Levitt et al. ^{[3, 4]} introduced a new type of ²⁹Si magic angle spinning (MAS) NMR experiment by incorporating the homo-nuclear dipolar recoupling sequence SR26₄¹¹. In the two-dimensional (2D) ²⁹Si double-quantum (DQ) MAS NMR spectrum of zeolite Sigma-2 shown in Fig. 1(a), the spatial proximity of the different ²⁹Si sites was manifested. The presence of a signal in the ²⁹Si DQ MAS spectrum indicated that two silicon sites were in close proximity as the DQ coherence observed was strongly dependent on the internuclear distance. The peaks that occur along the diagonal (ω, 2ω) were autocorrelation peaks resulting from the dipolar interaction of silicon sites with the same chemical shift, while pairs of off-diagonal peaks at (ω_a, ω_a+ω_b) and (ω_b, ω_a+ω_b) corresponded to correlations between two silicon sites with different chemical shifts. The autocorrelation peaks for the 1-1 pair were clearly observed in the dipole-based ²⁹Si DQ MAS spectrum (Fig. 1(a)), while these were absent in the J-based ²⁹Si DQ MAS spectrum (Fig. 1(b)). This revealed that a direct bond connectivity for Si₁-Si₁ was likely not present, while there was long range spatial proximity between Si₁-Si₁ pairs. The long range ²⁹Si-²⁹Si distances of various Si-Si pairs can be extracted from the ²⁹Si DQ curves as a function of the homo-nuclear recoupling time ^{[3, 4]}. In addition, as shown in Fig. 1(b), the two-bond ²⁹Si-²⁹Si connectivity in Sigma-2 can also be obtained from a 2D J coupling-based refocused INADEQUATE experiment ^[4]. Both the spatial proximity and bond connection information can be obtained from the ²⁹Si-²⁹Si correlations from the dipolar and J coupling interactions.

Fig. 1. 2D 29Si DQ correlation spectra of Sigma-2 acquired with (a) SR26411 dipolar recoupling sequence and (b) J coupling-based refocused INADEQUATE [4].

Short and long range ²⁹Si-²⁹Si distances are of great importance in determining the 3D structure of zeolites. With the unit cell parameters and space group from powder XRD, the 3D topological structure of purely siliceous zeolites can be accurately determined from the long range and short range ²⁹Si-²⁹Si distances obtained from the 2D ²⁹Si MAS NMR experiments ^[3]. This method opens up a new high resolution structure determination of zeolites by solid state NMR spectroscopy.

The anisotropy of the ²⁹Si shielding interactions arising from the Si environments of different tetrahedral geometries strongly depend on the structure of the zeolite. The structure of the zeolite can be extracted by the incorporation of the ²⁹Si chemical shift anisotropy (CSA). Fig. 2 shows the CSA pattern of the 7 distinct Si sites of ZSM-12 zeolite using a robust 2D CSA recoupling pulse sequence ^[5]. After line shape fitting of the CSA pattern, the principal components of the ²⁹Si CSA tensors of the 7 distinct Si sites were quantitatively determined. The best fit values of the isotropic chemical shift (δ_iso) and asymmetry parameter (η) for each distinct Si sites can then be calculated. The ²⁹Si CSA is very sensitive to the local structure around each Si atom. Thus, the measurement and ab initio calculation of the ²⁹Si shielding tensors can be incorporated into the NMR crystallography of the zeolite to refine the structure of the zeolite ^[5]. The strategy from ²⁹Si CSA is helpful in the structural determination of a zeolite in which the diffraction techniques provided limited information due to the structural complexity of the zeolite.

Fig. 2. (a) 1D 29Si MAS NMR spectrum of ZSM-12 zeolite. (b) Experimental (solid lines) and best fit simulated (dashed lines) quasi-static CSA recoupled line shapes for the indicated Si sites from the 2D spectrum of ZSM-12 [5].

Theoretical calculations can also be applied to determine the topological framework structure of the zeolite on the basis of ²⁹Si NMR chemical shifts. Hammond et al. ^[6] demonstrated that the framework structure of nitrogen-doped zeolites can be elucidated from the ²⁹Si MAS NMR spectra in conjunction with quantum chemical calculations. In addition, the zeolite structure can also be resolved from the ²⁹Si NMR chemical shifts and scalar coupling in conjunction with quantum chemical calculations. Cadars and coworkers ^[7] proposed that the ²⁹Si J coupling interaction can be used as a sensitive probe for the local structure of the zeolite framework and offers new opportunities for solving complicated zeolite structures.

The acidity of the zeolite dictates its catalytic performance in hydrocarbon reactions. Thus, an investigation of the acid sites is crucial for the design, modification and application of zeolites. The most important features in the acidity characterization lie in the precise determination of the acid type (Brönsted Brönsted or Lewis), strength, concentration, and distribution (or location) of the acid sites ^{[8, 9]}.

¹⁷O MAS NMR was proposed by Peng et al. ^[10] for investigating the Brönsted acid site in a zeolite. An ¹⁷O isotopically-enriched zeolite was prepared by the calcination of the zeolite in an ¹⁷O-enriched oxygen atmosphere to incorporate ¹⁷O atoms into the zeolite framework. To detect the ¹⁷O site in the Brönsted acid sites, several solid state NMR techniques including ¹H-¹⁷O REDOR and ¹H-¹⁷O HETCOR were conducted ^{[10, 11, 12]}.

Fig. 3 shows the ¹⁷O{¹H} REDOR NMR spectra of ¹⁷O-enriched HY zeolite ^[10]. The intensity of the shoulder at δ = -24 decreased significantly in the double resonance experiment, while the intensity of the broad peak at δ = 21 remained almost unchanged. According to the double resonance experiment, the shoulder signal at δ = -24 can be associated with the oxygen site in the Brönsted acid site (Si-OH-Al), while the broad peak at δ = 21 was assigned to the framework oxygen site in the Si-O-Si linkages ^[10]. A ¹H-¹⁷O CP-REDOR NMR experiment was further applied to determine the O-H distance in zeolite HY. The O-H distance was measured to be 0.098-0.101 nm ^[11]. The ¹⁷O isotropic chemical shifts (δ) and quadrupolar coupling parameters for the oxygen sites in Brönsted acid site were extracted from the ¹H-¹⁷O CP-HETCOR NMR spectra ^[11]. Brönsted acid sites in other zeolites, including H-ZSM-5 and H-mordenite, were also investigated by ¹⁷O MAS NMR spectroscopy, which provided insights into the active centers in acid-mediated zeolite catalysis ^{[11, 12]}.

Fig. 3. 17O-1H REDOR NMR spectra of 17O-enriched HY zeolite. The difference spectrum was obtained by subtracting the double resonance spectrum from the control spectrum [10].

The hydrothermal treatment of a zeolite usually results in the dealumination of the zeolite framework, which improves not only the thermal stability, but also the catalytic activity of the zeolite ^[13]. In zeolites, the 4-coordinate framework aluminum is associated with the Brönsted acid site (SiOHAl), while extra-framework aluminum (EFAL) species released from the zeolite framework during the dealumination acts as a Lewis acid site. Oxoaluminum cations, such as AlO⁺, Al(OH)₂⁺ and AlOH²⁺, and some neutral species such as AlOOH and Al(OH)₃, were proposed as EFAL species although their detailed structures were not known ^[14]. Although there is no direct experimental evidence, a Brönsted/Lewis synergy was proposed to interpret the high catalytic activity of dealuminated zeolites. In order to better understand the synergy effect between Brönsted and Lewis acids, advanced 2D solid state NMR methods, such as ¹H ^[15] and ²⁷Al ^[16] double-quantum (DQ) magic angle spinning (MAS) NMR spectroscopy methods, were utilized to investigate the spatial proximity of the different acid sites in various zeolites.

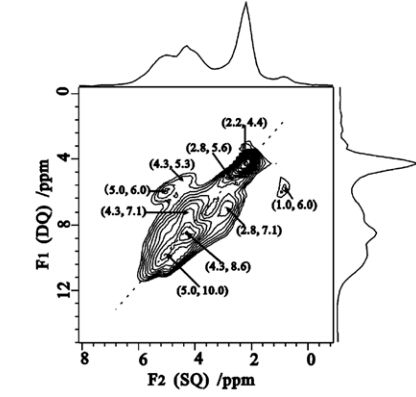

The 2D ¹H DQ MAS NMR experiment is a robust technique for probing proton-proton proximities in materials. 2D ¹H DQ MAS NMR was employed by Li et al. ^[17] for the first time to explore the spatial proximities of the various acid sites in dealuminated HY zeolites. Fig. 4 shows the 2D ¹H DQ MAS spectrum of dealuminated HY. Several types of correlation peaks were observed. The autocorrelation peaks at δ = (4.3, 8.6) and δ = (5.0, 10.0) suggested the spatial proximity of Brönsted acid sites in the supercage and sodalite cage, respectively. The autocorrelation peak at δ = (2.2, 4.4) resulted from the formation of silanol groups during dealumination. Another autocorrelation peak at δ = (2.8, 5.6) was due to EFAL species containing more than one hydroxyl groups. In addition, the off-diagonal peak pair at δ = (2.8, 7.1) and δ = (4.3, 7.1) represented the correlation between an extra-framework AlOH group and a Brönsted acidic proton in the supercage, suggesting the spatial proximity between the Brönsted and Lewis acid sites. Moreover, the results from ¹³C NMR of adsorbed acetone and DFT calculation demonstrated that the spatial proximity of the Brönsted and Lewis acid sites resulted in a synergy effect that considerably enhanced the Brönsted acid strength of the dealuminated HY zeolite ^[17]. To measure the average ¹H-¹H distance between various hydroxyl groups, additional 2D ¹H DQ MAS NMR experiments were performed with varying DQ recoupling time. The ¹H-¹H distance between a Brönsted acidic proton and an extra-framework AlOH species in the supercage was determined to be 0.43 nm ^[18].

Fig. 4. 2D 1H DQ MAS NMR spectra of dealuminated HY [17].

By using similar techniques, a comprehensive study was carried out to probe the spatial proximities between the different acid sites in H-Y zeolite with different dealumination treatments (including calcination, steaming, and acid leaching) ^[18]. It was found that the Brönsted/Lewis acid synergy effect was always present in the samples prepared by the thermal and hydrothermal treatments, but absent in the samples prepared by the acid leaching treatment ^[18]. These findings provided insights into the roles of the Lewis acid and its synergy with the Brönsted acid in zeolite-mediated hydrocarbon reactions.

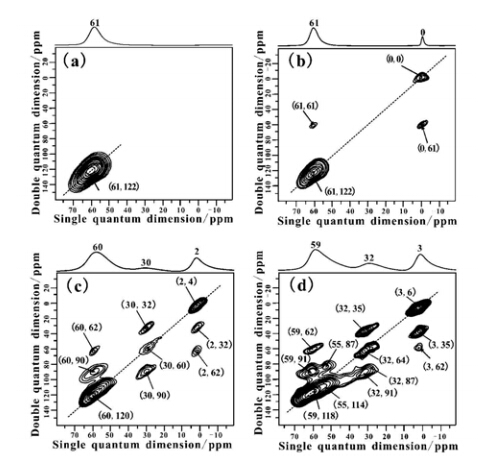

In addition to 2D ¹H DQ MAS NMR, 2D ²⁷Al DQ MAS NMR can also be used to investigate the Brönsted and Lewis acid synergy in dealuminated zeolites. By utilizing a sensitivity-enhanced 2D ²⁷Al DQ MAS NMR technique ^[20], the spatial proximities of various Al species in dealuminated HY zeolites were demonstrated ^[19]. Fig. 5 shows the 2D ²⁷Al DQ MAS NMR spectra of the parent HY and calcined HY zeolites. For the parent HY, as shown in Fig. 5(a), the autocorrelation peak at δ = (61, 122) indicated that the four-coordinate framework Al (FAL) species were in close proximity to one another. For the HY zeolite calcined at 500 °C (denoted as HY-500), the cross peak pair at δ = (61, 61) and δ = (0, 61) resulted from the spatial proximity of the four-coordinated FAL and the six-coordinated EFAL (see Fig. 5(b)), implying the existence of Brönsted and Lewis acid synergy in the dealuminated HY zeolite. For the HY-600 sample, three kinds of aluminum species including four-coordinated FAL, five-coordinated EFAL and six-coordinated EFAL were in close proximity (Fig. 5(c)). In the 2D ²⁷Al DQ MAS NMR spectrum of the HY-700 sample (Fig. 5(d)), the correlation peak pair at δ = (55, 87) and δ = (32, 87) was ascribed to the spatial proximity between four-coordinated EFAL species and five-coordinated EFAL species. On the basis of the experimental observations, the detailed spatial correlations among the various aluminum species in hydrated HY zeolites after dealumination were clearly identified. In combination with DFT theoretical calculation, a new dealumination mechanism was proposed and three types of EFAL species in close proximity to the framework aluminum were identified in dealuminated HY zeolites ^[19]. The spatial proximities of the Brönsted and Lewis acid sites in highly siliceous zeolites, such as H-MOR, H-ZSM-5, and MCM-22 zeolites ^[21], were also investigated by 2D ¹H and ²⁷Al DQ MAS NMR experiments. It was found that the Brönsted and Lewis acid synergy was present in these highly siliceous zeolites as well.

Fig. 5. 2D 27Al DQ-MAS NMR spectra of (a) parent HY, (b) HY-500, (c) HY-600, and (d) HY-700 zeolites. 1D 27Al MAS spectra are plotted on top of the 2D 27Al DQ MAS spectra [19].

To measure the Brönsted acid density in a zeolite, Peng et al. proposed a new method of using diphenyldiphosphines, Ph₂P(CH₂)_nPPh₂ (n = 1, 3, 6), which are molecules having two basic sites. 2D ³¹P-³¹P DQ MAS NMR experiments were employed to probe the ³¹P-³¹P inter-nuclear distances ^[22]. Using this technique, the density and distribution of the Brönsted acid sites in HY and H-ZMS-5 zeolites with different Si/Al ratios were investigated ^[23].

Dynamic nuclear polarisation (DNP) NMR makes it possible to transfer the large Boltzman polarization of the electron spin reservoir to the nuclear spin reservoir to provide a boost in NMR signal intensity by several orders of magnitude. This dramatically increases the signal intensity and data acquisition rate in NMR experiments ^[25]. The development of the DNP technique is very promising for probing surface functionality in functional materials. In DNP surface enhanced NMR spectroscopy (DNP SENS) ^[26], a porous or particulate sample is wetted with a radical solution. The large polarization of the unpaired electrons of the radicals is then transferred to the surrounding nuclear spin with a typical signal enhancement of between 10 and 100. Recently, the DNP SENS technique was used to characterize a ¹¹⁹Sn-Beta zeolite, in which a ¹¹⁹Sn NMR signal enhancement (ε) of 75 was gained using biradicals ^[27]. In combination with theoretical calculations, structural information on the active site in the Sn-β zeolite was achieved ^[24].

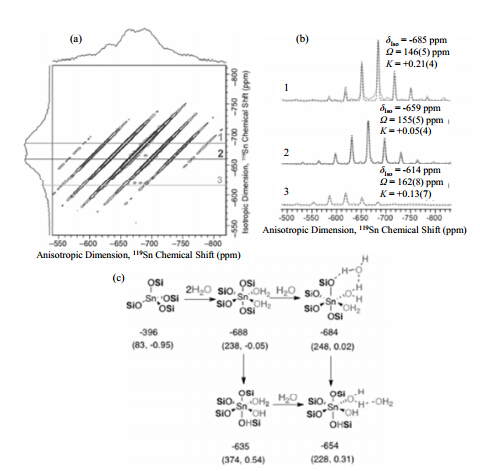

Fig. 6 shows the ¹¹⁹Sn DNP-SENS CP magic angle turning (CPMAT) spectra of 5 wt% Sn-β zeolite ^[24]. The isotropic NMR spectrum was observed in the indirect dimension (F₁) and the normal anisotropic CP spectrum was observed in the direct dimension (F₂).The chemical shift tensor parameters (δ_iso, and k) were extracted by fitting the sidebands. The signal S3 at δ = -614 was similar to that observed for bulk SnO₂, which is consistent with the octahedral environment of Sn in SnO₂. In addition, the other two signals at δ = -659 (S2) and δ = -685 (S1) were associated with a slightly different CSA parameter. The chemical shifts and the skewness (k) close to 0 indicated a slightly distorted octahedral Sn environment. The 2D CP/MAT experiment on 1 wt% Sn-β showed two peaks at δ = -659 and δ = -685 with similar CSA parameters to those observed with the 5 wt% Sn-β sample, which is consistent with the presence of similar species and suggested that the increased loading did not change the nature of the Sn species but only their ratio ^[24]. To relate these observations to the local structure of the Sn environment, DFT calculations of cluster models were carried out to assign the observed NMR signals. These are shown in Fig. 6(c). By combining DNP-SENS spectroscopy and DFT calculations, it was shown that the active sites of Sn-β zeolite was an octahedrally coordinated Sn^IV involving tetrahedral Sn-sites and two water molecules ^[24].

Fig. 6. (a) 105 K 119Sn DNP-SENS CP magic angle turning (CPMAT) spectra of 5 wt% Sn-β zeolite; (b) CS tensor parameters for the three different isotropic shifts are indicated; (c) Computed 119Sn isotropic chemical shifts for each model [24].

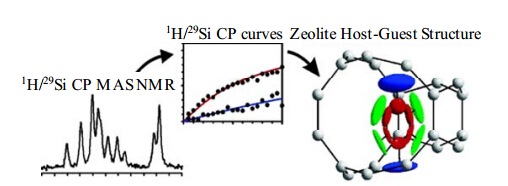

Host-guest interactions between guest molecules and the zeolite framework play essential roles in the shape selectivity in catalytic reactions. Thus, it is necessary to determine reliable structures of the zeolite-sorbate host-guest complexes. Fyfe et al. ^[28] applied ¹H/²⁹Si cross polarization (CP) MAS NMR experiments to determine the location of the guest molecules, adsorbed p-dichlorobenzene (p-DCB), in highly siliceous zeolites. The ¹H-²⁹Si distances between the adsorbed molecule and zeolite framework can be extracted from the measured rates of the ¹H/²⁹Si cross polarization of the different Si sites as shown in Fig. 7. The location of the adsorbed molecule confined in the zeolite cage was calculated by fitting the experimental data as illustrated in Fig. 7 ^[28]. This method provided insight into the host-guest interaction model from the cross polarization from the adsorbate to the zeolite framework.

Fig. 7. Determination of zeolite host-guest structure complex from 1H-29Si CP/MAS NMR spectra [28].

In addition, solid state NMR spectroscopy has also been employed to investigate the host-guest interactions in various ordered mesoporous materials. 2D ¹H-¹³C and ¹H-²⁹Si HETCOR solid state NMR experiments were conducted to explore the structure-properties relationship of periodic mesoporous organosilicas hybrid p-phenylenesilica with crystalline order in the walls ^[29]. By using 2D ¹H-¹³C, ¹H-²⁷Al and ¹H-²⁹Si HETCOR experiments, Chmelka and coworkers ^{[30, 31]} found that in the as-synthesized mesoporous MCM-41 material, tetrahedrally coordinated aluminum and silicon species were in close spatial proximity to the trimethylammonium head groups of the cationic surfactant species.

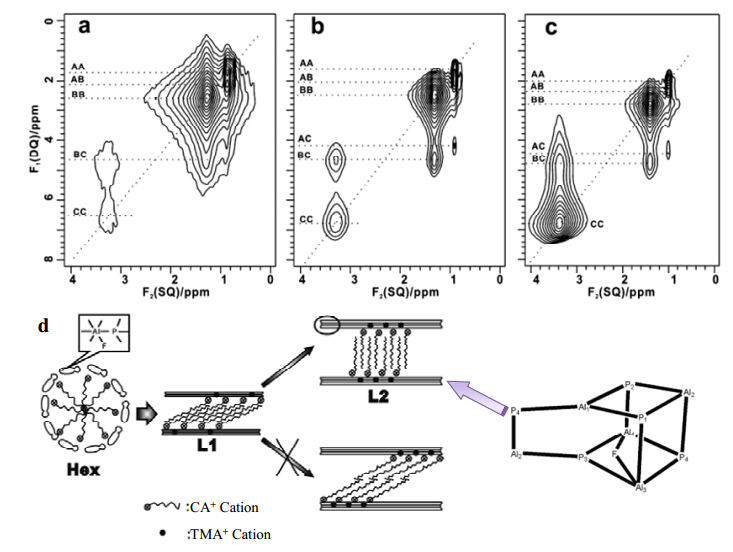

Aluminophosphate molecular sieves (AlPO₄-n) are usually prepared by hydrothermal synthesis and the crystalline molecular sieves are produced from the gel phase. In order to better understand the mechanism of molecular sieve crystallization, it is desirable to obtain detailed structural information for the surfactant in the evolution of the intermediate phases ^[32]. 2D ¹H-¹H DQ MAS NMR was utilized to probe the proton-proton proximities of the various components of the surfactant CTA⁺ to investigate the arrangement of the organic surfactant in the mesostructured aluminophosphate ^[33]. Fig. 8 shows the ¹H DQ MAS NMR spectra of aluminophosphate solids with different hydrothermal treatment time. Peaks A, B and C represented alkyl chain CH₃ protons, alkyl chain CH₂ protons, and polar head N-CH₃/N-CH₂- protons, respectively. In the ¹H DQ MAS NMR spectrum of the 1 h heated sample (Fig. 8(a)), three autocorrelation peaks (AA, BB, and CC) and two pairs of off-diagonal peaks (AB and BC) were clearly observed, which resulted from hexagonal arrays of cylindrical micelles of CTA⁺ cations. When the solid was heated for 3 h (Fig. 8(b)), a new off-diagonal peak AC appeared, indicating the inter-molecular spatial proximity of the nonpolar tail CH₃protons and the polar head N-CH₃/N-CH₂- or N(CH₃)₄⁺ protons in a planar structure, in which the surfactants were aggregated in the inter-digitated bilayer ^[33]. It was revealed that there may be a tilt angle for the long axis of the cetyl chains with respect to the aluminophosphate layers. In the spectrum of the 50 h heated sample (Fig. 8(c)), the off-diagonal peak AC was still observable, suggesting that the CTA⁺ bilayer als o existed in a tail-to-head form. By utilizing ¹H-¹H DQ MAS NMR spectroscopy, the surfactant was found to be arrayed inter-digitated in a bilayer with a tilt angle in the L1 phase while it was perpendicular in the L2 phase, which facilitated the phase transition during molecular sieve crystallization ^[33].

Fig. 8. 2D 1H DQ MAS NMR spectra of aluminophosphate solids with different hydrothermal treatment time (a) 1 h; (b) 3 h; (c) 50 h. The arrangement of the organic surfactant in the mesostructured aluminophosphate during crystallization process (d) [33].

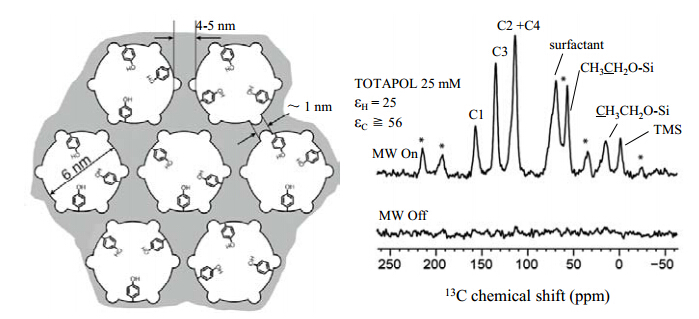

Solid state NMR spectroscopy is a robust technique for characterizing inorganic-organic hybrid mesostructured materials. It offers the possibility to directly investigate both bulk (silica and/or alumina) and surface functionalities such as adsorbates, grafted molecules and organic fragments. However, the lower sensitivity of conventional solid state NMR methods prevents the precise exploration of host-guest interaction in functionalized mesostructured materials. Recently, Lesage and coworkers ^[34] utilized DNP-enhanced solid state NMR to investigate the host-guest interaction in the functionalization of siloxanes. Fig. 9 displays the ¹³C CP MAS spectra of the organic-inorganic mesostructured materials in which the surface was functionalized with phenol. The spectrum was collected using the TOTAPOL radical as the polarization agent. Spectra were obtained with and without microwave irradiation. The signal enhancement factor was estimated to be greater than 56, which enabled the investigation of the surface substrate with its natural isotopic abundance. In addition, 2D surface-enhanced ¹H-²⁹Si DNP NMR spectra was further employed to identify and compare the bonding topology of the functional groups in materials obtained from a sol-gel process or by post-grafting reactions ^[35].

Fig. 9. 13C CP MAS spectra of organic-inorganic mesostructured materials in which the surface was functionalized with phenol with and without MW irradiation at 263 GHz to induce DNP [34].

Host-guest interactions between the reactants and active sites play essential roles in adsorption, desorption and the catalytic reaction, which strongly influence the performance (activity and selectivity) of heterogeneous catalysts. The study of the host-guest interaction in zeolites is a straightforward and practical way for better understanding of the detailed mechanism of the catalytic reaction ^[36]. This information can be obtained from ¹³C-{²⁷Al} symmetry-based rotational-echo saturation-pulse double-resonance (S-RESPDOR) experiments ^[37].

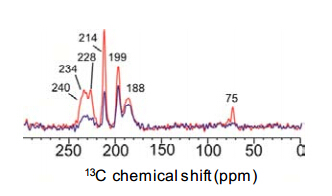

Fig. 10 shows the ¹³C MAS spectra of 2-¹³C-acetone adsorbed on dealuminated HY zeolite acquired with and without ¹³C-²⁷Al dipolar dephasing ^[38]. The interaction strength between the guest molecule and the acid site is shown by the ratio of S and S₀. It can be clearly observed that all the signals in the chemical shift range of δ = 228-240 were subject to a strong ¹³C-²⁷Al dipolar dephasing, which was ascribed to either a hydrogen bond interaction between the carbonyl oxygen of acetone and the Brönsted acid proton or to acetone directly bonded to the Al atom of the Lewis acid site. The smaller dephasing for the carbonyl group (214 ppm) ^[39] probably resulted from steric hindrance due to the larger size of diacetone alcohol/mesityl oxide. The vinyl groups of mesityl oxide associated with the signals in the δ = 188-199 range showed a smaller ¹³C-²⁷Al dipolar dephasing. The quaternary carbon at δ = 75 showed an intense ¹³C-²⁷Al dipolar dephasing, which was possibly due to the strong hydrogen bond interaction between the neighboring OH group in diacetone alcohol and the Brönsted acid site ^[38]. Therefore, the ¹³C-²⁷Al solid state NMR technique provided experimental evidence of the interaction model between acetone and the Brönsted and Lewis acid sites in dealuminated HY zeolite. By utilizing the ¹³C-{²⁷Al} S-RESPDOR experiment ^[40], the distances between adsorbed acetone and the reaction active centers were quantitatively determined ^[38]. In addition, the spatial interaction between adsorbed reactants with the different active centers (Brönsted and Lewis acids) was also clearly manifested from the 2D ²⁷Al-{¹³C} D-HMQC experiment ^[41].

Fig. 10. 13C MAS NMR spectra of 2-13C-acetone loaded on dealuminated HY zeolite. Blue and red lines represent the spectra observed with (S) and without (S0) 13C-{27Al} S-RESPDOR dipolar dephasing [38].

Several persistent reaction intermediates, such as 5- or 6- cyclic carbocations ^[42] and methoxy species ^[43], have been experimentally observed in zeolites using in situ MAS NMR techniques. Although the host-guest interactions between the reactants and intermediates and the acid sites can be easily demonstrated from DFT theoretical calculations ^[44], the experimental evidence to describe these kinds of interaction are still lacking. The combination of in situ MAS NMR and ²⁷Al-{¹³C} S-RESPDOR experiments may give a new avenue for monitoring different reactions and elucidating the reaction mechanism in heterogeneous catalysis.

Solid state NMR is a well-established tool for the characterization of acid sites, determination of structure and investigation of host-guest interactions and catalytic reaction mechanisms over zeolites. In order to obtain a deeper insight into the structure-property relationship of zeolites, it is desirable to further develop solid state NMR techniques that enhance sensitivity and improve spectral resolution. This can be achieved by the design of versatile and robust NMR 1D or 2D pulse techniques and the hardware development of ultrahigh field NMR spectrometers. DNP is a very promising technique for enhancing NMR signals, and can be ultilized to detect previously undetectable NMR signals in zeolite systems. As external paramagntic centers must be introduced, the DNP technique has been only applied to study the surface property of mesoporous materials and the active sites in zeolites. It is still a challenge to study heterogeneously catalyzed reactions occuring in zeolites with the DNP technique. The fast acquisition methods and ultrahigh field spectroscopy involving quadrupolar nuclei facilitate the detection of active centers that have low sensitivity in zeolites.
