Citation: WANG Fei, TIAN Yi-Guang, ZHANG Qiao. Synthesis, Crystal Structure and luminescent Properties of Sr_0.955Al_2-xB_xSi₂O₈: 0.025Eu²⁺ Phosphors[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(6): 1085-1092. doi: 10.11862/CJIC.2019.126 shu

Synthesis, Crystal Structure and luminescent Properties of Sr_0.955Al_2-xB_xSi₂O₈: 0.025Eu²⁺ Phosphors

WANG Fei ^1,2,, ,
TIAN Yi-Guang ^3,, ,
ZHANG Qiao ³

1.
Experimental Center of Anhui Sanlian University, Hefei 230601, China
2.
College of Chemistry and Chemical Engineering, Anhui University, Hefei 230601, China
3.
College of Chemistry and Materials Engineering, Wenzhou University, Wenzhou, Zhejiang 325035, China

Corresponding author: WANG Fei, wangfchina@163.com TIAN Yi-Guang, gytian@wzu.edu.cn
Received Date: 27 December 2018
Revised Date: 10 April 2019

Figures(11)

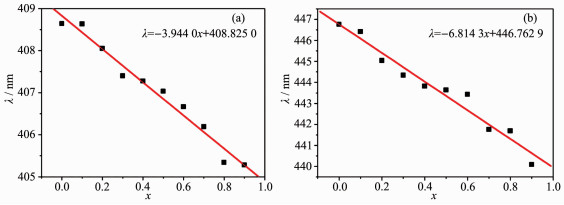

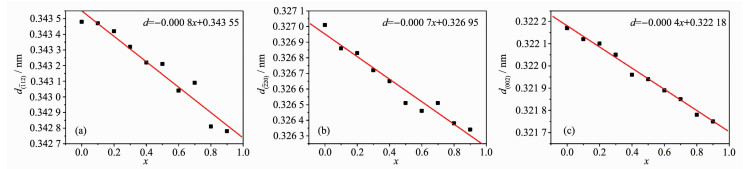

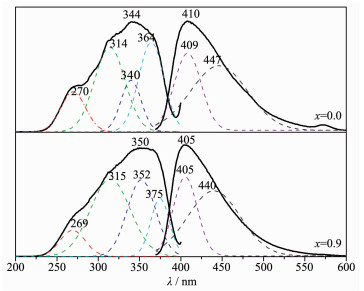

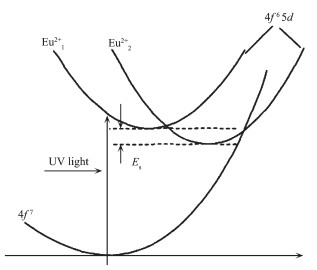

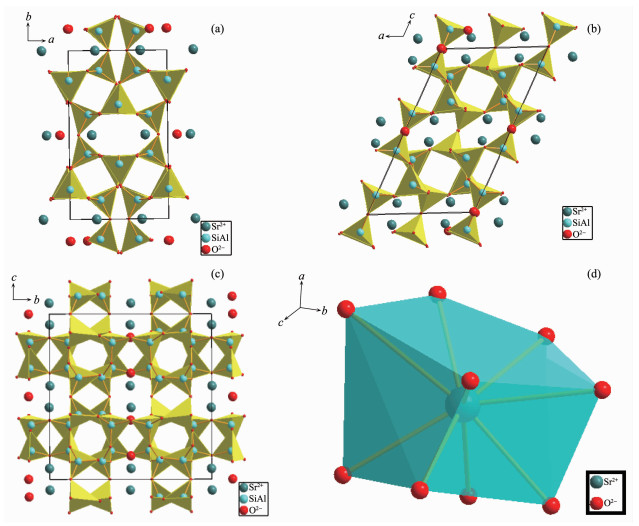

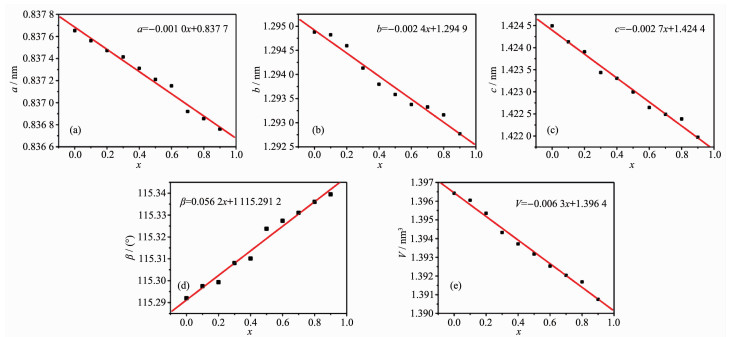

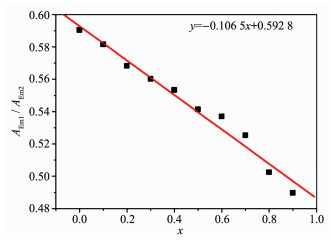

A series of luminescence phosphors Sr_0.955Al_2-xB_xSi₂O₈:0.025Eu²⁺ (x=0~0.9) were prepared via solid-state reaction in a weak reductive atmosphere. The lattice positions and the luminescent mechanism of Eu²⁺ in the host were discussed, the effects of B(Ⅲ)-substitution on the host lattices and spectral properties were also investigated. It was found that the complete solid solutions were formed in the whole range of x=0~0.9, as B(Ⅲ) substituted for Al(Ⅲ) entered to SrAl₂Si₂O₈. The lattice parameters (a, b, c) and unit cell volume (V) of phosphors Sr_0.955Al_2-xB_xSi₂O₈:0.025Eu²⁺ (x=0~0.9) decreased linearly and lattice parameter (β) increased linearly as the increase of substitution amount of B(Ⅲ). A broad excitation spectrum consisted of four excitation bands, which was in a range of 225~400 nm, and an apparent peak at 350 nm. Full width at half maximum (FWHM) increased from 90 to 102 nm as increase of the substitution amount of B(Ⅲ). The emission spectrum was a broad-band in a range of 370~600 nm, which could be fitted two peaks of 409 and 447 nm, and its apparent peak was at 409 nm. Two fitted peaks were blue shifted and the intensity ratio of the fitted peaks decreased linearly as the increase of the substitution amount of B(Ⅲ)). The coordination number of Sr²⁺ was 9 in SrAl₂Si₂O₈:Eu²⁺, which has been confirmed by the experimental results and empirical formula of Van Uitert. The distance between the luminescent center Eu and the ligand O increased due to the Al(Ⅲ) replaced by B(Ⅲ), so that the crystal field strength of Eu²⁺ decreased, and the 5d energy level split of the luminescent center Eu²⁺ decreased, the center of gravity of the lowest emission level of Eu²⁺ was shifted upward, and the two fitted peaks were linearly blue-shifted.
- luminescence,
- SrAl₂Si₂O₈:Eu²⁺,
- B(Ⅲ)-substitution,
- crystal structure,
- luminescent properties
1. [1]
  Nakamura S, Mukai T, Senoh M. Appl. Phys. Lett., 1994, 64:1687-1689 doi: 10.1063/1.111832
2. [2]
  Ci Z P, Que M D, Shi Y R, et al. Inorg. Chem., 2014, 53:2195-2199 doi: 10.1021/ic402859s
3. [3]
  Xia Z G, Liu Q L. Prog. Mater. Sci., 2016, 84:59-117 doi: 10.1016/j.pmatsci.2016.09.007
4. [4]
  Lin C C, MeijerinkA, Liu R S. J. Phys. Chem. Lett., 2016, 7:495-503 doi: 10.1021/acs.jpclett.5b02433
5. [5]
  Zhong J S, Chen D Q, Yuan S, et al. Inorg. Chem., 2018, 57:8978-8987 doi: 10.1021/acs.inorgchem.8b00947
6. [6]
  Ye S, Xiao F, Pan Y X, et al. Mater. Sci. Eng. R, 2010, 71:1-34 doi: 10.1016/j.mser.2010.07.001
7. [7]
  Cai P Q, Qin L, Chen C L, et al. Inorg. Chem., 2018, 57:3073-3081 doi: 10.1021/acs.inorgchem.7b02938
8. [8]
  WANG Fei. Acta Photonica Sinica, 2018, 47(8):0816001
9. [9]
  Ray S, Tadge P, Nair G B, et al. Ceram. Int., 2018, 44:5506-5512 doi: 10.1016/j.ceramint.2017.12.190
10. [10]
  Homayoni H, Sahi S, Ma L. J. Lumin., 2018, 198:132-137 doi: 10.1016/j.jlumin.2018.02.042
11. [11]
  Tang Z B, Wang D Y, Khan W U, et al. J. Mater. Chem. C, 2016, 4:5307-5313 doi: 10.1039/C6TC01449F
12. [12]
  Kalaycioglu N O, Circir E. J. Therm. Anal. Calorim., 2013, 111:273-277 doi: 10.1007/s10973-012-2248-z
13. [13]
  Hai O, Jiang H Y, Xu D, et al. Mater. Res. Bull., 2016, 76:358-364 doi: 10.1016/j.materresbull.2015.12.048
14. [14]
  Yang W J, Luo L Y, Chen T M, et al. Chem. Mater., 2005, 17:3883-3888 doi: 10.1021/cm050638f
15. [15]
  Clabau F, Garcia A, Bonville P, et al. J. Solid State Chem., 2008, 181:1456-1461 doi: 10.1016/j.jssc.2008.03.011
16. [16]
  WANG Fei, TIAN Yi-Guang, ZHANG Qiao. Chinese J. Inorg. Chem., 2014, 30(11):2530-2536
17. [17]
  Shang M, Liang S, Qu N, et al. Chem. Mater., 2017, 29:1813-1829 doi: 10.1021/acs.chemmater.6b05493
18. [18]
  Zhou J, Wang Y H, Liu B T, et al. J. Alloys Compd, 2009, 484:439-443 doi: 10.1016/j.jallcom.2009.04.118
19. [19]
  Chiari G, Calleri M, Bruno E, et al. Am. Mineral., 1975, 60:111-115
20. [20]
  Van Uitert L G. J. Lumin., 1984, 29:1-9 doi: 10.1016/0022-2313(84)90036-X
21. [21]
  Dorenbos P. J. Lumin., 2003, 104:239-260 doi: 10.1016/S0022-2313(03)00078-4
22. [22]
  Ye S, Liu Z S, Wang X T, et al. J. Lumin., 2009, 129:50-54 doi: 10.1016/j.jlumin.2008.07.015
