Citation: FENG Ming-Zhu, PENG Tong-Jiang, SUN Hong-Juan, WANG Pei-Cao. Effect of Oxidation Degree on Structure and Cation Exchange Capacity of Graphite Oxide[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(3): 427-433. doi: 10.11862/CJIC.2016.047 shu

Effect of Oxidation Degree on Structure and Cation Exchange Capacity of Graphite Oxide

1.
School of Science, Southwest University of Science and Technology, Mianyang, Sichuan 621010, China
2.
Analytical and Testing Center, Southwest University of Science and Technology, Mianyang, Sichuan 621010, China
3.
Institute of Mineral Materials & Application, Southwest University of Science and Technology, Mianyan, Sichuan 621010, China

Corresponding author: PENG Tong-Jiang, tjpeng@swust.edu.cn
Received Date: 15 September 2015
Revised Date: 19 November 2015

Figures(6)

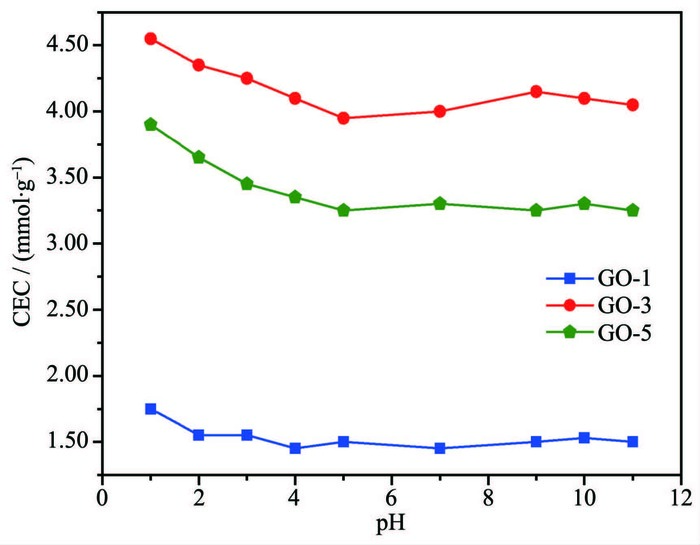

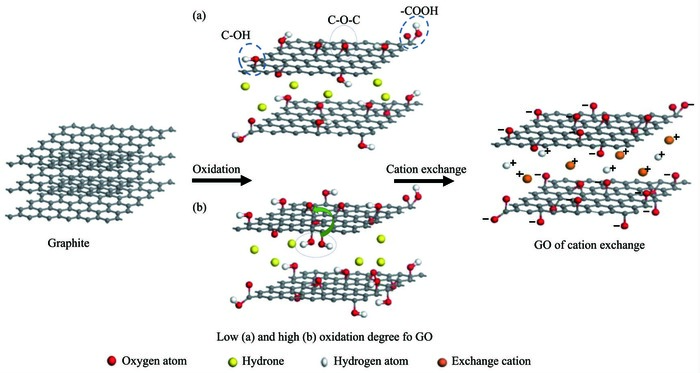

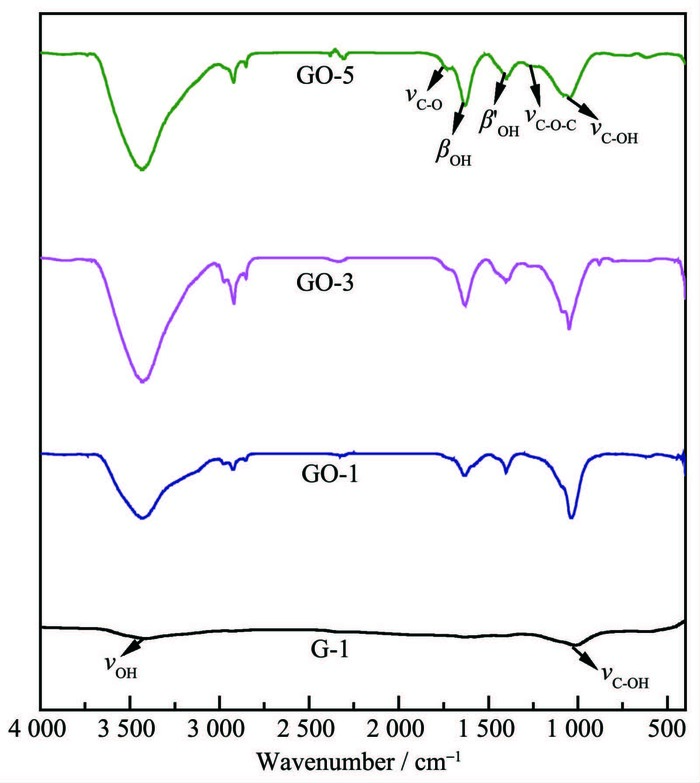

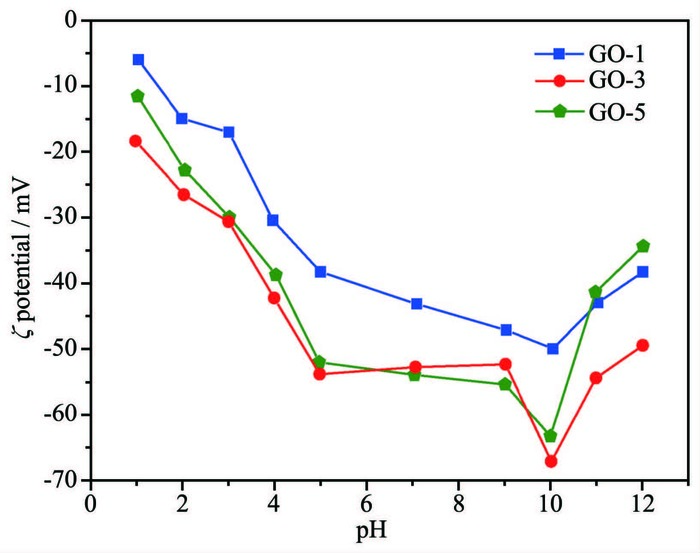

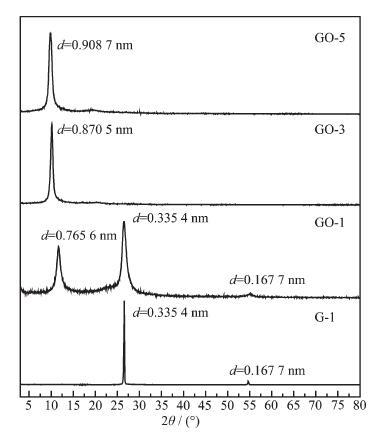

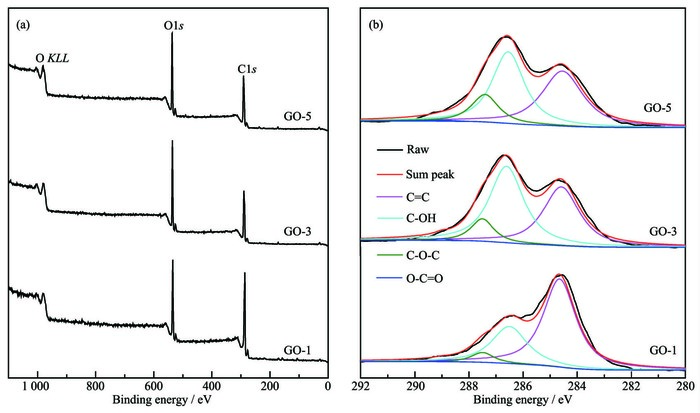

The graphite oxide samples with different oxidation degree were prepared by modified Hummuers method. The kinds and content of oxygen containing functional groups, structure and cation exchange capacity for the experiment process samples were characterized by XRD, FTIR and XPS. The results show: graphite structure layer oxidized have various oxygen-bearing functional groups such as hydroxyl group (C-OH), carboxy group (-COOH) and epoxy group (C-O-C); with the increase of the degree of oxidation, graphite structures gradually and completely converted to the structure of graphite oxide. The content of C-O-C and-COOH increases gradually, and the content of C-OH first increases then decreases. With the increase of the oxidation degree, the cation exchange capacity of graphite oxide samples also increase firstly and then decrease, corresponding to the maximum value of 1.70, 4.50 and 3.80 mmol·g^-1. The C-OH in the carbon basal plane is protonated and H⁺ is generated at the same time. The H⁺ can exchange with other cations in the interlayer of graphite oxide. The content of C-OH is the main factor affecting the cation exchange capacity of graphite oxide, and the cation exchange capacity of graphite oxide samples increase with the increase of the content of C-OH.
- graphite oxide,
- oxidation degree,
- cation exchange capacity
1. [1]
  Fan L, Luo C, Sun M, et al. Bioresour. Technol., 2012, 114: 703-706 doi: 10.1016/j.biortech.2012.02.067
2. [2]
  Szabó T, Hornok V, Schoonheydt R A, et al. Carbon, 2010, 48(5):1676-1680 doi: 10.1016/j.carbon.2009.12.050
3. [3]
  Mauro M, Maggio M, Antonelli A, et al. Chem. Mater., 2015, 27(5):1590-1596 doi: 10.1021/cm504174v
4. [4]
  Gotoh K, Kawabata K, Fujii E, et al. Carbon, 2009, 47(8):2120-2124 doi: 10.1016/j.carbon.2009.03.052
5. [5]
  Szabó T, Szabó-plánka T, Jonas D, et al. Carbon, 2014, 72: 425-428 doi: 10.1016/j.carbon.2014.02.032
6. [6]
  Guimont A, Beyou E, Cassagnau P, et al. J. Polym. Sci., Part A: Polym. Chem., 2013, 4(9):2828-2836
7. [7]
  Chua C K, Sofer Z, Pumera M. Chem. Eur. J., 2012, 18(42): 13453-13459 doi: 10.1002/chem.v18.42
8. [8]
  WAN Chen, PENG Tong-Jiang, SUN Hong-Jun, et al. Chinese J. Inorg. Chem., 2012, 28(5):915-921
9. [9]
  WANG Pei-Cao, SUN Hong-Jun, PENG Tong-Jiang, et al. Chinese J. Inorg. Chem., 2015, 31(2):275-281
10. [10]
  Liu Z, Wang Z M, Yang X, et al. Langmuir, 2002, 18(12): 4926-4932 doi: 10.1021/la011677i
11. [11]
  Matsuo Y, Miyabe T, Fukutsuka T, et al. Carbon, 2007, 45 (5):1005-1012 doi: 10.1016/j.carbon.2006.12.023
12. [12]
  Szabó T, Tombácz E, Illés E, et al. Carbon, 2006, 44(3):537-545 doi: 10.1016/j.carbon.2005.08.005
13. [13]
  FU Lin, LIU Hong-Bo, ZOU Yan-Hong, et al. Carbon, 2006(4):10-14
14. [14]
  Kovtyukhova N I, Ollivier P J, Martin B R, et al. Chem. Mater., 1999, 11(3):771-778 doi: 10.1021/cm981085u
15. [15]
  LI Xue-Mei, LIAO Li-Bing, LI Rui, et al. Rock Mineral Anal., 2008, 27(3):204-206
16. [16]
  Zhu C, Guo S, Fang Y, et al. ACS Nano, 2010, 4(4):2429-2437 doi: 10.1021/nn1002387
17. [17]
  SHEN Zhong, ZHAO Zhen-Guo, WANG Guo-Ting. Colloid and Surface Chemistry. Beijing: Chemical Industry Press, 2011.
1. [1]
  Zhihuan XU , Qing KANG , Yuzhen LONG , Qian YUAN , Cidong LIU , Xin LI , Genghuai TANG , Yuqing LIAO . Effect of graphene oxide concentration on the electrochemical properties of reduced graphene oxide/ZnS. Chinese Journal of Inorganic Chemistry, 2024, 40(7): 1329-1336. doi: 10.11862/CJIC.20230447
2. [2]
  Zhuo WANG , Junshan ZHANG , Shaoyan YANG , Lingyan ZHOU , Yedi LI , Yuanpei LAN . Preparation and photocatalytic performance of CeO₂-reduced graphene oxide by thermal decomposition. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1708-1718. doi: 10.11862/CJIC.20240067
3. [3]
  Zeyu XU , Anlei DANG , Bihua DENG , Xiaoxin ZUO , Yu LU , Ping YANG , Wenzhu YIN . Evaluation of the efficacy of graphene oxide quantum dots as an ovalbumin delivery platform and adjuvant for immune enhancement. Chinese Journal of Inorganic Chemistry, 2024, 40(6): 1065-1078. doi: 10.11862/CJIC.20240099
4. [4]
  Yan LIU , Jiaxin GUO , Song YANG , Shixian XU , Yanyan YANG , Zhongliang YU , Xiaogang HAO . Exclusionary recovery of phosphate anions with low concentration from wastewater using a CoNi-layered double hydroxide/graphene electronically controlled separation film. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1775-1783. doi: 10.11862/CJIC.20240043
5. [5]
  Xiaoning TANG , Shu XIA , Jie LEI , Xingfu YANG , Qiuyang LUO , Junnan LIU , An XUE . Fluorine-doped MnO₂ with oxygen vacancy for stabilizing Zn-ion batteries. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1671-1678. doi: 10.11862/CJIC.20240149
6. [6]
  Chuanming GUO , Kaiyang ZHANG , Yun WU , Rui YAO , Qiang ZHAO , Jinping LI , Guang LIU . Performance of MnO₂-0.39IrO_x composite oxides for water oxidation reaction in acidic media. Chinese Journal of Inorganic Chemistry, 2024, 40(6): 1135-1142. doi: 10.11862/CJIC.20230459
7. [7]
  Kai CHEN , Fengshun WU , Shun XIAO , Jinbao ZHANG , Lihua ZHU . PtRu/nitrogen-doped carbon for electrocatalytic methanol oxidation and hydrogen evolution by water electrolysis. Chinese Journal of Inorganic Chemistry, 2024, 40(7): 1357-1367. doi: 10.11862/CJIC.20230350
8. [8]
  Zhanggui DUAN , Yi PEI , Shanshan ZHENG , Zhaoyang WANG , Yongguang WANG , Junjie WANG , Yang HU , Chunxin LÜ , Wei ZHONG . Preparation of UiO-66-NH₂ supported copper catalyst and its catalytic activity on alcohol oxidation. Chinese Journal of Inorganic Chemistry, 2024, 40(3): 496-506. doi: 10.11862/CJIC.20230317
9. [9]
  Bo YANG , Gongxuan LÜ , Jiantai MA . Nickel phosphide modified phosphorus doped gallium oxide for visible light photocatalytic water splitting to hydrogen. Chinese Journal of Inorganic Chemistry, 2024, 40(4): 736-750. doi: 10.11862/CJIC.20230346
10. [10]
  Siyu HOU , Weiyao LI , Jiadong LIU , Fei WANG , Wensi LIU , Jing YANG , Ying ZHANG . Preparation and catalytic performance of magnetic nano iron oxide by oxidation co-precipitation method. Chinese Journal of Inorganic Chemistry, 2024, 40(8): 1577-1582. doi: 10.11862/CJIC.20230469
11. [11]
  Chunmei GUO , Weihan YIN , Jingyi SHI , Jianhang ZHAO , Ying CHEN , Quli FAN . Facile construction and peroxidase-like activity of single-atom platinum nanozyme. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1633-1639. doi: 10.11862/CJIC.20240162
12. [12]
  Endong YANG , Haoze TIAN , Ke ZHANG , Yongbing LOU . Efficient oxygen evolution reaction of CuCo₂O₄/NiFe-layered bimetallic hydroxide core-shell nanoflower sphere arrays. Chinese Journal of Inorganic Chemistry, 2024, 40(5): 930-940. doi: 10.11862/CJIC.20230369
13. [13]
  Limei CHEN , Mengfei ZHAO , Lin CHEN , Ding LI , Wei LI , Weiye HAN , Hongbin WANG . Preparation and performance of paraffin/alkali modified diatomite/expanded graphite composite phase change thermal storage material. Chinese Journal of Inorganic Chemistry, 2024, 40(3): 533-543. doi: 10.11862/CJIC.20230312
14. [14]
  Hao BAI , Weizhi JI , Jinyan CHEN , Hongji LI , Mingji LI . Preparation of Cu₂O/Cu-vertical graphene microelectrode and detection of uric acid/electroencephalogram. Chinese Journal of Inorganic Chemistry, 2024, 40(7): 1309-1319. doi: 10.11862/CJIC.20240001
15. [15]
  Zhengyu Zhou , Huiqin Yao , Youlin Wu , Teng Li , Noritatsu Tsubaki , Zhiliang Jin . Synergistic Effect of Cu-Graphdiyne/Transition Bimetallic Tungstate Formed S-Scheme Heterojunction for Enhanced Photocatalytic Hydrogen Evolution. Acta Physico-Chimica Sinica, 2024, 40(10): 2312010-. doi: 10.3866/PKU.WHXB202312010
16. [16]
  Hong LI , Xiaoying DING , Cihang LIU , Jinghan ZHANG , Yanying RAO . Detection of iron and copper ions based on gold nanorod etching colorimetry. Chinese Journal of Inorganic Chemistry, 2024, 40(5): 953-962. doi: 10.11862/CJIC.20230370
17. [17]
  Doudou Qin , Junyang Ding , Chu Liang , Qian Liu , Ligang Feng , Yang Luo , Guangzhi Hu , Jun Luo , Xijun Liu . Addressing Challenges and Enhancing Performance of Manganese-based Cathode Materials in Aqueous Zinc-Ion Batteries. Acta Physico-Chimica Sinica, 2024, 40(10): 2310034-. doi: 10.3866/PKU.WHXB202310034
18. [18]
  Peiran ZHAO , Yuqian LIU , Cheng HE , Chunying DUAN . A functionalized Eu³⁺ metal-organic framework for selective fluorescent detection of pyrene. Chinese Journal of Inorganic Chemistry, 2024, 40(4): 713-724. doi: 10.11862/CJIC.20230355
19. [19]
  Wendian XIE , Yuehua LONG , Jianyang XIE , Liqun XING , Shixiong SHE , Yan YANG , Zhihao HUANG . Preparation and ion separation performance of oligoether chains enriched covalent organic framework membrane. Chinese Journal of Inorganic Chemistry, 2024, 40(8): 1528-1536. doi: 10.11862/CJIC.20240050
20. [20]
  Siyu Zhang , Kunhong Gu , Bing'an Lu , Junwei Han , Jiang Zhou . Hydrometallurgical Processes on Recycling of Spent Lithium-lon Battery Cathode: Advances and Applications in Sustainable Technologies. Acta Physico-Chimica Sinica, 2024, 40(10): 2309028-. doi: 10.3866/PKU.WHXB202309028

Get Citation

PDF

XML

Metrics

PDF Downloads(0)
Abstract views(776)
HTML views(159)

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142
