Citation: SU Bi-Tao, HE Fang-Zhen, DONG Na, XIN Jun-Lian, DONG Yong-Yong, JIN Zheng-Juan. One-Step Synthesis of NiFe₂O₄ Magnetic Nanomaterial via Solvothermal Method[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(1): 69-73. doi: 10.11862/CJIC.2016.001 shu

One-Step Synthesis of NiFe₂O₄ Magnetic Nanomaterial via Solvothermal Method

Key Laboratory of Eco-Environment-Related Polymer Materials, Ministry of Education of China, Key Laboratory of Polymer Materials of Gansu Province, College of Chemistry and Chemical Engineering, Northwest Normal University, Lanzhou 730070, China

Corresponding author: SU Bi-Tao, subt0608@163.com
Received Date: 8 July 2015
Revised Date: 15 October 2015

Figures(7)

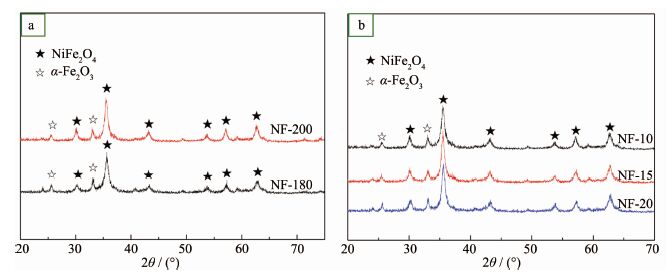

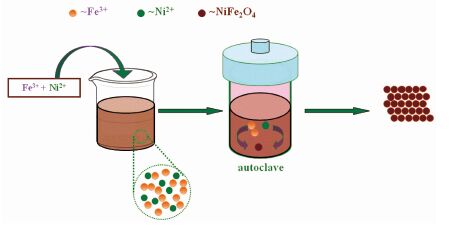

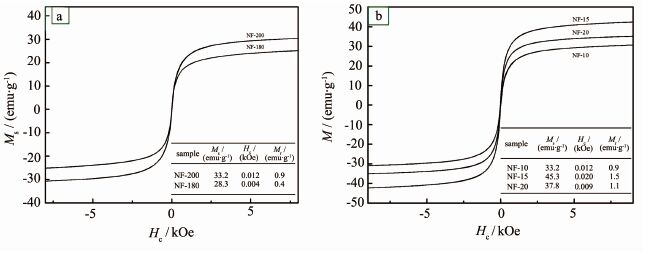

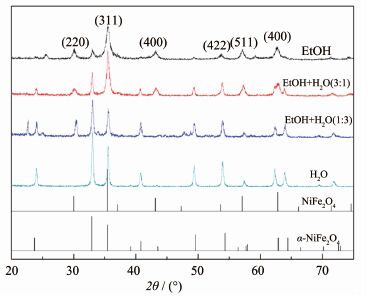

Through optimizing the experimental conditions (including solvent, solvothermal reaction temperature and time), NiFe₂O₄ magnetic nanomaterial with good crystallization and super paramagnetic performance, was prepared by one-step solvothermal method using Fe (NO₃)₃·9H₂O and Ni (NO₃)₂·6H₂O as raw materials and EtOH as solvent without adding any alkaline precipitation agent or high-temperature crystallization process. The results show that the solvents, H₂O and (H₂O+EtOH), are disadvantageous to the target magnetic species NiFe₂O₄.Under the condition of EtOH as solvent, the proper solvothermal temperature and reaction time must be guaranteed in order to obtain NiFe₂O₄ magnetic nanomaterial with high purity. The magnetic properties of prepared materials are related to the content of NiFe₂O₄ and its crystallization degree. The prominent advantages of this preparation method are of simpleness, speediness, low cost, free pollution from the source and friendly-environment. And the prepared materials have excellent magnetic performance.
- NiFe₂O₄,
- magnetic nanomaterial,
- green synthesis of solvothermal method,
- characterization,
- magnetic property
1. [1]
  WU Jin-Mei, SU Gao-Xing, ZHANG Bin, et al. Acta Chim. Sinica, 2013, 71(4): 493-500 doi: 10.6023/A13010088
2. [2]
  Zhong M, Fei B, Su B T, et al. Ind. Eng. Chem. Res., 2013, 52:8230-8235 doi: 10.1021/ie400334c
3. [3]
  Patil J, Nadargi D, Gurav J, et al. Mater. Lett., 2014, 124: 144-147 doi: 10.1016/j.matlet.2014.03.051
4. [4]
  GONG Chun-Hong, DU Chen-Qiang, ZHANG Yu, et al. Chinese J. Inorg. Chem., 2009, 25(9):1569-1574
5. [5]
  Wang X B, Zhu W F, Xu W, et al. Mater. Sci. Eng. B, 2014, 185:1-6 doi: 10.1016/j.mseb.2014.01.004
6. [6]
  HOU Xiang-Yu, HOU Chun-Yang, FENG Jing, et al. Chinese J. Inorg. Chem., 2013, 29(4):855-860
7. [7]
  Sivakumar P, Ramesh R, Ramanand A, et al. Mater. Lett., 2012, 66:314-317 doi: 10.1016/j.matlet.2011.09.005
8. [8]
  Sen P, De A. Electrochim. Acta, 2010, 55:4677-4684 doi: 10.1016/j.electacta.2010.03.077
9. [9]
  Chu X F, Jiang D L, Zheng C M. Sens. Actuators, B, 2007, 123:793-797 doi: 10.1016/j.snb.2006.10.020
10. [10]
  Mahmoud M, Elshahawy A, Salah A, et al. J. Magn. Magn. Mater., 2014, 369:55-61 doi: 10.1016/j.jmmm.2014.06.011
11. [11]
  Pintu S, Amitabha D. Electrochim. Acta, 2010, 55:4677-4684 doi: 10.1016/j.electacta.2010.03.077
12. [12]
  Saensuk O, Phokha S, Bootchanont A, et al. Ceram. Int., 2015, 41:8133-8141 doi: 10.1016/j.ceramint.2015.03.019
13. [13]
  ZHANG Xiu-Ling, SUN Dong-Feng, HAN Yi-Dan, et al. Chinese J. Inorg. Chem., 2011, 27(7):1373-1377
